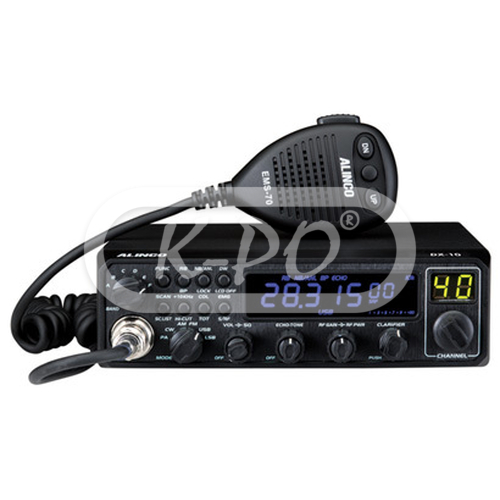

Alinco - DX-10

Product code: 3535
Barcode: 4969182341034

The easy and smooth operation of the Alinco DX-10 is inherited from popular Alinco amateur radio equipment series such as a large back-lit display, excellent transmit/receive audio, SSB modes, 6 banks with up to 60 channel memories each, dual-watch, scanning, SWR meter, key-lock and many more functions.

Frequency range: 28.000 - 29.700 MHz
Out of stock - Longer delivery time
€190.04 (190.04 excl. 0% VAT)

Features

  • Modulation: AM / FM / LSB / USB / CW
  • Output power: AM/FM/CW: 1-12 Watt / USB/LSB: 0-25 Watt
  • Channels: 360 (60 channels per bank, 6 banks)
  • Display type: LED display
  • Display colors: Blue
  • Noise blanker: Yes
  • Squelch: Manual squelch
  • Keypad lock: Yes
  • Hi/Lo power: Yes
  • Scan function: Yes
  • External speaker socket: Yes
  • External PA socket: Yes
  • S-meter: Yes
  • RF gain: Yes
  • Clarifier: Yes
  • CW key: Yes

Electrical data

  • Voltage: 13,8 Volt
  • Frequency step: 10 kHz / 1 kHz / 10 Hz / 100 Hz /
  • Frequency stability: ±1 ppm
  • Operating temperature: -30°C to +50°C
  • Transmit: 6A (max)
  • Receive: 800mA (max) 400mA (squelched)

Transmitter

  • Spurious emissions: Less than -50 dB
  • Maximum FM deviation: ± 2.5 KHz
  • Modulation AM: Amplitude modulation
  • Modulation FM: Variable reactance frequnecy modulation
  • Modulation SSB: Balanced modulation

Receiver

  • Maximum audio power: 3 Watt
  • Internal speaker: 8 Ohm, round
  • SSB sensitivity: 0 dBu (1uV)
  • CW sensitivity: -12 dBu (0.25uV)
  • AM sensitivity: +6 dBu (2uV)
  • FM sensitivity: - 6 dBu (0.5uV)
  • AM/FM IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
  • SSB IF frequencies: 10.695 MHz
  • Image rejection: More than 65 dB
  • AM/FM selectivity: 6 dB at 6 kHz / 60 dB at 18 KHz
  • SSB/CW/AM(narrow) selectivity: 6 dB at 2.4 kHz / 4.5 dB at 18 KHz

Mechanical data

  • Length: 238 mm
  • Height: 51 mm
  • Width: 173 mm
  • Weight: 1500 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: 6 pin connector

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English
