Albrecht - AE 6110 VOX starter pack

Product code: 7100023
Factory code: 7100023

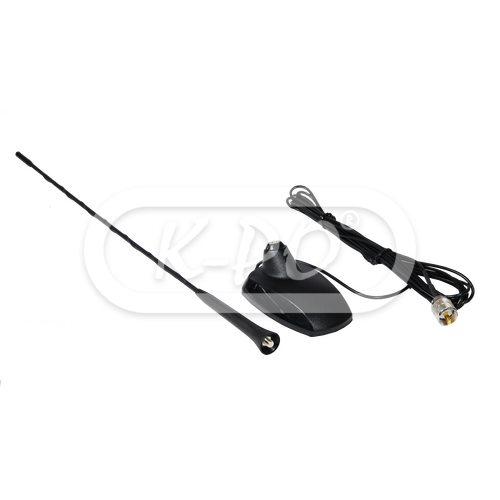

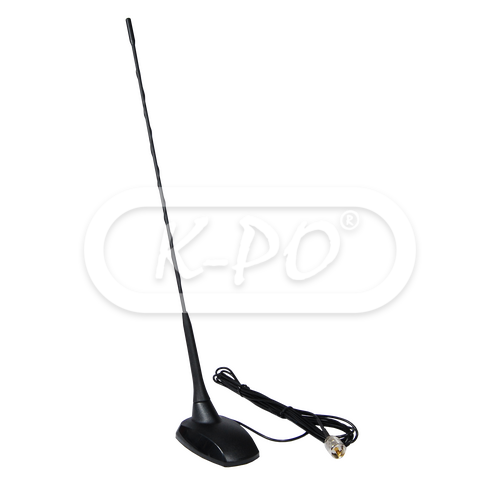

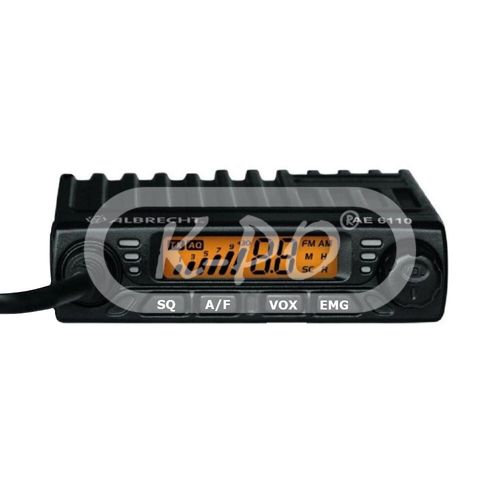

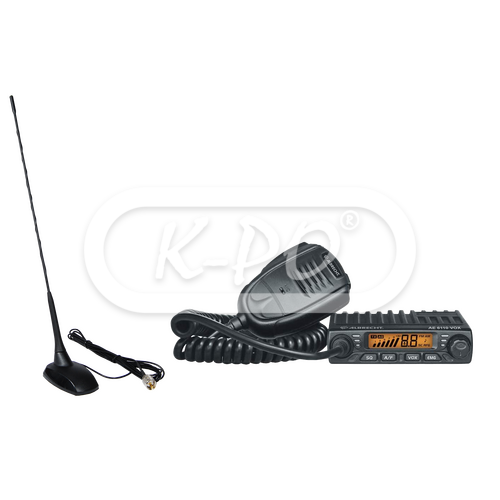

The Albrecht AE 6110 VOX starter pack is a complete pack, containing: Albrecht AE 6110 VOX radio and the Albrecht CBM-516 streamlined magnet antenna. The radio is so incredibly small that it will fit almost anywhere, it is just over 100 mm wide and deep, and only 25 mm thick. Including cigarette lighter plug for plug & play.

Frequency range: 26.965 - 27.405 MHz
Shipped next business day
€74.33 (74.33 excl. 0% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt
  • Channels: 40 AM / FM
  • Display type: LCD display
  • Display colors: Orange
  • Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Scan function: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • RF gain: Yes

Electrical data (radio)

  • Voltage: 13,8 Volt / 24 Volt
  • Operating temperature: -20° to +55° C
  • Frequency control: PLL synthesizer

Transmitter

  • Frequency allowance: ± 300 Hz
  • Modulation AM: from 85% to 90%
  • Modulation FM: 1.9 kHz
  • Drain: 13.2 Volt: 2.0 A

Receiver

  • AM sensitivity: 1.0 µV for 10 dB SINAD
  • FM sensitivity: 1.0 µV for 20 dB SINAD
  • Frequency response: 300 Hz - 3 kHz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 1 Watt
  • Internal speaker: 8 Ohm, round
  • Image rejection: 70 dB

Mechanical data (radio)

  • Length: 100 mm
  • Height: 25 mm
  • Width: 102 mm
  • Weight: 450 gram

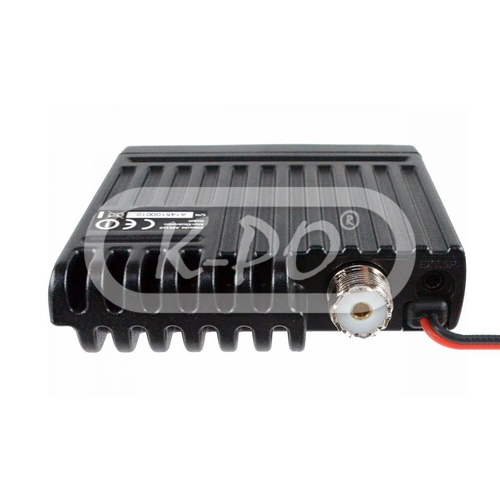

  • Antenna connector: UHF (PL)
  • Mike connector: RJ45 connector

Electrical data (antenna)

  • Electrical type: Base loaded
  • VSWR: ≤ 1.2:1
  • Power peak: 150 Watts (CW) short time
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 4 meter / RG 58

Mechanical data (antenna)

  • Height: 440 mm
  • Weight: 205 gram
  • Mounting type: Magnet

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, German, Spanish, Italian, French, Polish, Romania
  • Antenna: 1 pcs
