Alinco - DJ-CRX7 Alinco - DJ-CRX7 Alinco - DJ-CRX7 Alinco - DJ-CRX7 Alinco - DJ-CRX7

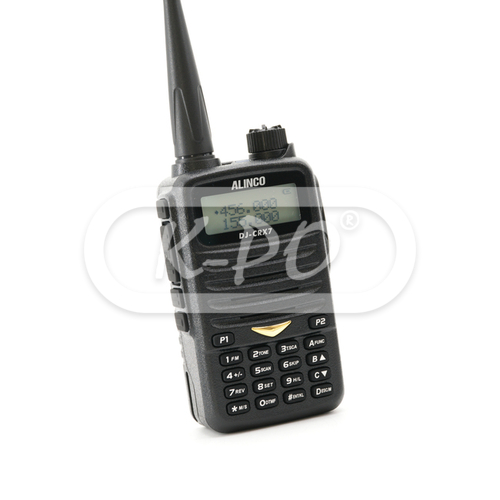

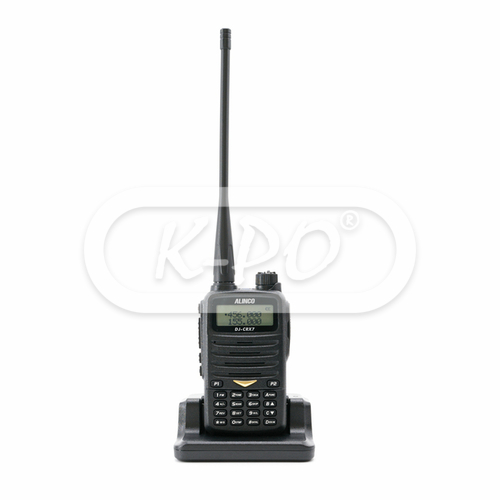

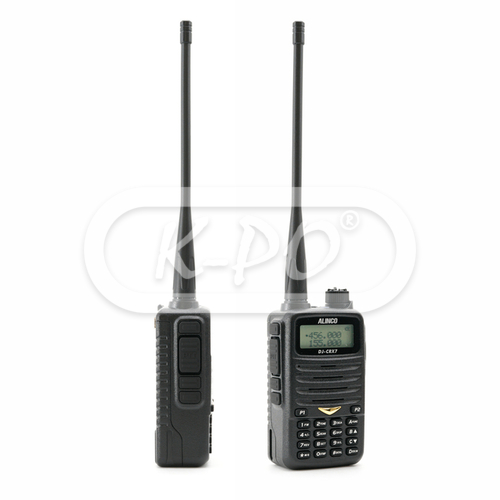

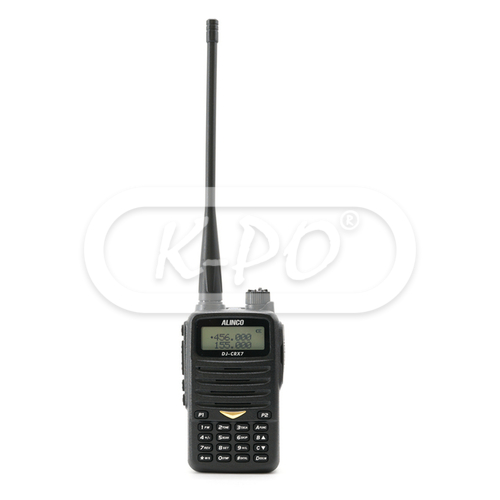

Alinco - DJ-CRX7

Product code: 1287

Full of advanced features, the Alinco DJ-CRX7 offers professional-grade operation and powerful 5W (VHF) / 4W (UHF) output. CTCSS, DTMF, DCS are standard, along with a variety of tone bursts for repeater access or selective calling. Convenience features include direct frequency input, alphanumeric channel labels and 200 memory channels that can each store operating parameters. A Li-Ion battery pack and a stand charger are standard, adding power and convenience. The Alinco DJ-CRX7 looks simple, but remember, looks can be deceiving! The Alinco DJ-CRX7 places one of the world's most advanced transceivers at your command, at an affordable price!

Frequency range: TX/RX: 136-174 MHz / 400-439 MHz
Shipped today
€82.60 (82.6 excl. 0% VAT)

Features

  • Display: Yes, Orange / Purple / Blue
  • VOX function: Yes
  • DTMF: Yes
  • High/low power selection: Yes
  • Voice guide: English
  • CTCSS: 50 groups
  • DCS: 1024 groups
  • Time-Out-Timer (TOT): Yes
  • Program: Yes, by computer

Electrical data

  • Frequency step: 2.5 kHz / 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 20 kHz / 25 kHz / 30 kHz / 50 kHz /
  • Channels: 200
  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: -20℃ to +55℃

Transmitter

  • Power output (Watts): VHF: 1/2/5 Watts / UHF: 1/2/4 Watts
  • Modulation limit: F3E (16K0F3E / 11K0F3E / RX only WFM)
  • Adjacent channel power: Wide: ≥ 65 dB / Narrow: ≥ 60 dB
  • Spurious Emission: ≥ 60 dB
  • Audio distortion: ≤ 5%
  • Frequency stability: ±5 kHz / ±2.5 kHz
  • Hum & noise: Wide: ≥ 40 dB / Narrow: ≥ 40 dB

Receiver

  • Sensitivity: Wide: ≤0.25 μV / Narrow: ≤0.35 μV
  • Spurious rejection: Wide: ≥ 70 dB / Narrow: ≥ 70 dB
  • Hum & noise: Wide: ≥ 45 dB / Narrow: ≥ 40 dB
  • Audio distortion: ≤ 5%
  • Audio power output: 1000 mW / 10%
  • Adjacent channel selectivity: Wide: ≥ 65 dB / Narrow: ≥ 60 dB
  • Intermodulation: Wide: ≥ 60 dB / Narrow: ≥ 60 dB

Mechanical data

  • Length: 35 mm
  • Height: 92 mm
  • Width: 57 mm
  • Weight: 213 gram
  • Antenna connector: SMA
  • Accessory connector: 2 pin Standard Icom (S)

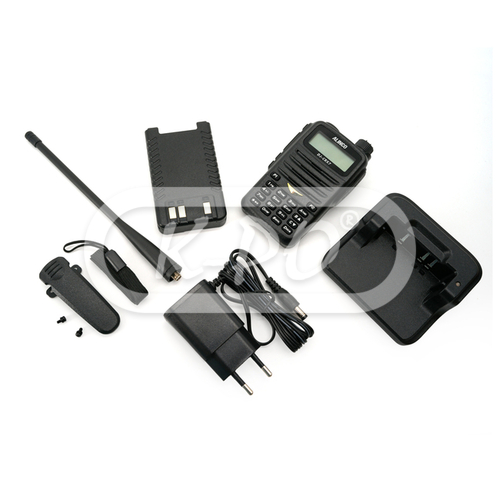

Inside the box

  • Transceiver: Yes
  • Battery: 1800 mAh Li-ion battery pack (EBP-107)
  • Charger: Desk charger with AC adapter (EDC-314 - EDC-191)
  • Antenna: Yes
  • Installation manual: English
  • Belt clip: Yes, EBC-41
