Alinco - DJ-MD5X-EG

Product code: 1240
Barcode: 4969182331714

An exciting compact 2-slot, dual-band DMR transceiver with built-in GPS receiver, DMR Tier I en Tier II, RF output selectable (0.2W, 1W, 2.5W and 5W), covers both VHF and UHF bands, super compact radio body, VFO programmable, clear voice and powerful audio, large and full-color display, digital voice recorder and many other great features.

Frequency range: TX/RX: 136-174 MHz / 400-480 MHz
Shipped today
€173.51 (173.51 excl. 0% VAT)

Features

  • Display: Yes,1.77 inch display
  • VOX function: Yes
  • DTMF: Yes, encode and decode
  • 2-tone/5-tone: Yes, encode and decode
  • High/low power selection: Yes
  • Voice guide: English
  • CTCSS: Yes, encode and decode
  • DCS: Yes, encode and decode
  • Time-Out-Timer (TOT): Yes
  • Program: Yes, by computer
  • GPS: Yes
  • DMR: Yes, DMR Tier 2 two-slot

Electrical data

  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: -20℃ to +55℃
  • Zones per padio: 250 zone
  • Channel spacing: Analog: 12.5/25 kHz / Digital: 12.5 kHz

Transmitter

  • Power output (Watts): 0.2 /1/2.5/5 Watts
  • Modulation limit: 16K0F3E / 11K0F3E / 7K60FXD / 7K60FXE
  • Spurious Emission: ≤1 GHz: -36 dBm / ≥1 GHz: -30 dBm
  • Audio distortion: ≤ 5%
  • Frequency stability: ±2.5 kHz
  • Hum & noise: Wide: ≥ 40 dB / Narrow: ≥ 36 dB

Receiver

  • Sensitivity: Wide: ≤0.25 μV / Narrow: ≤0.35 μV
  • Digital sensitivity: 5%: ≤0.3 μV / 1%: ≤0.7 μV
  • Hum & noise: Wide: ≥ 45 dB / Narrow: ≥ 40 dB
  • Audio distortion: ≤ 5%
  • Audio power output: 1000 mW / 10%
  • Accessory connector: 2 pin Standard Icom (S)

Mechanical data

  • Length: 40 mm
  • Height: 118 mm
  • Width: 59 mm
  • Weight: 256 gram
  • Antenna connector: SMA
  • Accessory connector: 2 pin Standard Icom (S)

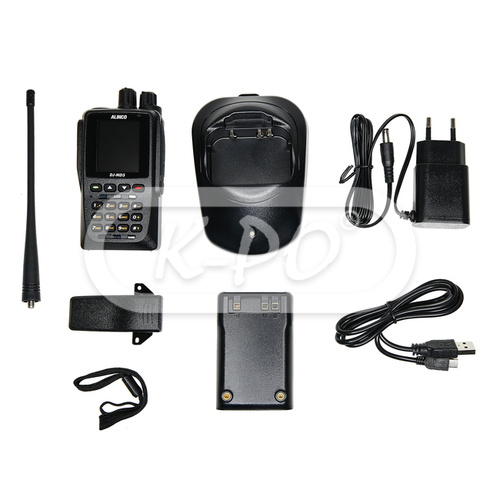

Inside the box

  • Transceiver: Yes
  • Battery: 1700 mAh Li-ion battery pack (EBP-88)
  • Charger: Desk charger with AC adapter (EDC-314 - EDC-191)
  • Antenna: Yes
  • Installation manual: English
  • Belt clip: Yes, EBC-34
