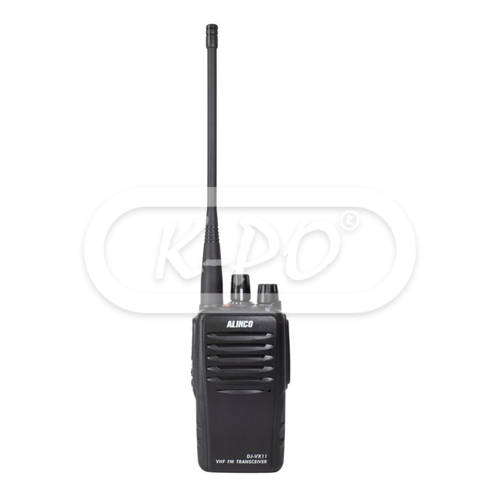

Alinco - DJ-VX11E

Product code: 3380

The Alinco DJ-VX11E is a professional and PC programmable VHF, 136-174 MHz, handheld radio. With the optional programming software you can program up to 128 channels, 8 groups of 16 channels each, 0.5W, 2W or 5W output power, (de)activate VOX, program Voice Encryption and many other features. IP67 index, 30 minutes waterproof at 1 meter depth. Ergonomically designed and compact radio body.

Frequency range: TX/RX: 136-174 MHz

Shipped today - Stock: 2

€145.95 (120.62 excl. 21% VAT)

Features

VOX function: Yes
DTMF: Yes, encode and decode
2TONE/5TONE: Yes, encode and decode
Emergency (SOS) function: Yes
High/low power selection: Yes
Voice guide: English
CTCSS: Yes, encode and decode
DCS: Yes, encode and decode
Analog scrambling: Yes
Voice compander: Yes
Time-Out-Timer (TOT): Yes
Program: Yes, by computer

Electrical data

Frequency step: 2.5 kHz / 6.25 kHz /
Channels: 128
Channel spacing: 12.5 kHz (narrow band) / 25 kHz (wide band) /
Phase-locked Step: 2.5 kHz / 6.25 kHz
Operating Voltage: 7,4 Volt
Operating temperature: -20℃ to +60℃
Wide and narrow bandwidth selection: Yes

Transmitter

Power output: 0.5/2/5 Watts
Modulation limit: 16K0F3E / 11K0F3E
Adjacent channel power: Wide: ≥ 65 dB / Narrow: ≥ 60 dB
Audio distortion transmitter: ≤ 3%
Hum & noise: Wide: ≥ 40 dB / Narrow: ≥ 35 dB

Receiver

Sensitivity: Wide: ≤0.25 μV / Narrow: ≤0.25 μV
Spurious rejection receiver: Wide: ≥ 70 dB / Narrow: ≥ 70 dB
Hum & noise: Wide: ≥ 45 dB / Narrow: ≥ 35 dB
Audio power output: 1000 mW / 10%
Adjacent channel selectivity: Wide: ≥ 60 dB / Narrow: ≥ 60 dB
Intermodulation: Wide: ≥ 55 dB / Narrow: ≥ 55 dB

Mechanical data

Length: 38 mm
Height: 118 mm
Width: 59 mm
Weight: 230 gram
Antenna connector: SMA
Waterproof: IP67
Accessory connector: 2 pin Standard Icom (S)

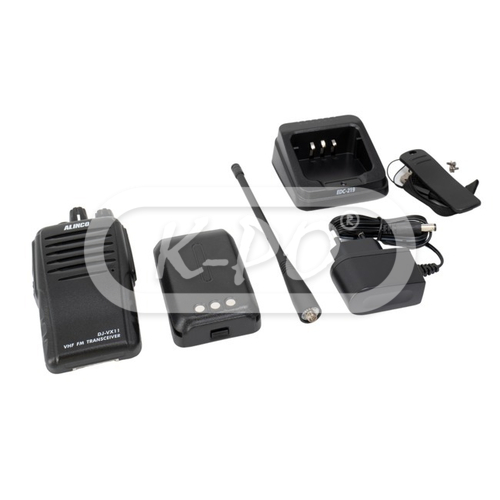

Inside the box

Transceiver: Yes
Battery: 1800 mAh Li-ion battery pack (EBP-101)

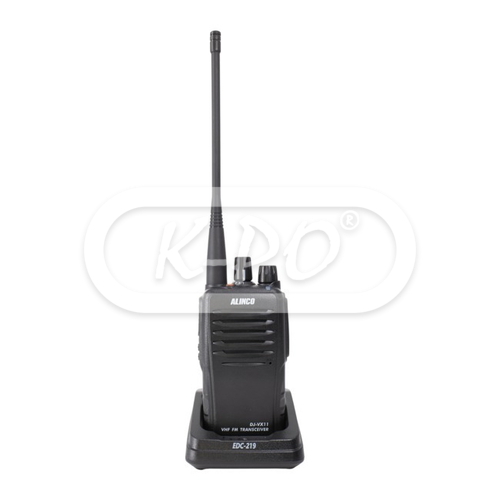

Charger: Desk charger with AC adapter (EDC-221 - EDC-219)
Antenna: Yes
Installation manual: English
Belt clip: Yes, EBC-51
