Alinco - DJ-VX50HE Alinco - DJ-VX50HE Alinco - DJ-VX50HE Alinco - DJ-VX50HE Alinco - DJ-VX50HE

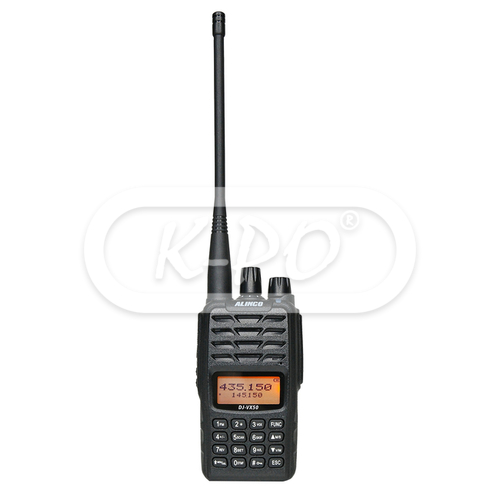

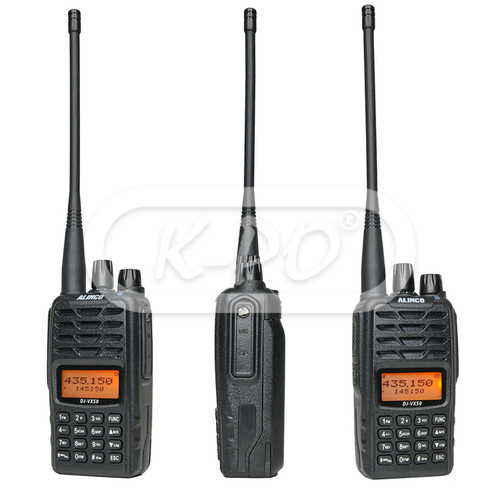

Alinco - DJ-VX50HE

Product code: 1228
Barcode: 4250158721265

Full of advanced features, the Alinco DJ-VX50HE offers professional-grade operation and powerful 5W (VHF) / 4W (UHF) output. In a compact IP67 dust/waterproof body, CTCSS, DTMF, DCS are standard, along with a variety of tone bursts for repeater access or selective calling. Convenience features include direct frequency input, alphanumeric channel labels and 200 memory channels that can each store operating parameters. In addition, the Alinco DJ-VX50HE supports VHF AM aircraft and FM broadcast reception for an extra listening pleasure.

Frequency range: TX/RX: 144-146 MHz / 430-440 MHz
Out of stock - Longer delivery time
€105.95 (87.56 excl. 21% VAT)

Features

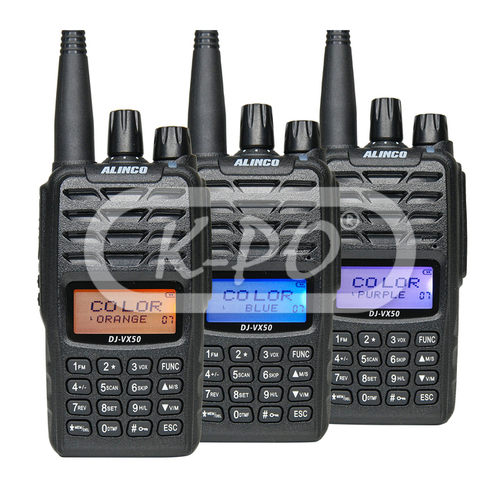

  • Display: Yes, Orange / Purple / Blue
  • VOX function: Yes
  • DTMF: Yes
  • High/low power selection: Yes
  • Voice guide: English
  • CTCSS: 50 groups
  • DCS: 105 groups
  • Time-Out-Timer (TOT): Yes
  • Program: Yes, by computer

Electrical data

  • Frequency step: 2.5 kHz / 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 20 kHz / 25 kHz / 30 kHz / 50 kHz /
  • Channels: 200
  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: -20℃ to +60℃

Transmitter

  • Power output (Watts): VHF: 1/2/5 Watts / UHF: 1/2/4 Watts
  • Modulation limit: F3E (16K0F3E / 11K0F3E / RX only WFM)
  • Adjacent channel power: Wide: ≥ 65 dB / Narrow: ≥ 60 dB
  • Spurious Emission: ≥ 60 dB
  • Audio distortion: ≤ 5%
  • Frequency stability: ±5 kHz / ±2.5 kHz
  • Hum & noise: Wide: ≥ 40 dB / Narrow: ≥ 40 dB

Receiver

  • Sensitivity: Wide: ≤0.25 μV / Narrow: ≤0.35 μV
  • Spurious rejection: Wide: ≥ 70 dB / Narrow: ≥ 70 dB
  • Hum & noise: Wide: ≥ 45 dB / Narrow: ≥ 40 dB
  • Audio distortion: ≤ 5%
  • Audio power output: 1000 mW / 10%
  • Adjacent channel selectivity: Wide: ≥ 65 dB / Narrow: ≥ 60 dB
  • Intermodulation: Wide: ≥ 60 dB / Narrow: ≥ 60 dB

Mechanical data

  • Length: 38 mm
  • Height: 118 mm
  • Width: 59 mm
  • Weight: 230 gram
  • Antenna connector: SMA
  • Accessory connector: 2 pin Standard Icom (S)

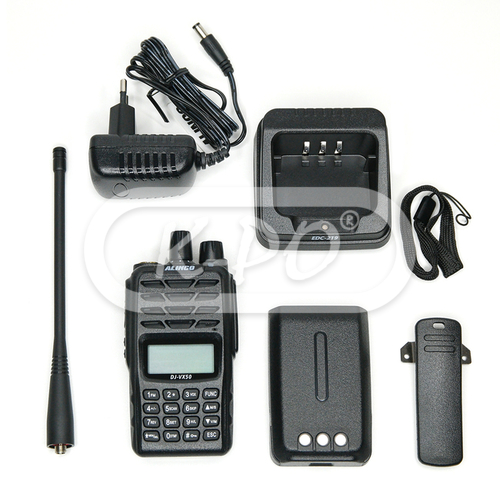

Inside the box

  • Transceiver: Yes
  • Battery: 1800 mAh Li-ion battery pack (EBP-101)

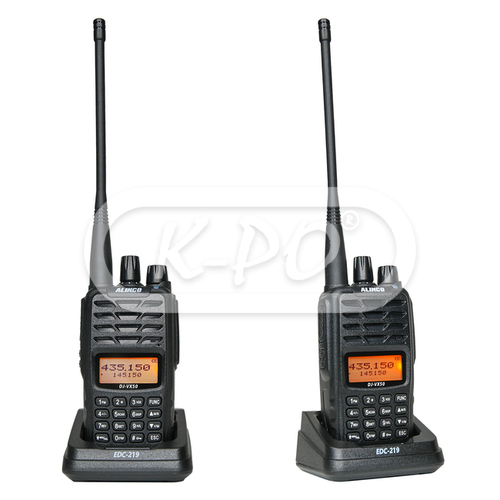

  • Charger: Desk charger with AC adapter (EDC-221 - EDC-219)
  • Antenna: Yes
  • Installation manual: English
  • Belt clip: Yes, EBC-51
