Astatic - 636L Carbon P6

Product code: 1724
Factory code: 302636LCF

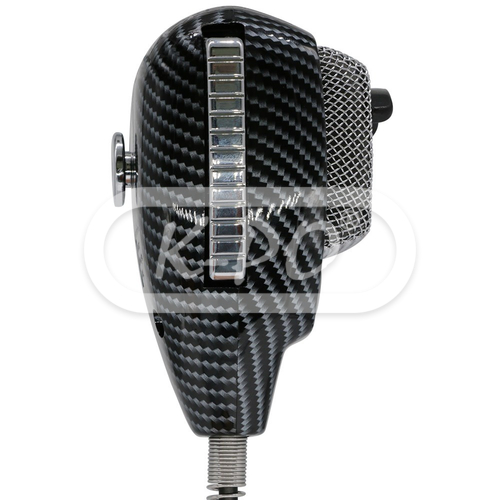

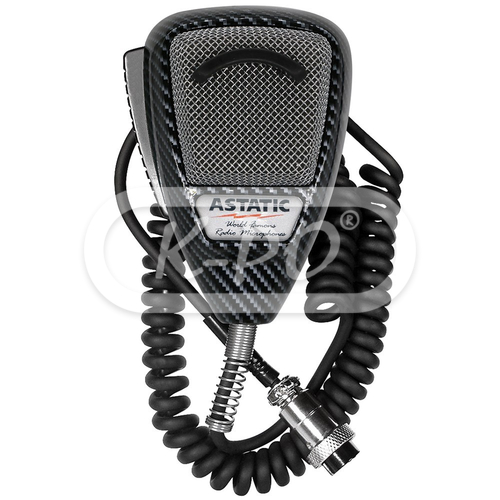

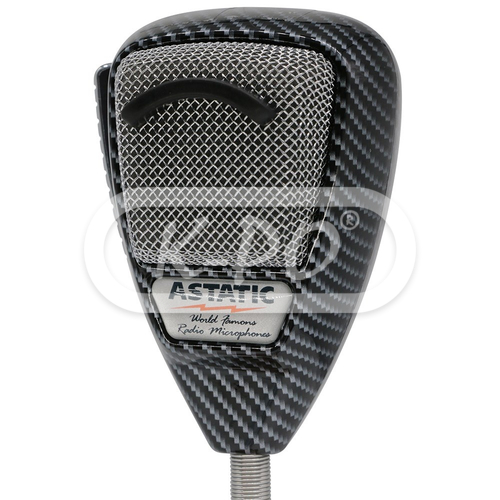

The 636L Carbon handheld microphone is an original Astatic microphone. The microphone features a carbon design look and a rugged housing with polyurethane coated steel grille screen, coiled cord and 6-pin connection. The 636L is designed for close talking handheld applications with CB,amateur radio and SSB communications.

Shipped today
€57.81 (57.81 excl. 0% VAT)

Features

  • Suitable for: 6-pin standard connector / Midland Alan 48 Excel / Midland Alan 48 Plus / Midland Alan 48 PRO / Midland Alan 78 Plus / Midland Alan 78 PRO / President Andy / President Barry ASC / President Barry II ASC / President Bill ASC / President Grant II ASC / President Harry ASC / President Harry II ASC / President Harry III ASC / President Henry ASC / President Jackson II / President JFK II / President Jimmy II ASC / President Johnny / President Johnny ASC / President Johnny II / President Johnny III / President Johnson II / President Johnson II VOX / President Lincoln II ASC / President Lincoln II + / President Martin ASC / President MC Kinley / President Richard / President Ronald / President Taylor II Classic / President Taylor III ASC / President Taylor IV ASC / President Teddy / President Teddy II ASC / President Tommy / President Truman / President Walker / President Walker II ASC /
  • Microphone type: Dynamic microphone

Electrical data

  • Frequency response: 100 - 5000 Hz
  • Output level: -58 dB (0 dB=1 mw/10 microbars) -76 dB (0 dB=1 volt/microbar)
  • Impedance: 200 Ohm

Mechanical data

  • Cable Length: 2.3 meter

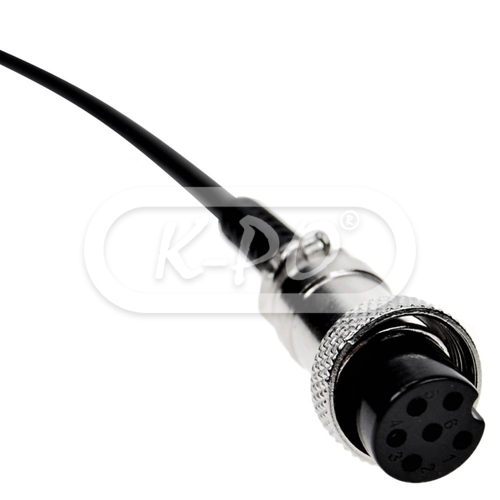

  • Microphone connector: 6-pin
  • Cable: Six wire, five conductors, one conductor shielded, coil cord with durable strain relief
  • Housing: Durable molded carbon look ABS Cycolac®

Microphone wiring

  • Receive: Pin 2
  • Transmit: Pin 3
  • Mic Audio: Pin 1
  • Ground: Pin 5
