HamKing - X-30N

Product code: 6100

Factory code: 6100

Barcode: 8718375101209

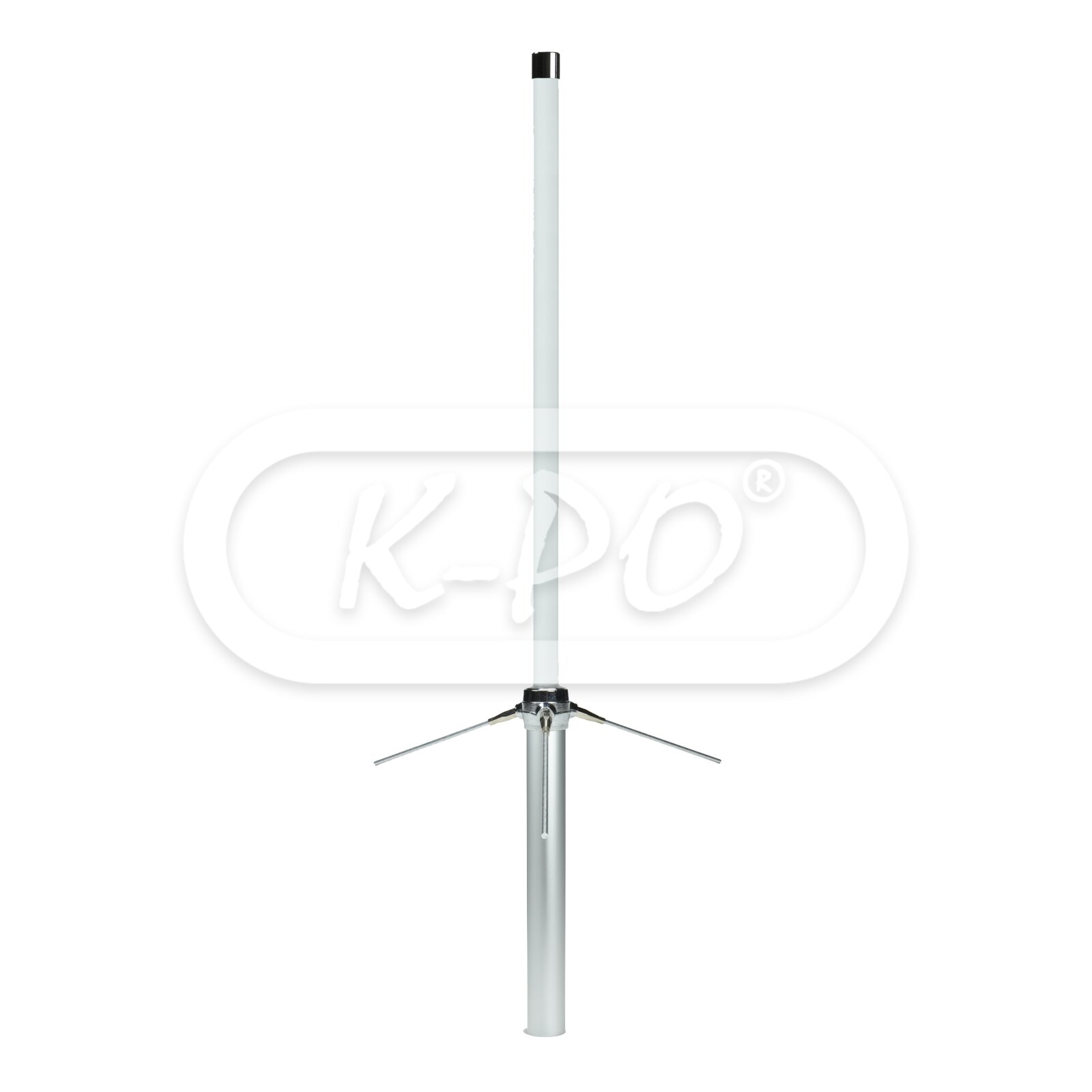

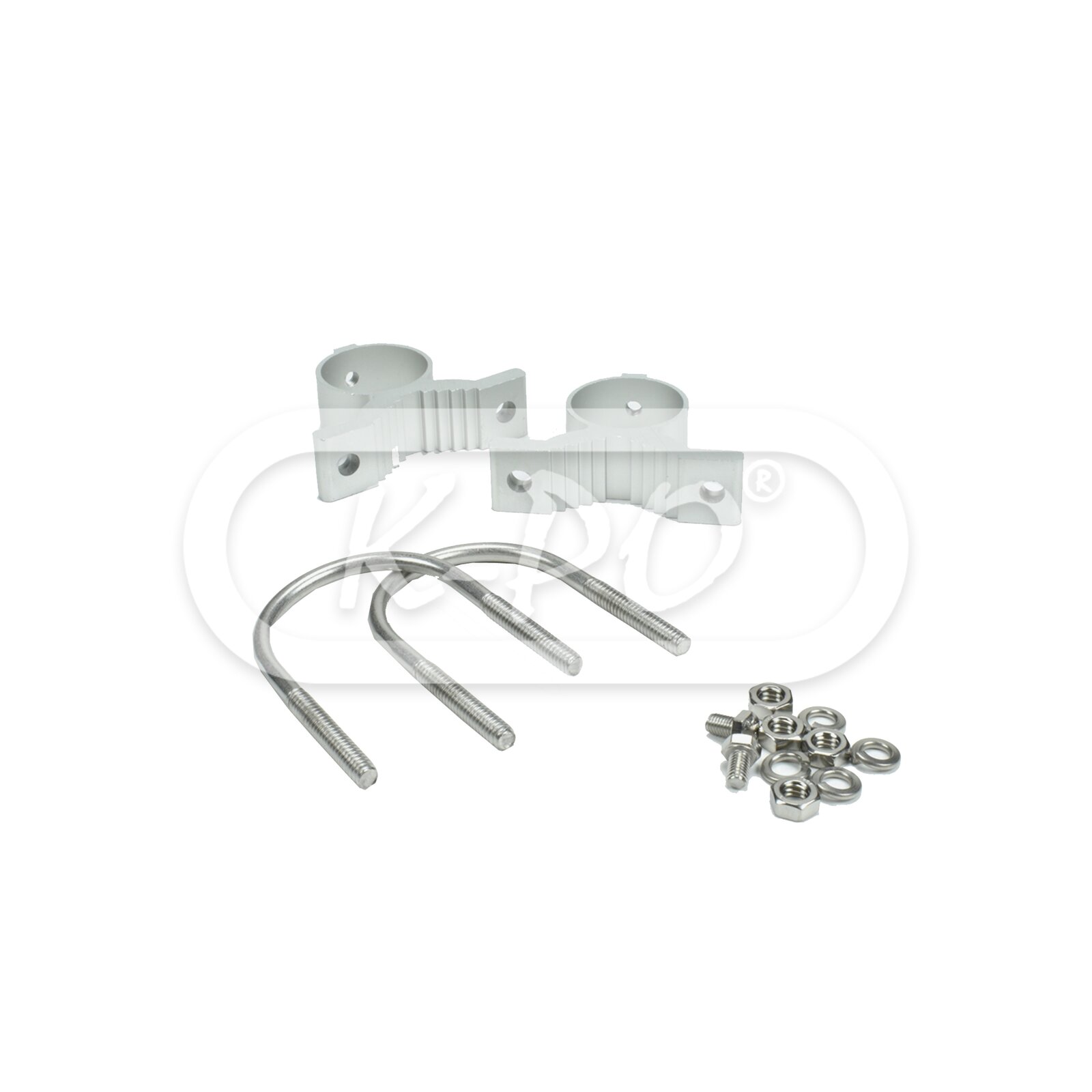

The HamKing X-30N vertical antenna for 144 MHz (3.0 dBi gain) and 430 MHz (5.5 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss ‘N’-connector for best performance. Maximum power: 200 watts.

Frequency range: 144 / 430 MHz

Out of stock - Longer delivery time

€41.95 (34.67 excl. 21% VAT)

Electrical data

• Electrical type: 144 MHz: 1/2 λ / 430 MHz: 2x5/8 λ
• Gain: 144 MHz: 3 dBi / 430 MHz: 5.5 dBi
• VSWR: ≤ 1.5
• Maximum continuous power: 150 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Mast Ø: 30 - 48 mm
• Max wind resistance: 216 km/h
• Height: 1300 mm
• Weight: 700 gram
• Mounting type: On mast
• Antenna connector: N-female

Inside the box

• Antenna: Yes

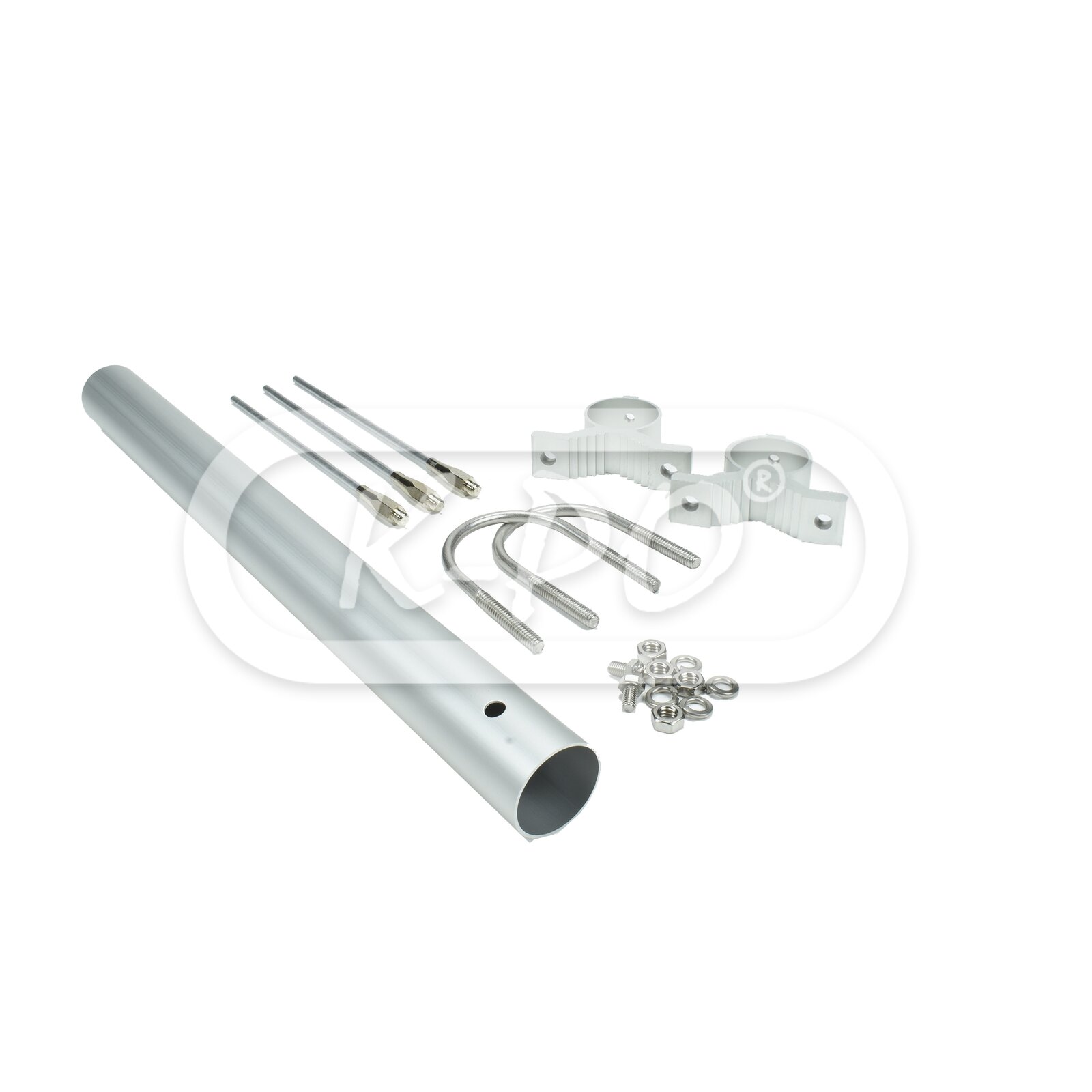

• Mounting parts: Yes
• Installation manual: English
