Jopix - AP-7 starter pack

Product code: 80007
Barcode: 8435550817037

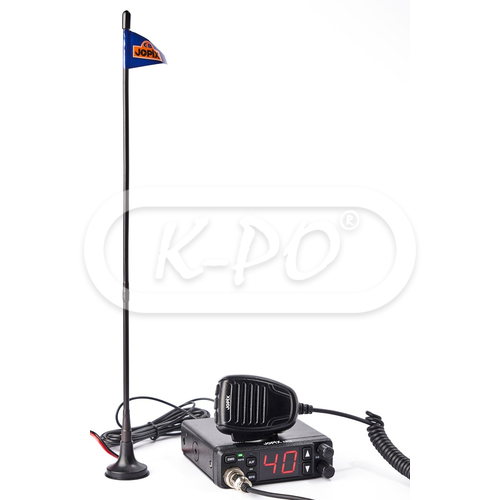

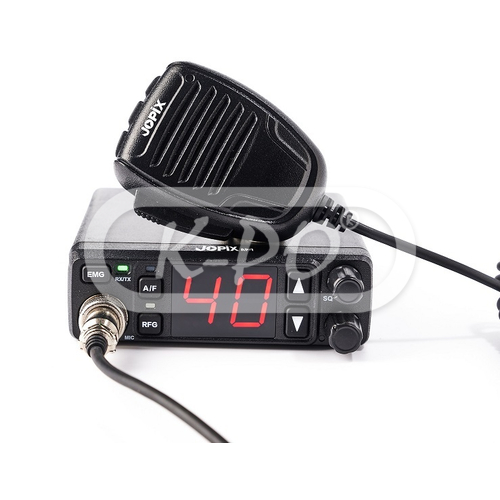

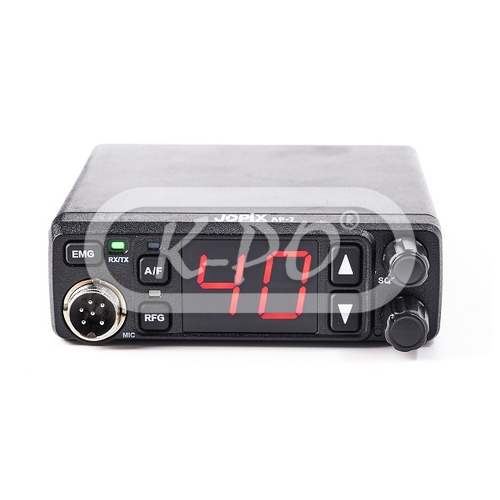

The Jopix AP-7 is a compact size CB transceiver with a 40 channel backlit display, Automatic Squelch (ASQ) and 12/24 Volt power supply. The set is included with a mmini mobile Jetfon MAG-7 magnetic antenna base. Jefton MAG-7 is equipped with a UHF (PL) male connector and 50 Ohm, simple and effective.

Frequency range: 26.965 - 27.405 MHz
Shipped today - Stock: 5
€74.95 (61.94 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 1-4 Watt
  • Channels: 40 AM / FM
  • Display type: Backlight
  • Display colors: Red
  • Squelch: ASQ (Automatiq Squelch Systeem)
  • Scan function: Yes
  • External speaker socket: Yes
  • RF gain: Yes
  • Car socket connector: Yes

Electrical data (radio)

  • Voltage: 13,8 Volt / 24 Volt
  • Operating temperature: -20° to +60° C
  • Frequency control: PLL synthesizer

Mechanical data (radio)

  • Length: 150 mm
  • Height: 37 mm
  • Width: 115 mm
  • Weight: 400 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: 6 pin connector

Electrical data (antenna)

  • Electrical type: Central loaded
  • VSWR: ≤ 2.0
  • Gain: 2 dBi
  • Power continues: 10 Watts (CW)
  • Power peak: 20 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 3 meter / RG 174

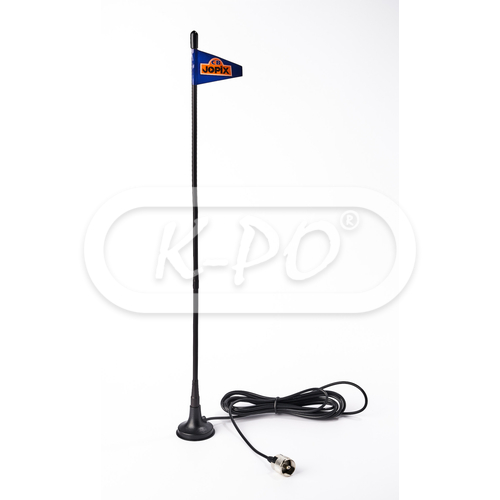

Mechanical data (antenna)

  • Materials: Copper
  • Height: 427mm
  • Weight: 100 gram
  • Connector: UHF (PL) male
  • Mounting type: 42 mm magnet

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English
  • Antenna: 1 pcs
