Features

• Plain copper inner conductor: CU 7 x 0,75 mm
• Low density polyethylene dielectric: PE ø 6,50 ± 0,15 mm
• Plain copper outer conductor: CU 168 x 0,15 mm
• Percentage coverage: 91%
• Non-contaminating polyvinyl-chloride sheath: ø 9,50 ± 0,18 mm
• Sheath color: Black - RAL 9004
• Copper weight: 59.6 Kg/Km
• Cable weight: 135.1 Kg/Km
• Impedance: 50 ± 3 Ohm
• Capacitance: 100 pF/m
• Velocity ratio: 6%
• Inner conductor resistance: 6 Ohm/Km
• Outer conductor resistance: 7 Ohm/Km
• Temperature range: -30°C to +70°C

Mechanical data

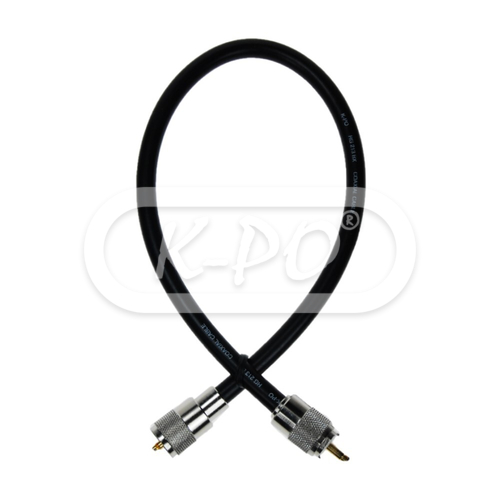

• Cable type: RG 213
• Length: 50 cm

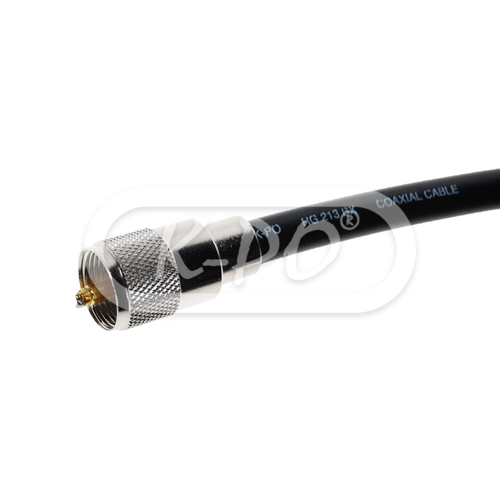

• Connectors: 2x UHF (PL) male
