Sirio - New Tornado

Product code: 200275

Factory code: 2100501.00

Barcode: 8056182110008

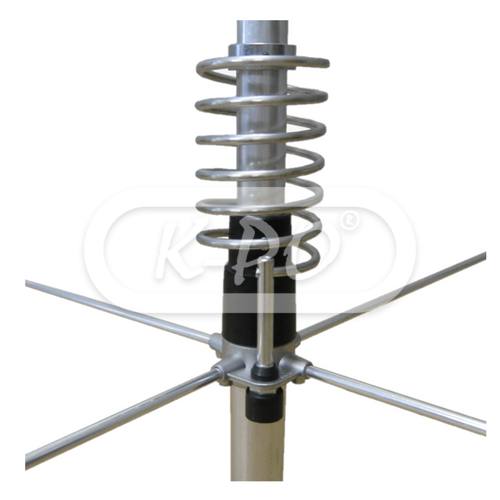

5/8 λ ground plane aluminium base antenna for CB and full 10 meter band, with 4 radials. Top radial tuning.

Frequency range: 27 - 30 MHz tunable

Out of stock - Longer delivery time

€109.95 (90.87 excl. 21% VAT)

Electrical data

• Electrical type: 5/8 λ ground plane
• Gain: 1.2 dBd, 3.35 dBi
• VSWR: ≤ 1.2
• Bandwidth: 1300 kHz ≤ 2.0
• Maximum continuous power: 1000 Watts (CW)
• Power peak: 3000 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Aluminium, brass, galvanized steel, thermoplastic UV stabilized
• Mast Ø: 35 - 42 mm
• Max wind resistance: 130 km/h
• Height: 7230 mm
• Weight: 2900 gram
• Mounting type: On mast
• Antenna connector: UHF-female

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 039 10 09 2011
