Sirio - WY 380-10N

Product code: 2113701380
Factory code: 2113701/380
Barcode: 8056182113733

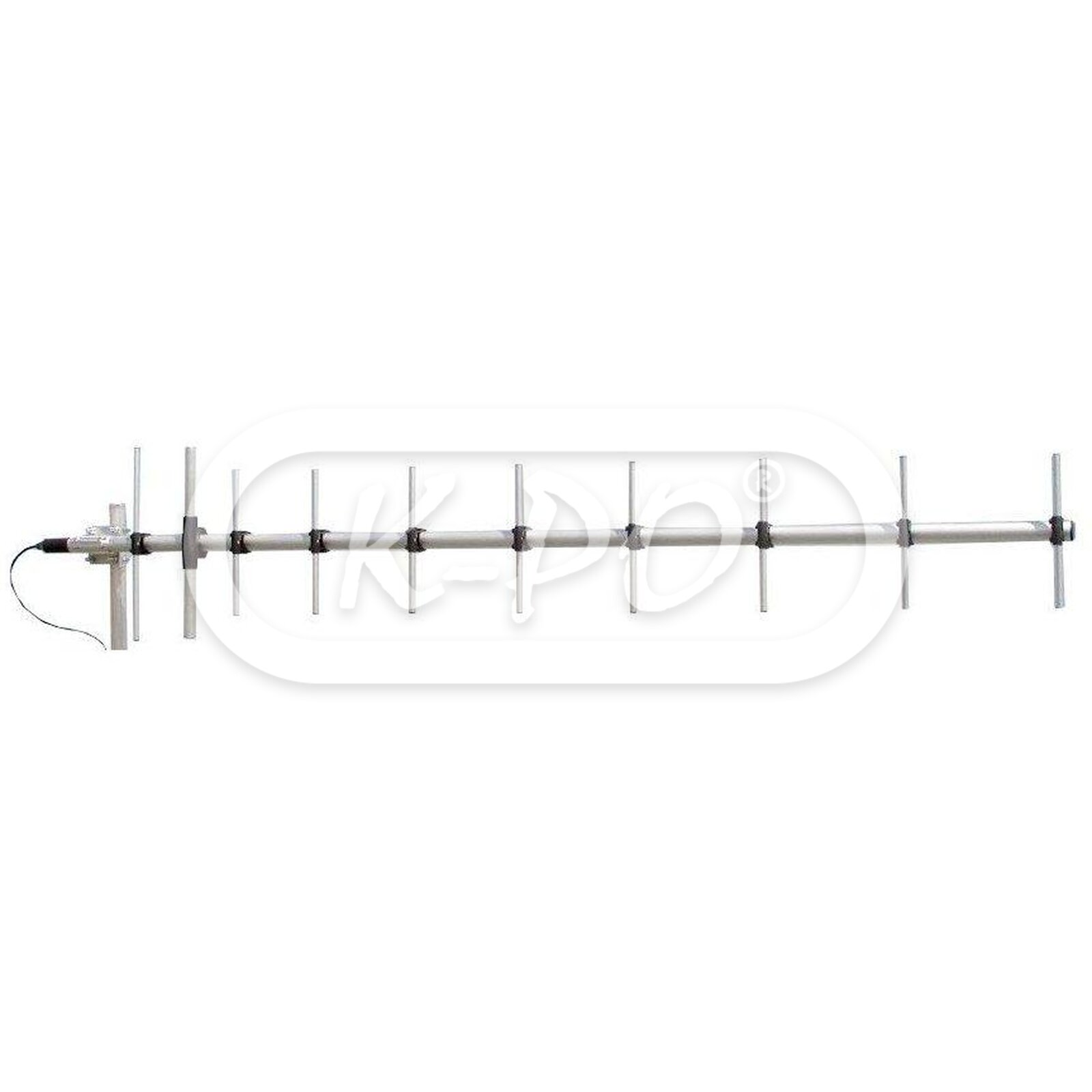

Directional base station antenna for 380 - 440 MHz, no tuning required. Conceived by using an innovative feed system studied and applied to have highly symmetrical radiation pattern in both planes (E and H). It's completely computer designed to get high performances of gain and front-to-back in the working band. All aluminium parts are protected by anodized treatment, hardware are of stainless steel of zinc plated steel, mounting bracket is of extruded aluminium for the best strength and the connector is placed in rear position for an easily access. To increase the antenna gain please install it in vertical stacked array.

Frequency range: 380 - 440 MHz
Out of stock - Longer delivery time
€154.95 (128.06 excl. 21% VAT)

Electrical data

  • Electrical type: 10 elements Yagi
  • Gain: 11.85 dBd, 14 dBi
  • VSWR: ≤ 1.5
  • Maximum continuous power: 150 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical / Linear horizontal /

Mechanical data

  • Materials: Anodized aluminium, chromed brass, thermoplastic UV stabilized, EPDM rubber
  • Mast Ø: 35 - 52 mm
  • Max wind resistance: 120 km/h
  • Height: 400 mm
  • Width: 2125 mm
  • Weight: 2120 gram
  • Mounting type: On mast
  • Antenna connector: N-female
  • Boom diameter Ø: 32 mm
  • Dipole diameter Ø: 24 mm
  • Element diameter Ø: 12 mm
  • Tuning radius: 1990 mm

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
