TTI - TCB-881N PRO pack

Product code: 7100014
Factory code: 7100014

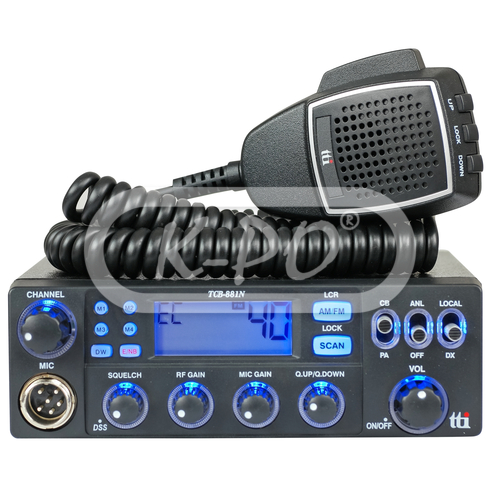

The TTI TCB-881N PRO pack is a package for the more experienced user of CB radio. This package offer you all the accessoires that you need to built-in the TTI TCB-881N into your truck, construction- or agricultural machinery.

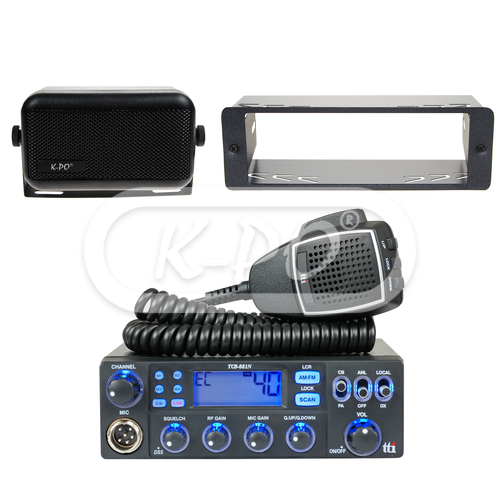

The package includes the excellent TTI TCB-881N CB radio that can be used on 12/24 volt, the K-PO DIN mount 30885 for easy installation and the K-PO CS 558 external speaker for a great sound.

The only thing you need to add is a CB antenna or connect it to your existing CB antenna.

Frequency range: 26.965 - 27.405 MHz
Shipped next business day - Stock: 1
€139.95 (115.66 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt / Duty cycle 10% @ 13.8V DC
  • Channels: 40 AM / FM
  • Display type: Backlight
  • Display colors: Blue
  • Noise blanker: Yes
  • Squelch: Digital squelch / Manual squelch /
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Scan function: Yes
  • Memory channels: Yes
  • Quick channel selection: Yes
  • External speaker socket: Yes
  • External S-meter socket: Yes
  • External PA socket: Yes
  • S-meter: Yes
  • MIC gain: Yes
  • RF gain: Yes
  • TOT (time out timer): Yes
  • Dual watch: Yes

Electrical data (radio)

  • Voltage: 13,8 Volt / 24 Volt
  • Operating temperature: -10° to +55° C
  • Operating mode: F3E (FM) / A3E (AM)
  • Frequency control: PLL synthesizer
  • Frequency tolerance: 0.002 %

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Modulation AM: from 85% to 95%
  • Modulation FM: 1.8 kHz to ± 0.2 kHz
  • Harmonic suppression: Less than -54 dBm
  • Drain: 13.8 Volt: 1.6 A max. / 24 Volt: 1.6 A max.

Receiver

  • AM sensitivity: 0.7 µV for 10 dB
  • FM sensitivity: 0.7 µV for 20 dB SINAD
  • Frequency response: 300 Hz - 2.5 kHz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 2 Watt
  • Internal speaker: 8 Ohm, round
  • Receiving system: Dual conversion superheterodyne
  • IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
  • Audio distortion: Less than 8% @ 1 kHz
  • Image rejection: 60 dB
  • Conducted spurious: Less than -57 dB
  • Squelch: Adjustable, threshold less than 1 µV,

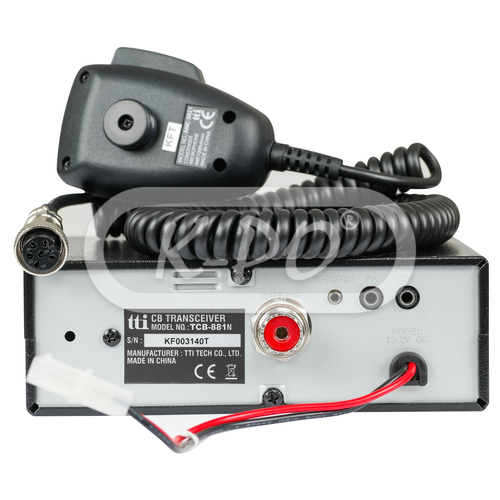

Mechanical data (radio)

  • Length: 136 mm
  • Height: 51 mm
  • Width: 156 mm
  • Weight: 820 gram
  • Antenna connector: UHF (PL)
  • Mike connector: 6 pin connector

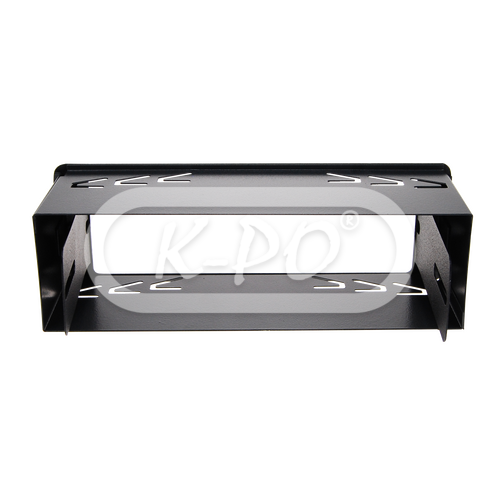

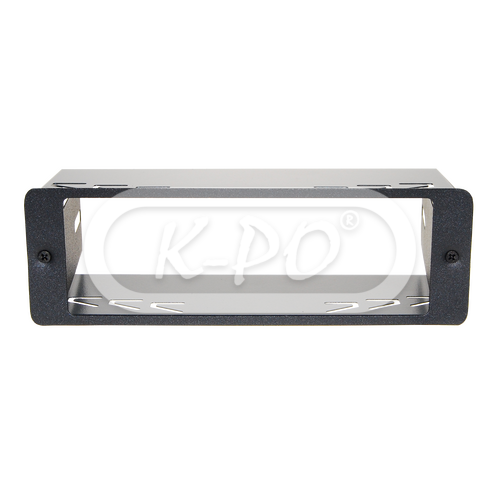

Mechanical data (din mount)

  • Mounting: Bending points
  • Material frame: Metal
  • Material front: Metal
  • Height: 52 mm
  • Width: 154 mm

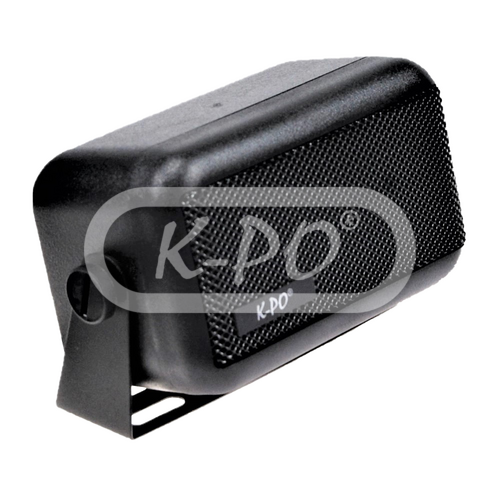

Electrical data (speaker)

  • Nominal power 3 Watts
  • Maximum Power: 5 Watts
  • Impedance: 8 Ohm

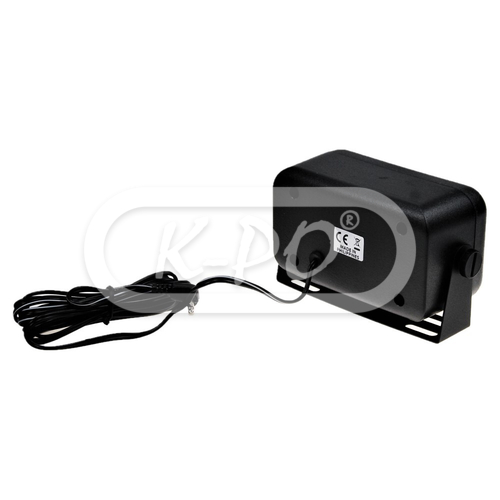

Mechanical data (speaker)

  • Length: 140 mm
  • Height: 80 mm
  • Width: 60 mm
  • Weight: 280 gram
  • Mounting bracket: Yes
  • Cable: Yes
  • Cable length: 200 cm
  • Connector: Mono plug 3.5 mm (angled)

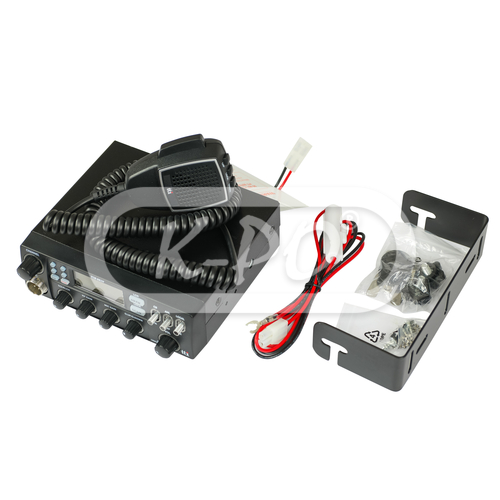

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, Italian, French, Romania, Russian, Spanish
  • DIN mount: Yes
  • K-PO CS 558 speaker: Yes
