Albrecht - AMM-500

Product code: 42140

Factory code: 42140

Barcode: 4032661421401

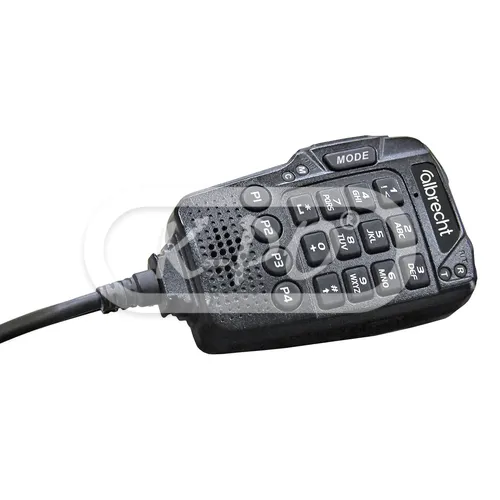

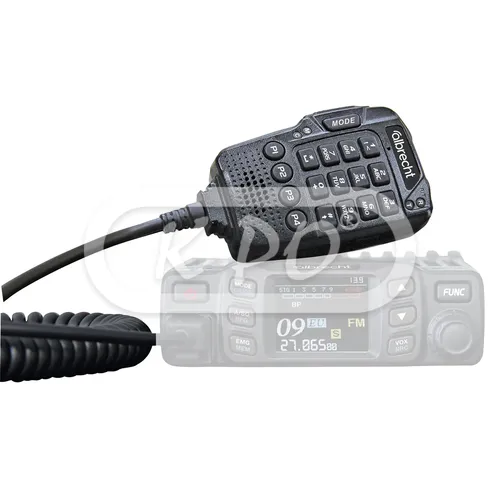

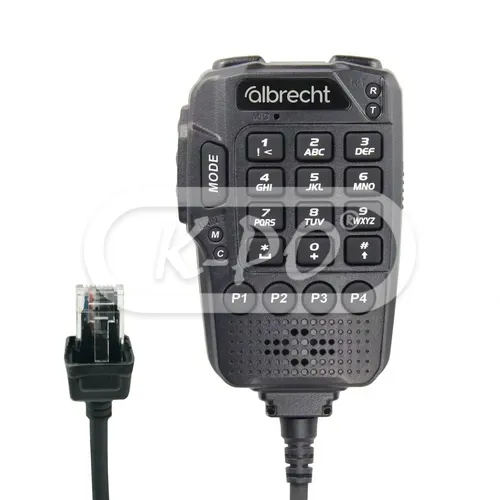

Optional, multifunctional Albrecht AMM-500 microphone for the Albrecht AE 5900 Mini SSB with RJ45 connector.

Equipped with Up/Down buttons, MODE (to change operating mode), 4 programmable buttons (P1–P4), numeric keypad, adjustable volume (* and #), keypad lock, and 4 LED indicators (for Mute, CTCSS/DCS, RX, TX).

Programmable functions (only via the AE 5900 radio): Mute, Mode, VOX, EMG, ASQ, DW, CTCSS/DCS, SCAN.

Shipped next business day

€39.95 (33.02 excl. 21% VAT)

Features

Suitable for: Albrecht AE 5900
Up down: Yes
DTMF keypad: Yes
Programmable functions: Yes, only via the AE 5900 radio

Electrical data

Mechanical data

Microphone connector: 6-pin
Micro USB charging socket: Yes
Battery: 3000 mAh (rechargeable)

Microphone wiring

Up: Pin 4
Down: Pin 4
Receive: Pin 2
Transmit: Pin 3
Mic Audio: Pin 1
Ground: Pin 5
