HamKing - MHF-350M

Product code: 6127
Factory code: 6127
Barcode: 8718375102671

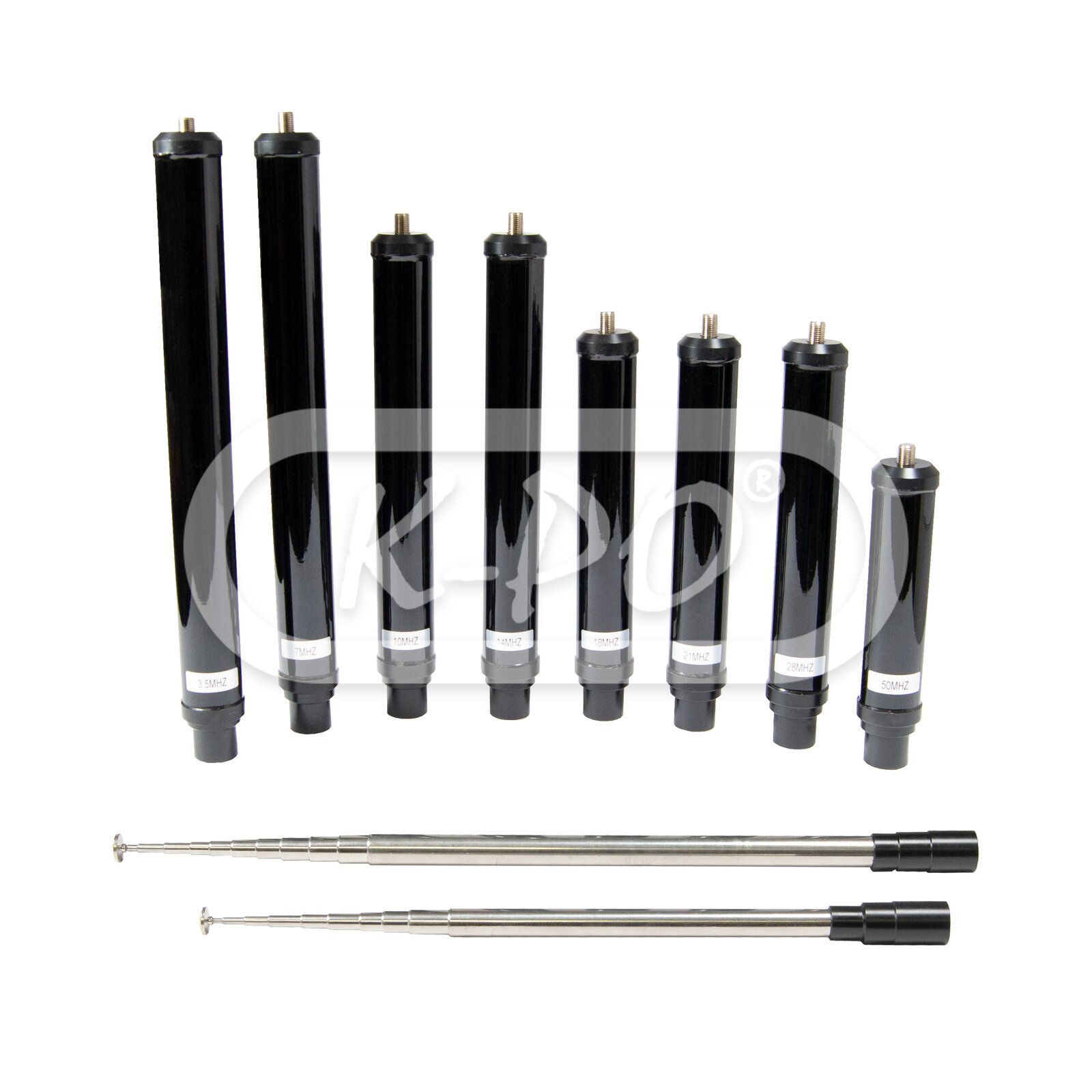

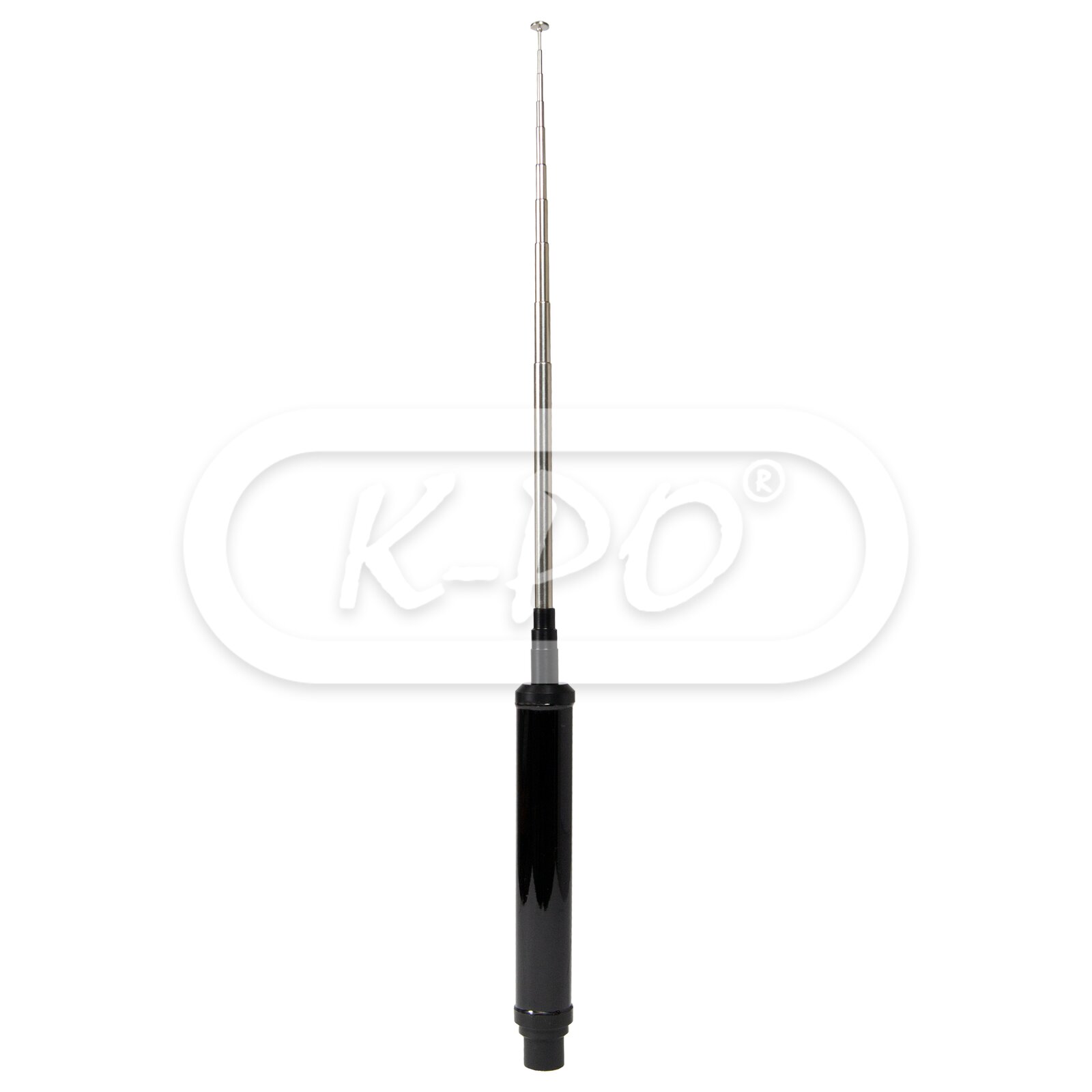

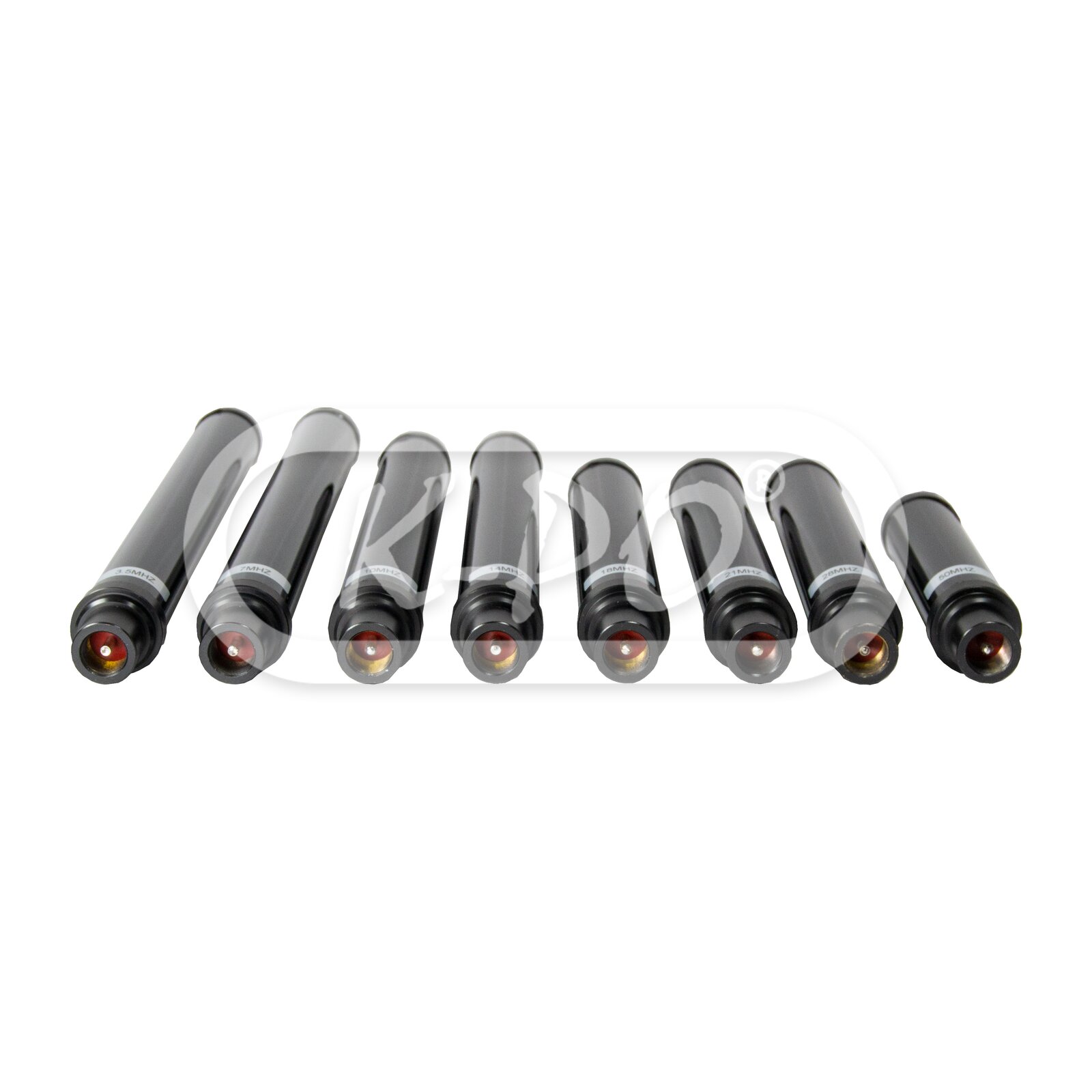

The HamKing MHF-350M is a complete mobile HF antenna kit with separate coils for 3.5, 7, 10, 14, 18, 21, 28 (29) and 50 MHz packed in a nice-looking carry pouch. With a low VSWR on each band, under 1:1.5.

Supplied with two antenna elements; one element for 3.5-28 MHz and one element for 50 MHz. With a frequency to length overview to adjust the antenna elements on the advised length for each frequency coil. By sliding the antenna elements in and out you can fine tune the VSWR. Maximum power handling of 200 Watts SSB.

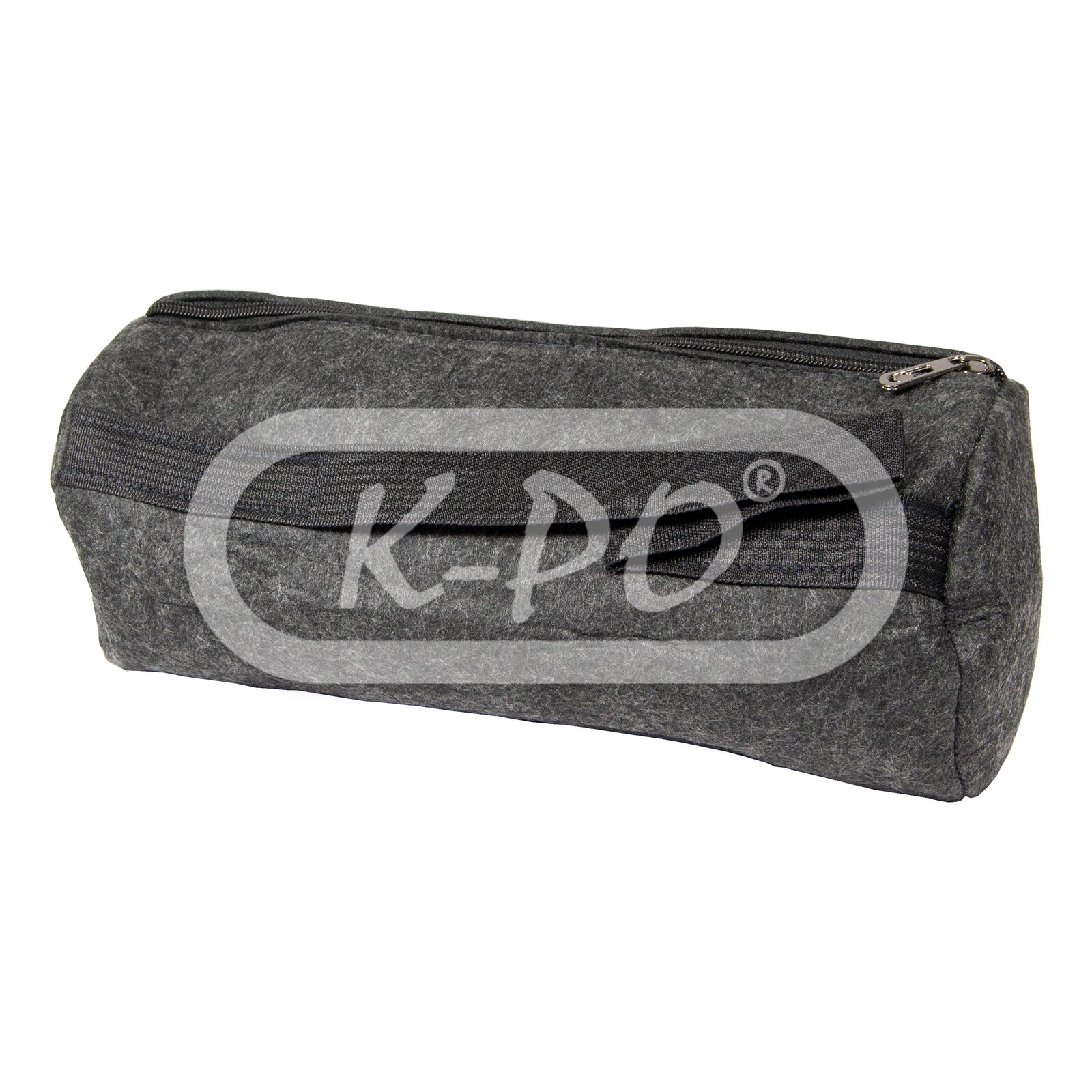

In the nicely finished carry pouch you can store and protect the coils and antenna elements of your HamKing MHF-350M or take them easily with you while travelling or to field days.

Frequency range: 3.5 / 7 / 10 / 14 / 18 / 21 / 28 (29) / 50 MHz
Out of stock - Longer delivery time
€229.95 (190.04 excl. 21% VAT)

Electrical data

  • Electrical type: 1/4 λ base loading
  • Gain: 2.15 dBi
  • VSWR: ≤ 1.5 on every band
  • Power peak: 200 Watts SSB
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Frequency length (including coil)

  • 3.537 MHz: 2375 mm length / adjustable range: 3.48~3.64 MHz
  • 7.1 MHz: 2316 mm length / adjustable range: 6.956~7.22 MHz
  • 10.125 MHz: 2311 mm length / adjustable range: 9.97~10.23 MHz
  • 14.175 MHz: 2299 mm length / adjustable range: 13.875~14.42 MHz
  • 18.118 MHz: 2230 mm length / adjustable range: 17.59~18.24 MHz
  • 21.225 MHz: 2185 mm length / adjustable range: 20.65~21.63 MHz
  • 29.000 MHz: 2255 mm length / adjustable range: 27.90~29.95 MHz
  • 51.500 MHz: 1372 mm length / adjustable range: 50.60~53.60 MHz

Mechanical data

  • Mounting type: On UHF-female (PL) connector (not included)
  • Antenna connector: UHF-male (PL)
  • Length coils: 170~325 mm
  • Weight coils: 197~367 gram

Inside the box

  • Antenna: Yes
  • Installation manual: English
  • Carry pouch: Yes
