HamKing - SWL-02

Product code: 6125

Factory code: 6125

Barcode: 8718375102916

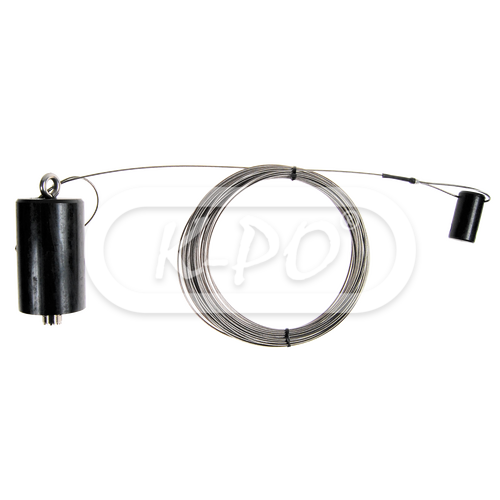

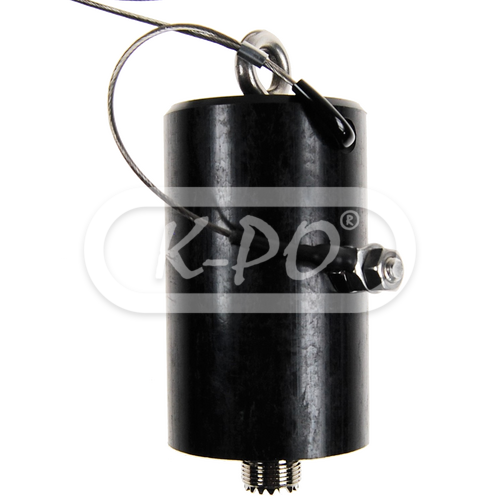

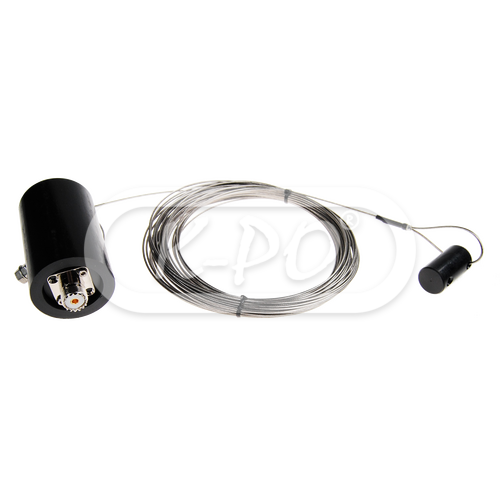

The HamKing SWL-02 is an excellent RX wire antenna for 3.5 - 30 MHz. With UnUn 1:9 wired on a Amidon Toroidal core. Ideal receiving antenna for shortwave and world receivers.

Frequency range: RX: 3.5 - 30 MHz

Out of stock - Longer delivery time

€57.95 (47.89 excl. 21% VAT)

Electrical data

• Impedance: 50 Ohm
• Polarization: Linear vertical
• QRP operation: possible with 1 Watt and antenna tuner

Mechanical data

• Materials: 1.5 mm thick stainless steel cables
• Width: ± 10 meter cable
• Weight: 500 gram
• Antenna connector: UHF-female
• Housing: PA6 housing and insulators are UV resistant

Inside the box

• Antenna: Yes
• Installation manual: English
