HamKing - X-200-2N

Product code: 6102
Factory code: 6102
Barcode: 8718375101223

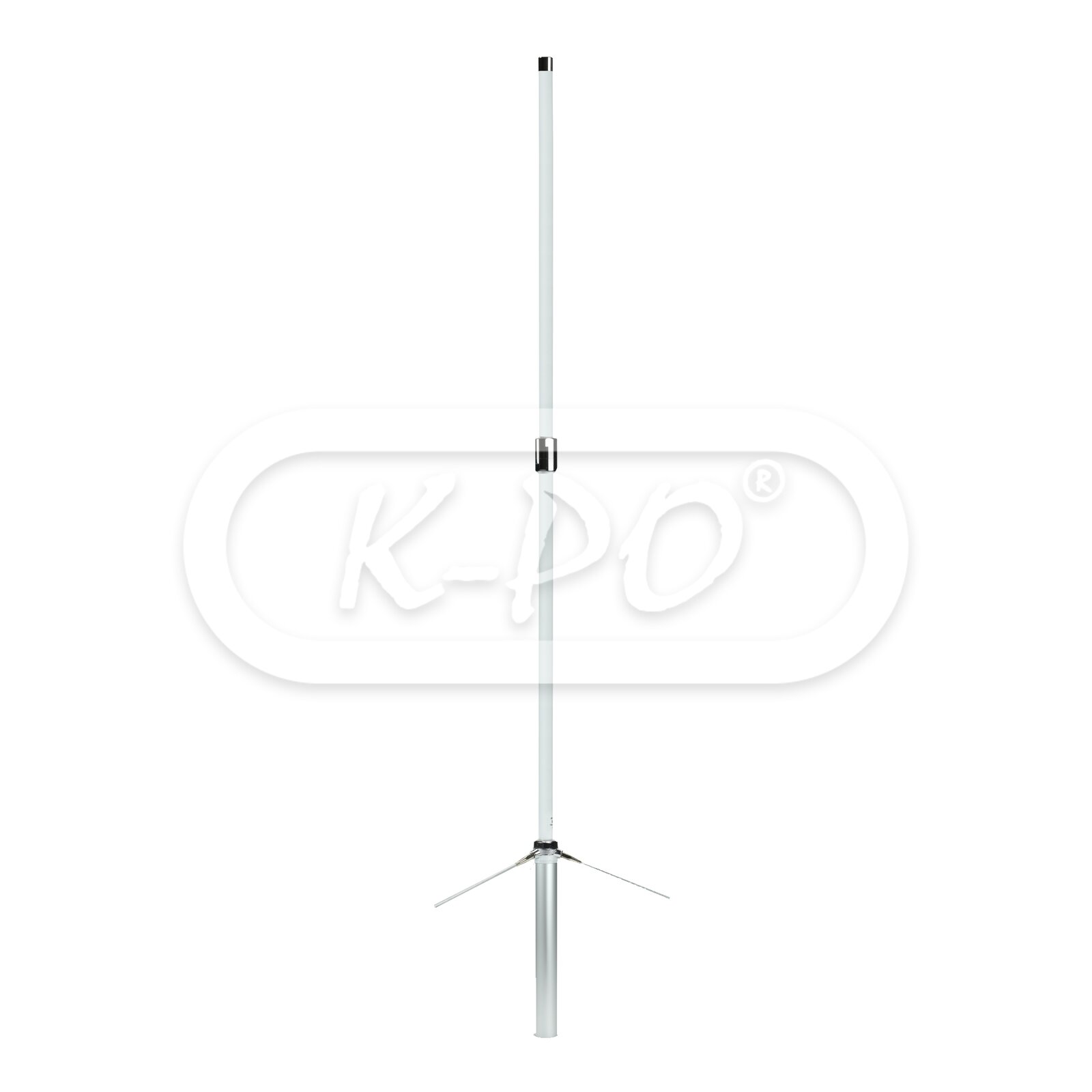

The HamKing X-200-2N vertical antenna for 144 MHz (6.0 dBi gain) and 430 MHz (8.0 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss ‘N’-connector for best performance. Maximum power: 200 watts.

Frequency range: 144 / 430 MHz
Shipped today
€68.55 (68.55 excl. 0% VAT)

Electrical data

  • Electrical type: 144 MHz: 2x5/8 λ / 430 MHz: 4x5/8 λ C-Load
  • Gain: 144 MHz: 6.0 dBi / 430 MHz: 8.0 dBi
  • VSWR: ≤ 1.5
  • Power continues: 200 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Mast Ø: 30 - 48 mm
  • Max wind resistance: 180 km/h
  • Height: 2500 mm
  • Weight: 1200 gram
  • Mounting type: On mast

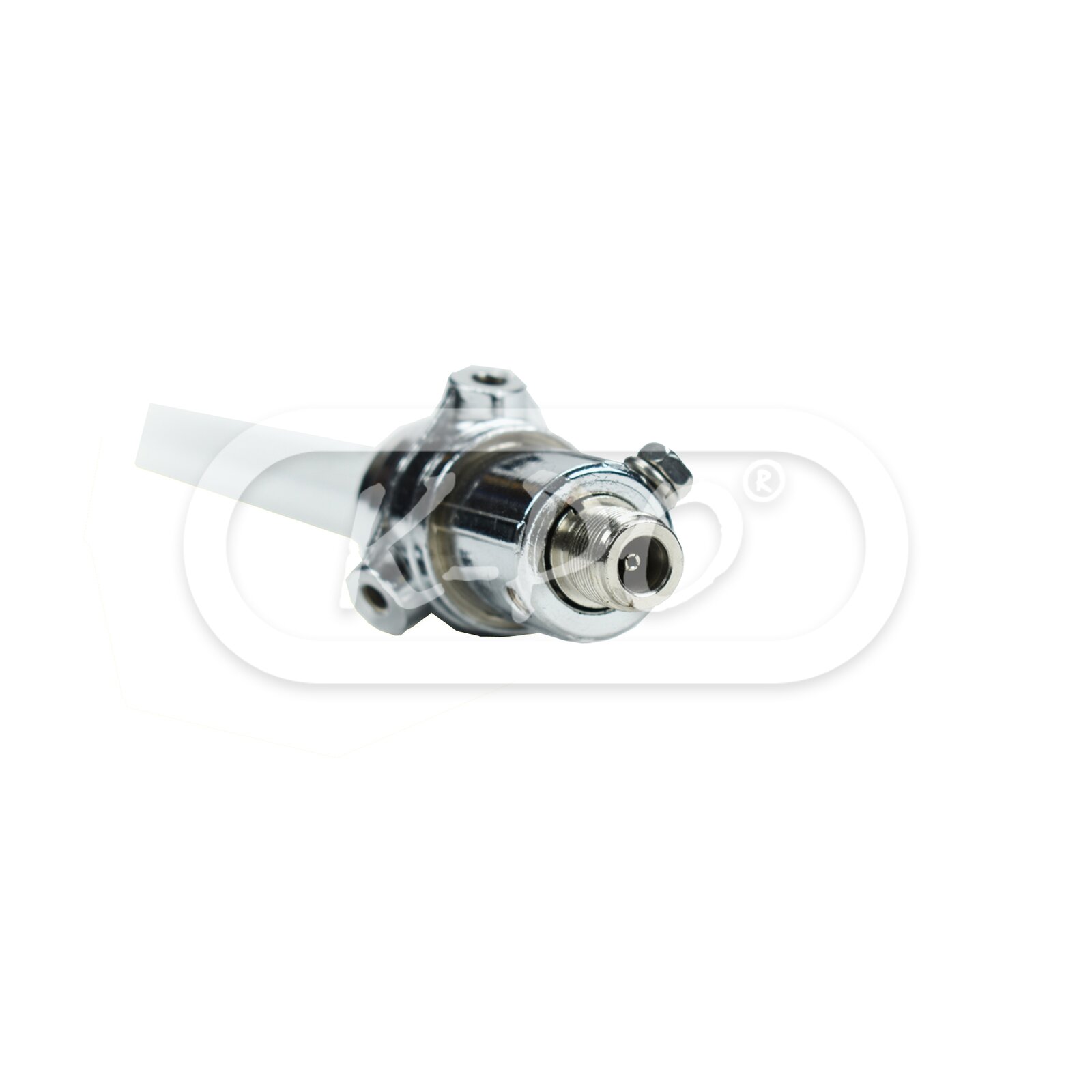

  • Antenna connector: N-female

Inside the box

  • Antenna: Yes

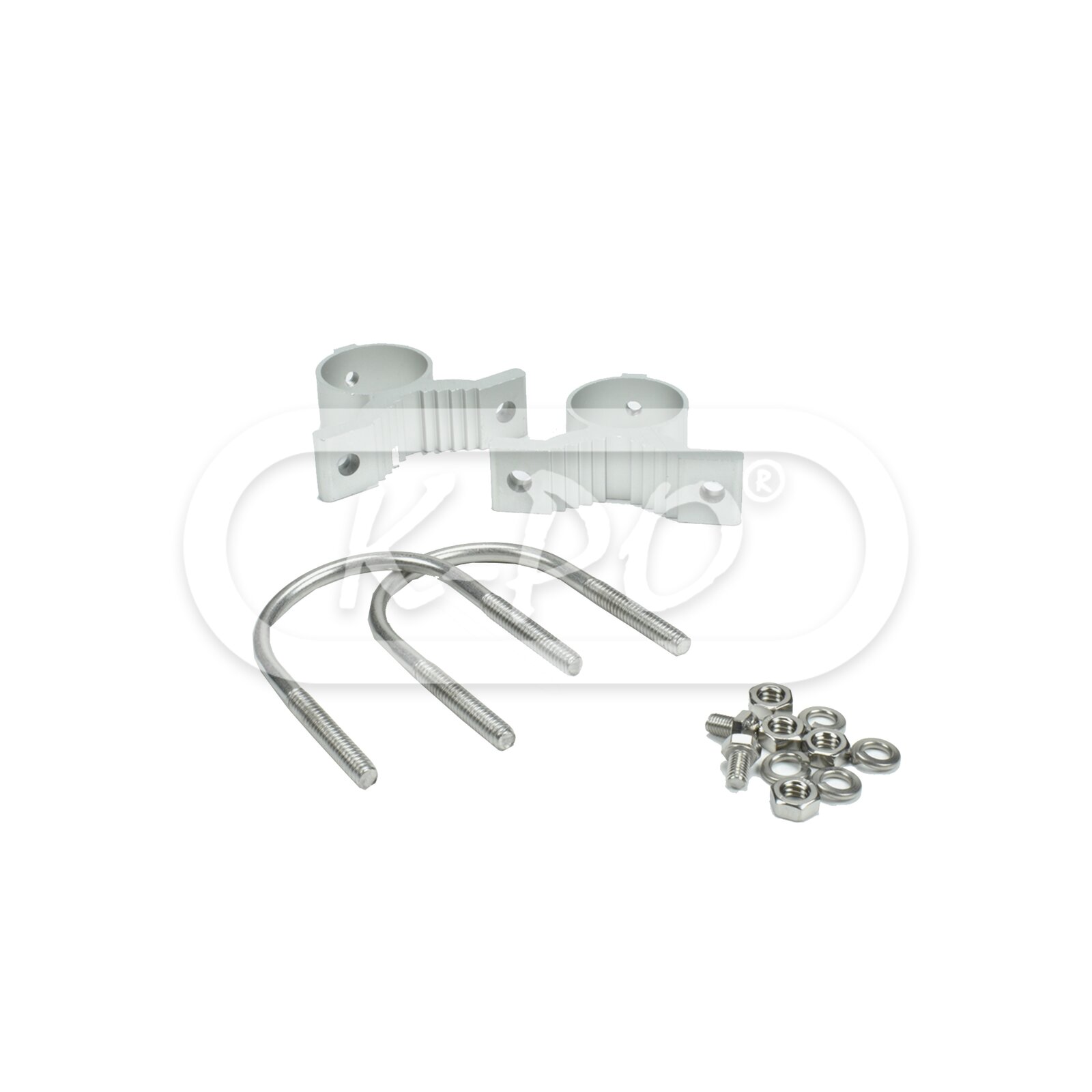

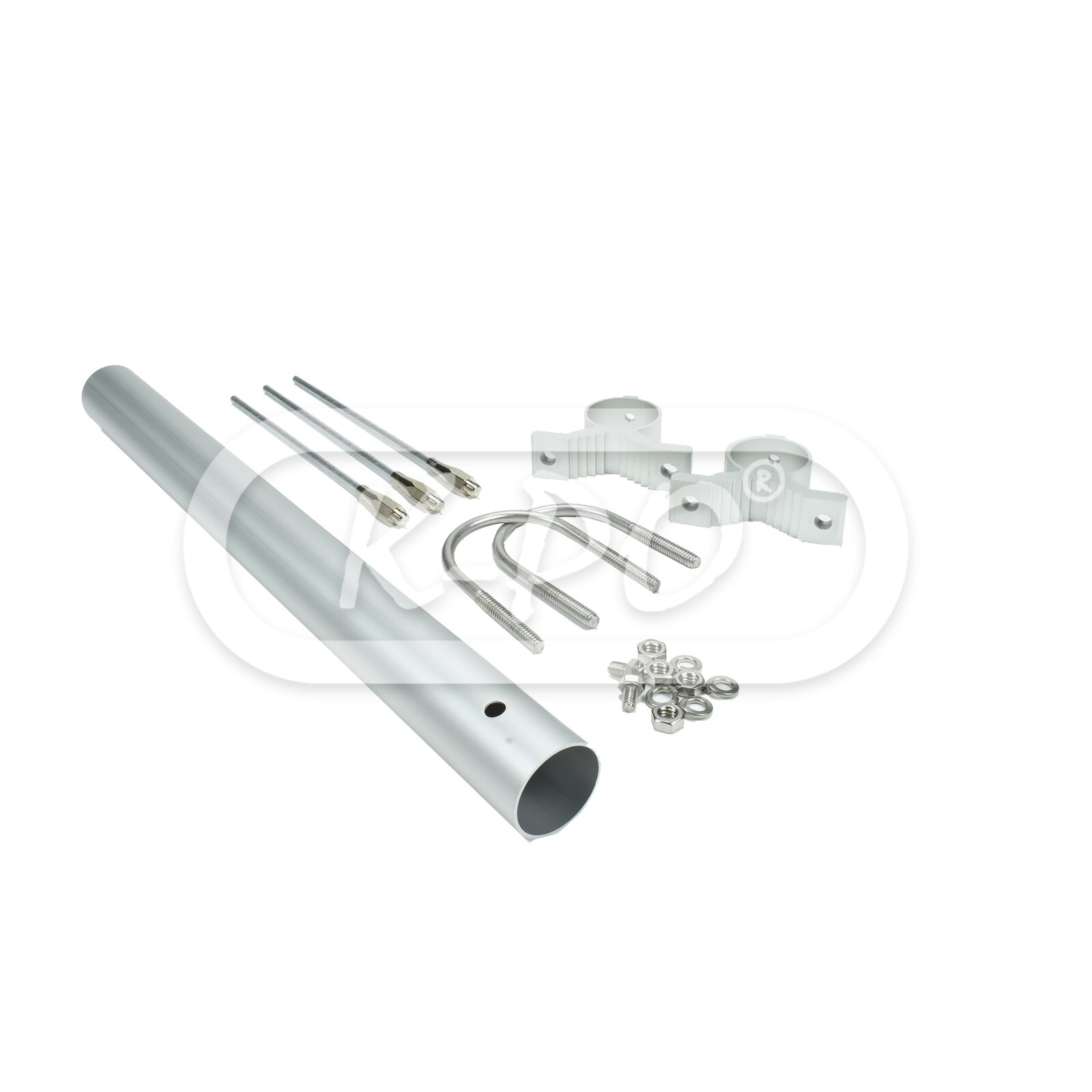

  • Mounting parts: Yes
  • Installation manual: English
