Certified European Distributor

Himunication - HM100 (ATIS)

Product code: 48120
Factory code: 48120
Barcode: 6970344030534

Channels conform VDES (VHF Data Exchange System), International standard. Including private channels 31 + 37 for Belgian and Dutch users.

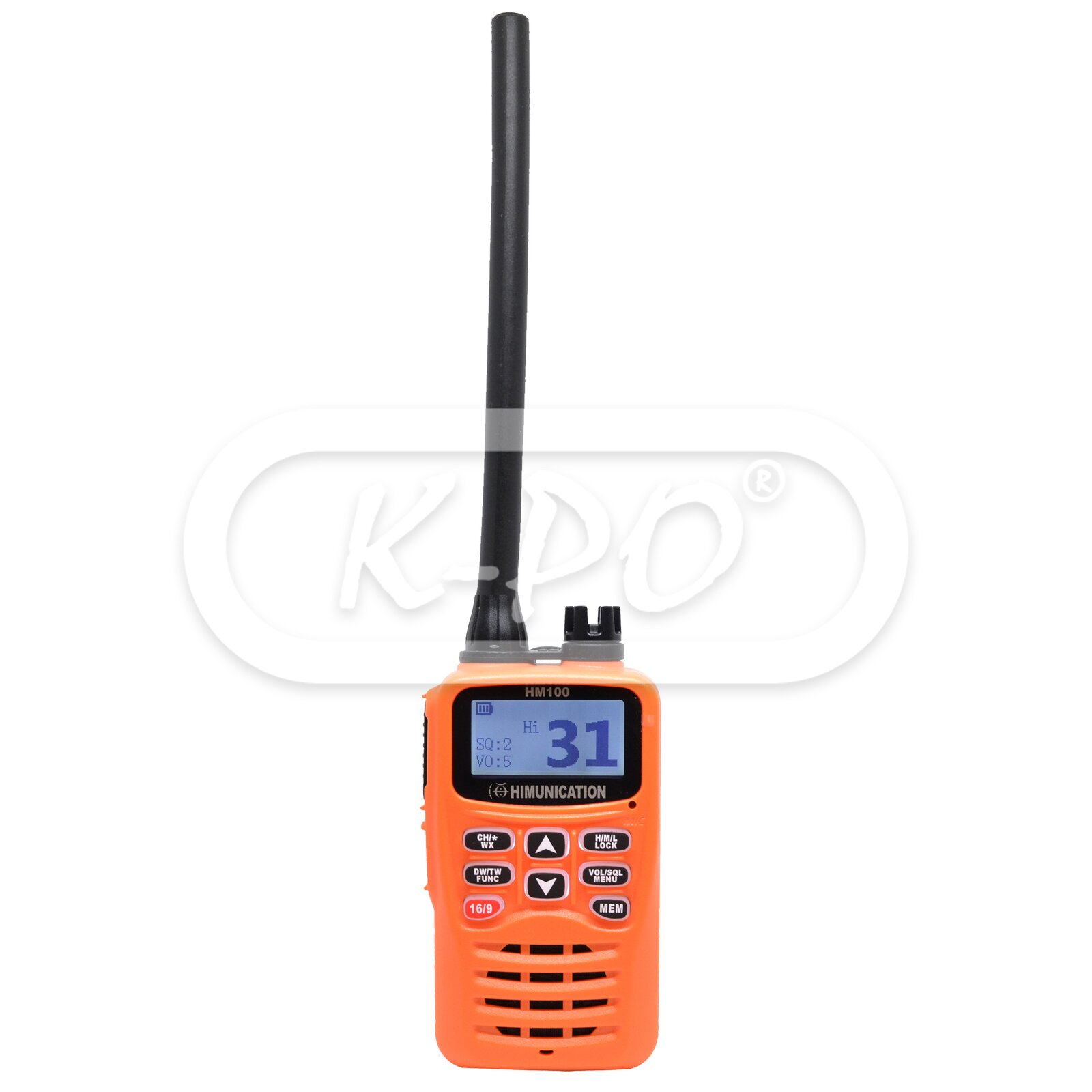

The Himunication HM100 with ATIS is a very compact entry level till mid-range handheld VHF marine radio for mainly leisure use.

On the white backlit display you can clearly read off all information that you need. With a long stand-by time of more than 24 hours.

With features like WDT (Water Displacement Technology), dual- and tri watch and more you can safely enjoy your hobby.

The HM100 is fully waterproof, IPX8 index. With the optional float and flash case you can make your HM100 'float & flash' too.

Both the HM100 and the optional float and flash case are in the bright and striking orange color, so you will not loose it easily out of sight.

Frequency range: TX: 156.025 - 157.425 MHz / RX: 156.300 - 162.000 MHz
Shipped next business day - Stock: 5
€119.95 (99.13 excl. 21% VAT)

Features

  • Channel 31: Yes
  • 16/9 channel switch: Yes
  • Private channel facility: Yes
  • Dual and tri watch: Yes
  • Display: LCD white back light
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • ATIS: Yes, one-time programmable by keypad
  • Stand-by time: 24 ±hours
  • Key lock: Yes
  • Scan function: Yes
  • Memory channels: Yes
  • Time out timer: Yes, after 3 minutes TX
  • Power save mode: Yes
  • WDT - Water displacement technology (water shaking): Yes
  • Battery indicator: Yes
  • Dimmer and contrast change: Yes

Electrical data

  • Channels: Conform VDES (VHF Data Exchange System) including private channels 31 + 37
  • Frequency stability: PPM ±5
  • Operating temperature (Celsius): -15 to +55 °C
  • Battery lifetime: 24 ±hours (TX 5% / RX 5% / stand-by 90%)

Transmitter

  • Power output (Watts): 6 / 3 / 1 Watt
  • Modulation: 5 ±KHz
  • Channel spacing: 25 kHz
  • Oscillate Mode: PLL
  • Normal Working Voltage: 3.7V
  • Low Limit Working Voltage: 3.0V
  • Built-ln speaker: 40 mm, 8 Ohm
  • Memory: EEPROM

Mechanical data

  • Length: 95 mm
  • Height: 56 mm
  • Width: 32 mm
  • Weight: 190 gram
  • Antenna connector: SMA

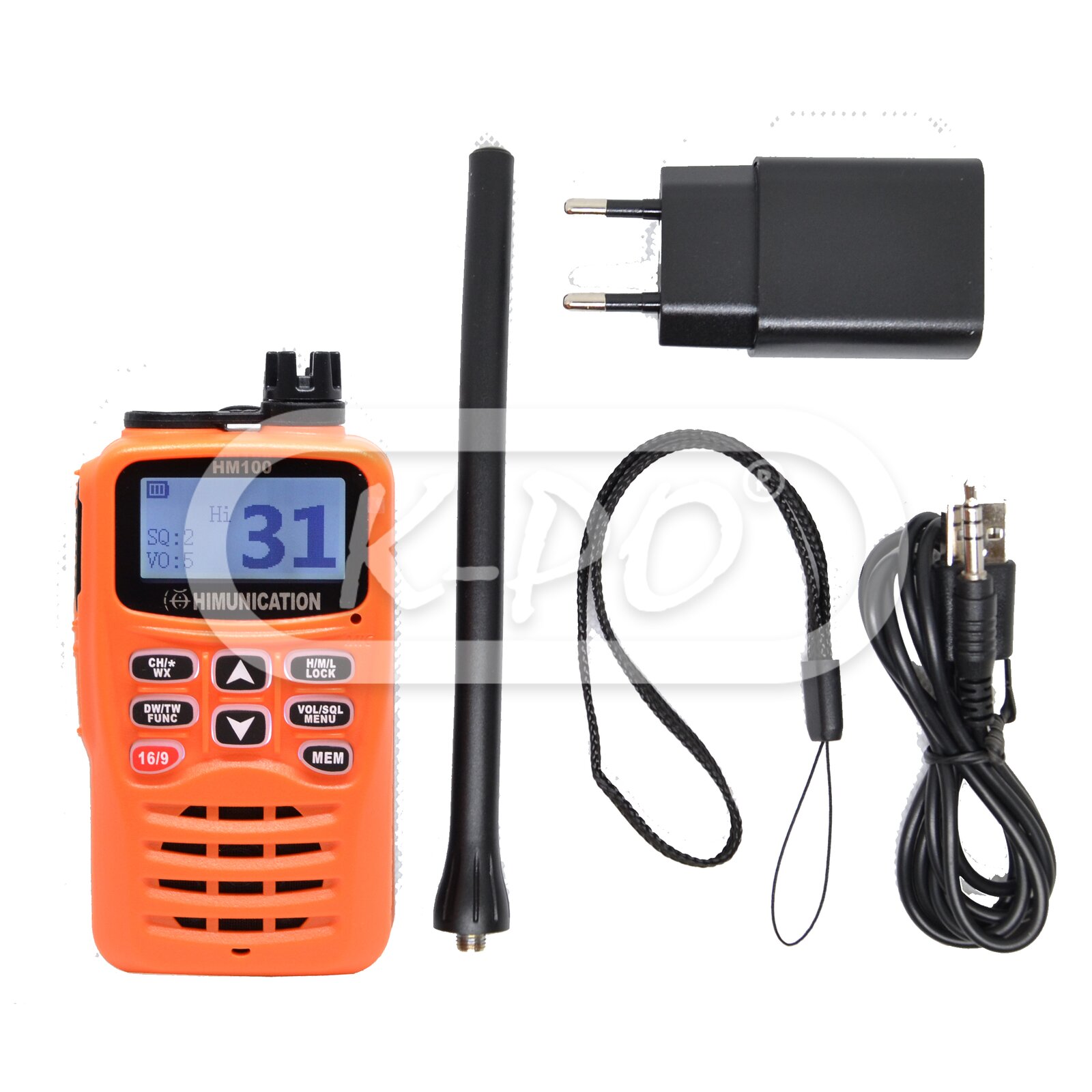

Inside the box

  • Transceiver: Yes
  • Battery: Built-in 3.7V 3000mAh rechargeable lithium battery
  • Charger: AC 240V / DC 12V desktop charger
  • Wrist strap: Yes
  • Installation manual: English (digital)
  • Hi-gain flexible rubber antenna: Yes
  • Belt clip: Yes
  • USB charging cable: Yes
  • AC/DC adapter 100-240v to USB 5.0V: Yes
