Himunication - HM390S-BB AIS/DSC/GPS (ATIS)

Product code: 48371
Barcode: 6970344030244

Channels conform VDES (VHF Data Exchange System), International standard. Including private channels 31 + 37 for Belgian and Dutch users.

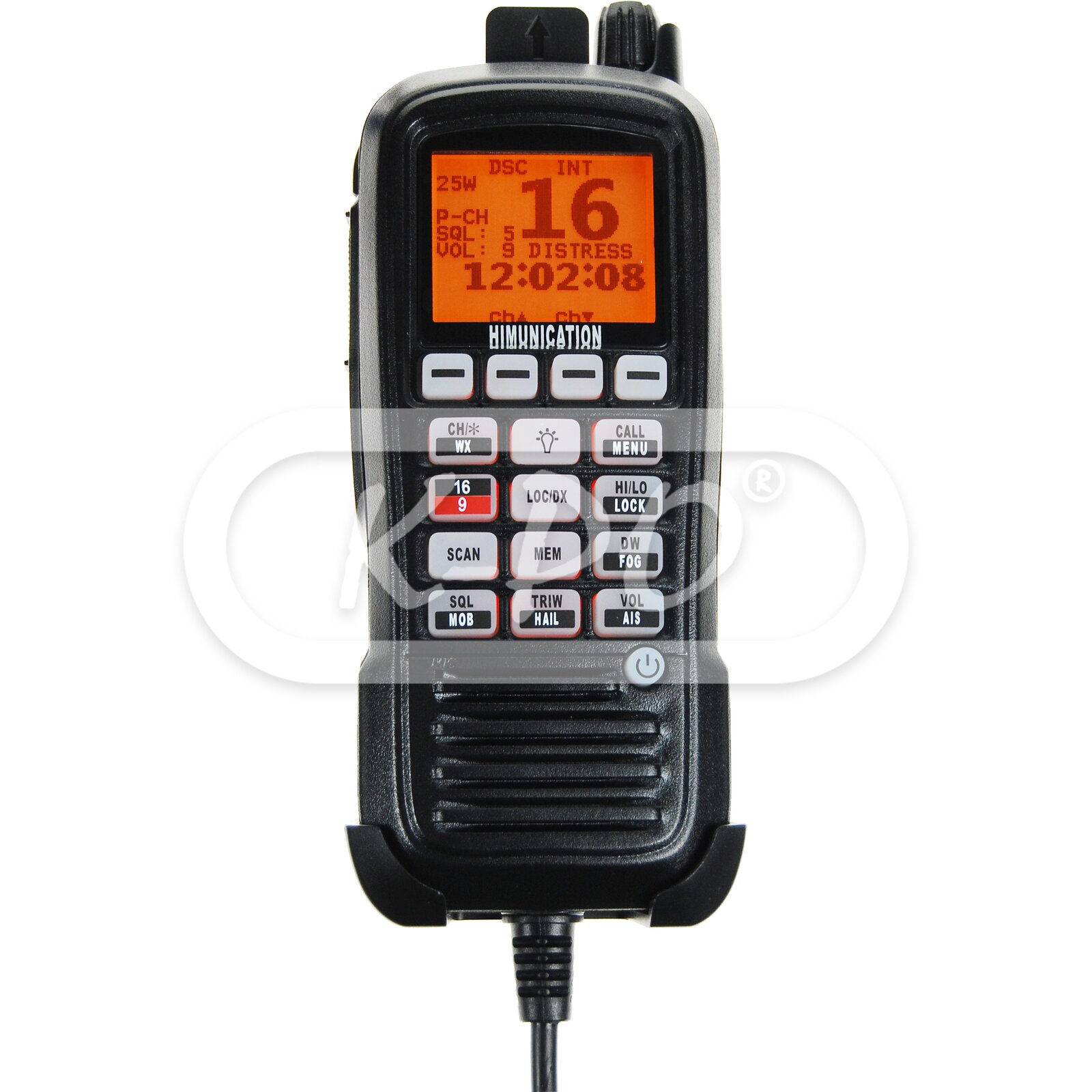

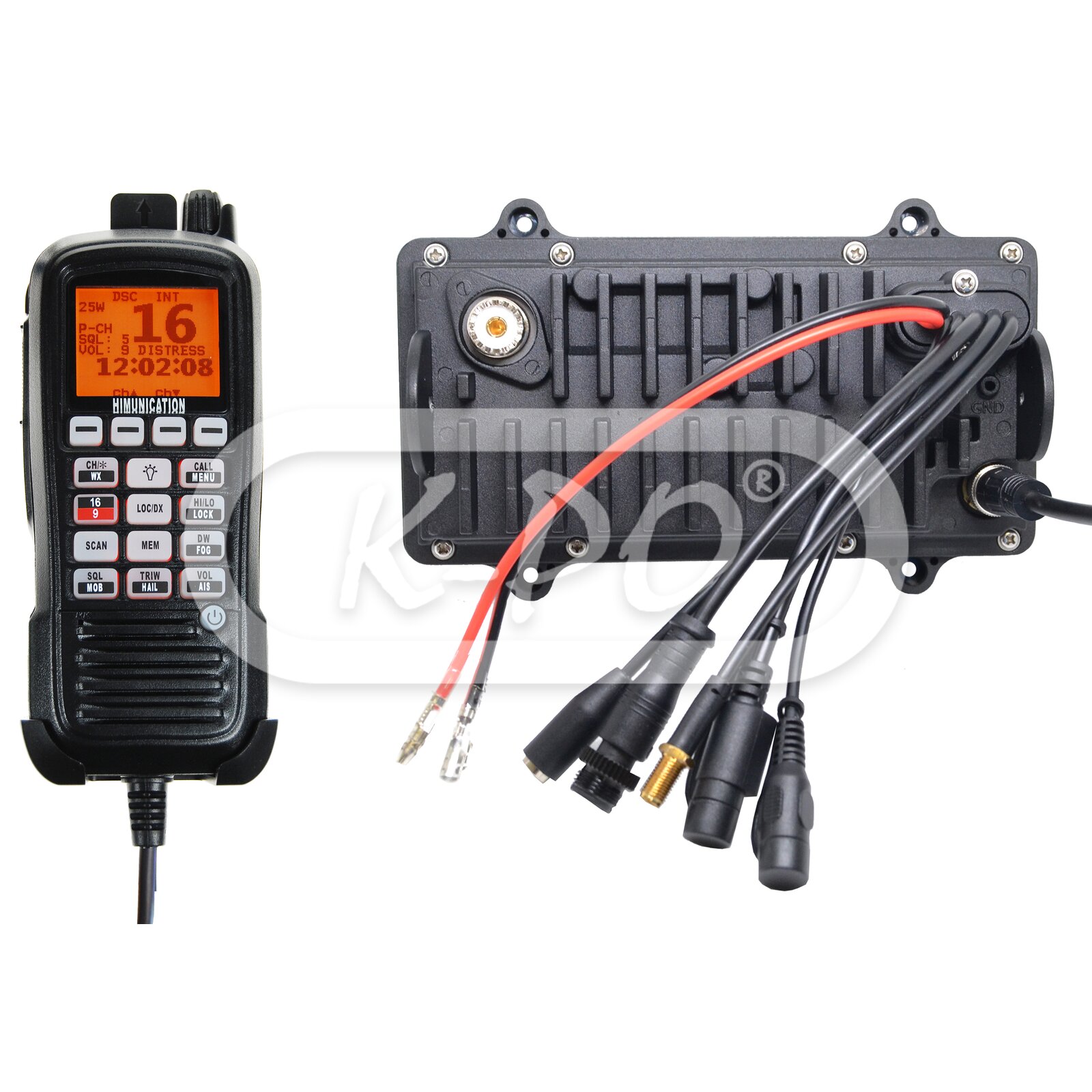

The HM390S-BB (black box) is a new generation VHF marine radio with DSC Class-D, internal AIS receiver and integrated GPS receiver. Unique to the HM390S-BB marine radio is that it is a black box unit that you can use with the supplied Himunication HS20 handset. It comes standard with features like ATIS, MMSI, a foghorn, a MOB function and more.

Simple and easy to operate, almost all functions are accessible with only four buttons. It can be connected to your NMEA0183 or NMEA2000 network with the supplied cable set.

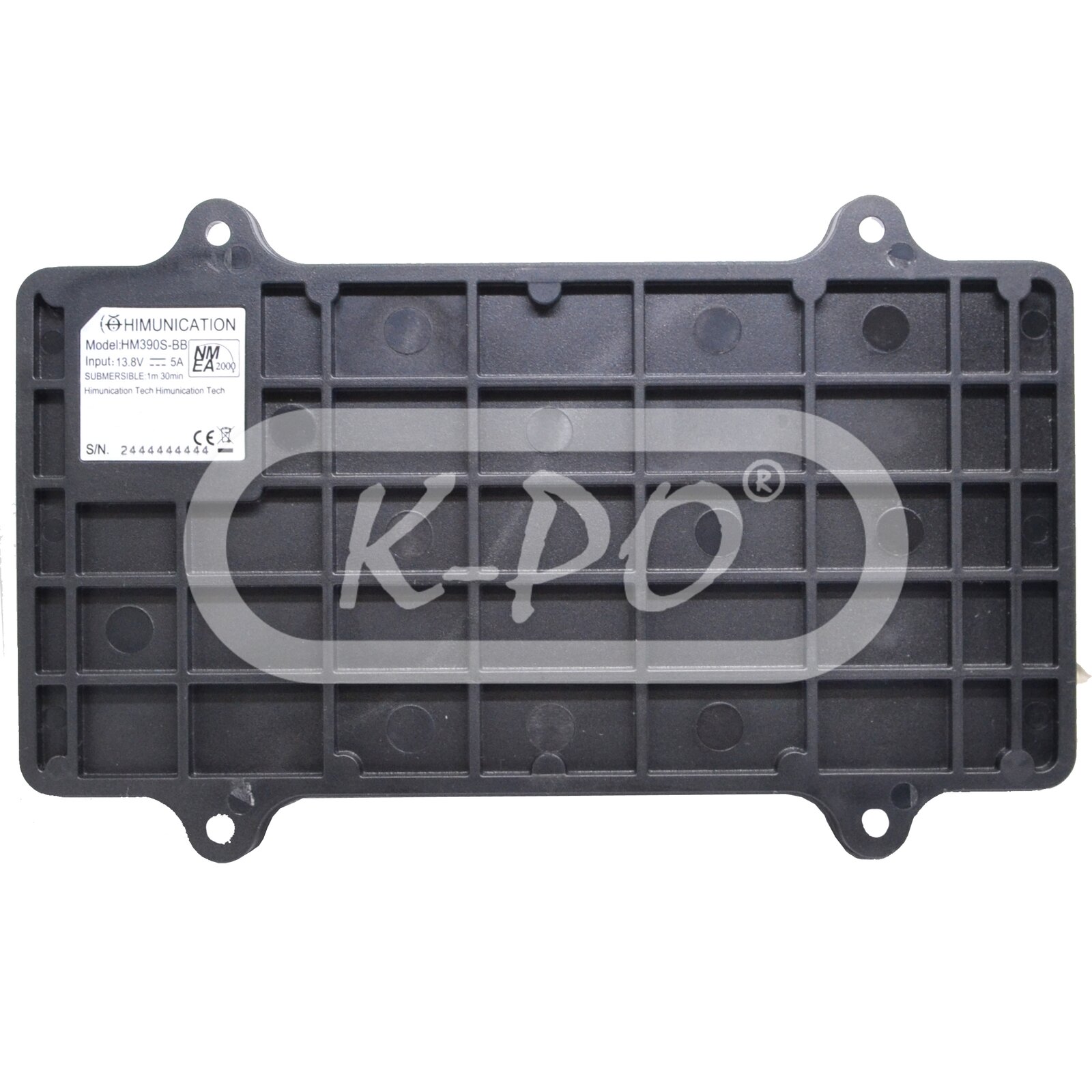

The slim and compact design makes it easy to mount the black box anywhere you want and secure it with the supplied screws, optional you can buy a standard mounting bracket.

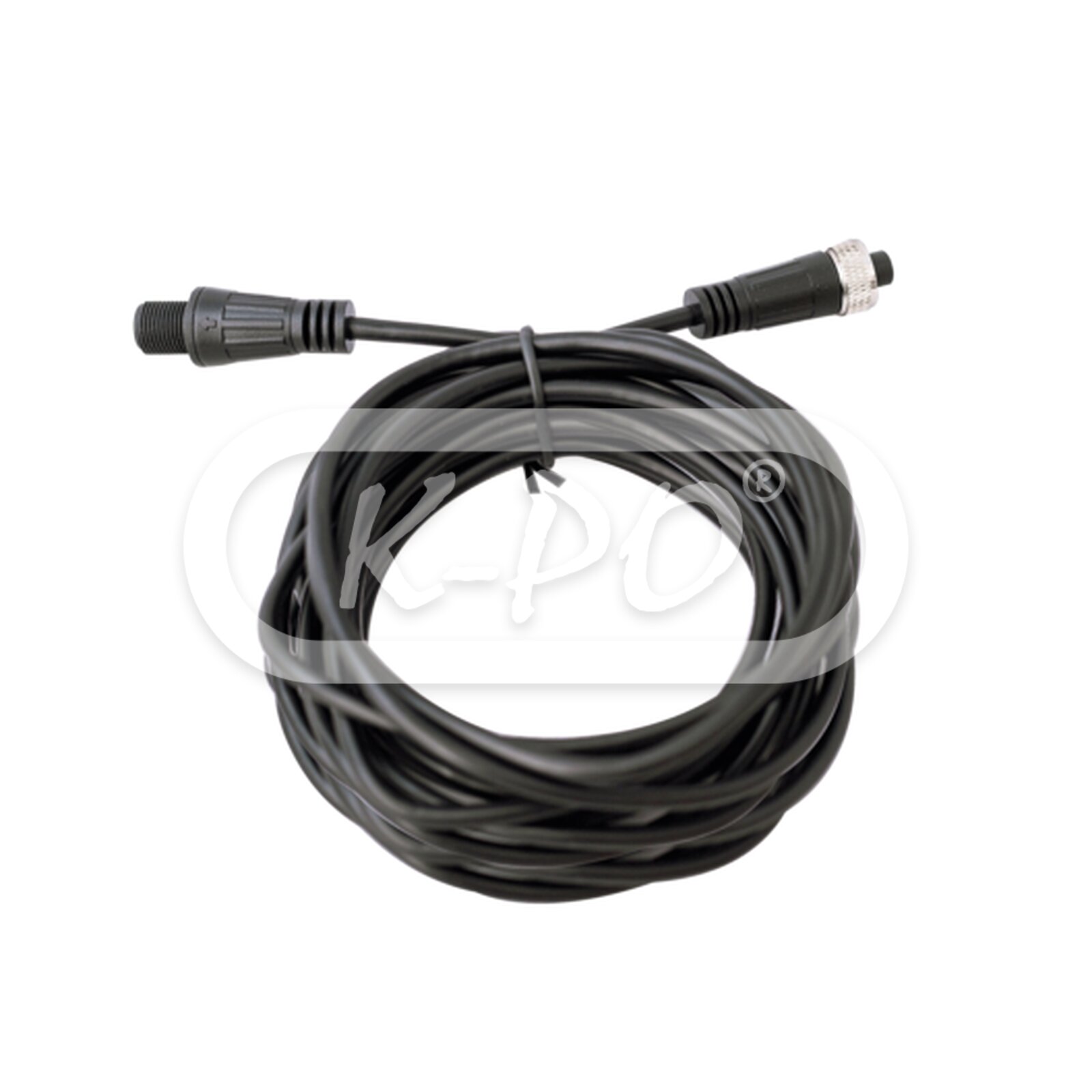

Included is also a 3.0 meter long extension cable to extend the cable of the Himunication HS20 handset, optional are 6 and 12 meter extension cables.

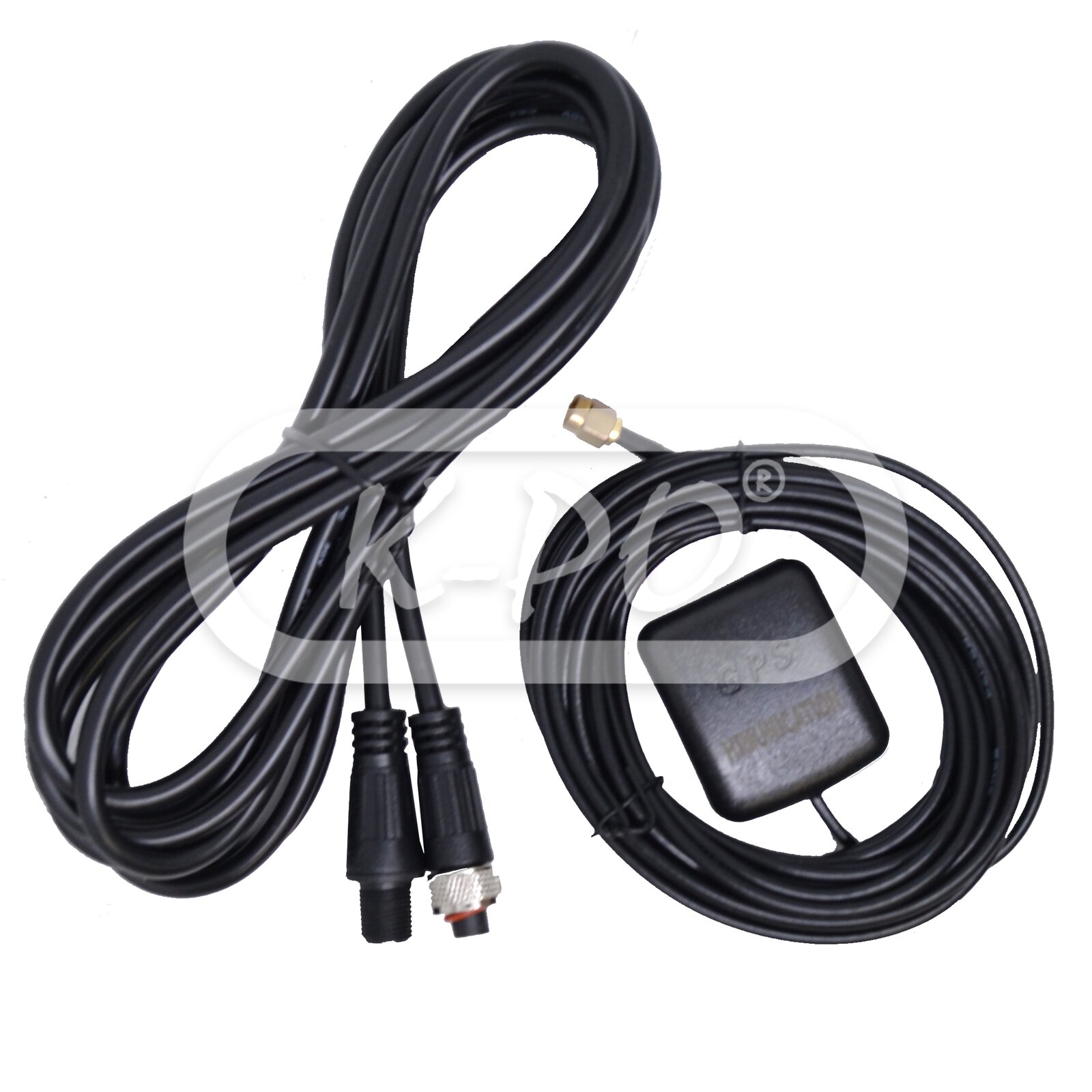

An external GPS antenna is included too, which you can use for when the black box is built-in and you don't have a good GPS reception or GPS signal from your NMEA network.

Frequency range: TX: 156.025 - 157.425 MHz / RX: 156.300 - 162.000 MHz
Shipped today - Stock: 4
€434.95 (359.46 excl. 21% VAT)

Features

  • Channel 31: Yes
  • 16/9 channel switch: Yes
  • Private channel facility: Yes
  • Dual and tri watch: Yes
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • MOB alert (man overboard): Yes
  • Distress key: Yes
  • MMSI: Yes
  • AIS: Yes
  • ATIS: Yes, one-time programmable by keypad
  • DSC: Yes, Class-D
  • GPS: Yes, integrated GPS receiver + connector for external GPS antenna
  • Time out timer: Yes, after 5 minutes TX
  • RF output power: Low: 1 Watt / High: 25 Watts
  • Foghorn / hailer function: Yes
  • Memory channels: Yes
  • Local / DX function: Yes
  • Scan function: Yes
  • NMEA0183 and NMEA2000 network compatible: Yes

Electrical data

  • Channels: Conform VDES (VHF Data Exchange System) including private channels 31 + 37
  • Operating temperature (Celsius): -15 to +55˚C

Transmitter

  • Power output (Watts): 1 / 25 Watts
  • Channel spacing: 25 kHz
  • Oscillate Mode: PLL

Mechanical data

  • Length: 180 mm
  • Height: 91 mm
  • Width: 55 mm
  • Weight: 970 gram
  • Antenna connector: UHF (PL) female
  • NMEA0183 connectors: Yes
  • NMEA2000 connectors: Yes

Inside the box

  • Transceiver: Yes
  • Microphone: Yes
  • Mounting parts: Yes
  • DC power cable: Yes
  • Installation manual: English (digital download)
  • Microphone holder: Yes
  • Himunication HS20 wired handset: Yes
  • External GPS dongle: Yes
  • Extension cable for HS20 (300 cm): Yes

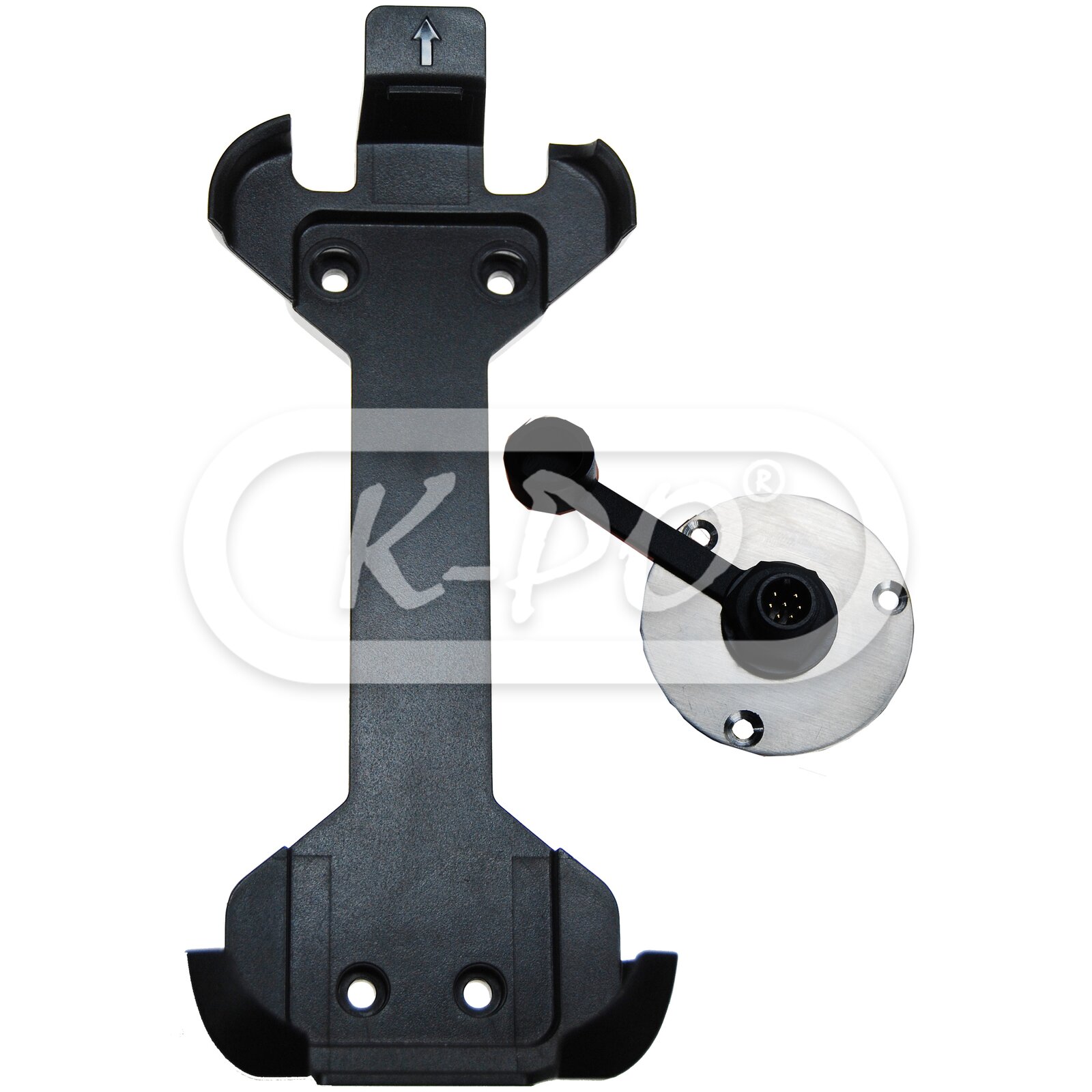

  • HS20 mounting bracket: Yes
