K-PO - SW2M

Product code: 905200
Barcode: 8718375100240

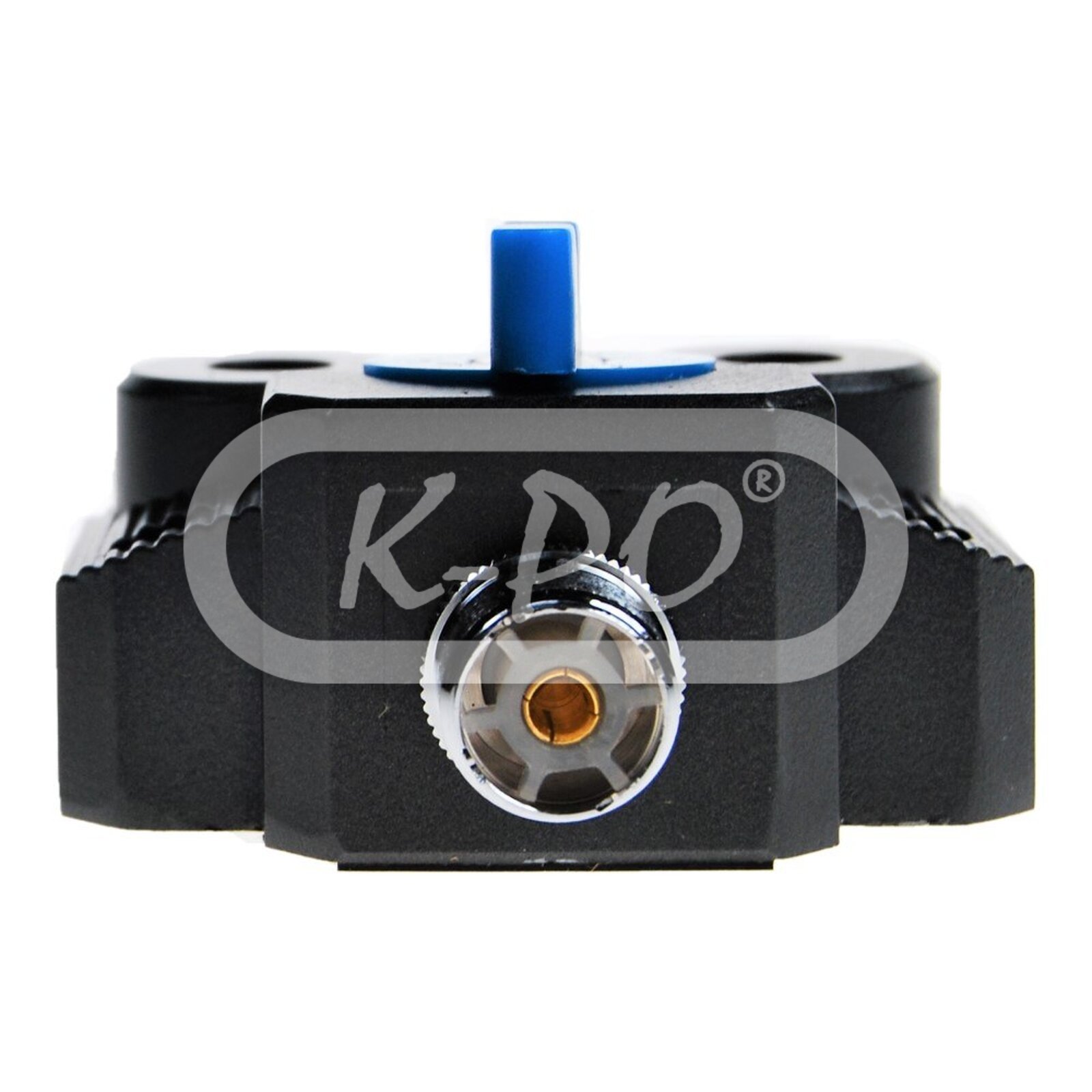

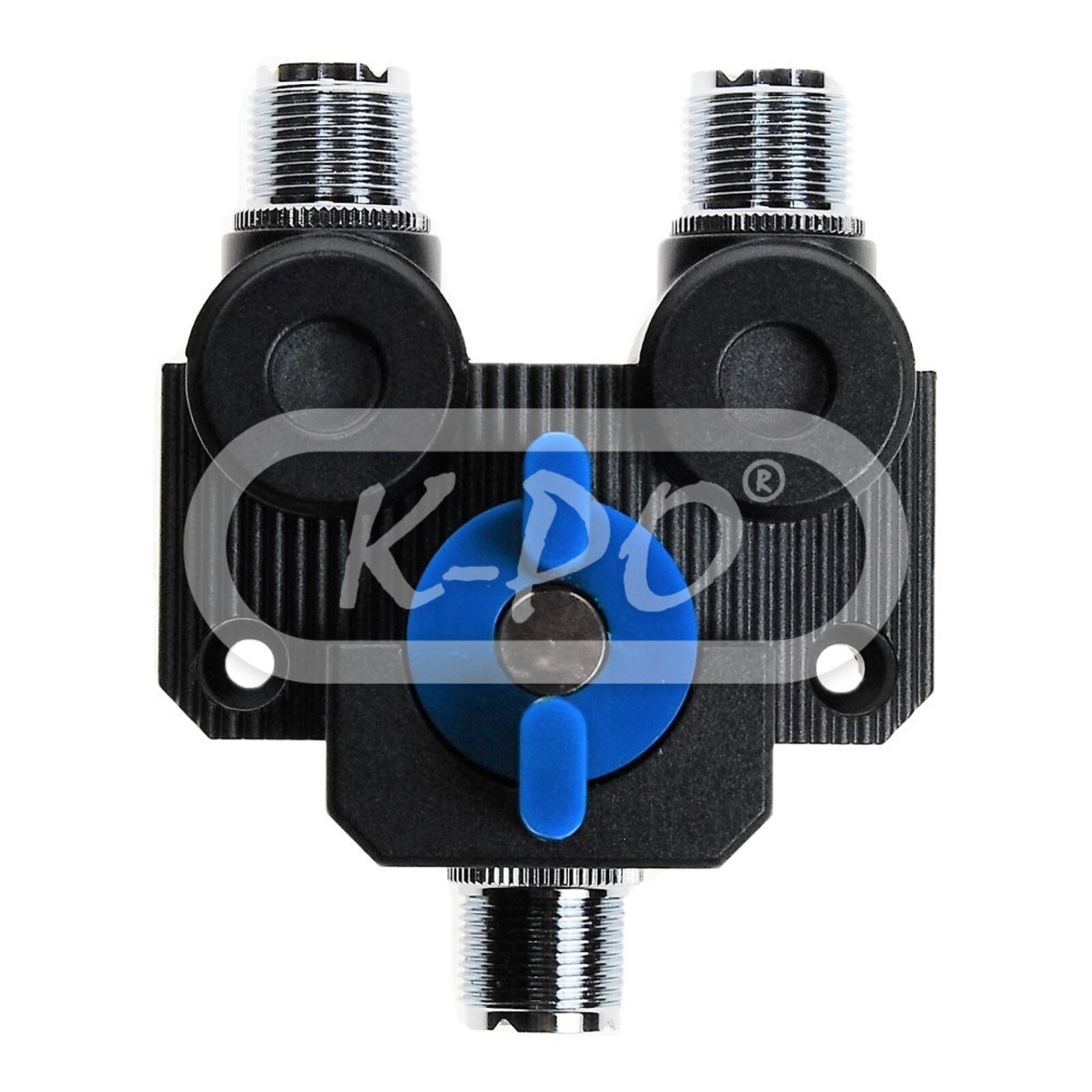

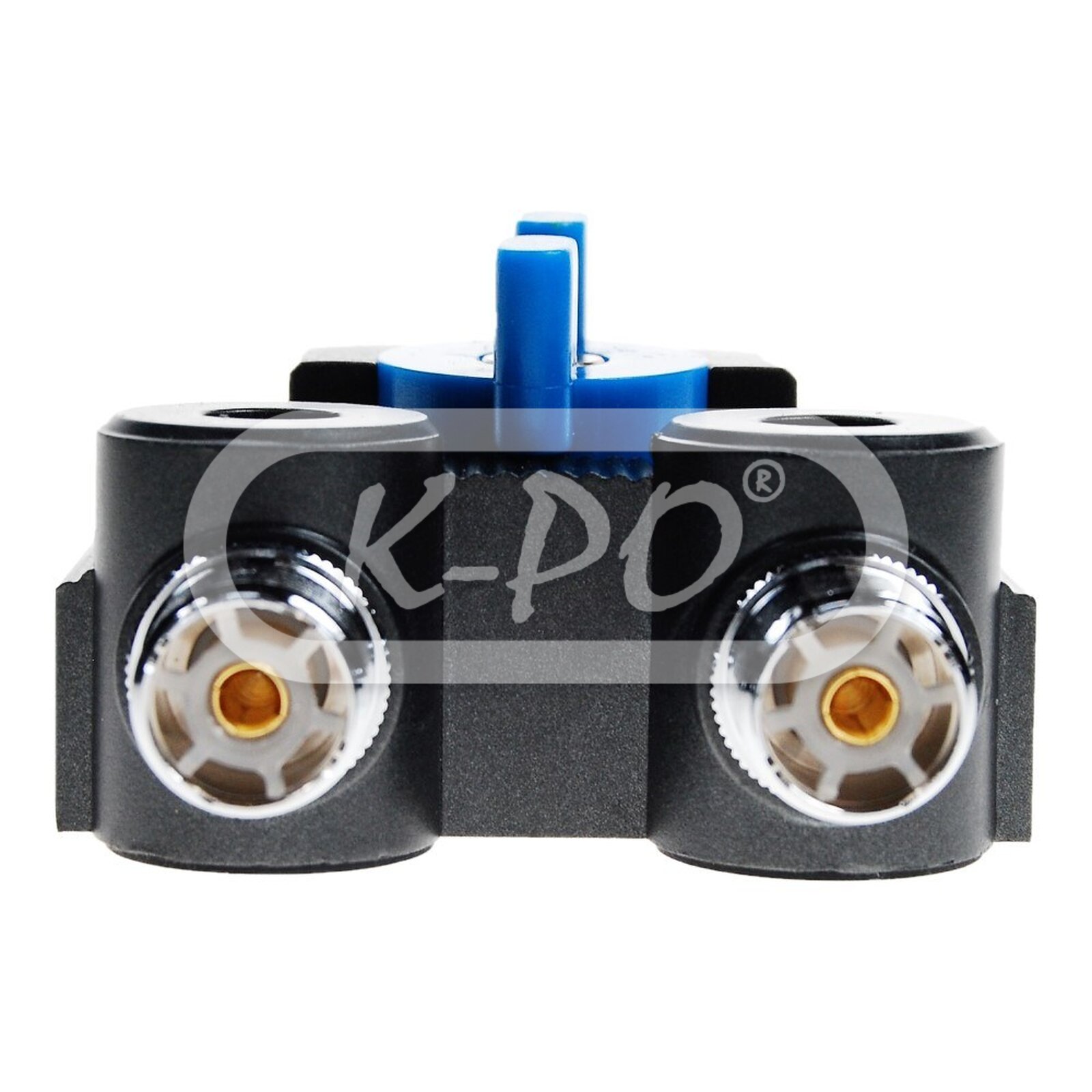

The K-PO SW2M UHF (PL) is a 2 way antenna switch with a UHF (PL) female input connector and 2x UHF (PL) female output connectors.

Frequency range: Up to 1 GHz
Shipped today
€46.95 (38.8 excl. 21% VAT)

Electrical data

  • VSWR: 0-500 MHz: >=1.05 / 500 MHz - 1 GHz: >=1.1
  • Insertion loss: 0-500 MHz: >=0.05dB / 500 MHz - 1 GHz: >=0.1dB
  • Isolation: 0-500 MHz: <=70dB / 500 MHz - 1 GHz: <60dB
  • Power range: 0-30 MHz: 2 kW / 30-200 MHz: 1.0 kW / 200-500 MHz: 500 W / 500 MHz - 1 GHz: 250 W

Mechanical data

  • Connector(s) type in: UHF (PL) female
  • Connector(s) type out: UHF (PL) female
  • Length: 90 mm
  • Height: 30 mm
  • Width: 70 mm
  • Weight: 550 gram
