K-PO - SW2N

Product code: 905201
Barcode: 8718375100547

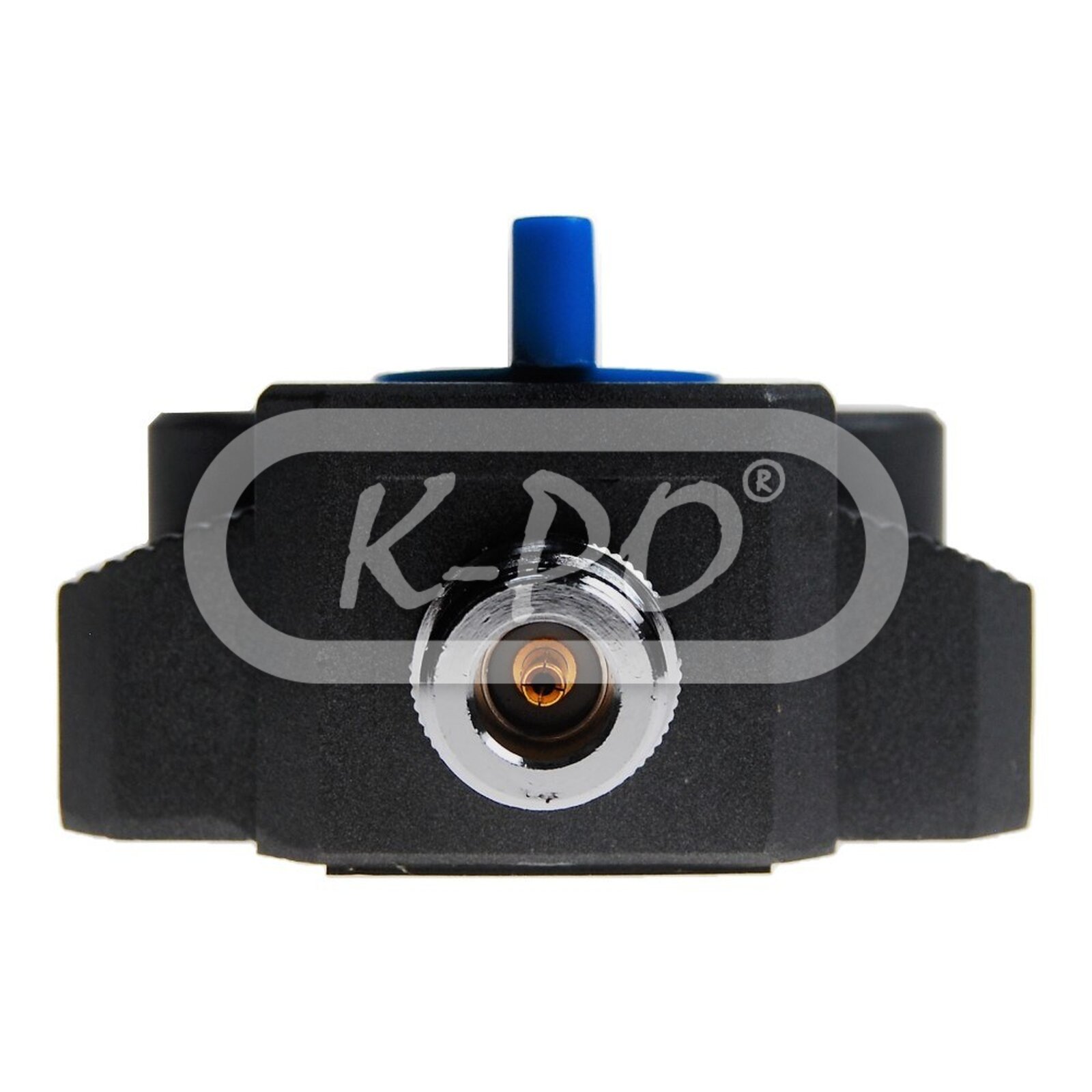

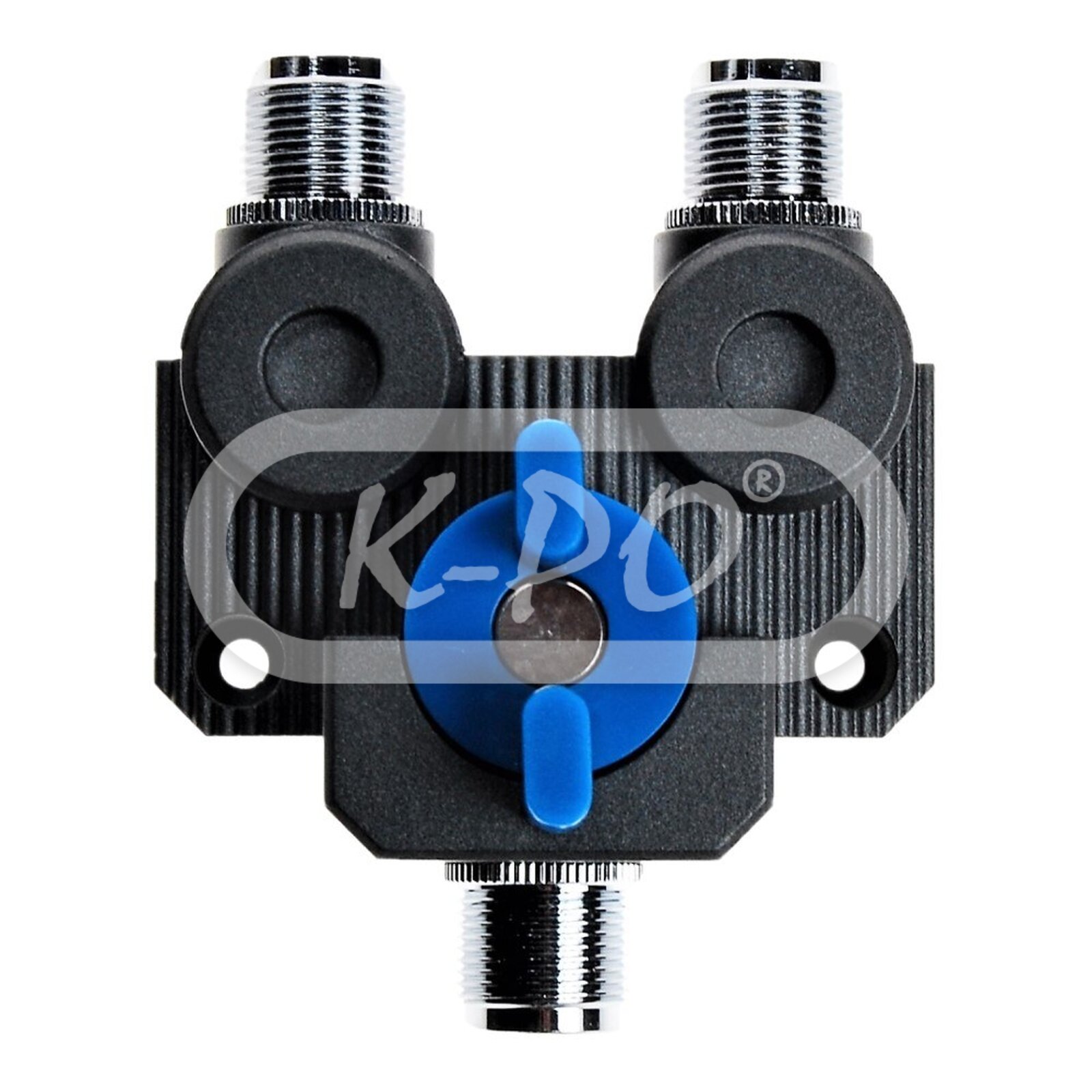

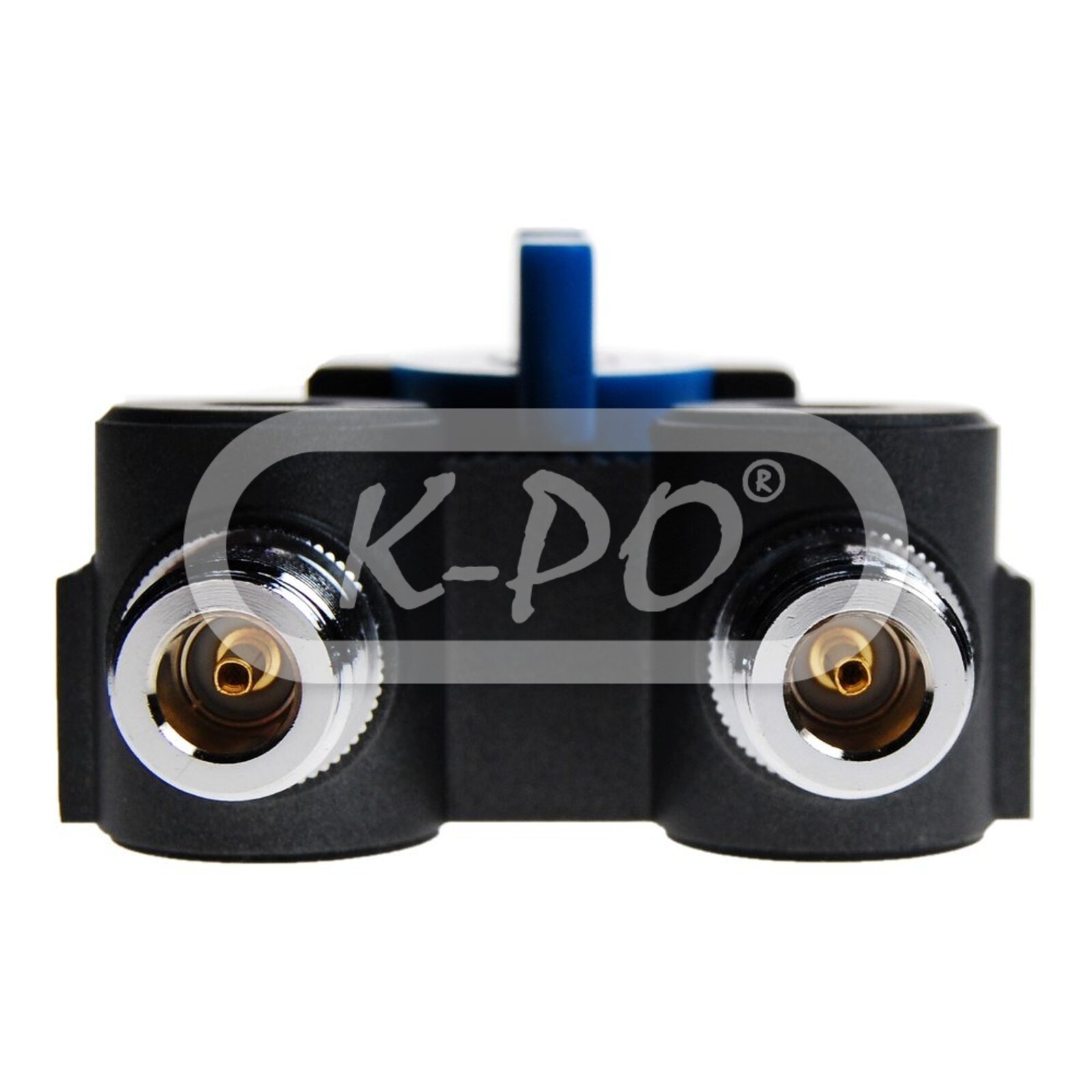

The K-PO SW2N is a 2 way antenna switch with a N female input connector and 2x N female output connectors.

Frequency range: Up to 3.0 GHz
Shipped next business day
€55.95 (46.24 excl. 21% VAT)

Electrical data

  • VSWR: 0-500 MHz: >=1.05 / 500 MHz - 1 GHz: >=1.1 / 1-2 GHz: >=1.15 / 2-3 GHz: >=1.2
  • Impedance: 50 Ohm
  • Insertion loss: 0-500 MHz: >=0.05dB / 500 MHz - 1 GHz: >=0.1dB / 1-2 GHz: >=0.15dB / 2-3 GHz: >=0.2dB
  • Isolation: 0-500 MHz: <=70dB / 500 MHz - 1 GHz: <60dB / 1-2 GHz: <55dB / 2-3 GHz: <50dB
  • Power range: 0-30 MHz: 2 kW / 30-200 MHz: 1.0 kW / 200-500 MHz: 500 W / 500 MHz - 1 GHz : 250 W / 1-3 GHz: 150 W

Mechanical data

  • Connector(s) type in: N female
  • Connector(s) type out: N female
  • Length: 90 mm
  • Height: 30 mm
  • Width: 70 mm
  • Weight: 550 gram
