Maas - KCB-2000

Product code: 483039
Factory code: 3039
Barcode: 4250158725195

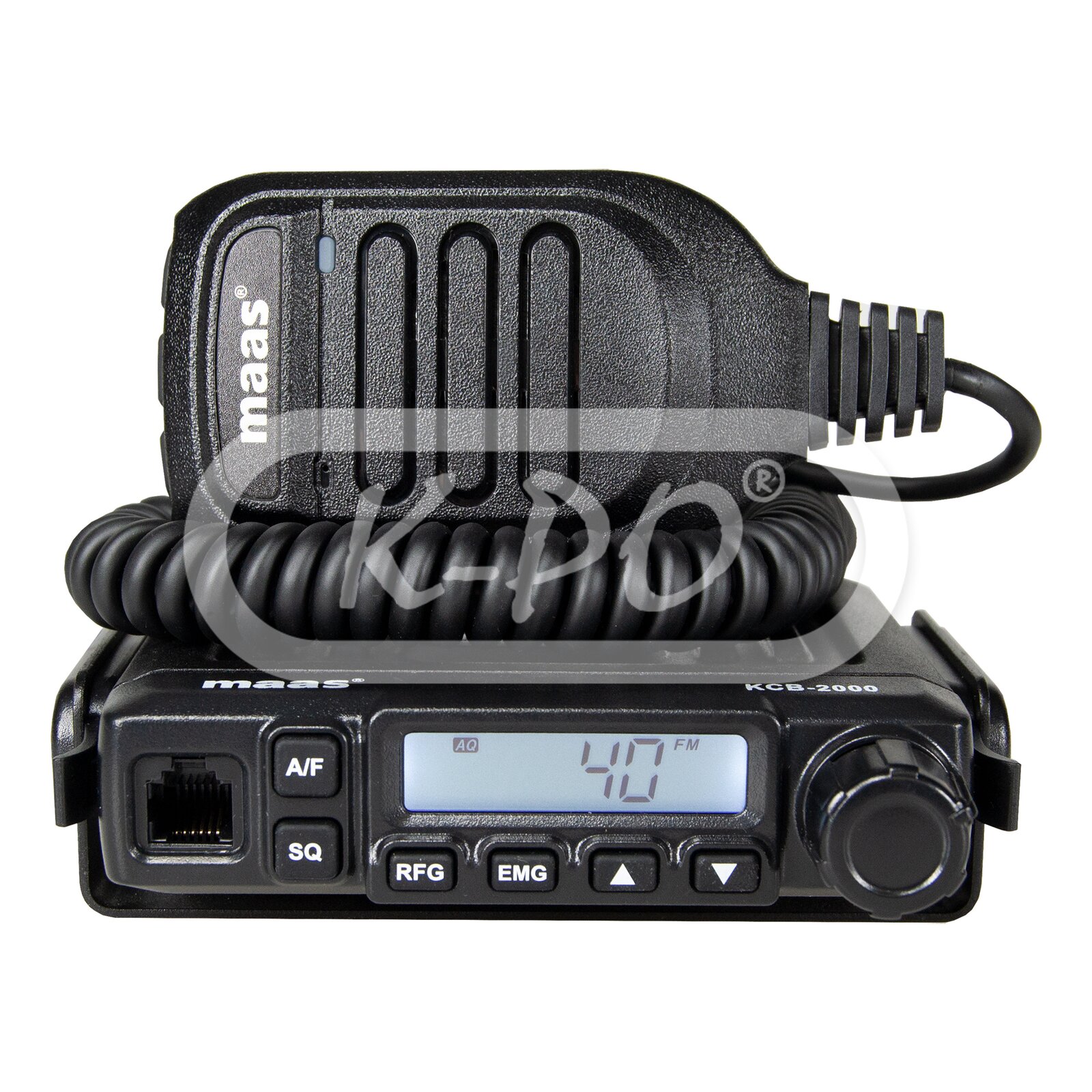

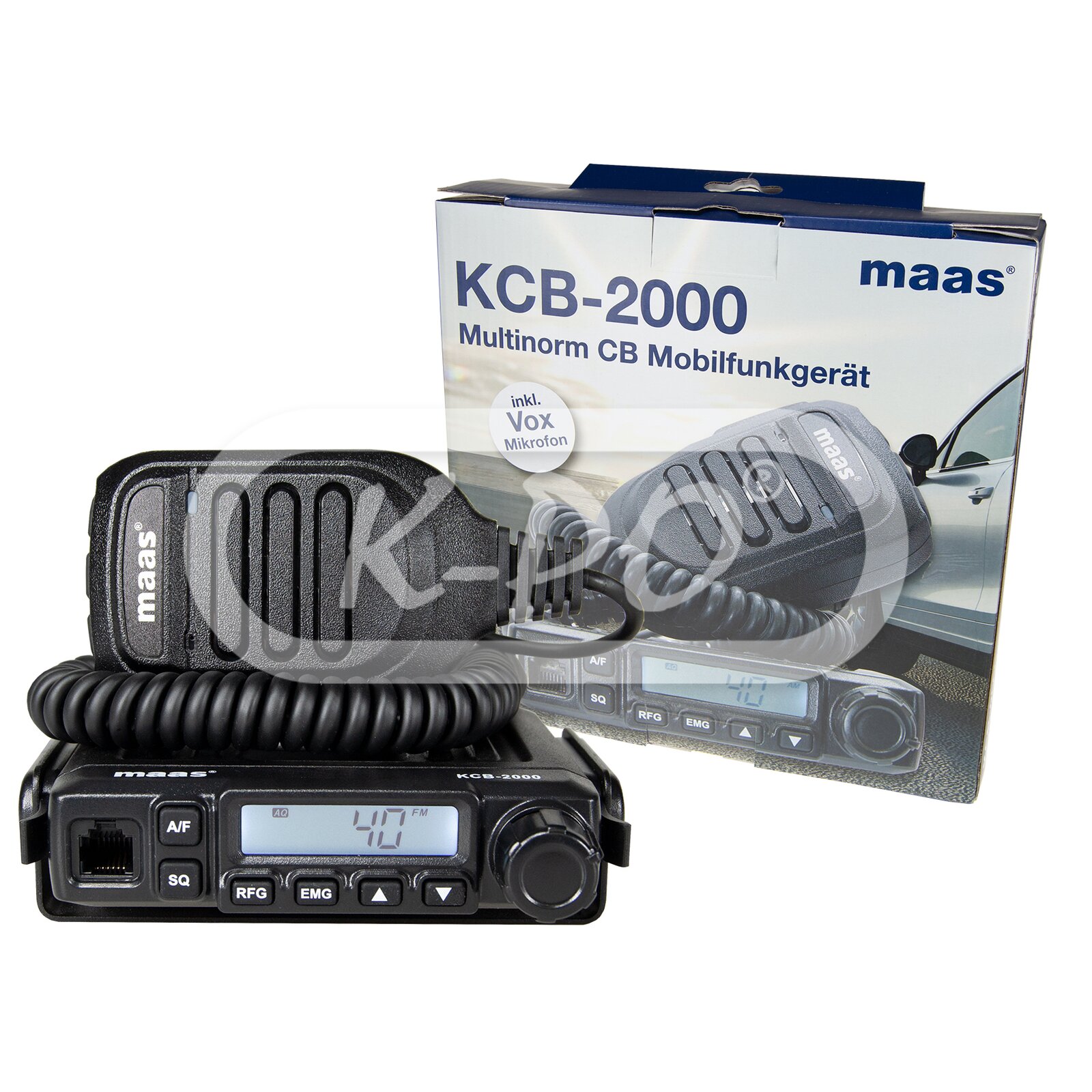

The Maas KCB-2000 is a mini CB radio with a VOX microphone. The radio has a clear LCD display and can be used on 12 Volt. It comes with features like a lock function, channel 9/19 emergency button, automatic squelch and more.

Besides the standard DC power cord the radio will have an extra DC power cord with cigarette lighter plug.

Frequency range: 26.965 - 27.405 MHz
Shipped next business day - Stock: 3
€64.95 (53.68 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 1 - 4 Watt
  • Channels: 40 AM / FM
  • Display type: LCD display
  • Display colors: Blue
  • VOX Function: Yes
  • Squelch: Automatic squelch / Manual squelch /
  • Emergency channel: Yes
  • Keypad lock: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • RF gain: Yes
  • Car socket connector: Yes

Electrical data

  • Voltage: 13,8 Volt
  • Operating temperature: -20° to +60° C
  • Frequency control: PLL synthesizer

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Drain: 13.2 Volt: 1.8 A max.

Receiver

  • AM sensitivity: 0.25 µV @ 12 dB
  • FM sensitivity: 0.25 µV @ 12 dB
  • Frequency response: 300 Hz - 3 kHz
  • Maximum audio power: 1 Watt
  • IF frequencies: Double conversion 1st 10.700 MHz / 2nd 450 kHz

Mechanical data

  • Length: 110 mm
  • Height: 27 mm
  • Width: 120 mm
  • Weight: 320 gram

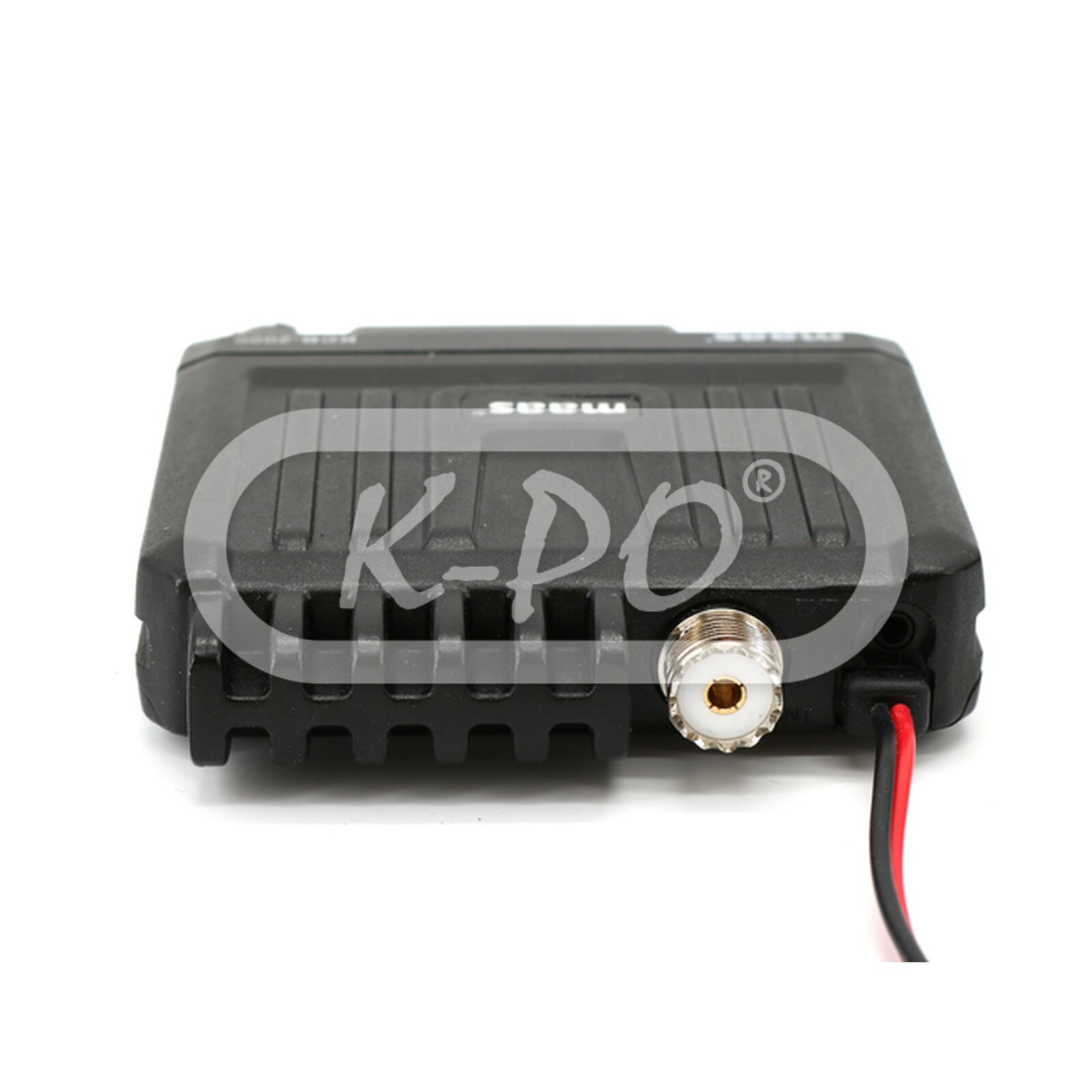

  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: RJ45 connector

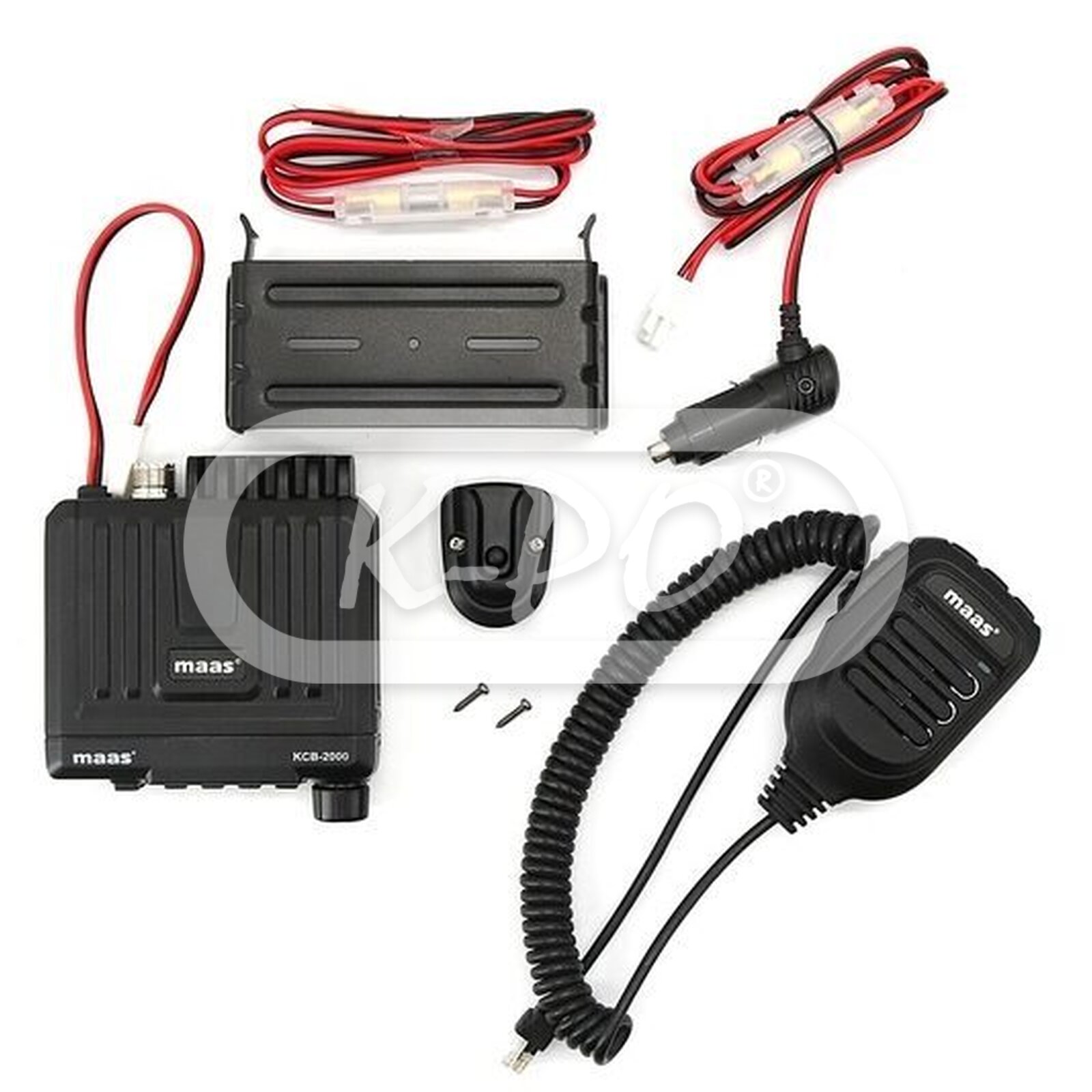

Inside the box

  • Transceiver: 1 pcs

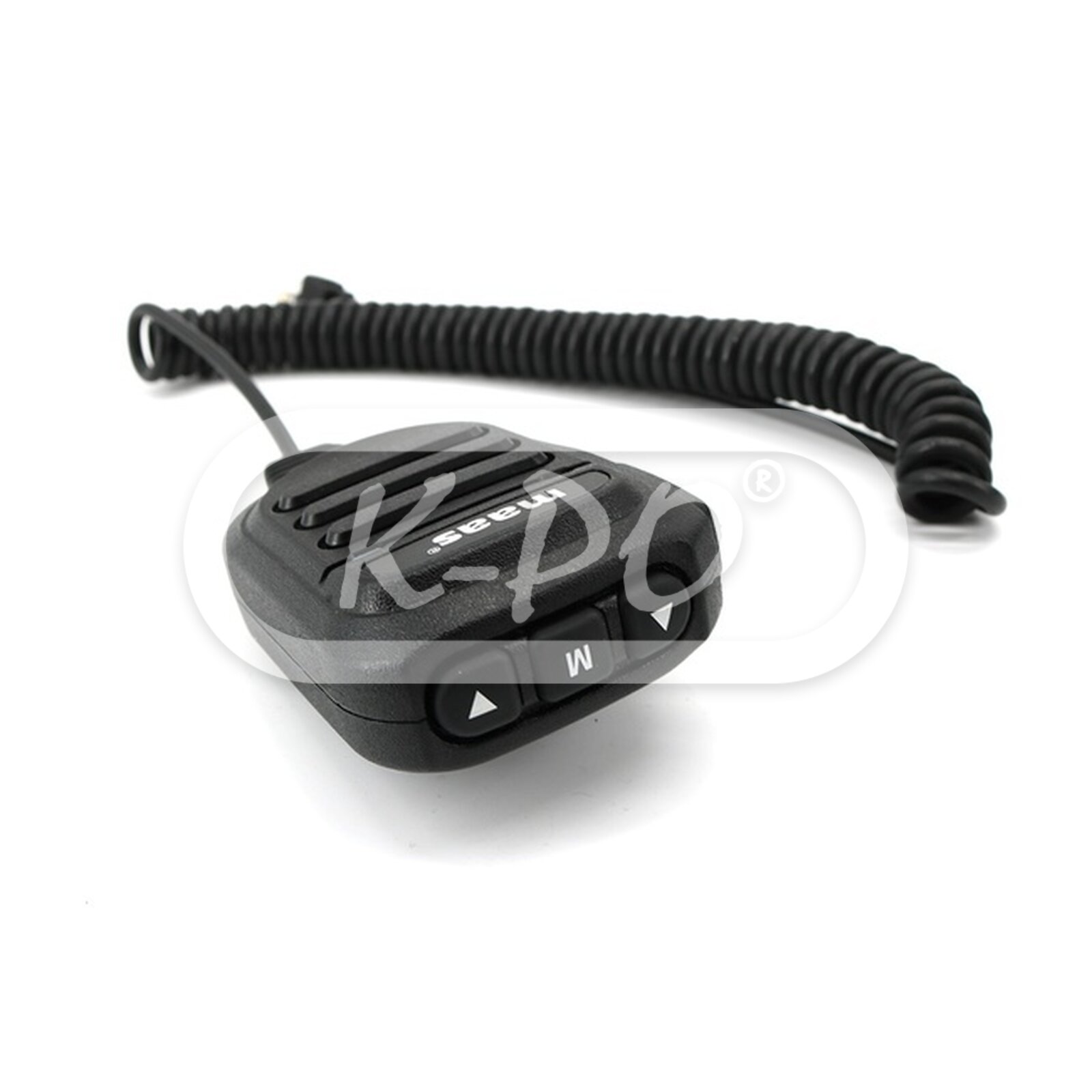

  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 2 pcs
  • User Manual: English, German
