Maas - RX-400

Product code: 101200

Barcode: 4250158705821

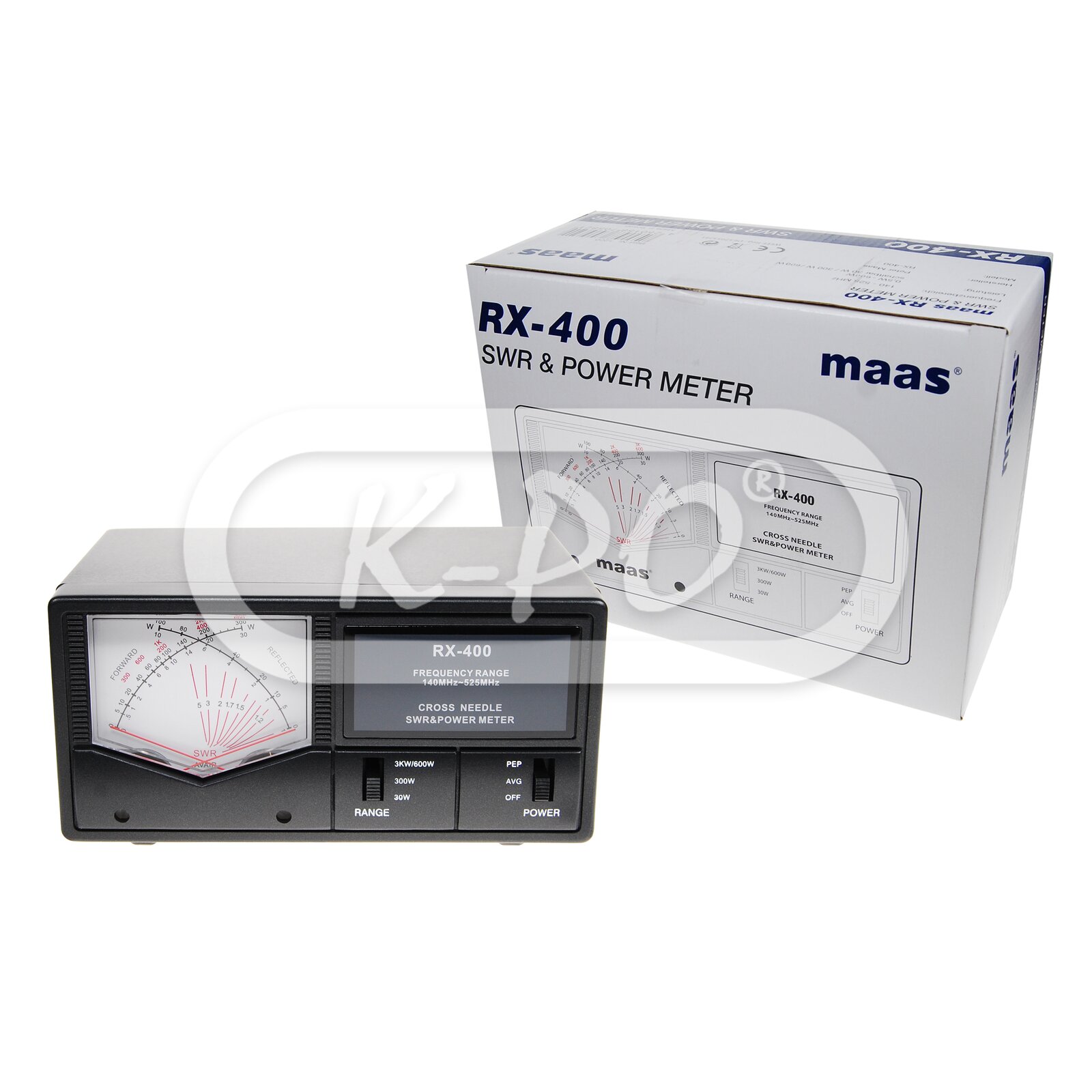

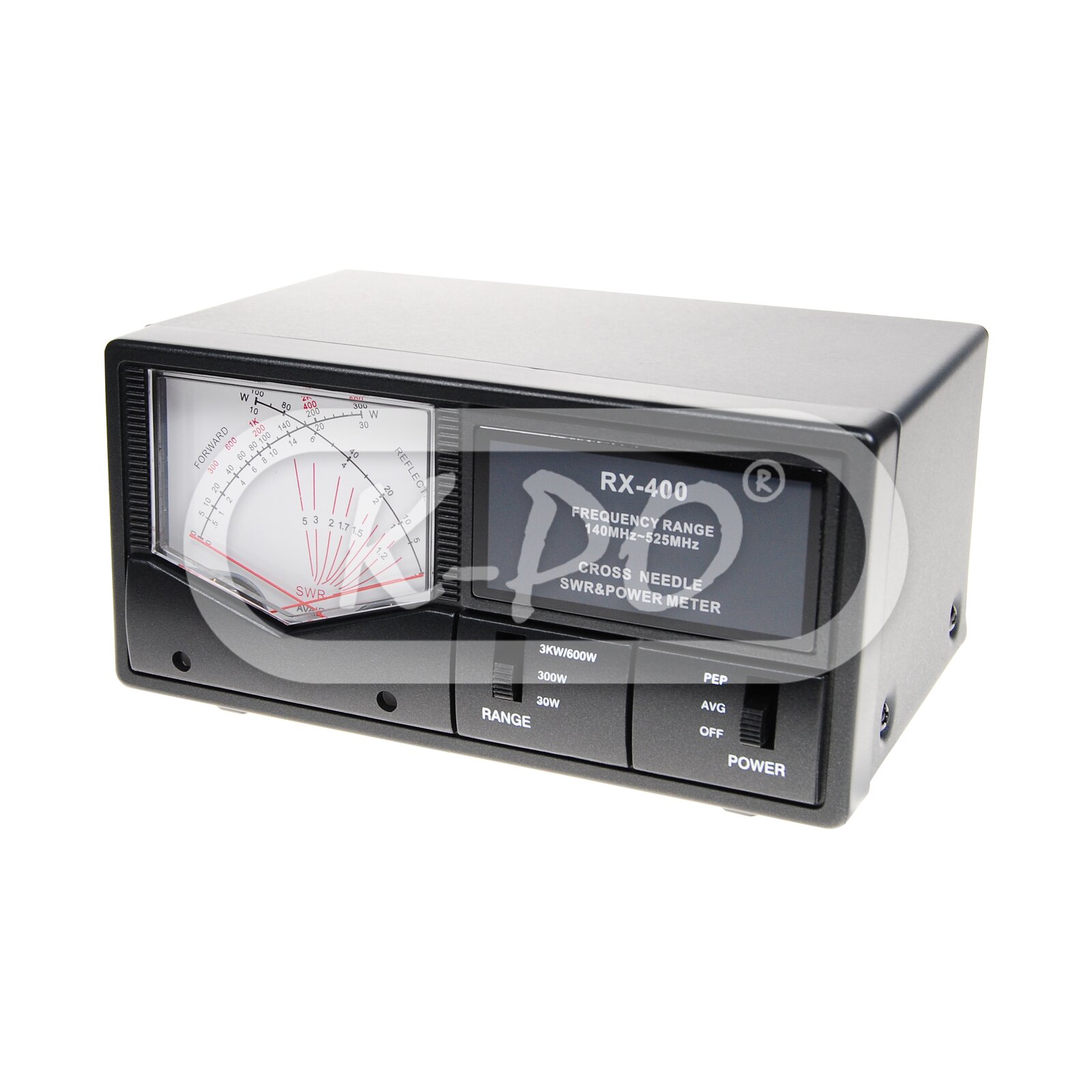

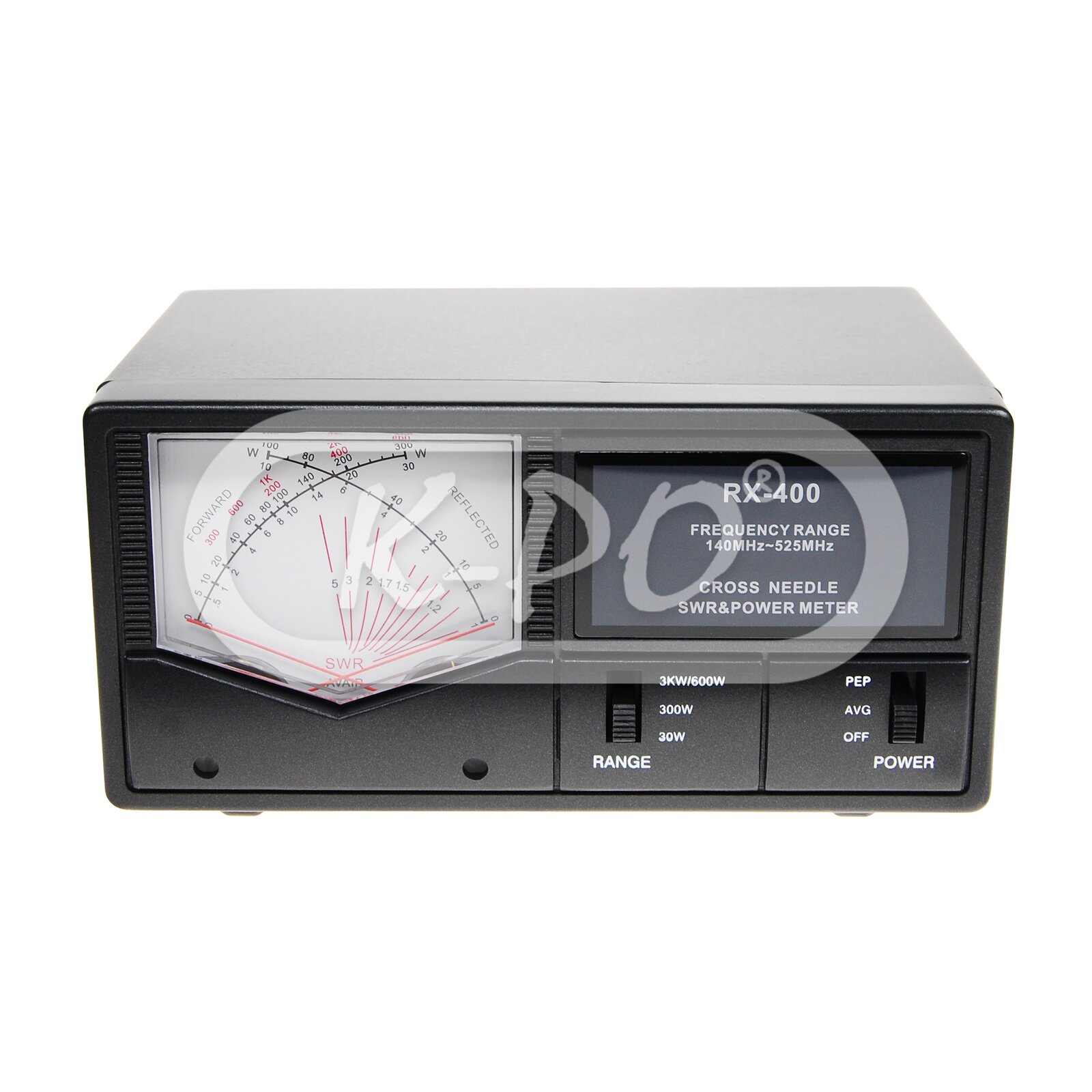

The Maas RX-400 is a cross needle meter and measures Forward Power, Reflected Power and SWR simultaneously. AVG / PEP switch to select average power or SSB / PEP. Frequency range of 140 - 525 MHz.

The meter is very user-friendly which makes it useful for testing both base and mobile installations and for permanent installation in your setup.

Frequency range: 140 - 525 MHz

Shipped today - Stock: 2

€104.94 (86.73 excl. 21% VAT)

Electrical data

• Backlight display / meter: Yes
• Impedance: 50 Ohm
• Power range: 30 / 300 / 600 Watts
• Accuracy: 30 Watts: ± 5% / 300 Watts: ± 5% / 600 Watts: ± 7.5%
• Minimum Power for SWR: 0.5 Watt
• Insertion loss: 0.2 dB
• Testing function: SWR and Power (FWD and REF / AVG and PEP)
• Voltage: 13.8 Volt, for display lightning only
• Continuous power rating: 300 Watts CW/SSB
• Maximum power handling: 600 Watts CW/SSB 25 sec on, 35 sec off

Mechanical data

• Input connector: UHF (PL) female
• Output connector: UHF (PL) female
• Length: 150 mm
• Height: 65 mm
• Width: 100 mm
• Weight: 630 gram

Inside the box

• Meter: Yes
• DC power cable: Yes
• Installation manual: English
