mAT-tuner - mAT-1500 PRO

Product code: 701500

The mAT-1500 PRO is a multipurpose high-power automatic antenna tuner that can match almost all transmitters and amplifiers. The maximum RF power allowed is 1500 Watts (SSB), and two antennas can be connected at the same time. According to the different connected transmitters, the tuner has three working modes, Yaesu mode, Icom/Kenwood mode and GENERAL mode. The tuner can automatically determine and match the type of the currently connected transmitters to minimize the manual operation and enhance the automation and convenience of the wireless communication system.

Optional are the below control cables:

  • mAT-CK, control cable Kenwood (product code 700723)
  • mAT-CI, control cable Icom (product code 700724)
  • mAT-CY, control cable Yaesu (product code 700725)


Frequency range: 1.8 - 54.0 MHz
Out of stock - Longer delivery time
€578.47 (578.47 excl. 0% VAT)

Features

  • Suitable for: Icom, Kenwood and Yeasu
  • Frequency memories: 16.000 for instantaneous frequency and band changing

Electrical data

  • Impedance: 6 - 1000 Ohm
  • Power range: 1500 Watts SSB and CW peak power, 800 Watts on Data mode
  • Voltage: 12-14 Volt
  • Tuner type: Automatic tuning
  • Tuning time: 0.1 to 5 seconds full tune, 0.1 seconds memory tune
  • Operating Temperature: -10°C to +60°C

Mechanical data

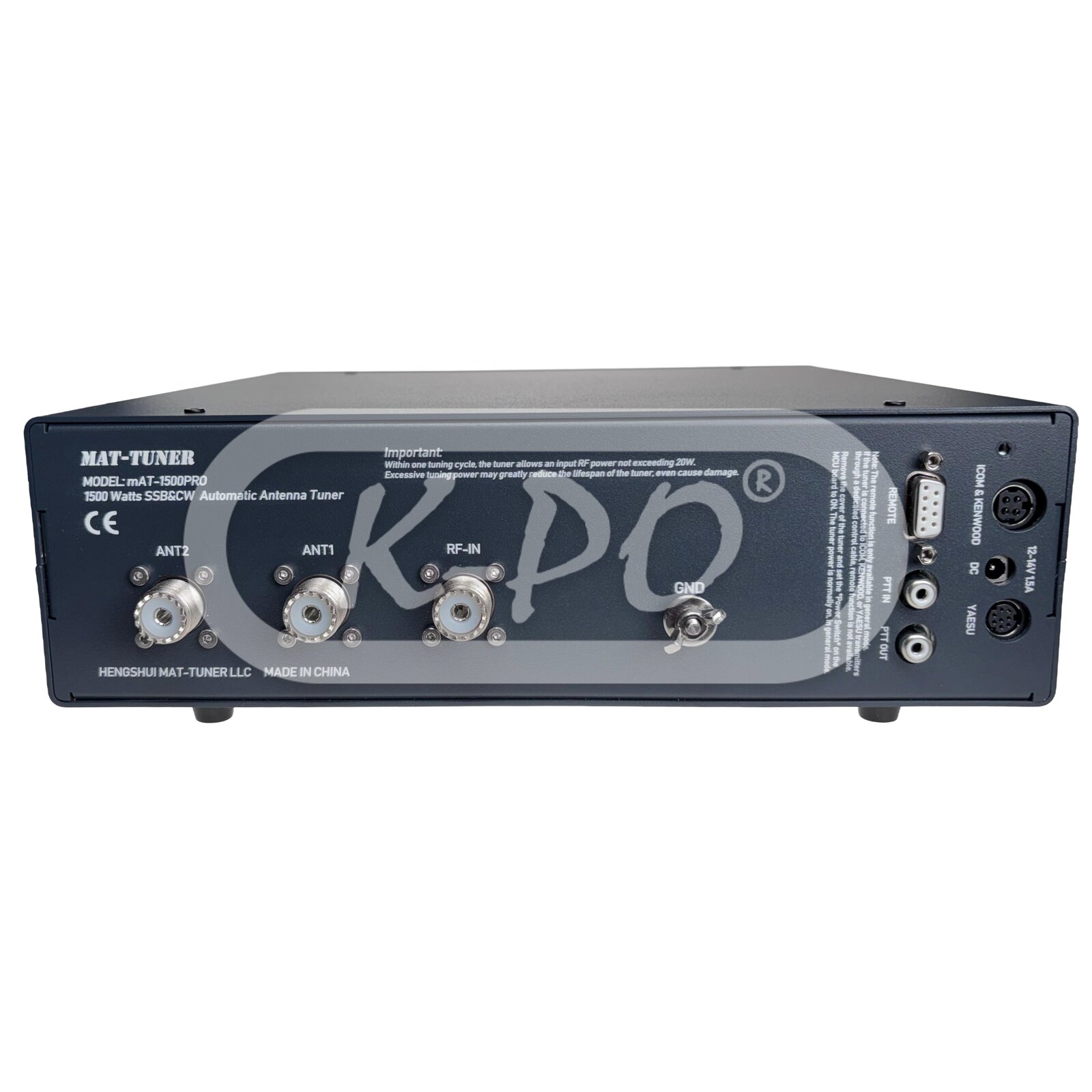

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 243 mm
  • Height: 144 mm
  • Width: 290 mm
  • Weight: 3500 gram

Inside the box

  • Tuner: Yes
  • Installation manual: English

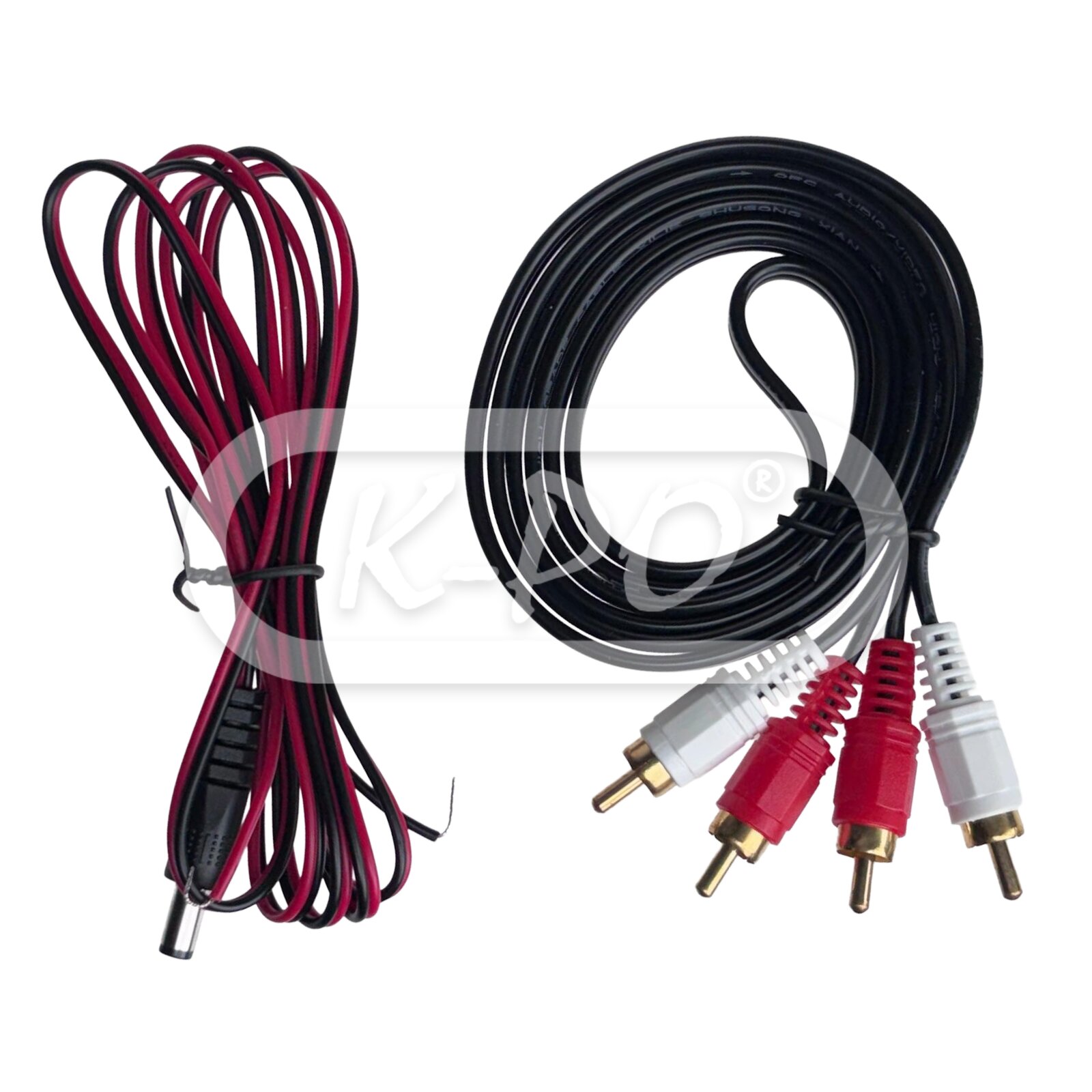

  • DC cable: 1 pcs, 6.5 mm DC power line (intermediate contact diameter 2 mm)
  • Control cable: 2 pcs, RCA control cable
