Midland - Alan 48 Pro FOX hunting pack

Product code: 422161

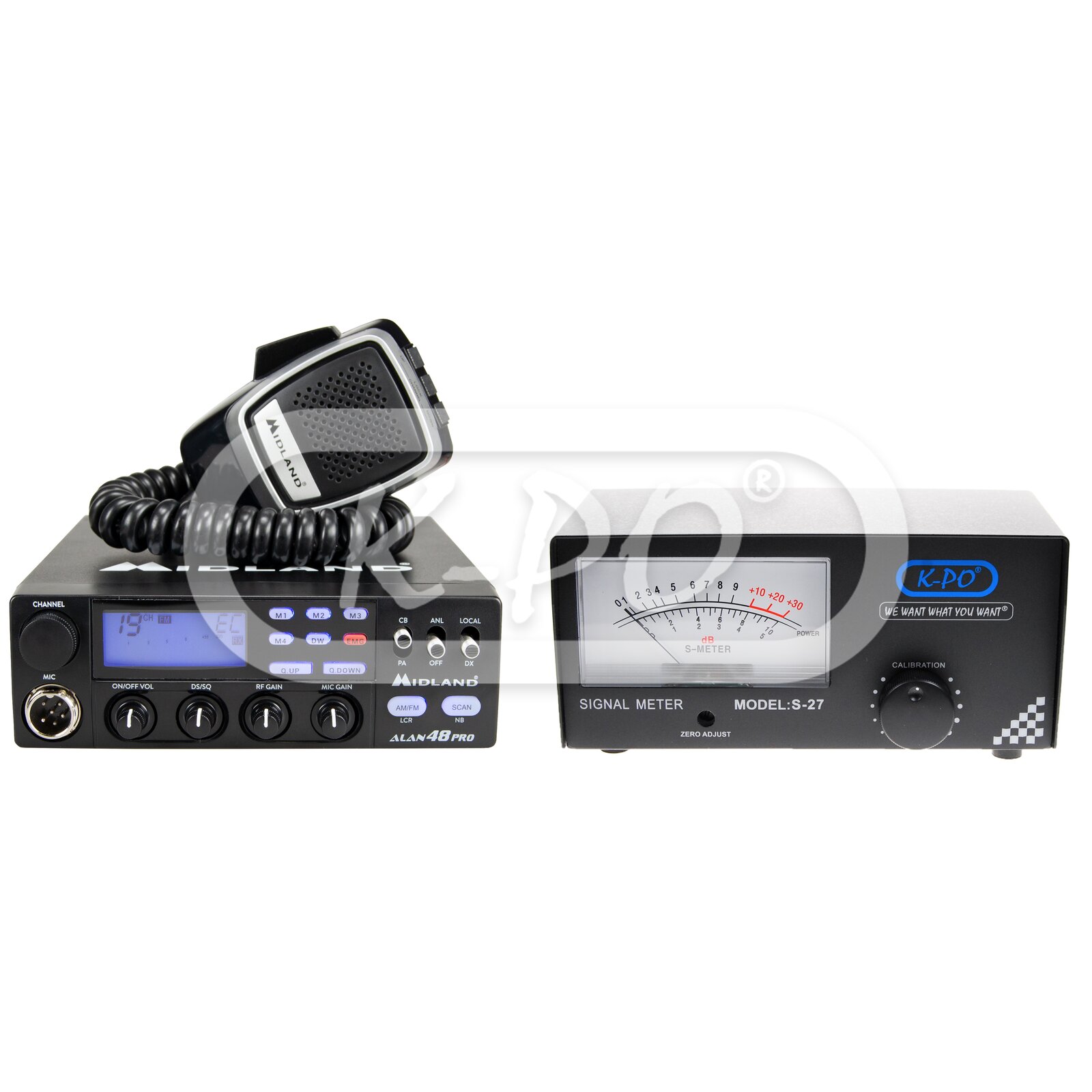

The Midland Alan 48 Pro FOX hunting pack contains a modified Midland Alan 48 Pro that works with the K-PO S-27 signal meter.

The Midland Alan 48 Pro is the top of the range multiband, the CB line expressly conceived for trips and routes in different European countries.What does this mean?It means that Alan 48 Pro has an adjustable power – 1W/4W – to be adjusted to the frequencies and regulations of the country in which it is used. With a power supply voltage of 12/24 V, Alan 48 Pro does not need reducers and it is of easy installation in the dashboard compartment, thanks to the DIN bracket (optional). Alan 48 Pro is high tech and complete in facing all sorts of noises: it is equipped with the Digital Squelch, that eliminates the background swish and the Noise Blanker, to cancel the environmental noises.

The K-PO S-27 is an external signal meter (FOX meter) and is ideal for 'FOX hunting'. The K-PO S-27 has a strong and robust metal housing.

Frequency range: 26.965 - 27.405 MHz
Shipped today - Stock: 2
€239.94 (198.3 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 1 - 4 Watt / Duty cycle 10% @ 13.8V DC
  • Channels: 40 AM / FM
  • Display type: LCD display
  • Display colors: Blue
  • Noise blanker: Yes
  • Squelch: ASQ (Automatiq Squelch Systeem) / DSS (Dynamic Squelch System) /
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Scan function: Yes
  • Quick channel selection: Yes
  • External speaker socket: Yes
  • External S-meter socket: Yes
  • External PA socket: Yes
  • S-meter: Yes
  • MIC gain: Yes
  • RF gain: Yes
  • Dual watch: Yes

Electrical data (Radio)

  • Voltage: 13,8 Volt / 24 Volt
  • Operating temperature: -10° to +55° C
  • Operating mode: F3E (FM) / A3E (AM)
  • Frequency control: PLL synthesizer
  • Frequency tolerance: 0.002%

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Modulation AM: from 85% to 95%
  • Modulation FM: 1.8 kHz to ± 0.2 kHz
  • Drain: 13.8 Volt: 1100 mA

Receiver

  • AM sensitivity: 0.5 µV for 20 dB SINAD
  • FM sensitivity: 0.5 µV for 20 dB SINAD
  • Frequency response: 300 Hz - 3 kHz
  • Adjacent channel selectivity: 65 dB
  • Signal to noise ratio: 45 dB
  • Maximum audio power: 2 Watt
  • Internal speaker: 8 Ohm
  • Receiving system: Dual conversion superheterodyne
  • IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
  • Audio distortion: Less than 8% @ 1 kHz
  • Image rejection: 65 dB

Mechanical data (Radio)

  • Length: 180 mm
  • Height: 50 mm
  • Width: 150 mm
  • Weight: 1000 gram
  • Mike connector: 6 pin connector

Electrical data (S-27)

  • Impedance: 10K Ohm
  • Voltage: 13.8 Volt, for display lightning only
  • Sensitivity: 80 uA-'9'
  • Illuminated display: Yes
  • Power consumption: 50 mA

Mechanical data (S-27)

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 80 mm
  • Height: 80 mm
  • Width: 170 mm
  • Weight: 600 gram
  • Connection: Ø 2.5 mm Jack

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, German, Spanish, Italian, French, Polish, Romania
  • Microphone holder: 1 pcs
  • Meter: 1 pcs
  • DC power cable: 1 pcs
