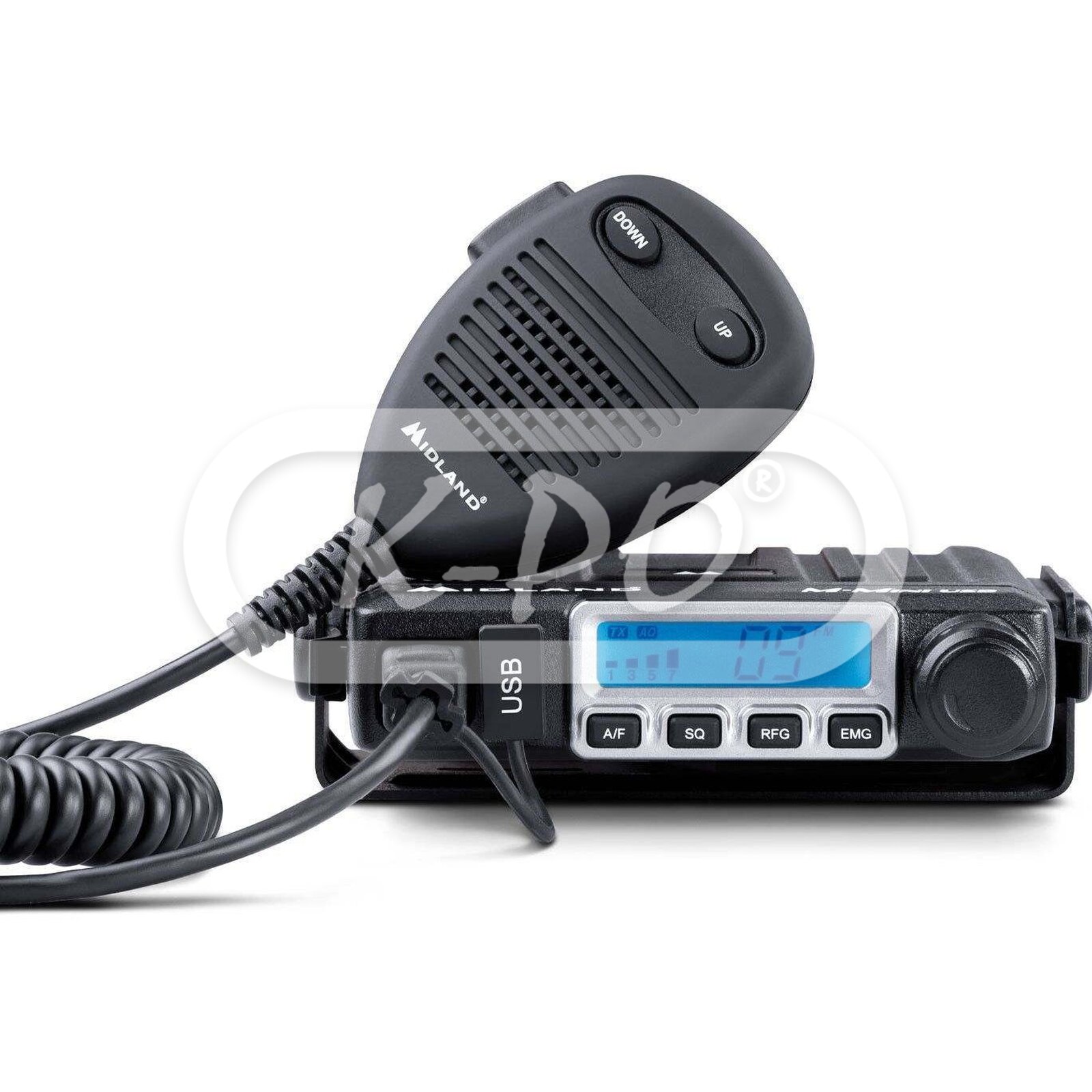

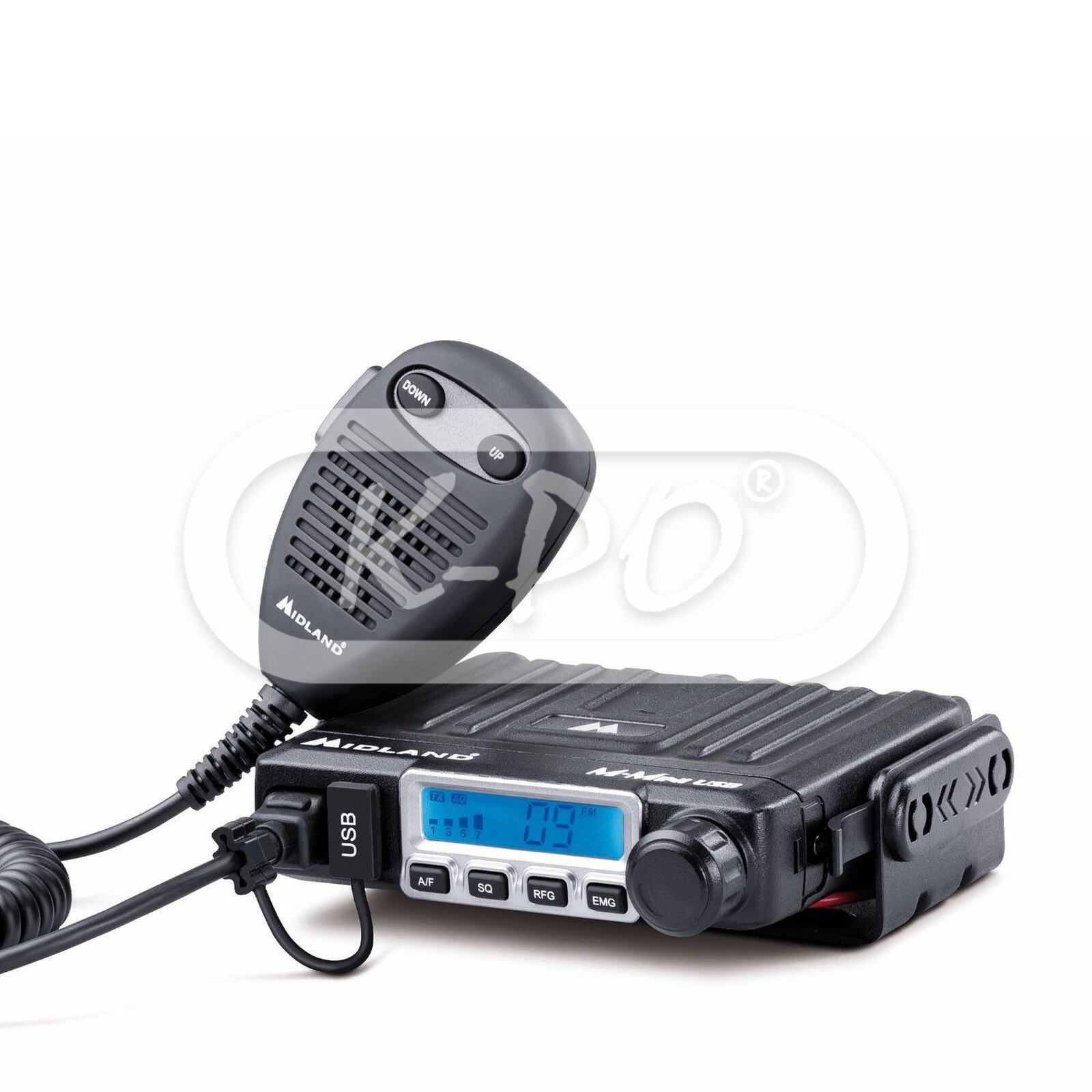

Midland - M-Mini USB

Product code: 126204
Factory code: C1262.04
Barcode: 8011869203145

Are you looking for a CB radio that's easy to install? M-MINI USB is your answer: essential, 40 channels, can be powered by connecting it to the cigarette lighter outer using the power cable included in the package .On the front, there is a practical USB socket so that you can recharge all your devices: smartphones, tablets...and a RJ45 socket, which makes the microphone removable. The aluminium chassis is the finishing touch of M-MINI USB, making it robust and resistant to any movement.

Frequency range: 26.965 - 27.405 MHz
Shipped next business day
€68.95 (56.98 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 1 - 4 Watt
  • Channels: 40 AM / FM
  • Display type: LCD display
  • Display colors: Blue
  • USB: Yes
  • Squelch: Digital squelch
  • Emergency channel: Yes
  • Keypad lock: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • RF gain: Yes
  • Car socket connector: Yes

Electrical data

  • Voltage: 13,8 Volt
  • Operating temperature: -20° to +55° C
  • Frequency tolerance: 0.002%

Transmitter

  • Modulation AM: from 85% to 90%
  • Modulation FM: 1.9 kHz
  • Drain: 13.8 Volt: 2 A
  • Frequency allowance: ± 300 Hz
  • Spurious transmissions: inferior to 4 nW (- 54 dBm)

Receiver

  • Frequency response: 300 - 3000 Hz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 1 Watt
  • Internal speaker: 8 Ohm
  • Image rejection: 70 dB

Mechanical data

  • Length: 100 mm
  • Height: 25 mm
  • Width: 102 mm
  • Weight: 450 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: RJ45 connector

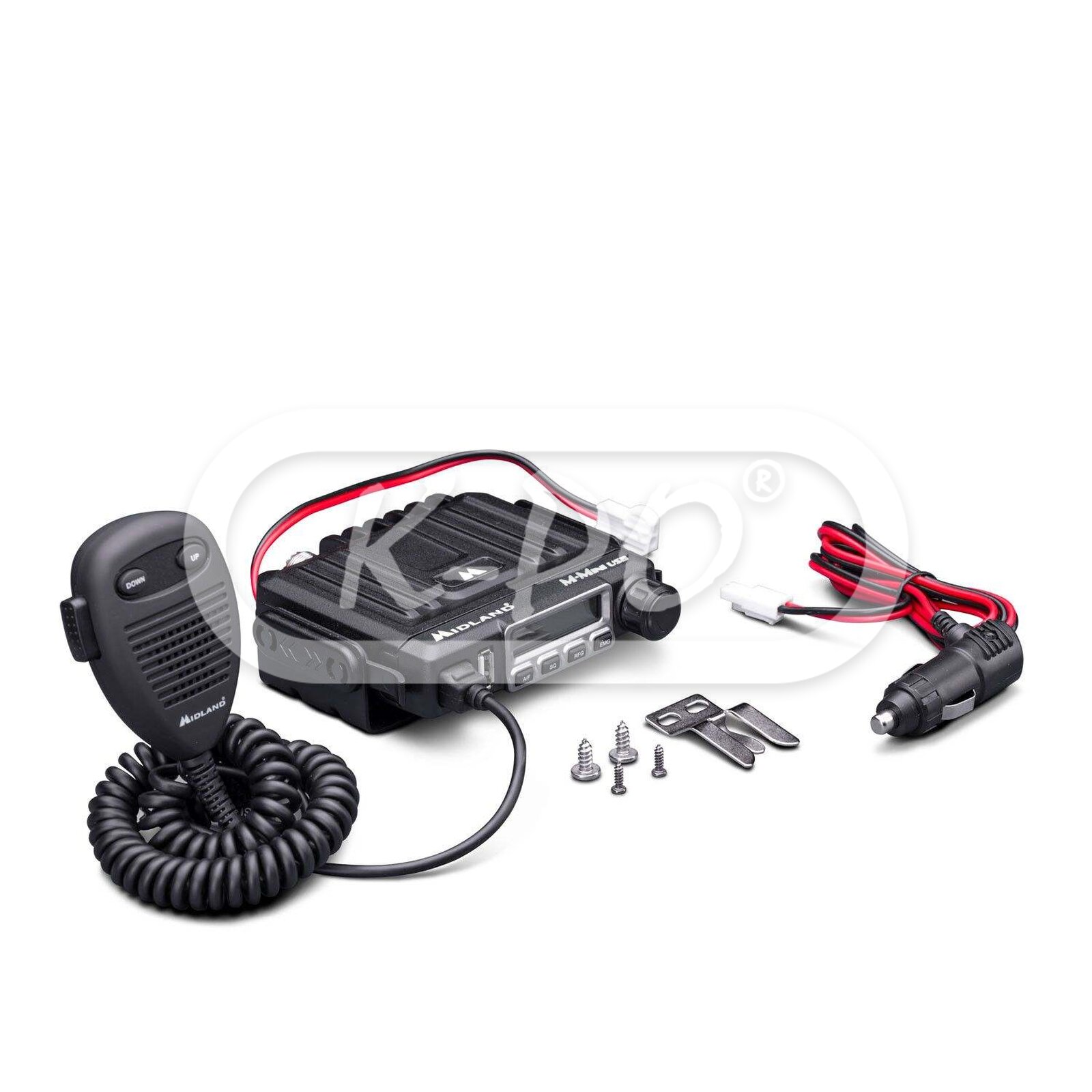

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 12 Volt cigarette lighter plug
  • User Manual: English, German, Spanish, Italian, French, Polish, Romania
