Nagoya - UT-72 BNC male Nagoya - UT-72 BNC male Nagoya - UT-72 BNC male Nagoya - UT-72 BNC male

Nagoya - UT-72 BNC male

Product code: 5124
Factory code: 5124

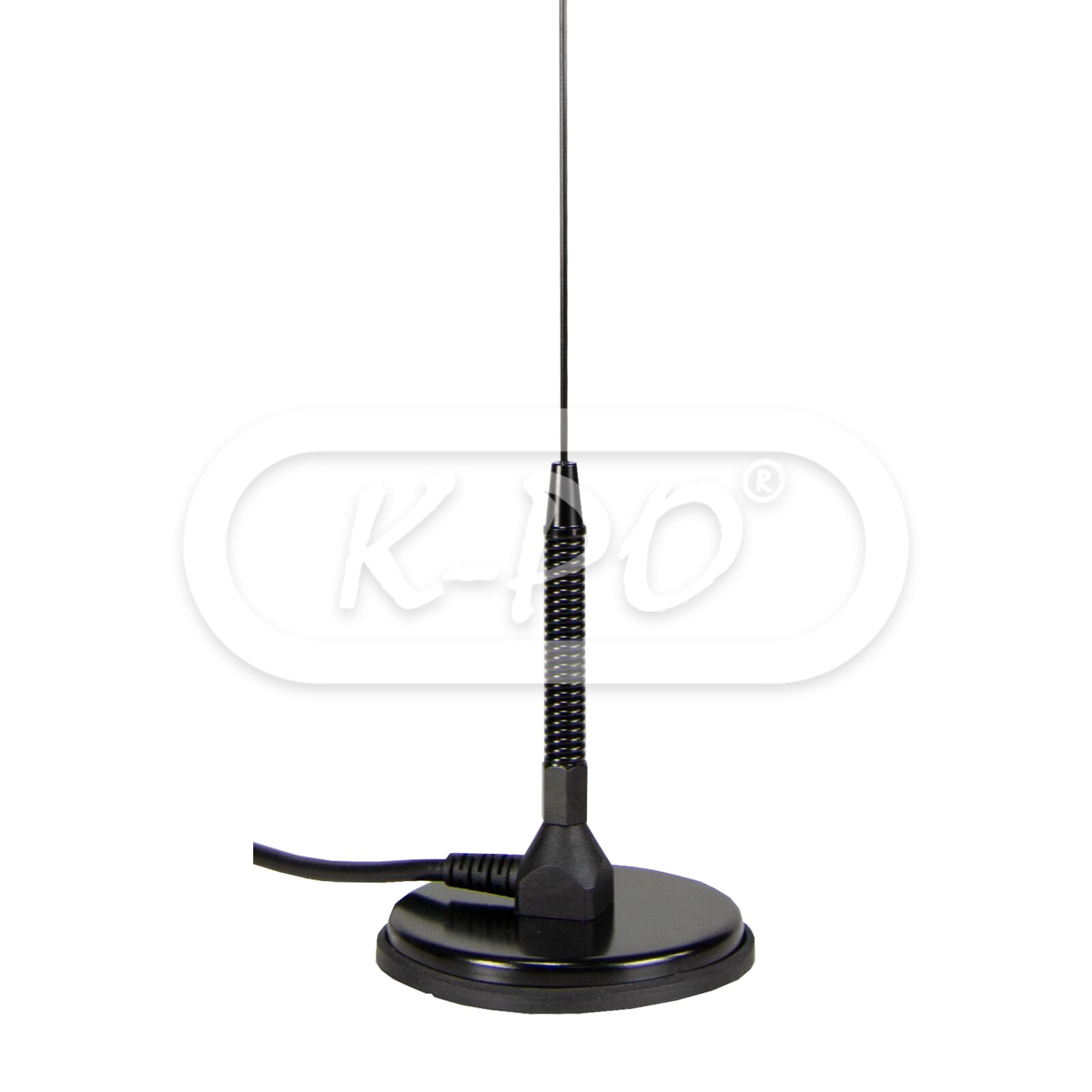

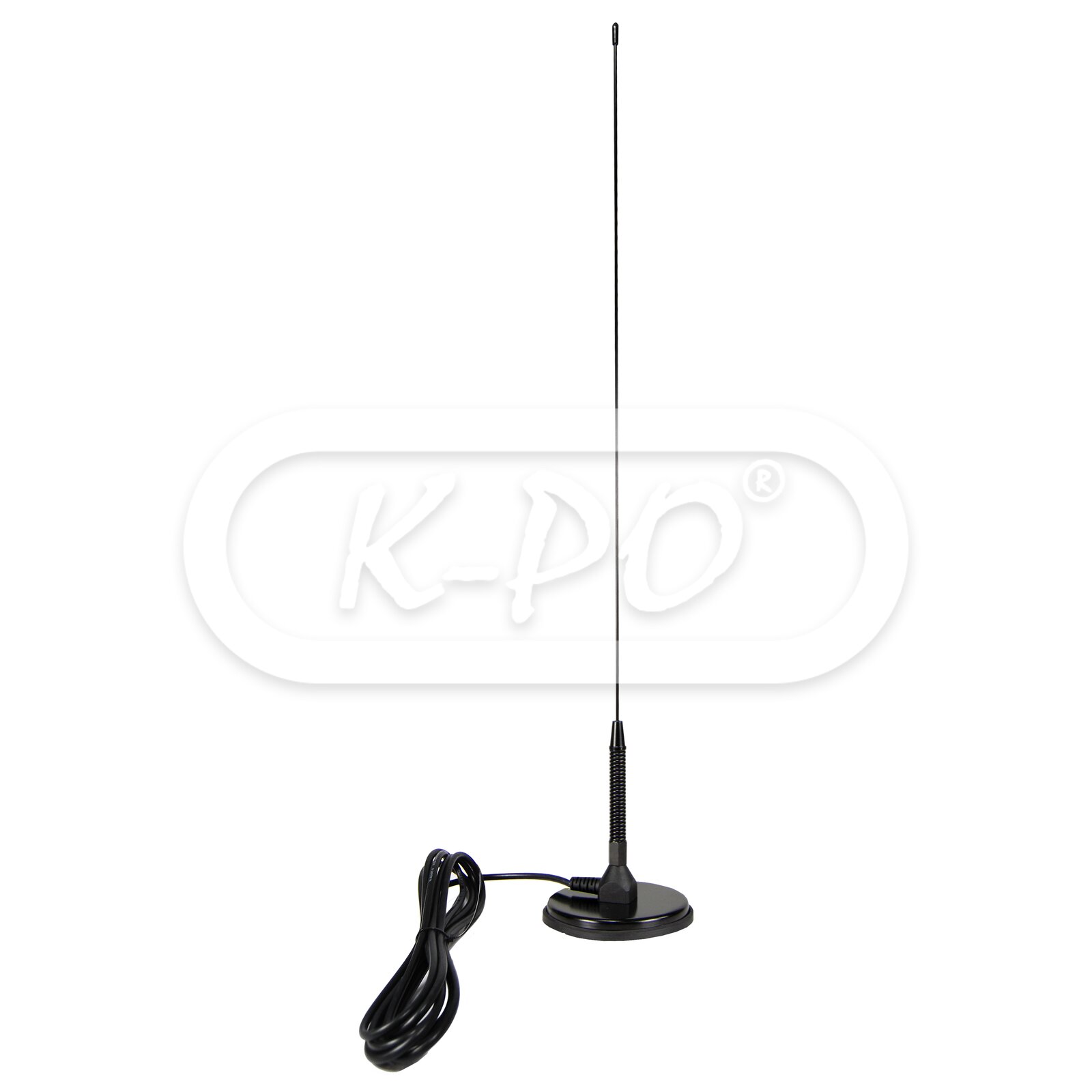

The Nagoya UT-72 is a nicely finished mobile magnet antenna for the 144 and 430 MHz. The antenna is around 51 cm long and with a BNC male connector.

Original Nagoya, made in Taiwan.

Frequency range: 144 / 430 MHz
Shipped next business day
€25.95 (21.45 excl. 21% VAT)

Electrical data

  • Electrical type: 144 MHz: 1/4 λ / 430 MHz: 5/8 λ
  • Gain: 144 MHz: 1.7 dBi / 430 MHz: 3.5 dBi
  • VSWR: ≤1.5:1
  • Bandwidth: ≥15 MHz at SWR ≤2.0
  • Power peak: 80 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 3 meter / RG 58

Mechanical data

  • Height: 510 mm
  • Weight: 450 gram

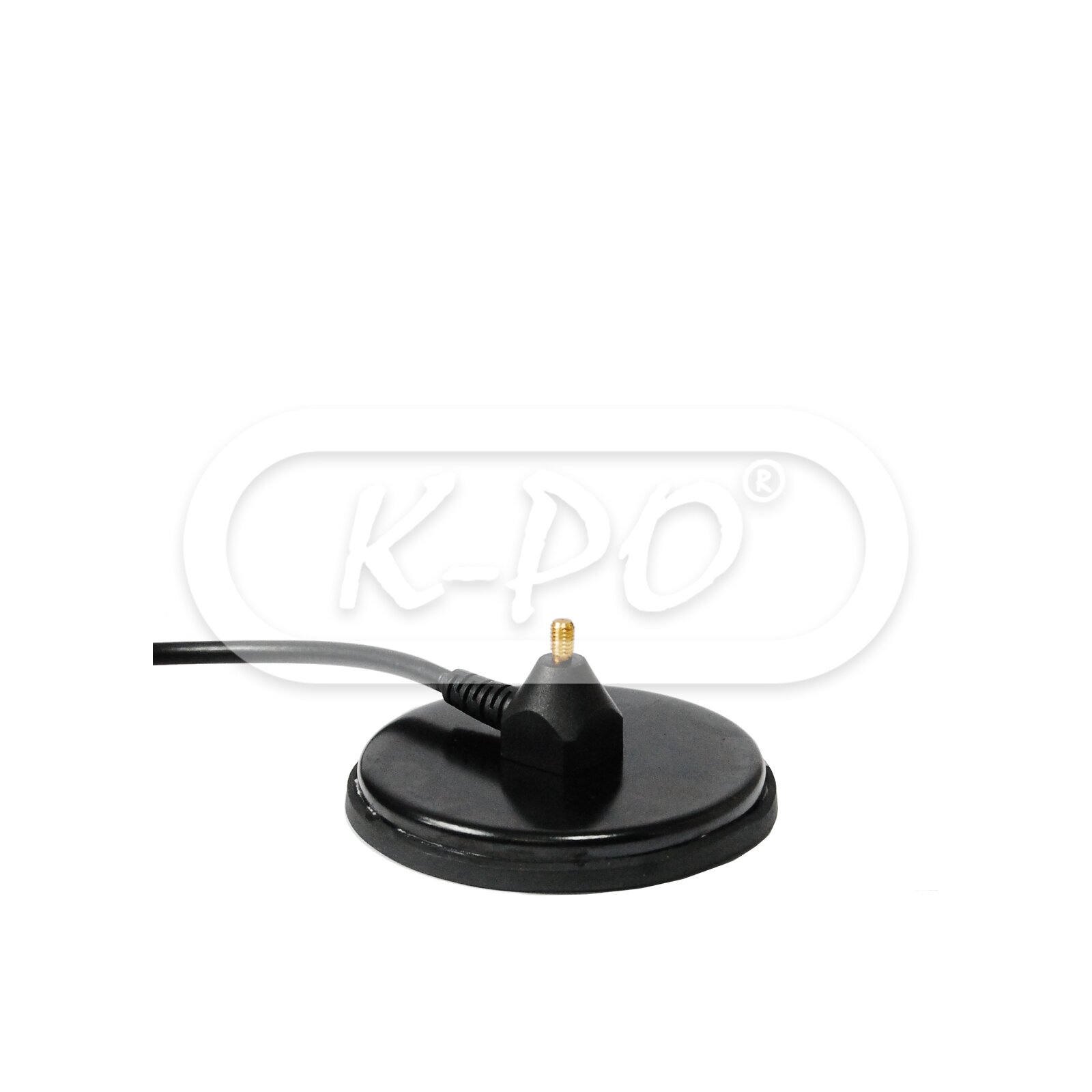

  • Mounting type: 80 mm magnet

Inside the box

  • Antenna: Yes

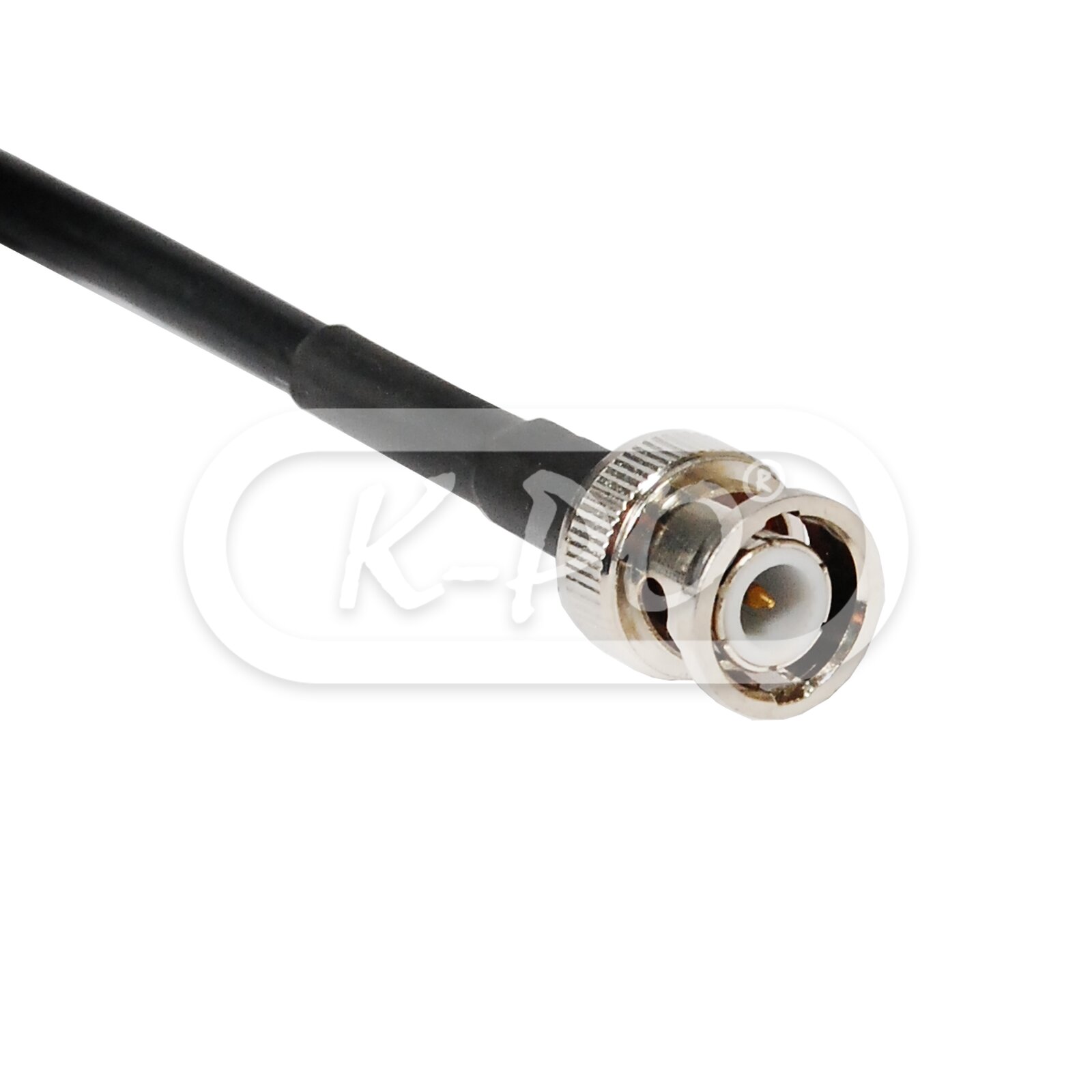

  • Radio connector: BNC male
  • Antenna cable: Yes
  • Installation manual: English
