President - Barry II PRO pack

Product code: 7200004

Factory code: 7200004

Barcode: 8781375102057

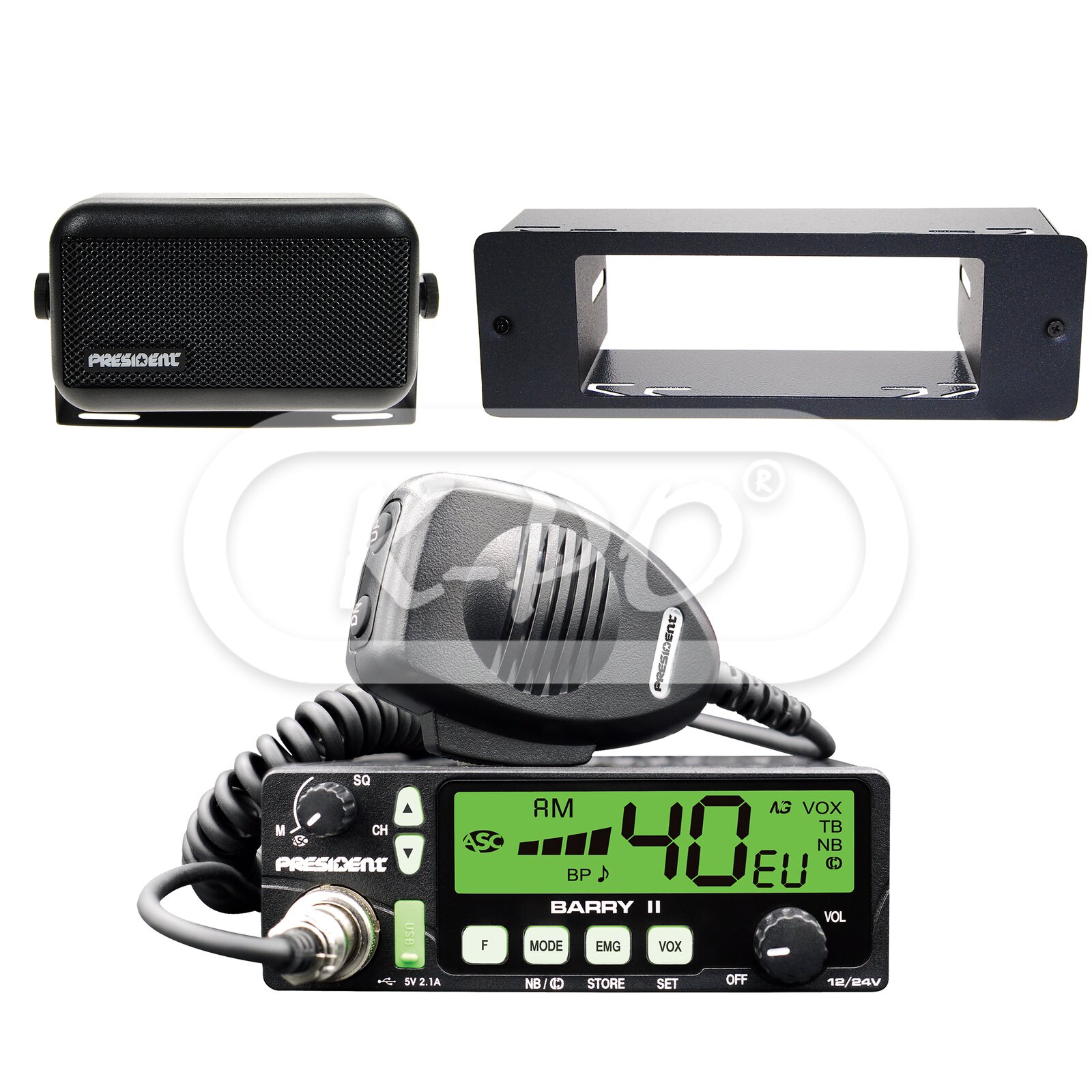

The President Barry II PRO pack is our basic package for truckers and other drivers. This package offer you all the accessoires that you need to built-in the President Barry II into your truck, construction- or agricultural machinery.

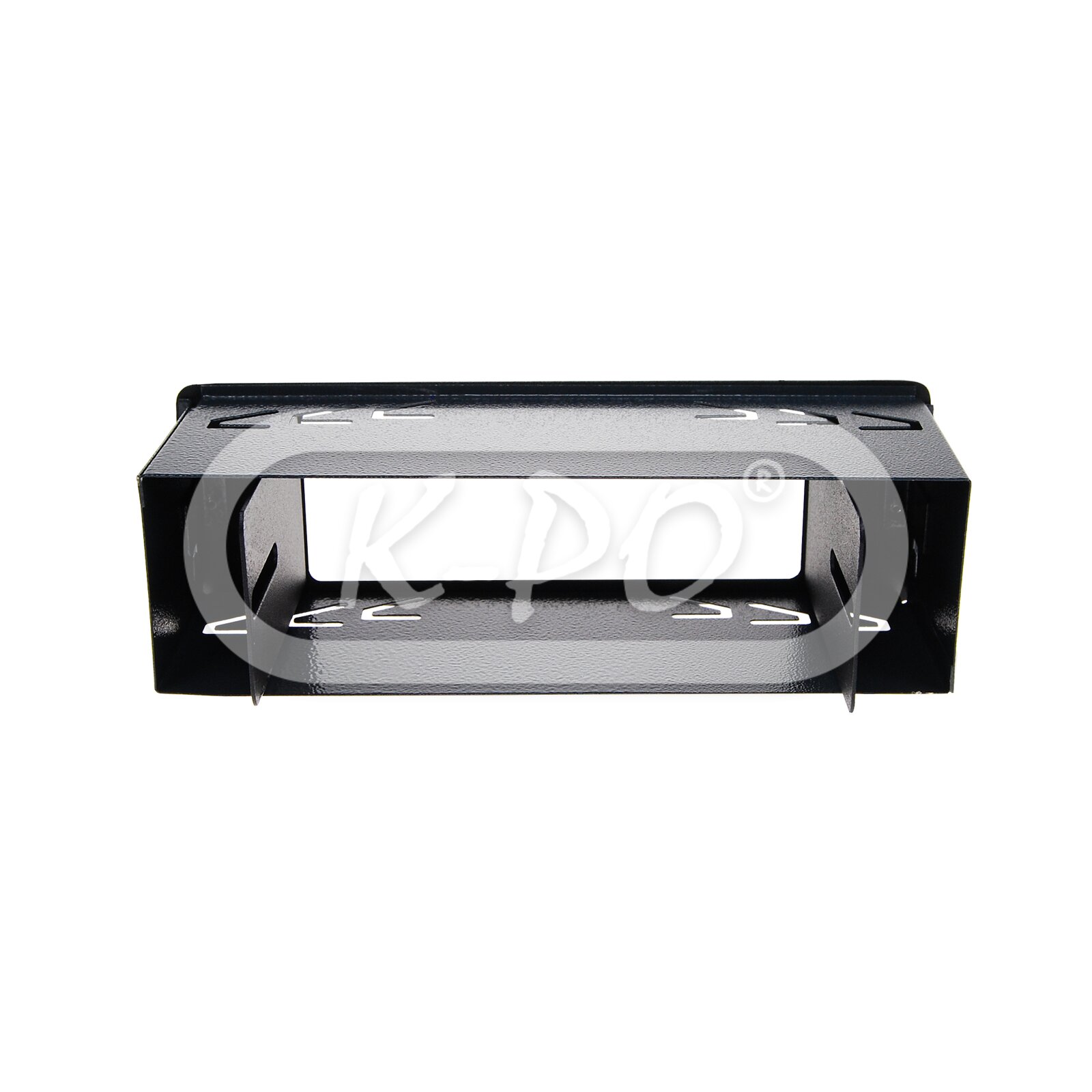

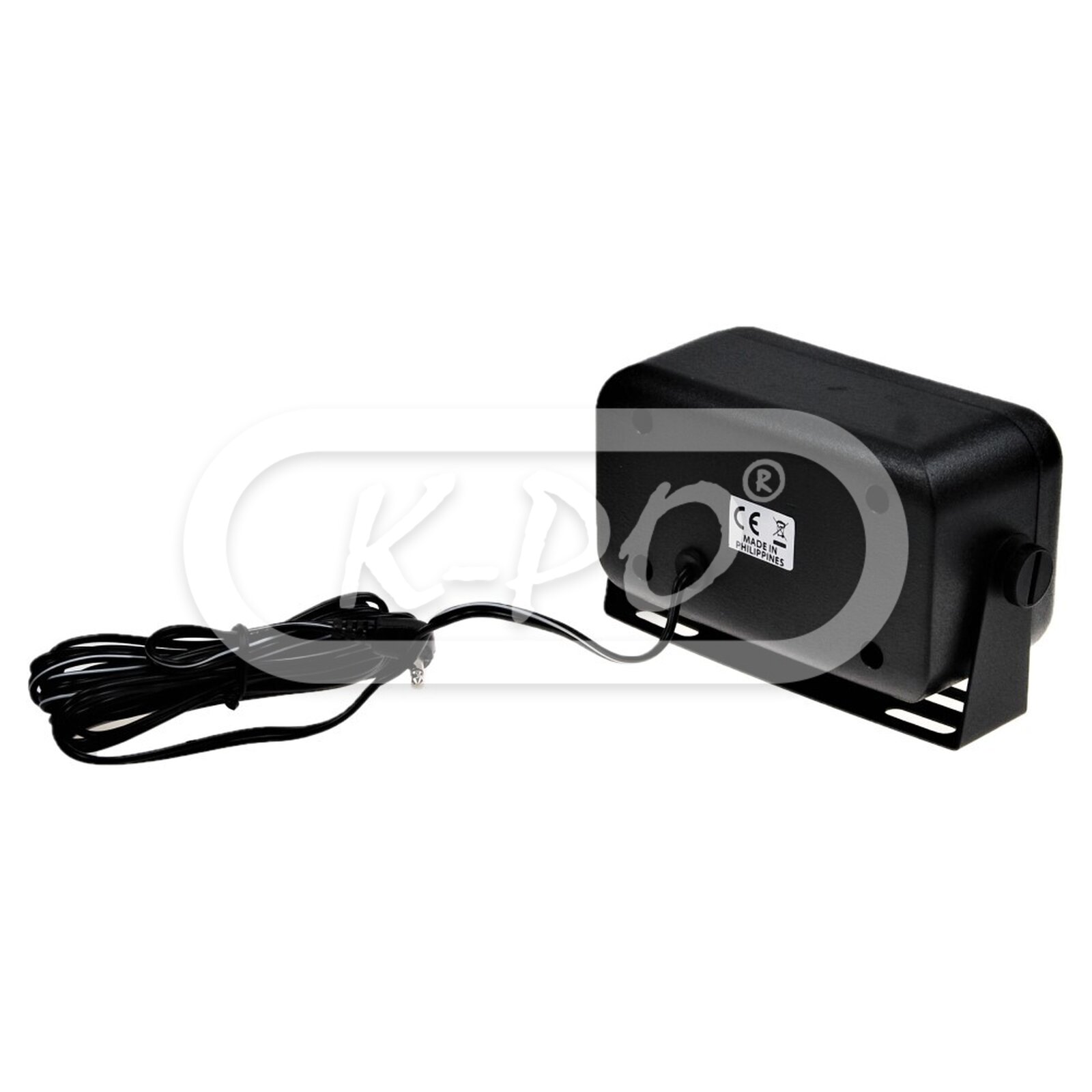

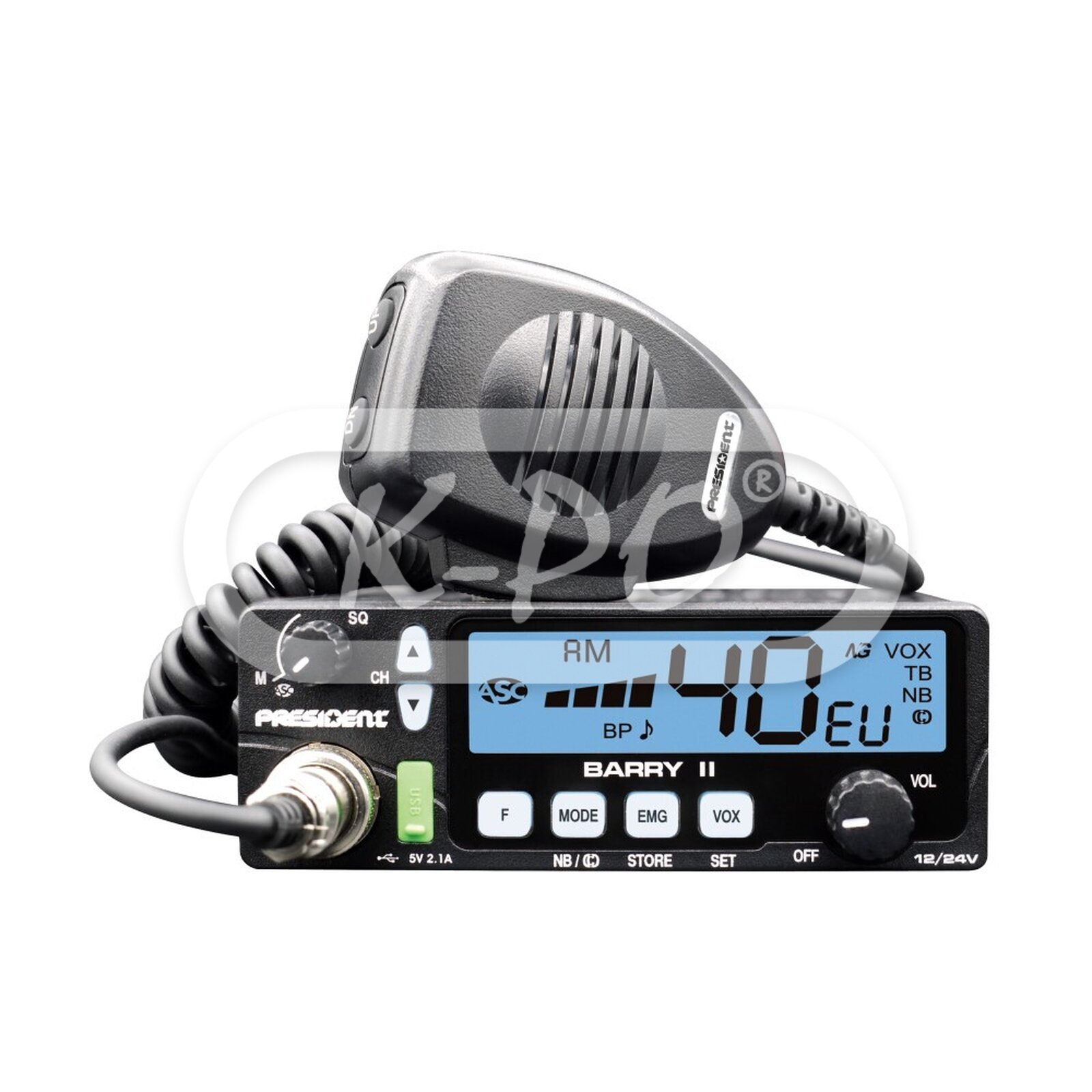

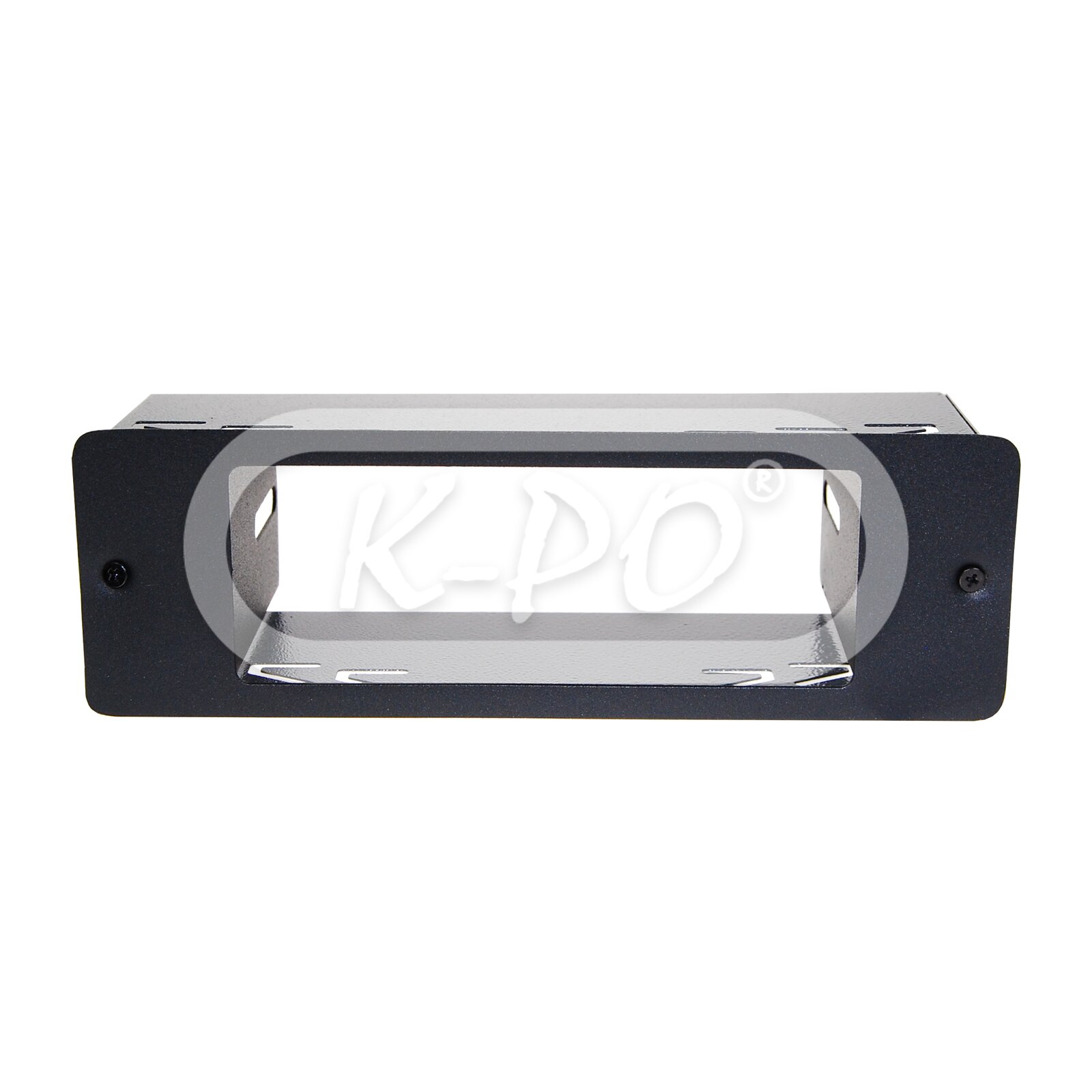

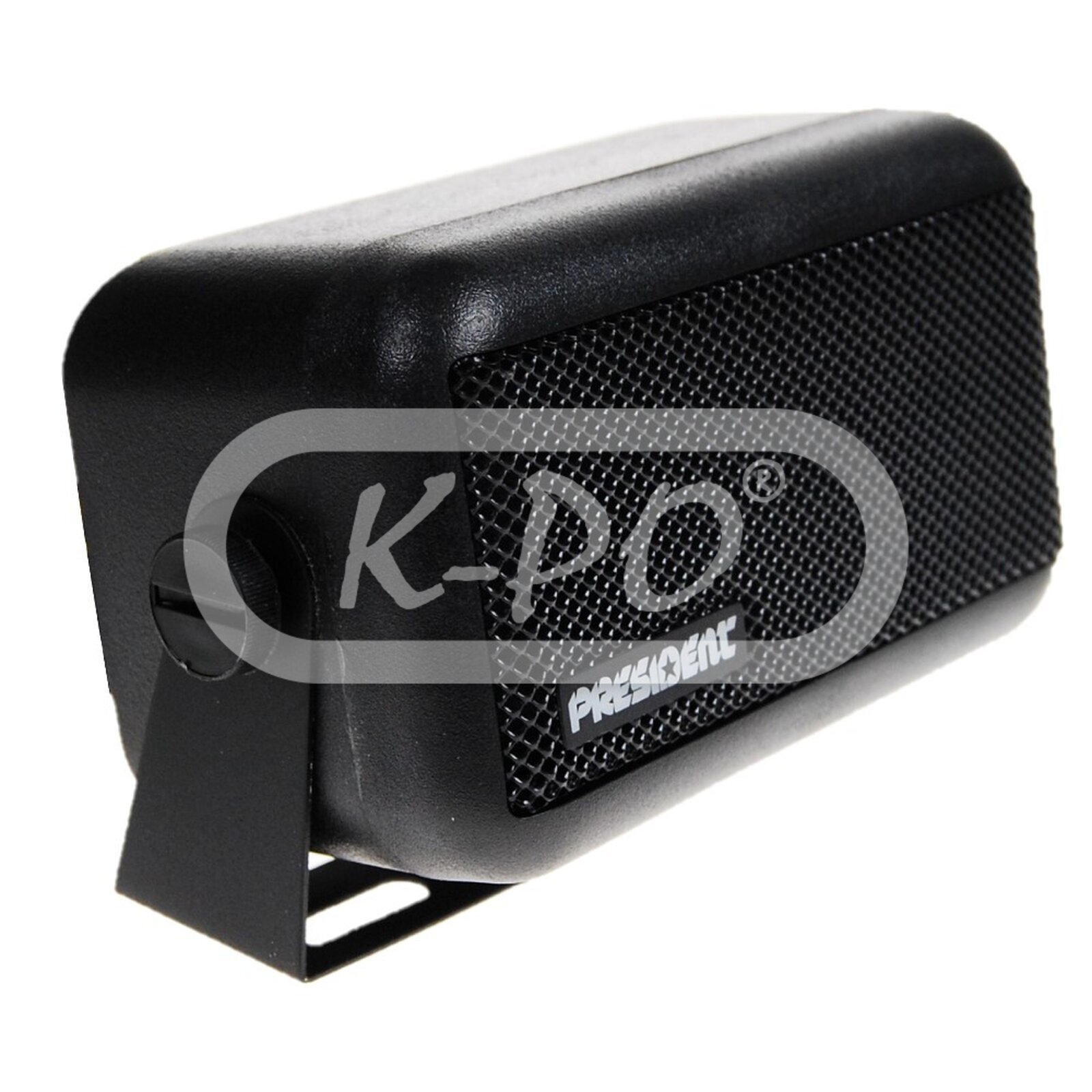

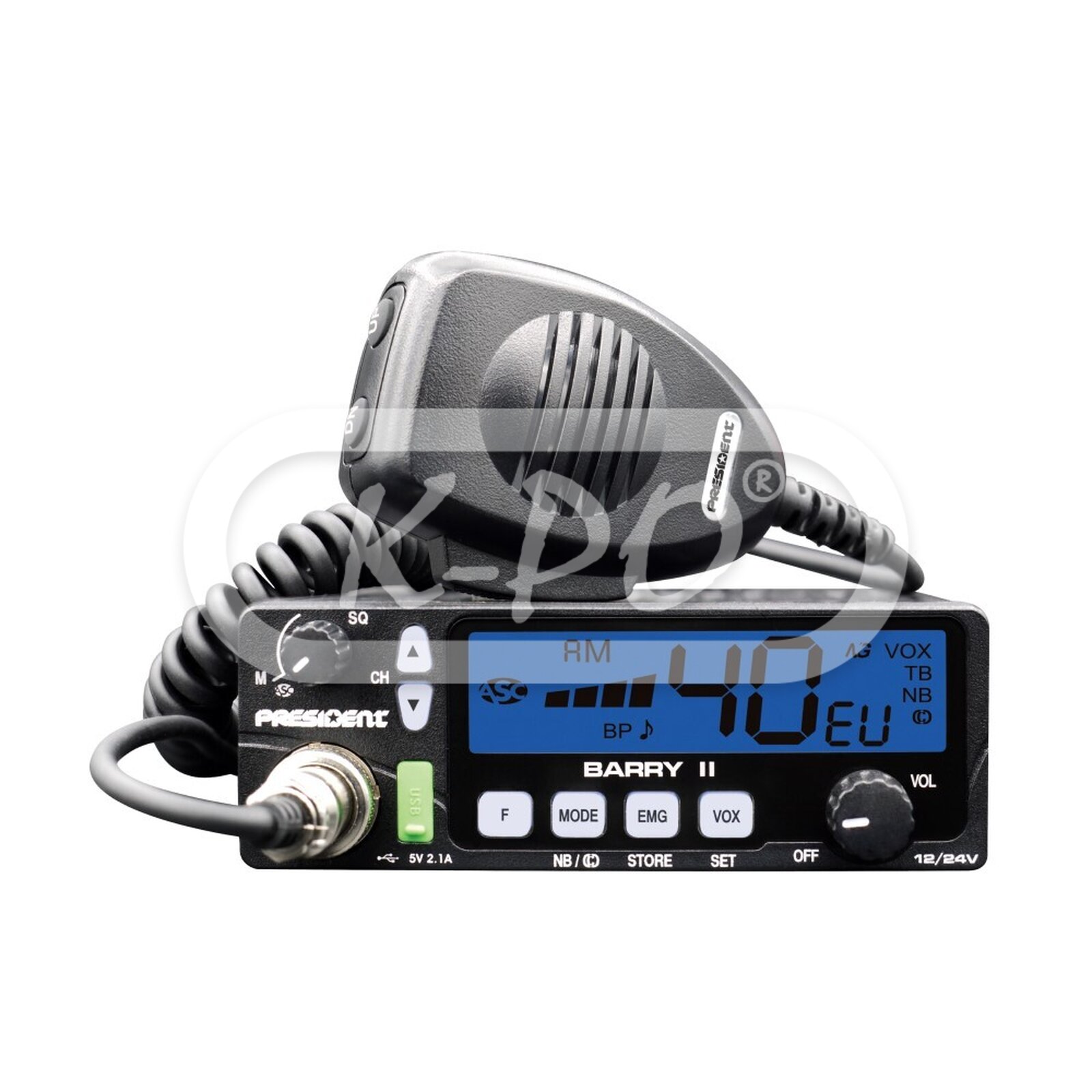

The package includes the popular President Barry II that can be used on 12/24 volt and with seven clear display colors, the K-PO DIN mount 39511 for easy installation and the President HP-2 external speaker for a great sound.

The only thing you need to add is a CB antenna or connect it to your existing CB antenna.

Frequency range: 26.965 - 27.405 MHz

Shipped next business day - Stock: 1

€149.94 (123.92 excl. 21% VAT)

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt
Channels: 40 AM / FM
Display type: LCD display
Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
VOX Function: Yes
USB: Yes
Noise blanker: Yes
Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
External speaker socket: Yes
External PA socket: Yes
S-meter: Yes
TOT (time out timer): Yes
External VOX socket: Yes
Roger Beep: Yes

Electrical data (radio)

Voltage: 13,8 Volt / 24 Volt

Transmitter

Audio frequency response: 300 Hz - 3 kHz
Microphone sensitivity: 7 mV
Frequency allowance: ± 200 Hz
Transmission interference: inferior to 4 nW (- 54 dBm)
Emitted power in the adjacent channel: inferior a 20 μW
Modulated signal distortion: 2 %
Drain: 13.2 Volt: 1.7 A / 26.4 Volt: 0.85 A

Receiver

AM sensitivity: 0,5 µV - 113 dBm
FM sensitivity: 0,35 µV - 116 dBm
Frequency response: 300 Hz - 3 kHz
Adjacent channel selectivity: 60 dB
Maximum audio power: 2.5 Watt
Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
Frequency image rejection rate: 60 dB
Intermediate image rejection rate: 70 dB
Drain: 13.2 Volt: 160 - 420 mA / 26.4 Volt: 100 - 250 mA

Mechanical data (radio)

Length: 180 mm
Height: 45 mm
Width: 125 mm
Weight: 900 gram
Antenna connector: UHF (PL)
Mike connector: 6 pin connector

Mechanical data (din mount)

Mounting: Bending points
Material frame: Metal
Material front: Metal
Height: 45 mm
Width: 125 mm

Electrical data (speaker)

Nominal power 3 Watts
Maximum Power: 5 Watts
Impedance: 8 Ohm

Mechanical data (speaker)

Length: 140 mm
Height: 80 mm
Width: 60 mm
Weight: 280 gram
Mounting bracket: Yes
Cable: Yes
Cable length: 200 cm
Connector: Mono plug 3.5 mm (angled)

Inside the box

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 1 pcs
User Manual: English, Spanish, French, Polish
DIN mount: Yes
President HP-2 speaker: Yes
