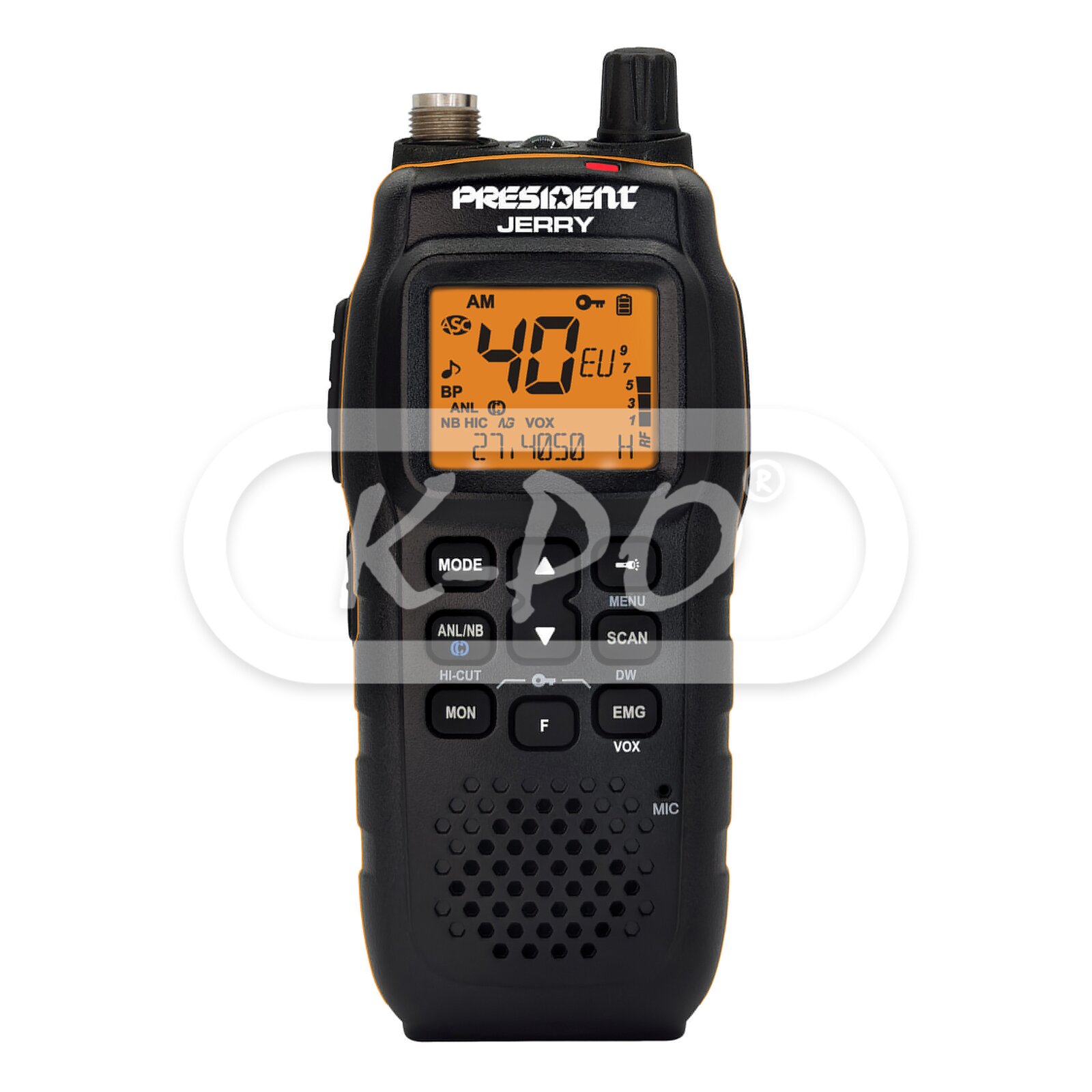

President - Jerry

Product code: 80089

Factory code: TXPR612

Barcode: 3435991104111

President Jerry is the little brother of the proven President Randy 3. Less equipment for a more affordable price. The relatively compact device features an integrated Li-ion battery pack and monitored charging technology, which automatically shuts off when the battery is fully charged. Unit is supplied with a 12V cigar lighter plug only.

Frequency range: 26.965 - 27.405 MHz

Note - Price on request

€ -- (Price on request)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt
• Channels: 40 AM / FM
• Front speaker: Yes
• Display type: LCD display
• Display colors: Orange
• VOX Function: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
• Emergency channel: Yes
• Keypad lock: Yes
• Scan function: Yes
• External speaker socket: Yes
• S-meter: Yes
• Dual watch: Yes
• Car socket connector: Yes
• Battery capacity: Li-ion1800 mAh
• Noise Gate: Yes
• Eco mode: Yes
• Preset channel programmable (EMG 1 & 2): Yes
• Flashlight: Yes
• External microphone plug: Yes
• External loudspeaker jack: Yes

Electrical data

• Voltage: 7,4 Volt / 13,8 Volt /

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Microphone sensitivity: 7 mV
• Frequency allowance: ± 200 Hz
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Emitted power in the adjacent channel: inferior a 20 μW
• Modulated signal distortion: 1.8 %
• Drain: <1.8 A

Receiver

• AM sensitivity: 0,5 µV - 113 dBm
• FM sensitivity: 0,35 µV - 116 dBm
• Frequency response: 300 Hz - 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 1 Watt
• Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate image rejection rate: 70 dB
• Drain: Mode ECO

Mechanical data

• Length: 37 mm
• Height: 152 mm
• Width: 67 mm
• Weight: 305 gram
• Antenna connector: TNC
• Accessory connector: 2 pin Standard Icom (S)

Inside the box

• Transceiver: 1 pcs

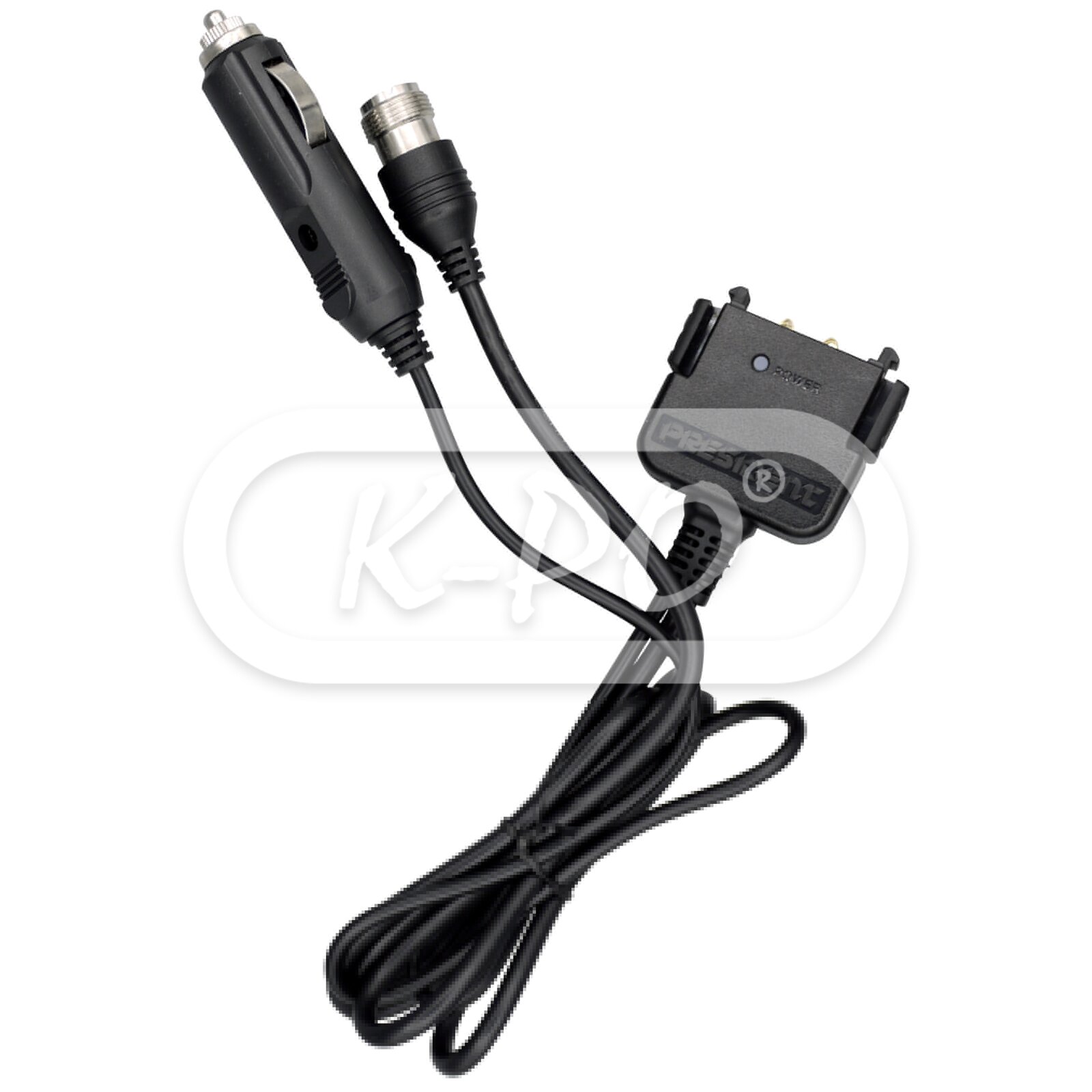

• Power lead: 12 Volt cigarette lighter plug
• User Manual: English

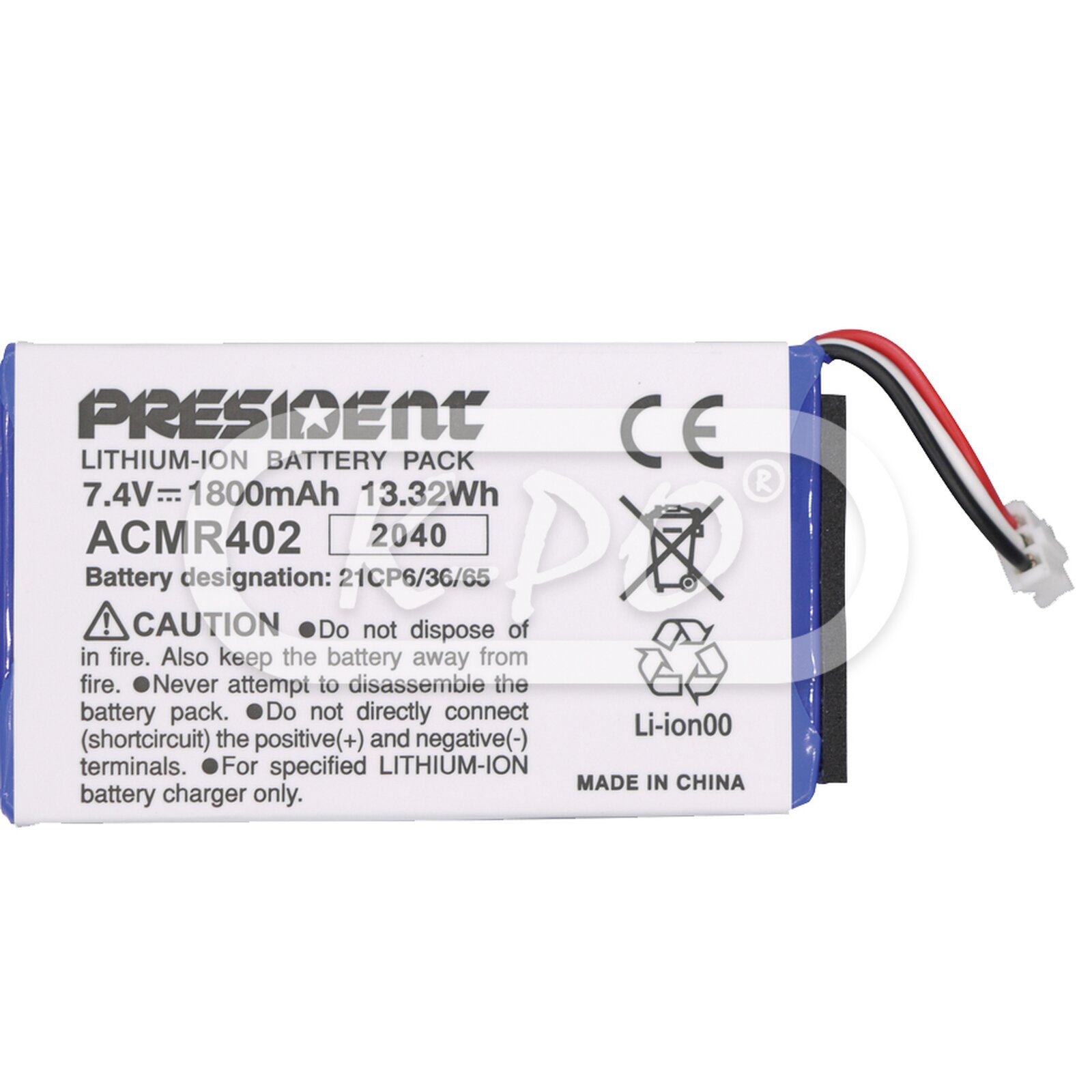

• Battery: Yes, Li-ion 1800 mAh (7,4 Volt)
• Antenna: 1 pcs
• Belt clip: 1 pcs
• Handstrap: 1 pcs

Downloads

• Datasheet: Jerry data
