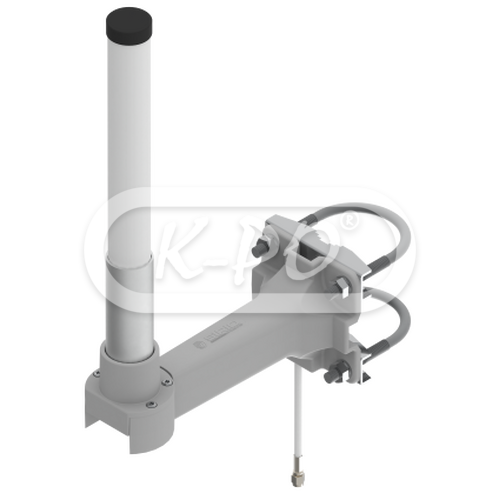

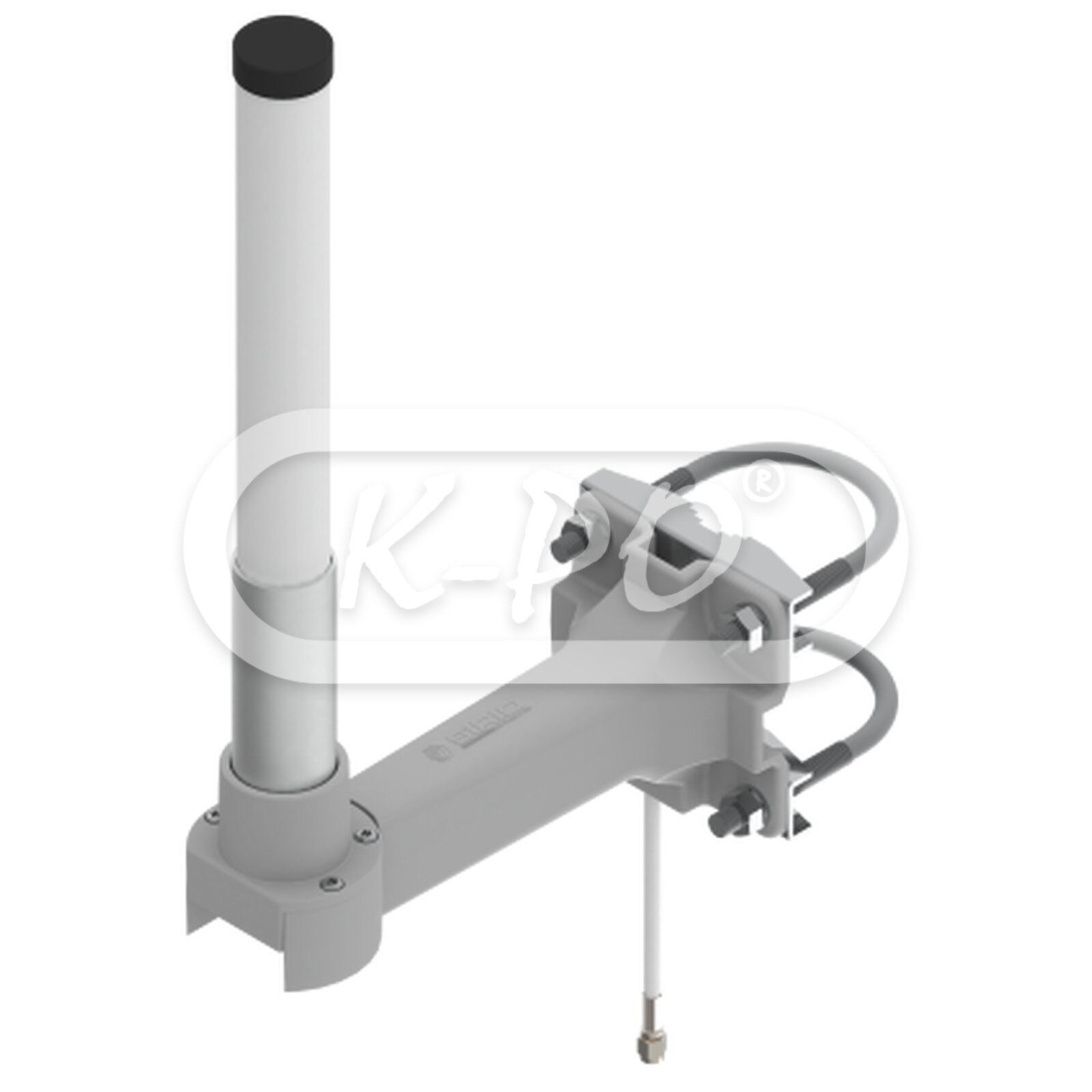

Sirio - SO 5G cable

Product code: 211812057

Factory code: 2118120/5SMA

The Sirio SO 5G is a high-performance, omnidirectional wideband antenna designed for 2G, 3G, 4G, 5G and Wi-Fi applications. Covering frequencies from 650 MHz to 4.2 GHz, it provides reliable, all-round signal coverage with consistent performance across multiple frequency bands. Featuring a weatherproof IP67-rated design, this antenna is suitable for both indoor and outdoor installations.

Version with 5 meter cable with SMA male connector and the new FT-7 plastic bracket for installation on a horizontal or vertical mast.

Frequency range: 650 - 960 MHz / 1.71 - 2.7 GHz / 3.3 - 4.2 GHz

Shipped next business day

€95.95 (79.3 excl. 21% VAT)

Electrical data

• Electrical type: Wide Band Dipole
• Gain: 650-960 MHz: 2 dBi / 1.7-4.2 GHz: 4-6 dBi
• Maximum continuous power: 650-960 MHz: 10 Watts / 1.7-4.2 GHz: 5 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 5 meter / low loss

Mechanical data

• Materials: Fiberglass, PCB, anodized aluminium, nickel plated brass, aluminium, stainless steel
• Mast Ø: 35 - 60 mm
• Max wind resistance: 200 km/h
• Height: 320 mm
• Weight: 360 gram
• Mounting type: On mast
• Antenna connector: SMA male

Inside the box

• Antenna: Yes
• Radio connector: SMA male
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English
• FT-7 bracket: Yes
