Sirio - SO 868-915-2 N-f

Product code: 211192000
Factory code: 2111920.00
Barcode: 8056182115973

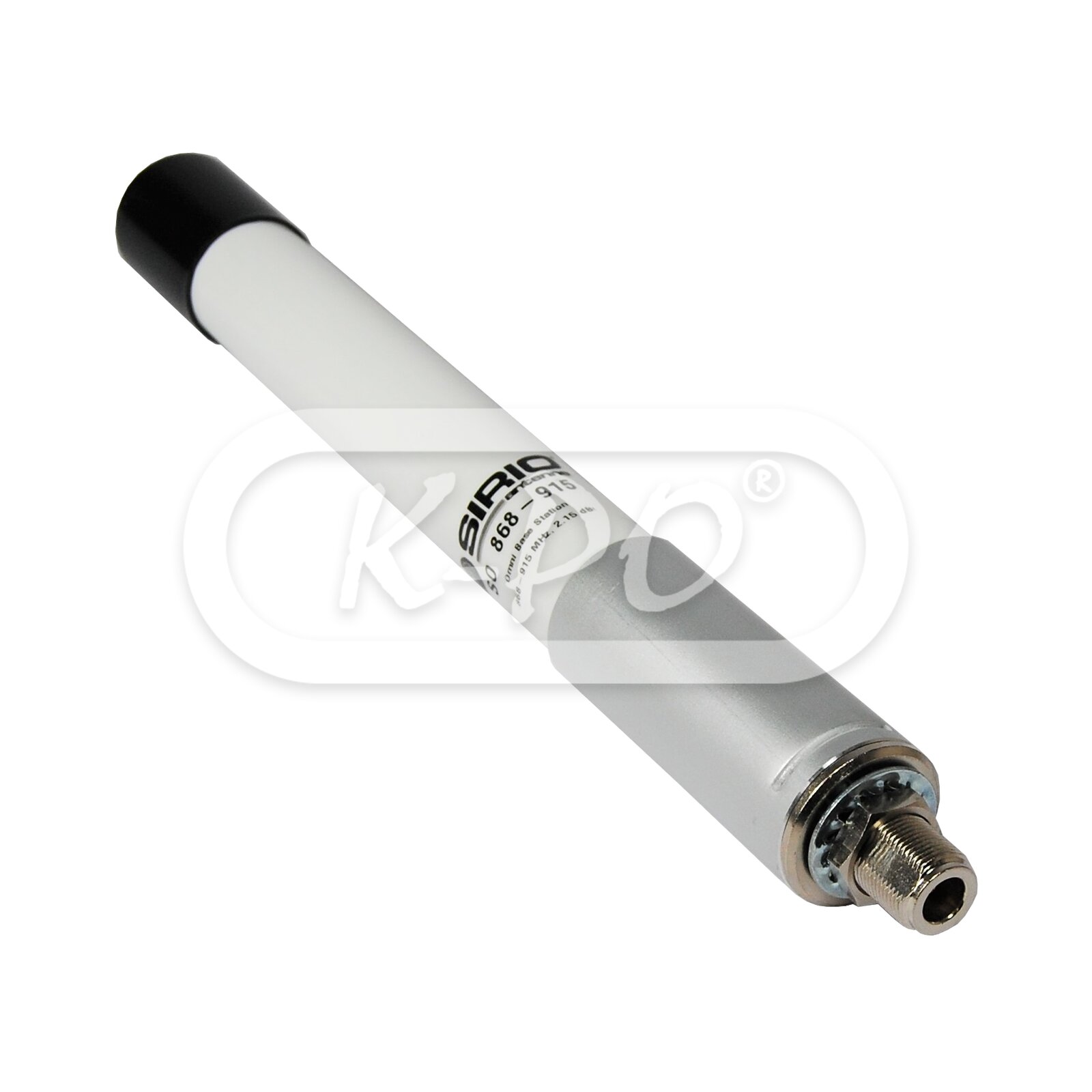

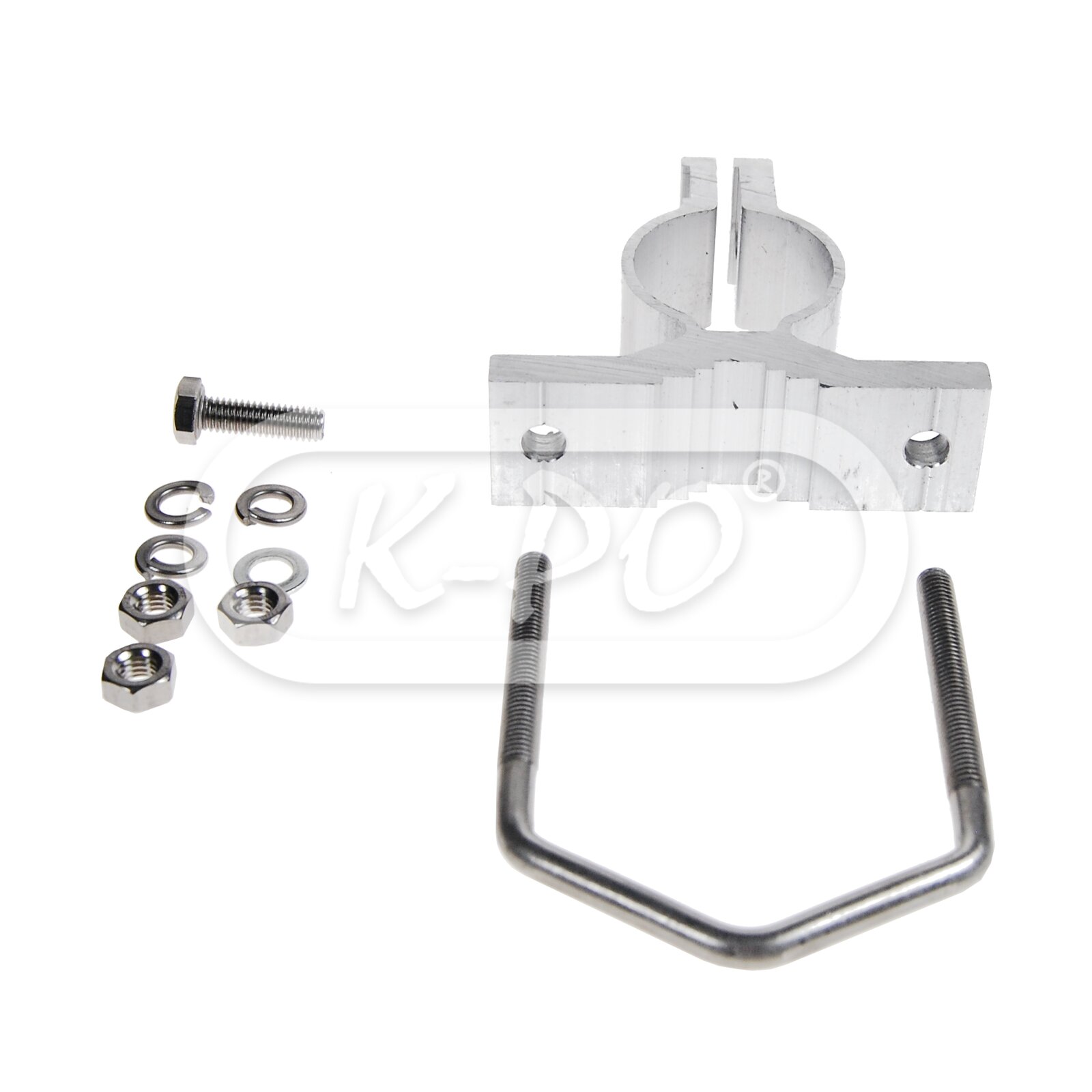

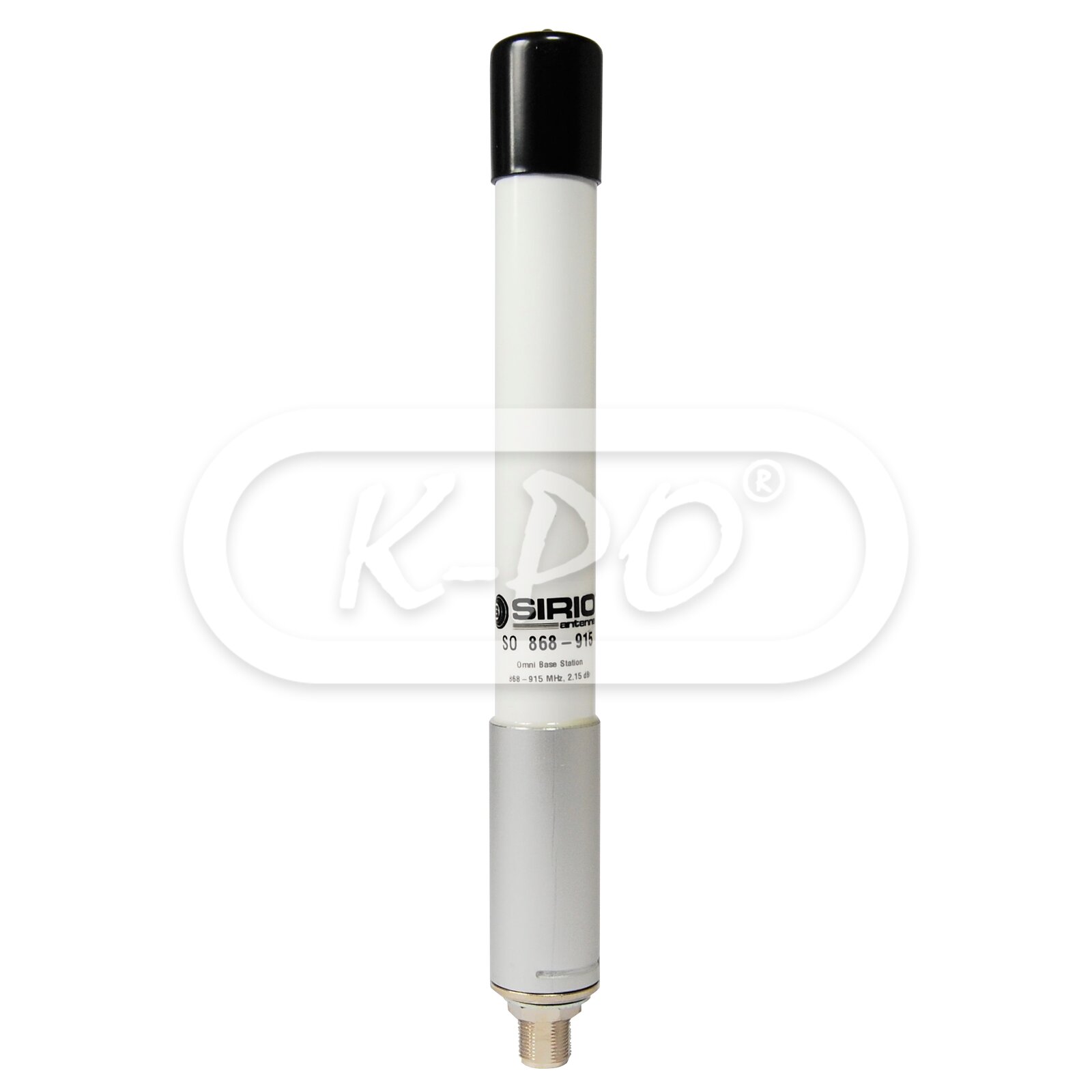

New - Base station antennas conceived for ISM/LoRa system working on 868 - 870 MHz, no tuning required. Can be used for cryptomining (Helium Miner) too. The radiant colinear dipoles are made of PCB and protected by a fiberglass tube. With N female connector inIncluding the Sirio FT-5 bracket for wall or mast mount.

Frequency range: 868 - 915 MHz
Out of stock - Longer delivery time
€50.95 (42.11 excl. 21% VAT)

Electrical data

  • Electrical type: 1/2 λ
  • Gain: 0 dBd, 2.15 dBi
  • VSWR: ≤ 1.5
  • Maximum continuous power: 20 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Chromed brass, galvanized steel, fiberglass, PCB
  • Mast Ø: 35 - 45 mm
  • Max wind resistance: 200 Km/h
  • Height: 290 mm
  • Weight: 235 gram
  • Mounting type: On mast, on wall, thru hole
  • Antenna connector: N-female
  • Ingress Protection: IP 64

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
