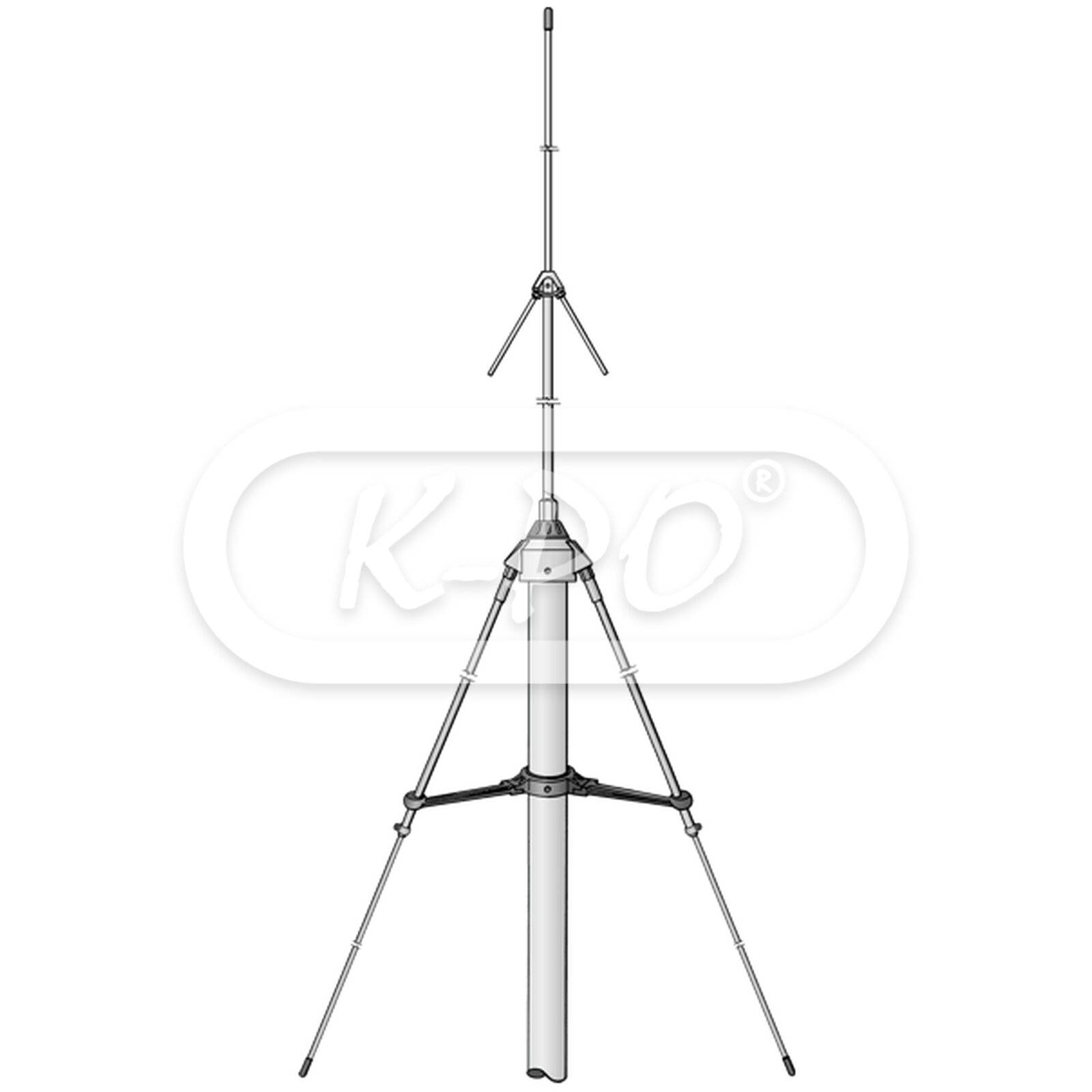

Sirio - Starduster M400

Product code: 210320100

Factory code: 2103201.00

Barcode: 8056182114884

An easy to install and tune CB base station antenna. Up to 1000 Watts (CW) continuous power, 3000 Watts CW) power peak.

Frequency range: 26.5 - 30 MHz tunable

Shipped today - Stock: 1

€78.95 (65.25 excl. 21% VAT)

Electrical data

• Electrical type: 1/4 λ ground plane
• Gain: 0 dBd, 2.15 dBi
• Bandwidth: 2000 kHz @ 26.5 MHz ≤ 2.0
• Maximum continuous power: 1000 Watts (CW)
• Power peak: 3000 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Feed system: Direct / base

Mechanical data

• Materials: Aluminium, chromed brass, nylon
• Mast Ø: 35 - 40 mm
• Max wind resistance: 130 km/h
• Height: 5040 mm
• Weight: 1230 gram
• Mounting type: On mast
• Antenna connector: UHF-female
• Radial length: 2690 mm

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 387 06 12 2019 starduster m 400
