Sirio - SY 906

Product code: 2109901

Factory code: 2109901.00

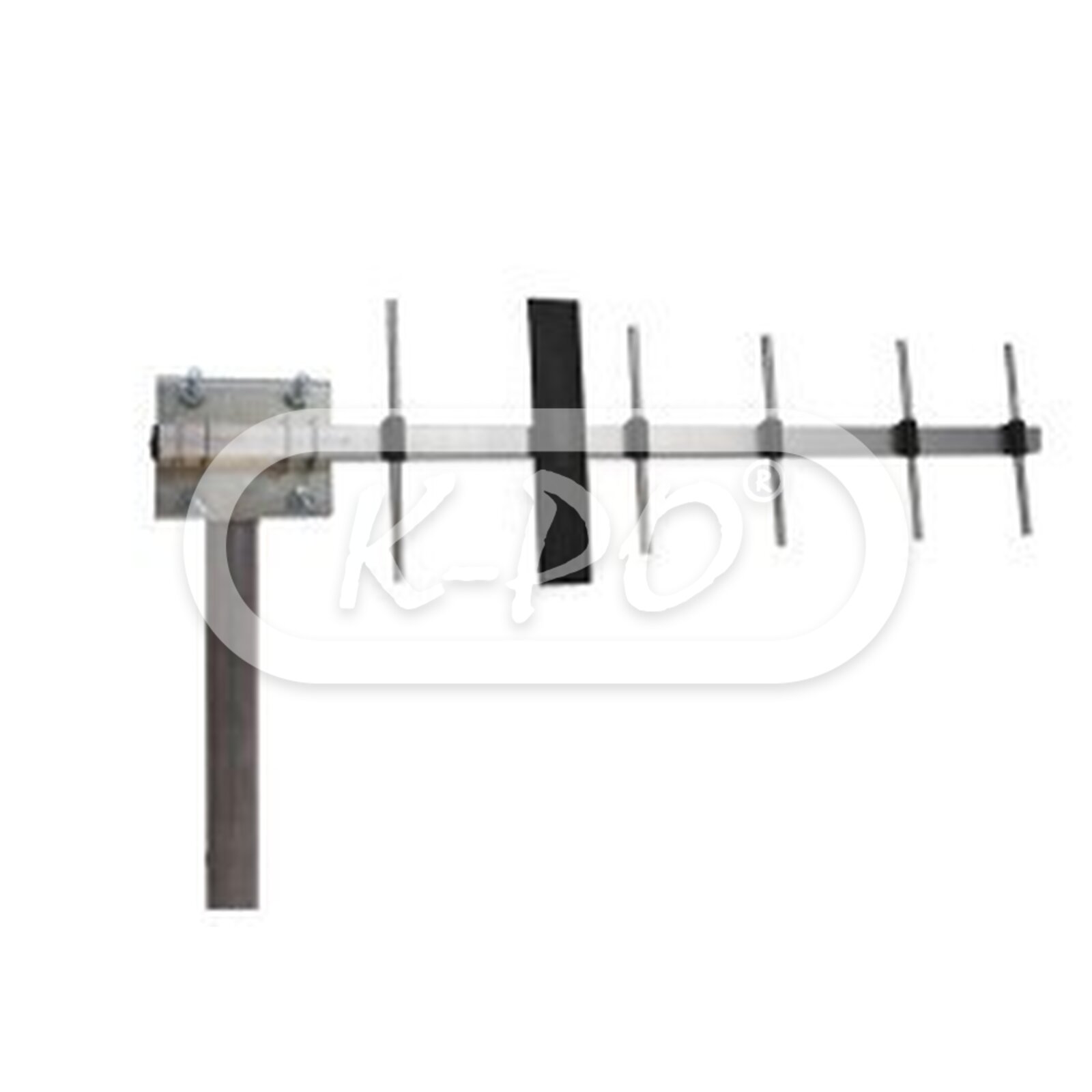

6 element Yagi base station antenna conceived for LTE 700, ISM 868 MHz, AMPS, GSM 900 systems working on 698-960 MHz. The boom and the parasitic elements are made of aluminium and radiant dipole is realized on PCB in Microstrip technology protected by thermoplastic.

Frequency range: 698 - 960 MHz

Shipped next business day

€43.95 (36.32 excl. 21% VAT)

Electrical data

• Electrical type: 6 elements Yagi
• Gain: 11.5 dBi
• Maximum continuous power: 10 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Radiation (H-plane) Beamwidth @ -3 dB: 66°
• Radiation (E-plane) Beamwidth @ -3 dB: 53°
• Radiation angle deg.: 0°
• Front to back ratio: > 12 dB (698-880 MHz) / >15 dB (880-960 MHz)
• Cross Polarization Isolation: > 18 dB
• Grounding Protection: All metal parts are DC-grounded, the inner conductor shows a DC-short

Mechanical data

• Materials: Aluminium, PCB, Thermoplastic, Galvanized steel
• Mast Ø: 25 - 42 mm
• Max wind resistance: 180 km/h
• Length: 595 mm
• Height: 60 mm
• Width: 210 mm
• Weight: 410 gram
• Mounting type: On mast
• Antenna connector: FME-male
• Wind load: 27 N @ 150 km/h
• Turning radius: 580 mm
• Wind Surface: 0.02 m²
• Operating Temperature: -20° C to +80° C

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Datasheet: Id 456 22 11 2017 sy906 910
