TTI - TCB-560evo starter pack

Product code: 7100013
Barcode: 8718375102879

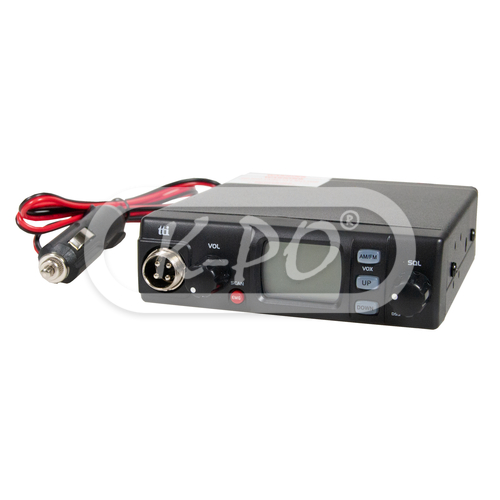

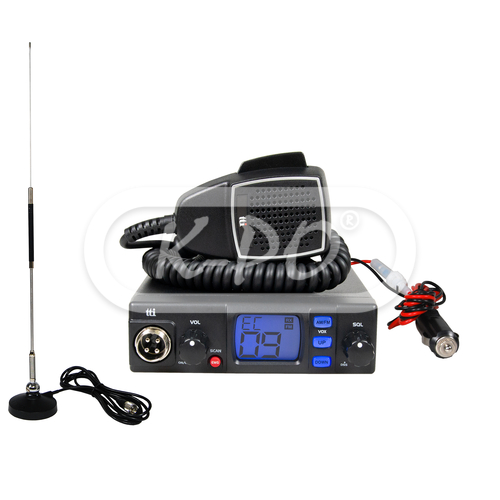

The TTI TCB-560evo starter pack is a complete pack, containing: TTI TCB-560evo radio and the Albrecht CBM-108 magnet antenna. Become part of the CB community with this ready to go starter pack. Including cigarette lighter plug for plug & play.

Frequency range: 26.965 - 27.405 MHz
Shipped next business day - Stock: 6
€98.95 (81.78 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt / Duty cycle 10% @ 13.2V DC
  • Channels: 40 AM / FM

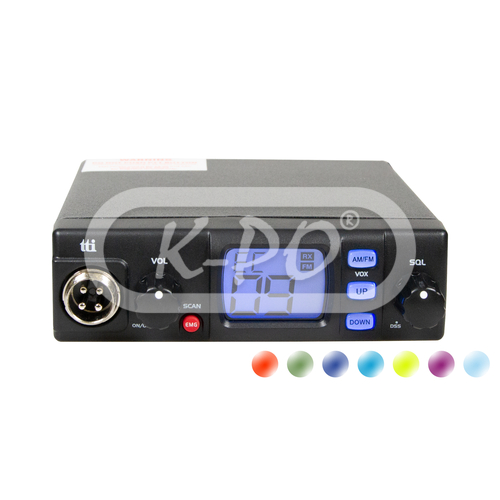

  • Display type: LCD display
  • Display colors: Green / Orange / Purple / Dark Blue / Light Blue / Yellow / Clear Blue
  • VOX Function: Yes
  • Noise blanker: Yes
  • Squelch: DSS (Dynamic Squelch System) / Manual squelch /
  • Emergency channel: Yes
  • Scan function: Yes
  • External speaker socket: Yes

Electrical data (radio)

  • Voltage: 13,8 Volt / 24 Volt
  • Operating temperature: -10° to +55° C
  • Operating mode: F3E (FM) / A3E (AM)
  • Frequency control: PLL synthesizer
  • Frequency tolerance: 0.002 %

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Modulation AM: from 85% to 95%
  • Modulation FM: 1.8 kHz to ± 0.2 kHz
  • Harmonic suppression: More than -36 dBm
  • Drain: 13.2 Volt: 1.6 A max.

Receiver

  • AM sensitivity: 0.7 µV for 10 dB
  • FM sensitivity: 0.5 µV for 20 dB SINAD
  • Frequency response: 300 Hz - 2.5 kHz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 2 Watt
  • Internal speaker: 8 Ohm, round
  • Receiving system: Dual conversion superheterodyne
  • IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
  • Audio distortion: Less than 8% @ 1 kHz
  • Image rejection: 60 dB
  • Conducted spurious: More than 60 dB
  • Squelch: Adjustable, threshold less than 1 µV,

Mechanical data (radio)

  • Length: 135 mm
  • Height: 37 mm
  • Width: 124 mm
  • Weight: 655 gram

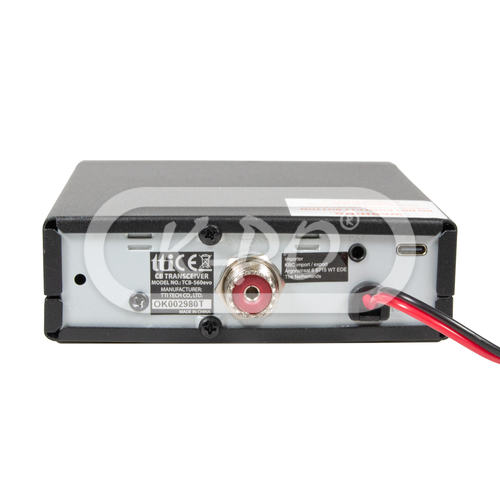

  • Antenna connector: UHF (PL)
  • Mike connector: 6 pin connector

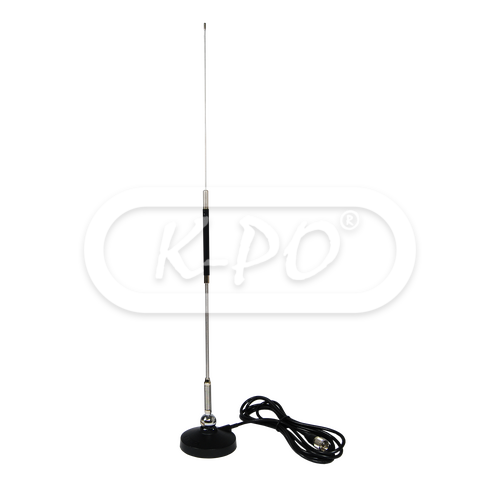

Electrical data (antenna)

  • Electrical type: Central loaded
  • VSWR: ≤ 1.2
  • Bandwidth: 280 kHz ≤ 2.0
  • Power continues: 10 Watts (CW)
  • Power peak: 50 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 3 meter / RG 58

Mechanical data (antenna)

  • Materials: Copper, brass, stainless steel, fiberglass
  • Height: 630 mm
  • Weight: 575 gram
  • Mounting type: 90 mm magnet

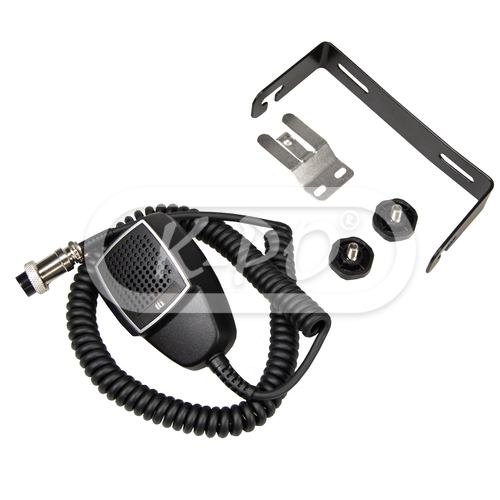

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, Dutch
  • Antenna: 1 pcs
