Wouxun - KG-M80 VHF

Product code: 34080
Barcode: 6946351705406

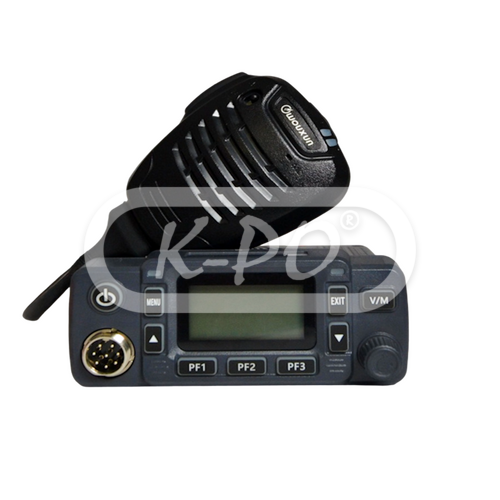

The new Wouxun KG-M80 is an easy-to-use 5/25-watt professional mobile VHF radio (136-174 MHz) with a clear display, stable performance, and compact installation.

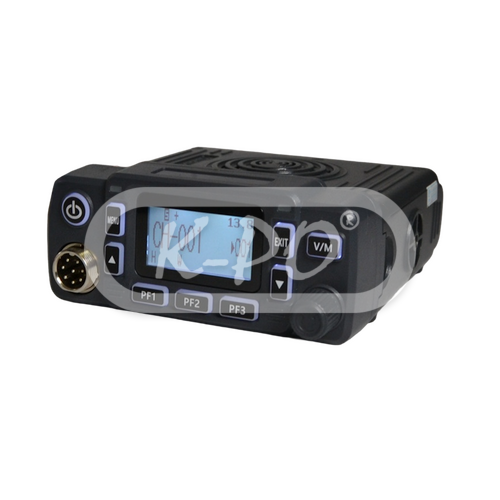

Direct access to three programmable* channels via the PF1, PF2, and PF3 front keys. Program* up to 400 channels, add channel names to each frequency, add CTCSS and DCS, and change many other settings.

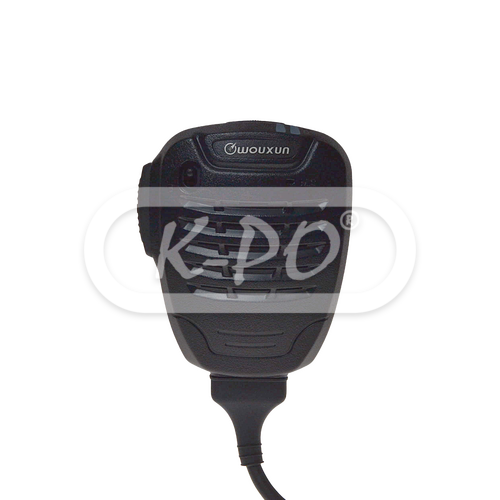

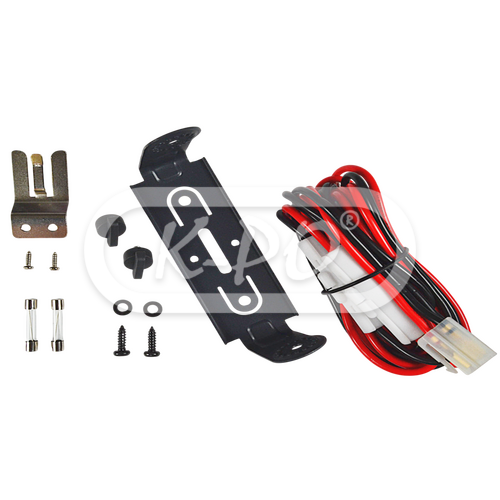

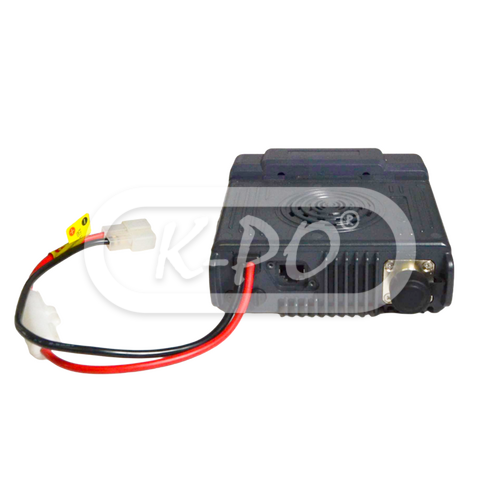

Included are the standard microphone with volume control, a robust mobile mounting bracket with screws and a power cord with 15A fuses.

With the optional DTMF microphone, you will have direct access to several functions: menu, up/down buttons, number/alphabet keys, microphone lock functions, scan function, exit key, volume control and more.

*Please note that some settings will be easier to configure or can only be programmed with the optional PC programming cable and free programming software.

Frequency range: TX/RX: 136-174 MHz
Shipped next business day
€179.95 (148.72 excl. 21% VAT)

Electrical data

  • Frequency step: 2.5 kHz / 5 kHz / 6.25 kHz / 8.33 kHz / 10 kHz / 12.5 kHz / 25 kHz / 50 kHz / 100 kHz /
  • Channels: 400
  • Operating temperature: -20℃ to 40℃
  • Work voltage: 13.8 VDC+/- 15% (Negative Grounded)

Transmitter

  • Power output (Watts): 5/25 Watts
  • Modulation limit: Wide: 16K F3E / Narrow: 11K F3E
  • Adjacent channel power: Wide: ≥70dB / Narrow: ≥60dB
  • Spurious Emission: ≥60dB
  • Max Deviation: Wide: ± 5KHz / Narrow: ±2.5KHz

Receiver

  • Sensitivity: 0.25uV (12dB SINAD)
  • Audio power output: Radio: 3 Watts / Hand microfoon: 1 Watt
  • Adjacent Channel Selectivity: ≤70dB
  • Response Intermodulation: Wide: ≤65dB / Narrow: ≤60dB
  • Spurious Response: ≤70dB
  • Audio Response: Wide: +1-3dB (0.3-3KHz) / Narrow: +1-3dB (0.3-2.55KHz)
  • Squelch Ratio: Wide: ≥45dB / Narrow: ≥40dB
  • Audio distortion: ≤5%

Mechanical data

  • Length: 120 mm
  • Height: 55 mm
  • Width: 120 mm
  • Weight: 634 gram
  • Antenna connector: UHF (PL) female (SO-239)

Inside the box

  • Transceiver: Yes
  • Microphone: Yes
  • Mounting bracket: Yes
  • Mounting parts: Yes
  • DC power cable: Yes
  • Installation manual: Yes, English
