Wouxun - KG-Q336

Product code: 34336
Barcode: 6946351740179

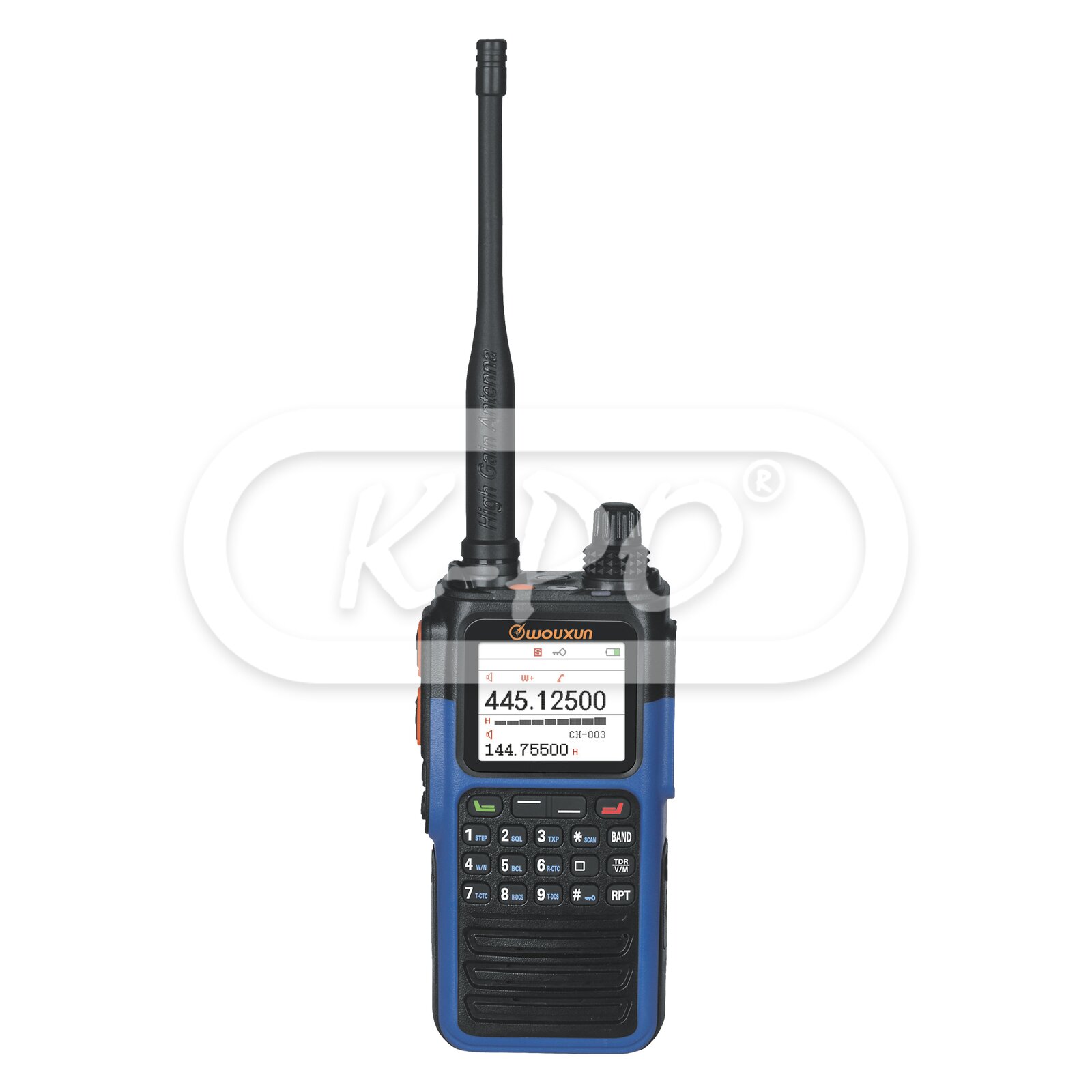

The Wouxun KG-Q336 tri-band handheld radio is together with the Wouxun KG-Q332 one of Wouxun' new top models.

The KG-Q336 can be used for TX on 66-88, 144-146 and 430-440 MHz and wide band RX on 76-108, 108-136 (Airband AM), 136-174, 222-225, 320-400, 400-480 MHz and 714-999 MHz.

Both models have features like a cross-band repeater, dual-reception, double PTT, scan function, scrambler, compander, programmable side keys and many more interesting features that are listed below.

With the free downloadable PC program software you can easily program your frequencies and change all setting to your own preferences*.

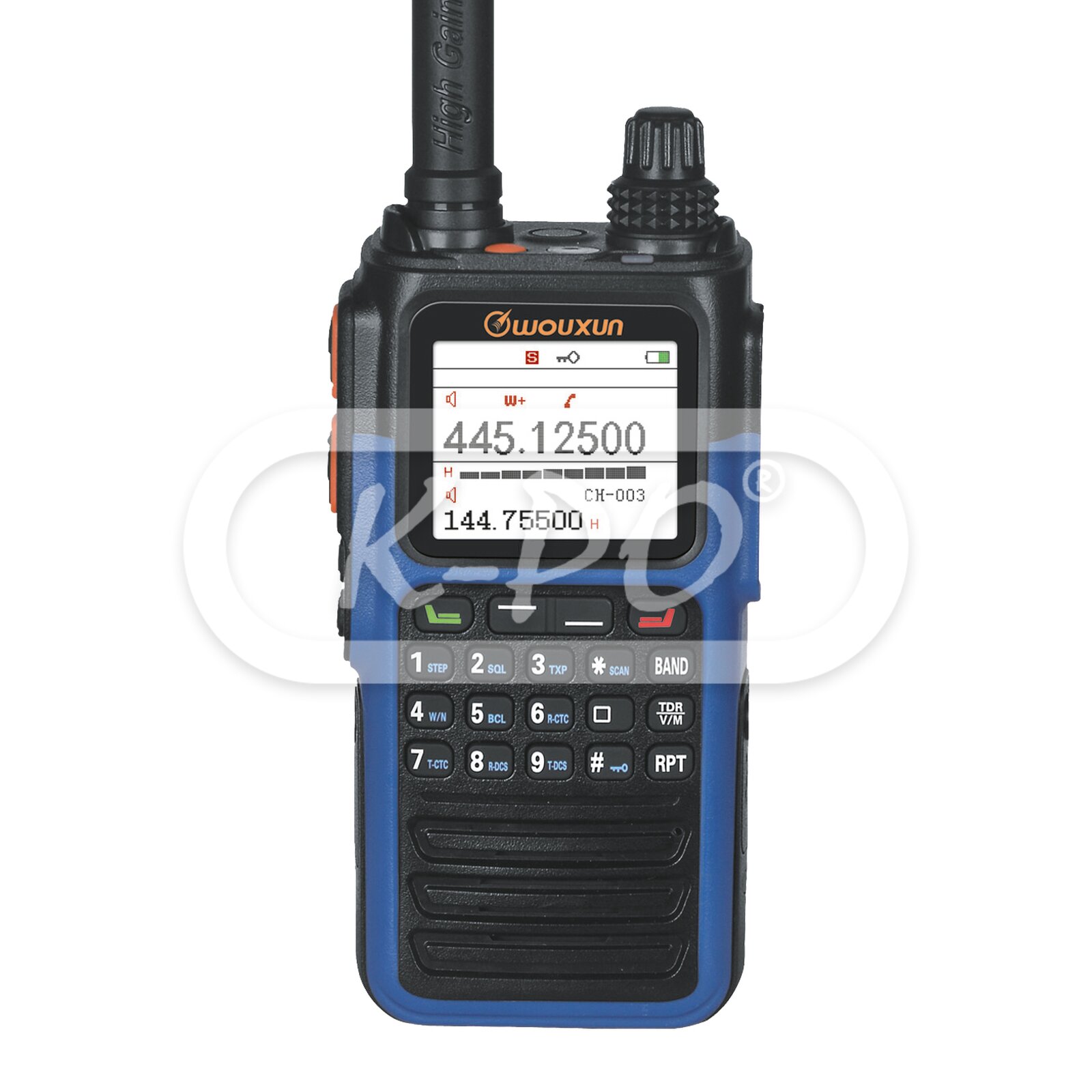

This all comes in the new and modern radio housing from Wouxun, which includes a heavy duty 3000 mAh battery pack, USB-C charging function (charging cable not included), table charging function, clear multi-color display, flashlight and IP65 waterproof index.

Our version is the approved European version with CE (RED).

*Program cable not included, we recommend product code 2399

Frequency range: TX/RX: 66-88 MHz / 144-146 MHz / 430-440 MHz, RX: 76-108 MHz / 108-136 MHz (AM) / 136-174 MHz (FM) / 222-225 MHz (FM) / 320-400 MHz (FM) / 400-480 MHz (FM) / 714-999 MHz (FM)
Out of stock - Longer delivery time
€199.95 (165.25 excl. 21% VAT)

Features

  • Display: Yes, large color display
  • Emergency (SOS) function: Yes
  • Flashlight: Yes
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • Voice guide: English
  • Battery capacity: Li-ion 3000 mAh (7.4V)
  • Waterproof index: IP65
  • Accessory connector: 2-pin Kenwood (K)
  • Busy channel lockout: Yes
  • CTCSS / DCS: Yes, RX and TX, programmable by computer
  • Scan group: Yes
  • Call Code: Yes
  • Scrambler: Yes
  • Compander: Yes
  • AM Mode SW: Yes
  • Battery Save Mode: Yes
  • Transmit Timeout Timer: Yes
  • Transmit Timeout Alert: Yes
  • Multi Keys Options: Yes
  • Repeater PTT: Yes
  • Time Zone: Yes
  • Two menu system: Yes
  • FM Radio: Yes
  • PF options (programmable keys): Yes, PF1, PF2, PF3 modes
  • PTT ID transmit modes: Yes

Electrical data

  • Frequency step: 2.5 kHz / 5 kHz / 6.25 kHz / 8.33 kHz / 10 kHz / 12.5 kHz / 25 kHz / 50 kHz / 100 kHz /
  • Channels: 999
  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: -20℃ to +40℃

Transmitter

  • Power output (Watts): VHF: 5/2/1 Watts / UHF: 4/2/1 Watts
  • Work mode: F2D / F3E
  • Antenna impedance: 50 Ohm
  • Frequency stability: ±2.5 PPM
  • Type of modulation: Wide: 16K F3E / Narrow: 11K F3E
  • Max. frequency deviation: Wide: ±5 kHz / Narrow: ≤±2.5 kHz
  • Audio response: 300-3000 Hz +1 to -3 dB
  • Adjacent channel selectivity: Wide: ≤70 dB / Narrow: ≤60 dB
  • Spurious: Wide: ≤60 dB / Narrow: ≤60 dB
  • Modulation distortion: ≤5%

Receiver

  • Audio distortion: ≤5%
  • Audio power output: ≤500 mW
  • Audio response: 300-3000 Hz +1 to -3 dB
  • Adjacent channel selection: Wide: ≤70 dB / Narrow: ≤60 dB
  • Inter modulation: Wide: ≤65 dB / Narrow: ≤60 dB
  • Signal to noise ratio: Wide: ≥45 dB / Narrow: ≥40 dB
  • Spurious radiation: Wide: ≥70 dB / Narrow: ≥70 dB
  • Sensitivity: UHF / VHF : -119.0 dBm SINAD 13 dB
  • Sensitivity 108 - 136 MHz (AM): 106.0 dbm SINAD 13 dB
  • Sensitivity 136 - 174 MHz: 119.0 dbm SINAD 13 dB
  • Sensitivity 216 - 260 MHz: 116.0 dbm SINAD 13 dB
  • Sensitivity 400 - 480 MHz: 119.0 dbm SINAD 13 dB
  • Sensitivity 714 - 999 MHz: 96.0 dbm SINAD 12 dB

Mechanical data

  • Length: 60 mm
  • Height: 133 mm (without antenna)
  • Width: 36 mm
  • Weight: 326 gram (including ANO-057 antenna)
  • Antenna connector: SMA male
  • USB-C charging: Yes

Inside the box

  • Transceiver: Yes
  • Battery: Yes, BLO-032 Li-ion Battery Pack (7.4V 3000 mAh)
  • Charger: Desk charger with AC adapter (CHA-035A - CHA-035B)
  • Installation manual: English
  • Antenna 66-88 MHz: Yes, ANO-057, 185 mm
  • Antenna 136-174 / 400-520 MHz: Yes, ANO-056, 145 mm
  • Belt clip: Yes
  • Hand strap: Yes
