Wouxun - KG-R36

Product code: 34036
Barcode: 6946351740353

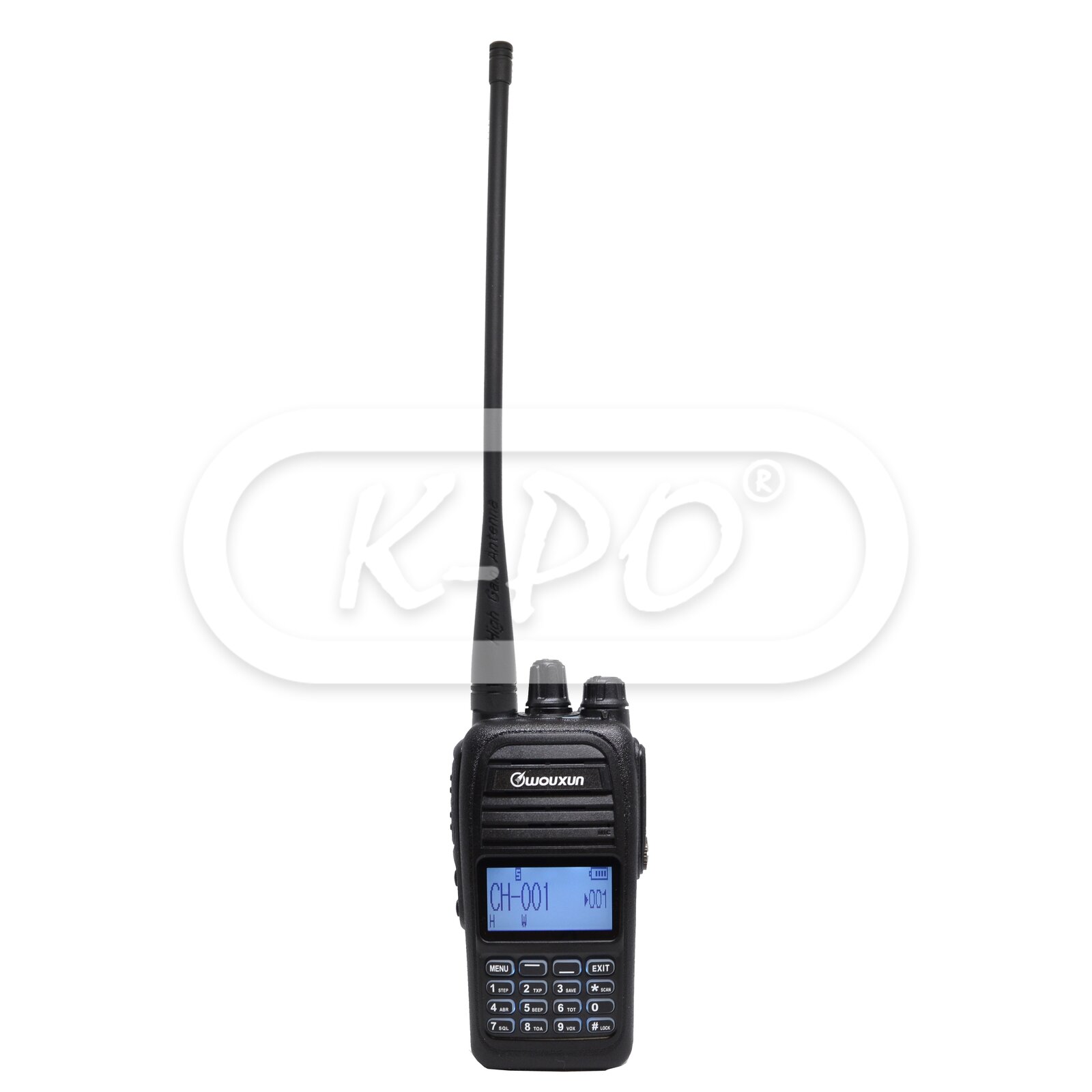

Wouxun KG-R36 Handheld VHF Air Band Transceiver

Experience unparalleled communication with the Wouxun KG-R36, a top-tier handheld VHF air band transceiver designed for aviation professionals and enthusiasts.
This compact and robust device ensures reliable and clear communication, making it an essential tool for pilots, ground staff, and aviation hobbyists.

Key Features:

  • Wide Frequency Range: Covers the entire VHF air band, ensuring you stay connected across various aviation frequencies.
  • High Power Output: Provides strong signal transmission and ensures clear communication even in challenging environments.
  • Dual Watch Function: Monitor two frequencies simultaneously, ensuring you never miss important communications.
  • Clear Audio Quality: Advanced noise reduction technology delivers crystal-clear audio, enhancing communication clarity.
  • Durable Design: Built to withstand tough conditions, the KG-R36 is both water and dust resistant (IP65).
  • Long Battery Life: Equipped with a high-capacity battery that you can charge with USB-C or desk charger.

The Wouxun KG-R36 stands out with its reliable performance and user-friendly features, making it the perfect choice for aviation communication. Whether you're coordinating ground operations or navigating the skies, this transceiver ensures you maintain clear and continuous contact.

Frequency range: 118.000-136.975MHz
Shipped next business day
€168.95 (139.63 excl. 21% VAT)

Features

  • Display: LCD display
  • Battery capacity: Li-ion 2600mAh (7.4V)
  • Accessory connector: 2-pin Kenwood connector (K)
  • Noise blanker function: Yes
  • Waterproof index: IP65
  • Vox function: Yes, 5 Levels
  • Scan function: Yes

Electrical data

  • Frequency step: 8.33 kHz / 25 kHz /
  • Channels: 400 channels
  • Operating temperature: -20℃ to +40℃
  • Supply voltage: 6.0 to 9.5 Volt
  • Current consumption: Power off: 300 μA / Battery save on: 70 mA / Squelch on: 90 mA / Receive: 300 mA / Transmit 1.5 Watt: 0.9 A

Transmitter

  • Power output (Watts): Carrier Power: 4 Watt / 1 Watt
  • Modulation limit: 70 to 100%
  • Spurious Emission: >more than 46dB
  • Frequency stability: ±0.4kHz

Receiver

  • Sensitivity: 0.25μV(12dB SINAD)
  • Audio power output: More than 350mW at 10% distortion into RX 90mA(at standby) an 8Ω load
  • Receiving system: Superheterodyne
  • Intermediate frequency: 1st 46.35MHz, 2nd 450kHz

Mechanical data

  • Length: 132 mm
  • Height: 62 mm
  • Width: 37 mm
  • Weight: 340 gram
  • Antenna connector: SMA K

Inside the box

  • Transceiver: Yes
  • Battery: Yes, BLO-016-USB-C Li-ion Battery Pack (7.4V 2600mAh)
  • Charger: Desk charger with AC adapter
  • Antenna: Yes
  • Installation manual: English
  • Antenna: Yes
  • Beltclip: Yes
