Yaesu - FT-DX101D

Product code: XAH068H005-0E
Factory code: XAH068H005-0E
Barcode: 490995916627

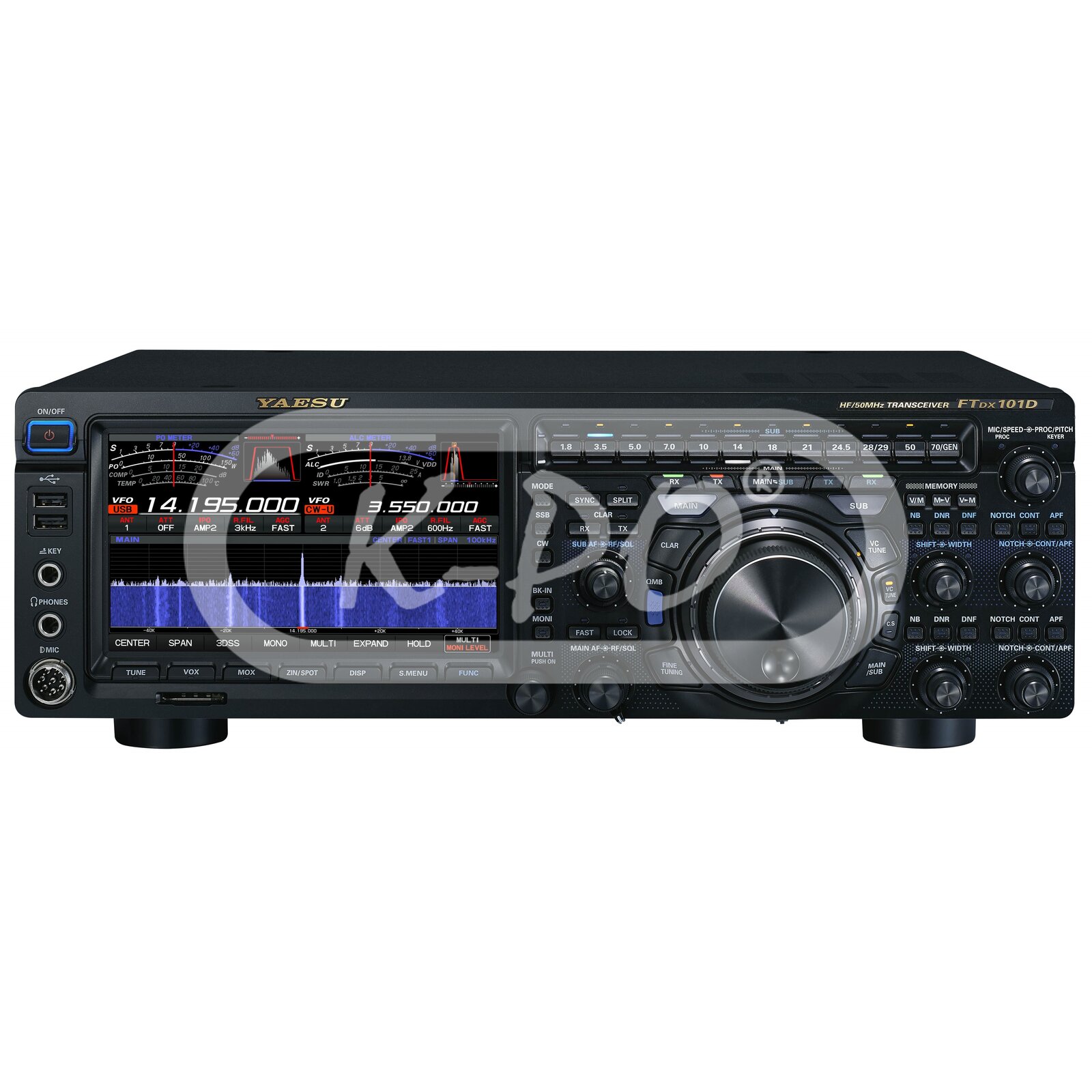

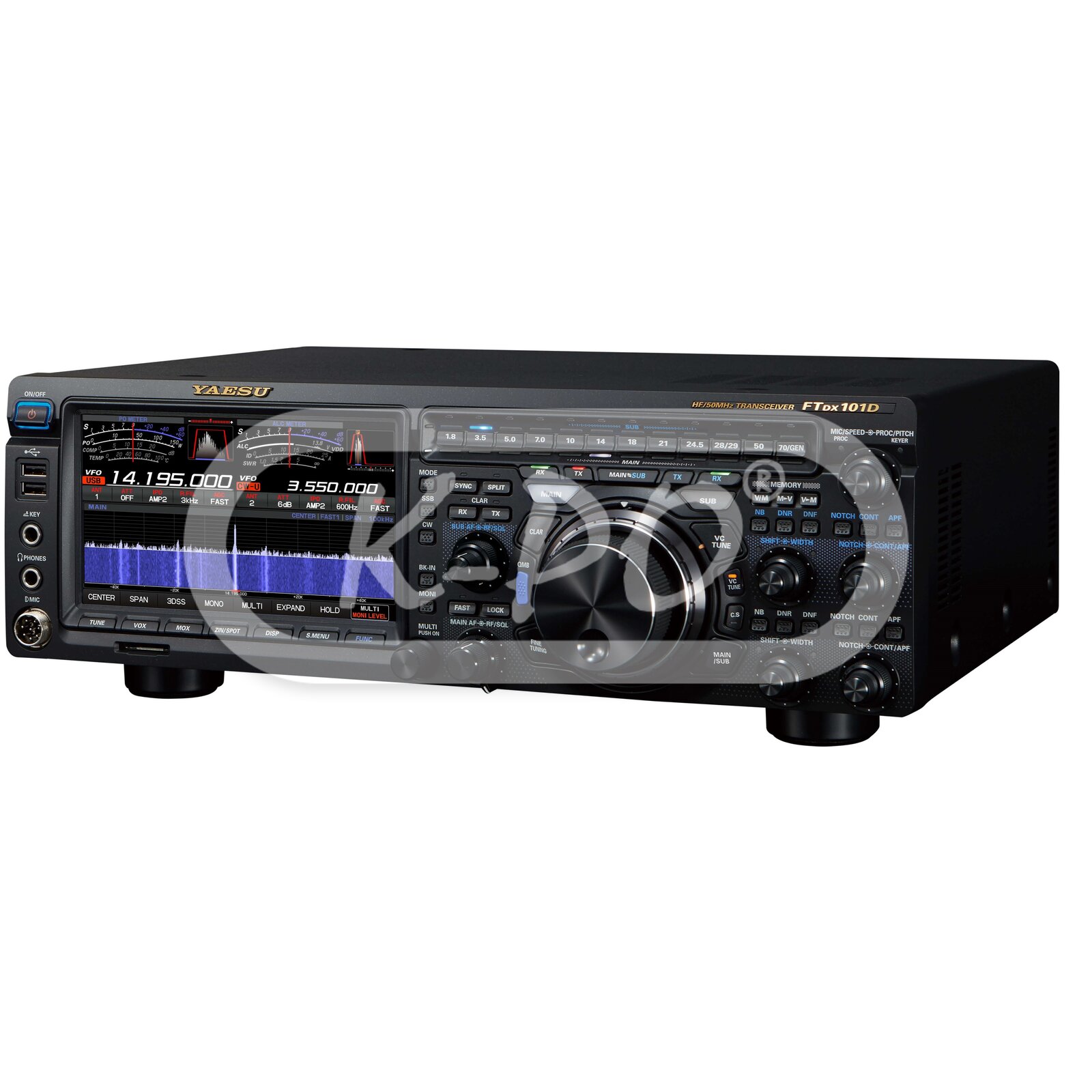

We are pleased to introduce the Yaesu FT-DX101D, a new long-awaited compact HF/50MHz 100W SDR Transceiver!

Narrow Band SDR

The Narrow band SDR receiver removes strong out of band signals by using a superheterodyne method, with narrow band roofing filters which significantly attenuates unwanted out of band frequency components, and the wanted signals within the passband are converted to digital by a high resolution 18-bit A/D converter and sent to an FPGA (Field Programmable Gate Array) for signal processing.

Truly Quiet and Clear Reception

Ultra Low-Noise Local Oscillator System; 400MHz HRDDS (High Resolution Direct Digital Synthesizer)

Unparalleled -70 dB Maximum Attenuation VC-Tune

Newly developed VC-Tune RF Preselector with high precision stepping motor drive provides outstanding attenuation characteristics.

The Highest Transmit Signal Purity

The excellent C/N characteristics provided by the 400MHz HRDDS (High Resolution Direct Digital Synthesizer) used in the local oscillator circuit also contributes significantly to the transmitter section. In a generic circuit, noise or distortion may occur depending on the circuit configuration and the components, up to the final stage that is producing the transmit signal, even if the local signal is of high quality. In the FTDX101, a thorough examination of each element up to the final TX stage was made. The clock that divides and distributes the local signal from the 400MHz HRDDS circuit to each block, as well as the FPGA, D/A converter, the final power amplifier etc., and carefully selecting the latest circuit configurations to improve the C/N characteristics of the entire transmitter block. The transmit signal of the FTDX101 is directly generated from a 16-bit D/A converter without passing through a mixer circuit, therefore distortion and noise are significantly suppressed.

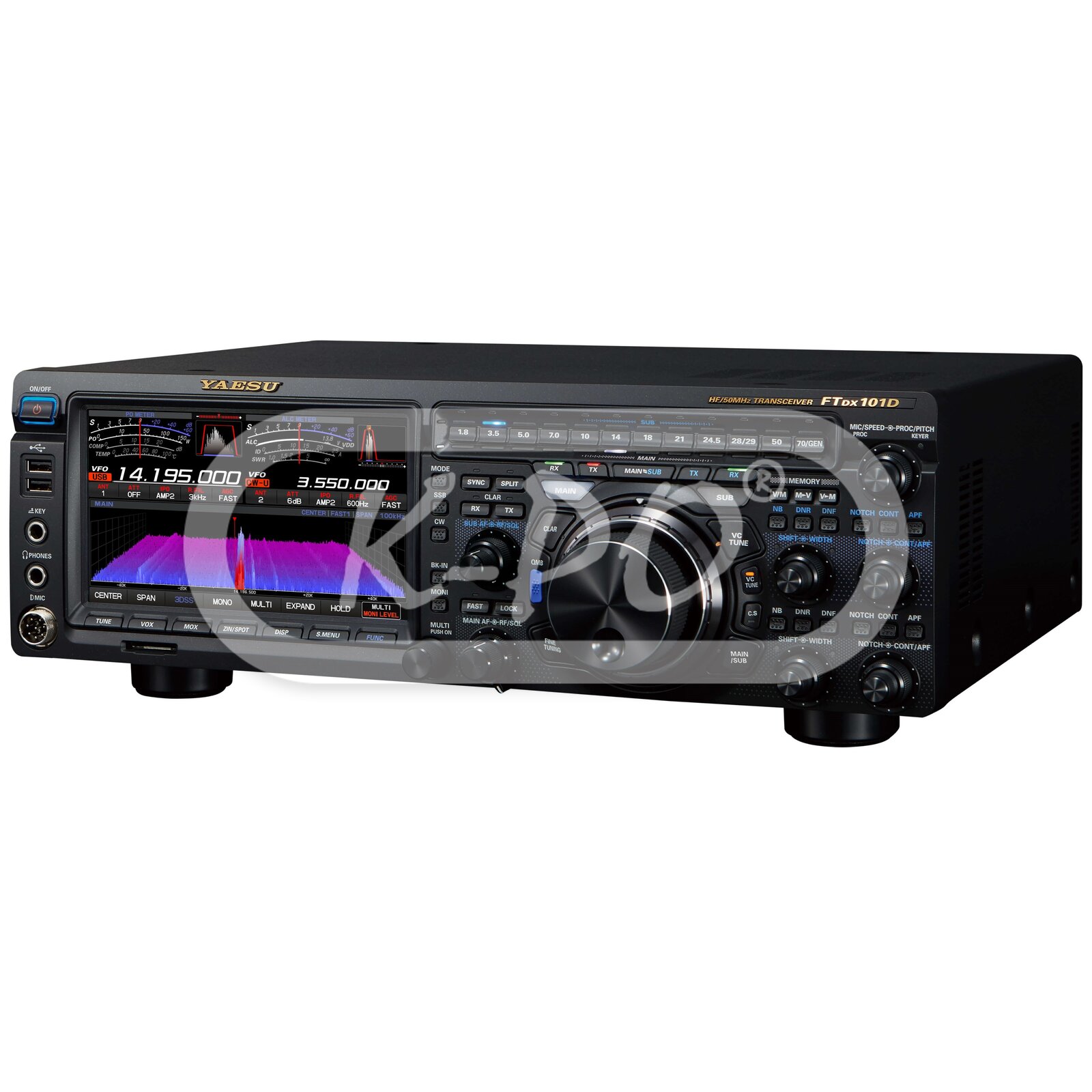

New Generation Scope Display 3DSS 7-inch TFT Color Panel Display

Intuitively grasp changes in the strength of the signals, Newly developed 3DSS (3-Dimentional Spectrum Stream) system in addition to a conventional Waterfall display.

ABI (Active Band Indicator)

When the band selected as MAIN Band, the LED indicates in white, and when the band selected by SUB band, the LED indicates in blue. At the status of transmission, the LED turns red so you can instantly confirm which VFO is transmitting.

MPVD (Multi-Purpose VFO Outer Dial)

The MPVD is a large high-grade aluminium multifunctional ring around the outside of the VFO dial. The ring allows control of SUB VFO frequency dial, VC-TUNE, Clarifier and C/S (custom select function). The MPVD is a handy dial that allows you to adjust important functions in ever-changing HF communications without taking your hand off the VFO. The ring has the traditional Yaesu outstanding smooth and solid feeling when used

PC Remote Control Software to Expand the Operating Range

PC control software performed remote operation of the transceiver from a remote location via the LAN or the Internet is available. (Requires optional external LAN unit)

Frequency range: TX: 1.8-54 MHz, RX: 30 kHz - 75 MHz
Out of stock - Longer delivery time
€3,459.95 (2859.46 excl. 21% VAT)

Features

  • Display: 7 inch Full-Color TFT Display with Touch-Panel
  • Bandwidth: SSB: 3 kHz / CW: 500 Hz / AM: 6 kHz / FM: 16 kHz
  • VOX function: Yes
  • Mode of emission: A1A (CW) / A3E (AM) / J3E (SSB) / F2D (FM) / F3E (FM) / F1B (RTTY) / G1B (PSK)
  • Digital Noise Reduction (DNR): Yes, The Digital Noise Reduction (DNR) system is designed to reduce the level of ambient noise found on the HF and 50 MHz bands
  • Quick Memory Bank (QMB): Yes, The current operation status can be stored in a dedicated memory channel (QMB: Quick Memory Bank) with one touch
  • Intercept Point Optimization (IPO): Yes, The IPO function can establish the gain of the RF amplifier section to accommodate the connected antenna and the received signal conditions
  • Automatic Gain Control (AGCl): Yes, The AGC system is designed to help compensate for fading and other propagation effect
  • Roofing Filter Switching (R.FIL): Yes, Displays the bandwidth of the currently selected roofing filter (600 Hz, 3 kHz and 12 kHz)
  • VFO/Memory Scan: Yes
  • Programmable Memory Scan (PMS): Yes, The PMS feature is especially useful in helping to observe any operating sub-band limits which apply to your Amateur license class
  • Digital Noise Reduction (DNR): Yes, The Digital Noise Reduction (DNR) system is designed to reduce the level of ambient noise found on the HF and 50 MHz bands
  • Digital NOTCH Filter (DNF): Yes, The Digital NOTCH Filter (DNF) is an effective beat-canceling filter that can null out a number of interfering beat notes inside the receiver passband
  • IF NOTCH Filter (NOTCH): Yes, The IF NOTCH filter is a highly effective system that allows you to slice out an interfering beat note or other carrier signal from inside the receiver passband
  • Contour (CONT): Yes, The Contour filter system provides a gentle perturbation of the IF filter passband
  • Audio Peak Filter (APF): Yes, During CW operation, when interference or noise is present, the center frequency is automatically set to the PITCH frequency, making it easier to hear the desired signal
  • AF / RF gain / Squelch: Yes
  • Noise Blanker: Yes
  • Time-Out Timer (TOT): Yes, The “Time-Out Timer” (TOT) shuts the transmitter OFF after continuously transmitting for the programmed time
  • Band Stack: Yes, The FTDX101 employs a triple band-stack VFO selection technique that permits storing up to three favorite frequencies and modes onto each band VFO register
  • External phone jack: Connect headphones to this standard φ3.5 stereo jack
  • MicroSD card slot: Yes
  • External speaker socket: Yes
  • External tuner socket: Yes
  • External RTTY/DATA jack: Yes
  • External ground socket: Yes
  • External REM socket: Yes
  • External AF-OUT socket: Yes, receive audio output terminal ±300 mVp-p
  • External RX-OUT socket: Yes
  • External IF-OUT socket: Yes
  • External linear socket: Yes
  • External TX-GND socket: Yes
  • External USB socket: Yes
  • External USB jack: Yes
  • External KEY socket: Yes
  • External PTT socket: Yes
  • External display socket: Yes
  • External ACC socket: Yes
  • External ALC socket: Yes
  • External analog meter socket: Yes

Electrical data

  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: 0℃ to +50℃
  • Frequency step SSB/CW: 1 Hz / 5 Hz / 10 Hz
  • Frequency step AM/FM: 10 Hz / 100 Hz
  • Frequency stability: ±0.1 PPM
  • Operating voltage: 13.8 Volt ± 10% (Negative Ground)
  • Current consumption: RX (no signal): 3.5 A / RX (signal present): 4.0 A / TX (100W): 23 A

Transmitter

  • Power output (Watts): SSB, CW, FM: 5-100 Watts / AM: 5-25 Watts
  • Modulation type: J3E / A3E / F3E
  • Maximum deviation: Wide:±5.0 kHz / Narrow: ±2.5 kHz
  • Harmonic Radiation 1.8 - 29.7 MHz: Better than -50 dB
  • Harmonic Radiation 50 MHz (100W): Better than -63 dB
  • Antenna impedance (Antenna tuner 'OFF'): 50 Ω (unbalanced)
  • Antenna impedance (Antenna tuner 'ON') 1.8-29.7 MHz: 16.7-150 Ω (unbalanced)
  • Antenna impedance (Antenna tuner 'ON') 50 MHz: 25 - 100 Ω (unbalanced)
  • Microphone impedance: 600 Ω (200 - 10k Ω)
  • SSB Carrier Suppresion: At least 60 dB below peak output
  • Undesired Sideband Suppression: At least 60 dB below peak output
  • Audio response SSB: Not more than -6 dB from 300 - 2700 Hz

Receiver

  • Sensitivity 1.8-30 MHz SSB/CW: 0.16μV typ for 10 dB SINAD (AMP2 “ON”) (2.4 kHz)
  • Sensitivity 50-54 MHz SSB/CW: 0.125μV typ for 10 dB SINAD (AMP2 “ON”) (2.4 kHz)
  • Sensitivity 70-70.5 MHz SSB/CW: 0.125μV typ for 10 dB SINAD (AMP2 “ON”) (2.4 kHz)
  • Sensitivity 0.5-1.8 MHz AM: 6.3 μV typ for 10 dB SINAD (AMP2 “ON”) (30% modulation, 6.0 kHz / @ 400Hz)
  • Sensitivity 1.8-30 MHz AM: 2.0 μV typ for 10 dB SINAD (AMP2 “ON”) (30% modulation, 6.0 kHz / @ 400Hz)
  • Sensitivity 50-54 MHz AM: 1.0 μV typ for 10 dB SINAD (AMP2 “ON”) (30% modulation, 6.0 kHz / @ 400Hz)
  • Sensitivity 70-70.5 MHz AM: 2.0 μV typ for 10 dB SINAD (AMP2 “ON”) (30% modulation, 6.0 kHz / @ 400Hz)
  • Sensitivity 28-30 MHz FM: 0.25 μV typ for 12 dB SINAD (AMP2 “ON”)
  • Sensitivity 50-54 MHz FM: 0.20 μV typ for 12 dB SINAD (AMP2 “ON”)
  • Sensitivity 70-70.5 MHz FM: 0.25 μV typ for 12 dB SINAD (AMP2 “ON”)
  • Intermediate frequency 1.8-28 MHz: 60 dB or better
  • Intermediate frequency 50-54 MHz: 60 dB or better
  • Selectivity (-6 dB/-60 dB) CW (BW=0.5 kHz): 0.5 kHz or better / 0.75 kHz or less
  • Selectivity (-6 dB/-60 dB) SSB (BW=2.4 kHz): 2.4 kHz or better / 3.6 kHz or less
  • Selectivity (-6 dB/-60 dB) AM (BW=6 kHz): 6.0 kHz or better / 15 kHz or less
  • Selectivity (-6 dB/-60 dB) FM (BW=12 kHz): 12 kHz or better / 30 kHz or less
  • Receiving system: Dual conversion superheterodyne
  • Strength of secondary radio waves: ≤4 nW
  • Audio power output: 2.5W (THD10%, 13.8 V)
  • Audio output impedance: 4 - 16 Ω ( Nominal: 4 Ω)
  • Image rejection 1.8-28 MHz: 70 dB or better
  • Image rejection 50-54 MHz: 60 dB or better

Mechanical data

  • Length: 322 mm
  • Height: 130 mm
  • Width: 420 mm
  • Weight: 12.000 gram
  • Antenna connector: 3x UHF (PL) female (SO-239)
  • Microphone connector: 8 pin connector

Inside the box

  • Transceiver: Yes
  • DC power cable: Yes
  • Installation manual: English
  • Plug: Yes, 6.3 mm 3-contact plug / 3.5 mm 3-contact plug / RCA plug
  • Microphone: Yes, SSM-75E Microphone
  • Fuse: Yes, Spare fuse (25 A)
