Yaesu - FTA-250L

Product code: XAA002N004-1E
Factory code: XAA002N004-1E
Barcode: 4909959169058

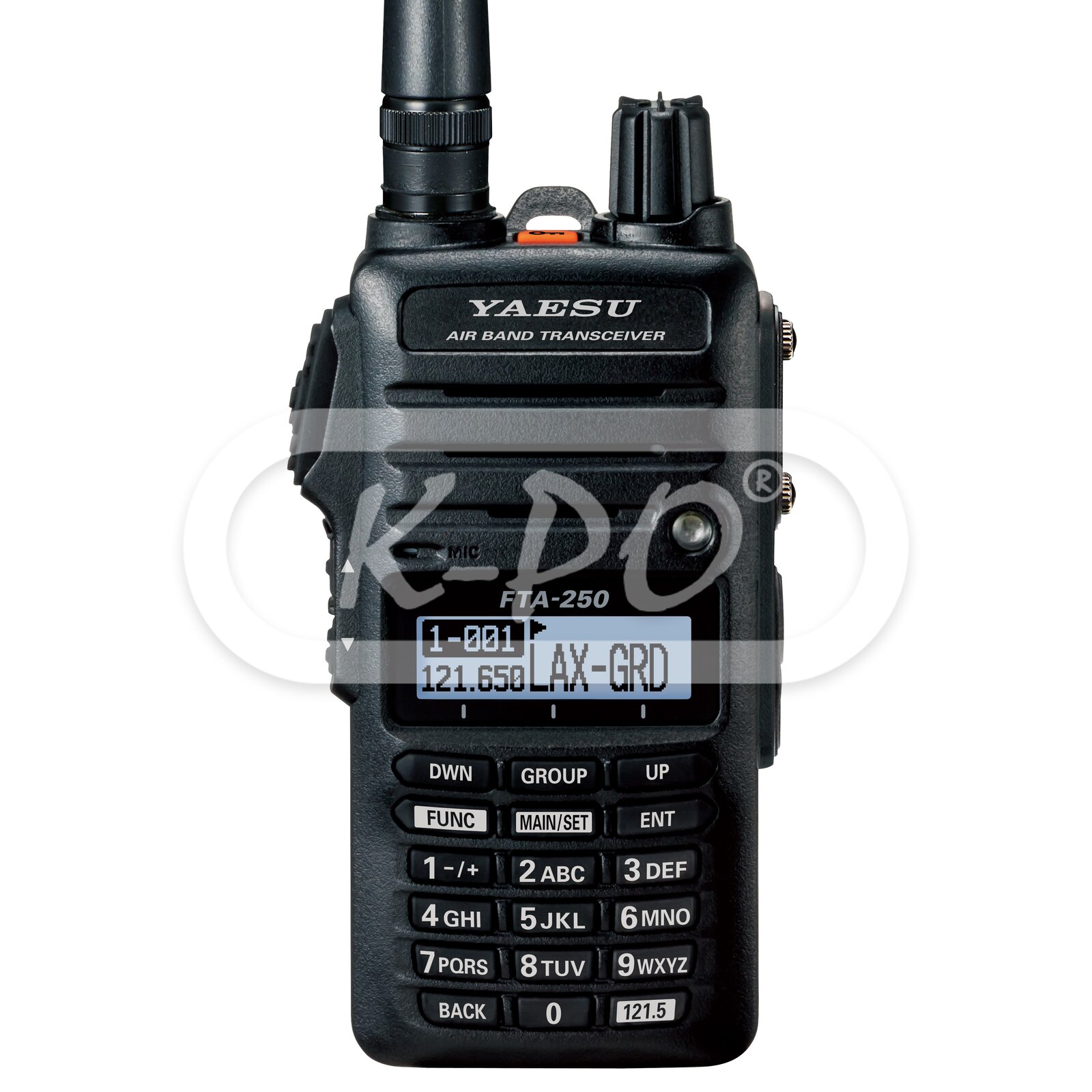

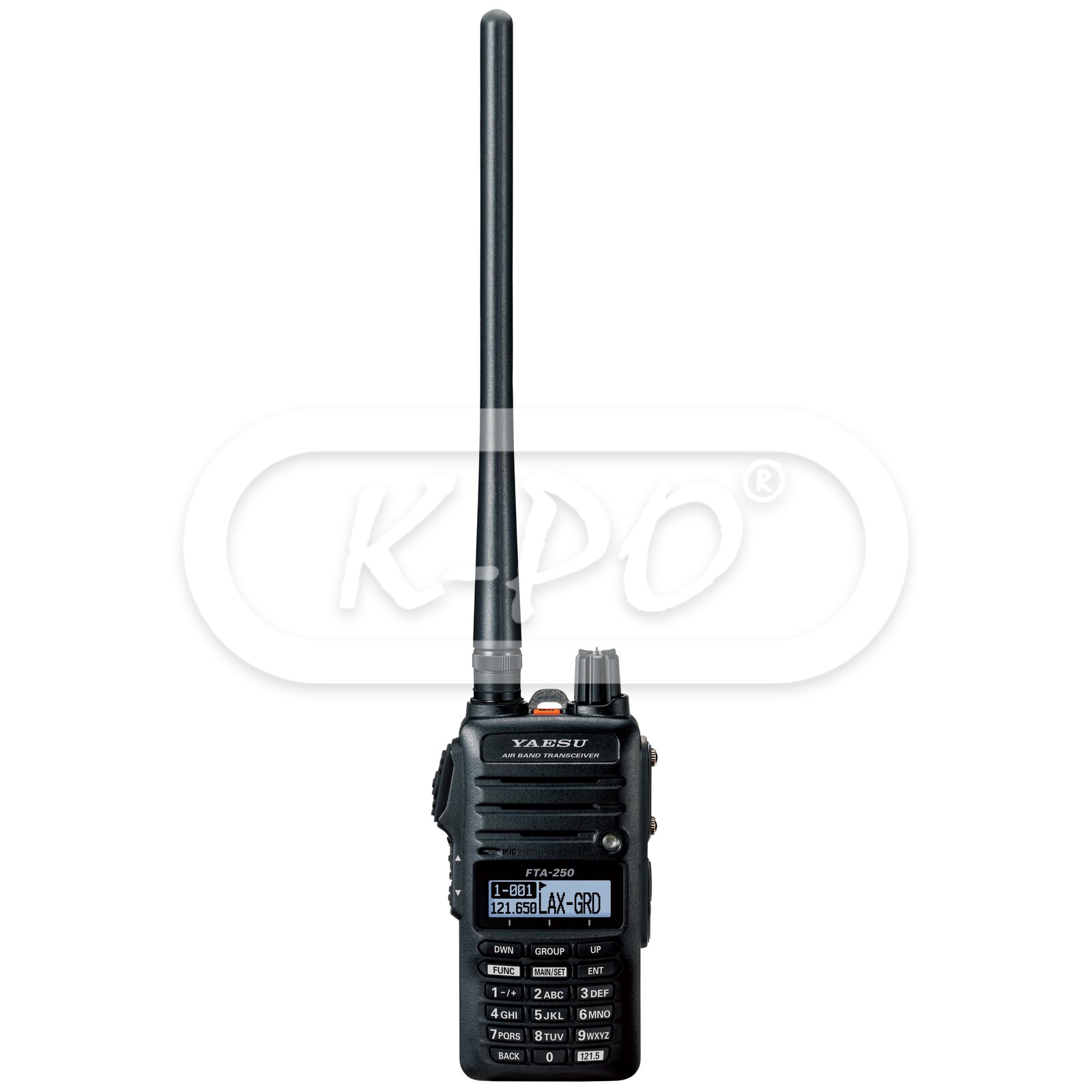

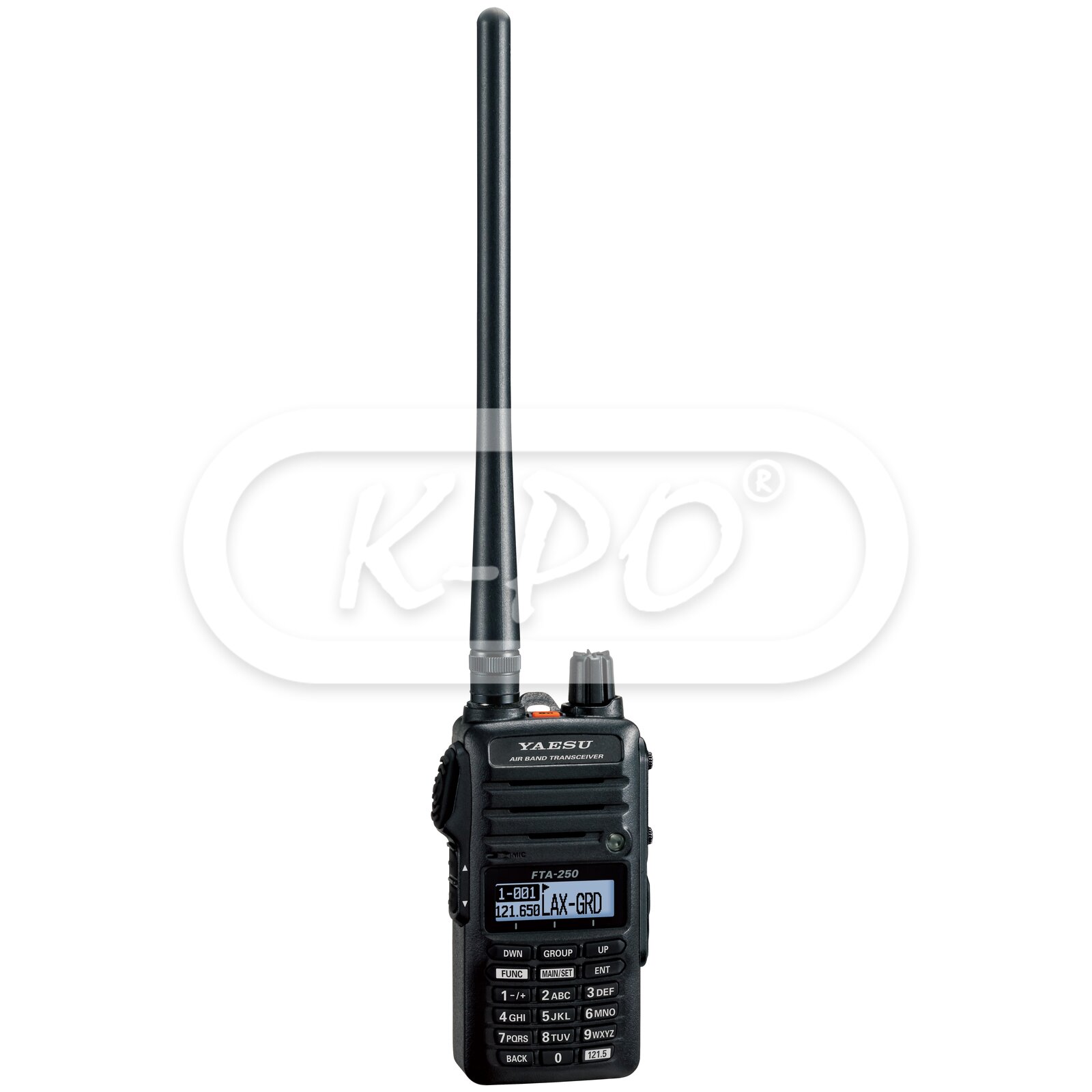

The Yaesu FTA-250L is an extremely affordable, compact (COMM ONLY) Airband transceiver. Featuring an extremely rugged Polycarbonate housing with an IPx5 Waterproof rating for use in harsh environments with rain, splash and spray. Loud 700 mW audio output guarantees that radio calls will not be missed even in noisy environments. 8.33kHz Narrow Band capable, with a huge programmable 250 channel capacity memory bank. The FTA-250L comes programmed with Yaesu's exclusive E2O Easy to Operate menu system making the radio a pleasure to operate without the use of a manual. The intuitive operating system is further complimented by the high resolution Dot Matrix display and the bright, fully Lit, sunlight viewable backlight. Value packaged with a High Capacity (1950 mAh) Li-ion battery, Headset adapter, belt clip, 100-240VAC charger, 12VDC charger / power cable, with drop in charging cradle. The Yaesu FTA-250L is backed by a industry leading 3 year waterproof warranty.

Now Meets MIL-STD-810F

The FTA-250L has now been tested and complies with the Military Standard MIL-STD-810F. Similar to commercial Land Mobile radios, all current Yaesu Airband Transceivers have been tested for durability against Low temperatures, High temperatures, Shock, Vibration, Dust and Rain, ensuring many years of rugged use.

Compact size

In response to the huge demand for a compact Airband transceiver, Yaesu has responded with our smallest airband transceiver yet, at only 52 x 105 x 30 mm (W x H x D) the FTA-250L is guaranteed to fit in the smallest of places.

High-Capacity 1950 mAh Li-ion battery

The FTA-250L comes packaged with our largest capacity battery yet. measuring in at 1950mAh, even heavy radio users are guaranteed to have a radio that will keep going strong all day long.

250 Channel Memory bank

Now with an expanded memory bank the FTA-250L can now store up to 250 memory channels for quick and easy recall, making this transceiver a pleasure to operate for heavy avionics users.

Frequency range: 118.000-136.9916 MHz (COM bands)
Out of stock - Longer delivery time
€224.95 (185.91 excl. 21% VAT)

Features

  • Display: LCD display
  • Battery capacity: Li-ion 1950 mAh (7.4V)
  • Accessory connector: 1-pin Yeasu connector (Y)
  • NOAA Weather channel receive: Yes
  • NOAA Weather Alert: Yes
  • Noise canceling function: Yes for both transmit and receive audio
  • Waterproof index: IPx5
  • Vox function: Yes, 5 Levels
  • Scan function: Yes
  • Dual Watch function: Yes
  • AF Pitch function: Yes, Tone quality adjustment of received sound
  • Flip-Flop function: Yes, Flip-Flop last channel recall

Electrical data

  • Frequency step: 8.33 kHz / 25 kHz /
  • Channels: 250 channels
  • Operating temperature: -10℃ to +60℃
  • Supply voltage: 6.0 to 9.5 Volt
  • Current consumption: Power off: 300 μA / Battery save on: 70 mA / Squelch on: 90 mA / Receive: 300 mA / Transmit 1.5 Watt: 0.9 A

Transmitter

  • Power output (Watts): Carrier Power: 1.5 Watt / PEP: 5.0 Watt
  • Spurious Emission: >70 dB below carrier
  • Frequency stability: Better than ±1 ppm (-10℃ to +60℃)
  • Modulation system: Low Level Amplitude Modulation
  • Internal microphone type: Condensor
  • External microphone impedance: 150 Ω

Receiver

  • Sensitivity: Better than 0.8 μV (for 6 dB S/N with 1 kHz, 30 % modulation)
  • Audio power output: 0.7 W (16 Ω, THD10%)
  • Receiving system: Dual conversion superheterodyne
  • Intermediate frequency: VHF: 47.25 MHz / UHF: 46.35 MHz, 450 kHz
  • Selectivity: >8 kHz/–6 dB @ 25 kHz channel spacing
  • Adjacent channel selectivity: <25 kHz/–60 dB @ 25 kHz channel spacing

Mechanical data

  • Length: 30 mm
  • Height: 105 mm
  • Width: 52 mm
  • Weight: 300 gram
  • Antenna connector: BNC
  • Housing: Rugged construction certified to MIL-STD-810F

Inside the box

  • Transceiver: Yes
  • Battery: Yes, SBR-25LI Li-ion Battery Pack (7.4V 1950mAh)
  • Charger: Desk charger with AC adapter (SBH-22 - SAD-26C)
  • Installation manual: English
  • Antenna: Yes, SRA-20A Helical antenna
  • Cigarette lighter DC/DC converter: Yes, SDD-12
  • Beltclip: Yes, SHB-18
  • Headset adapter: Yes, SCU-15
  • Ferrite Core: Yes, L9190192
