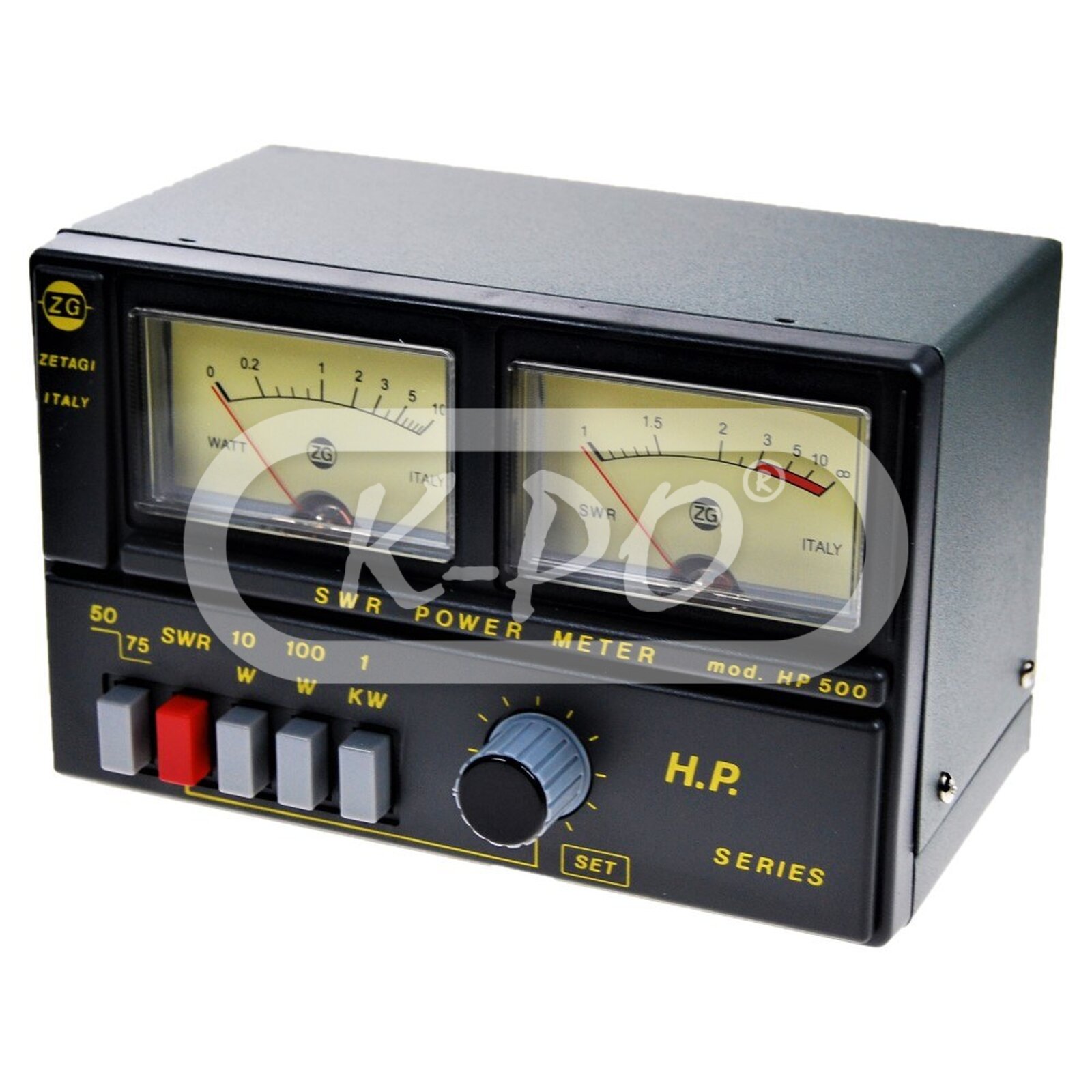

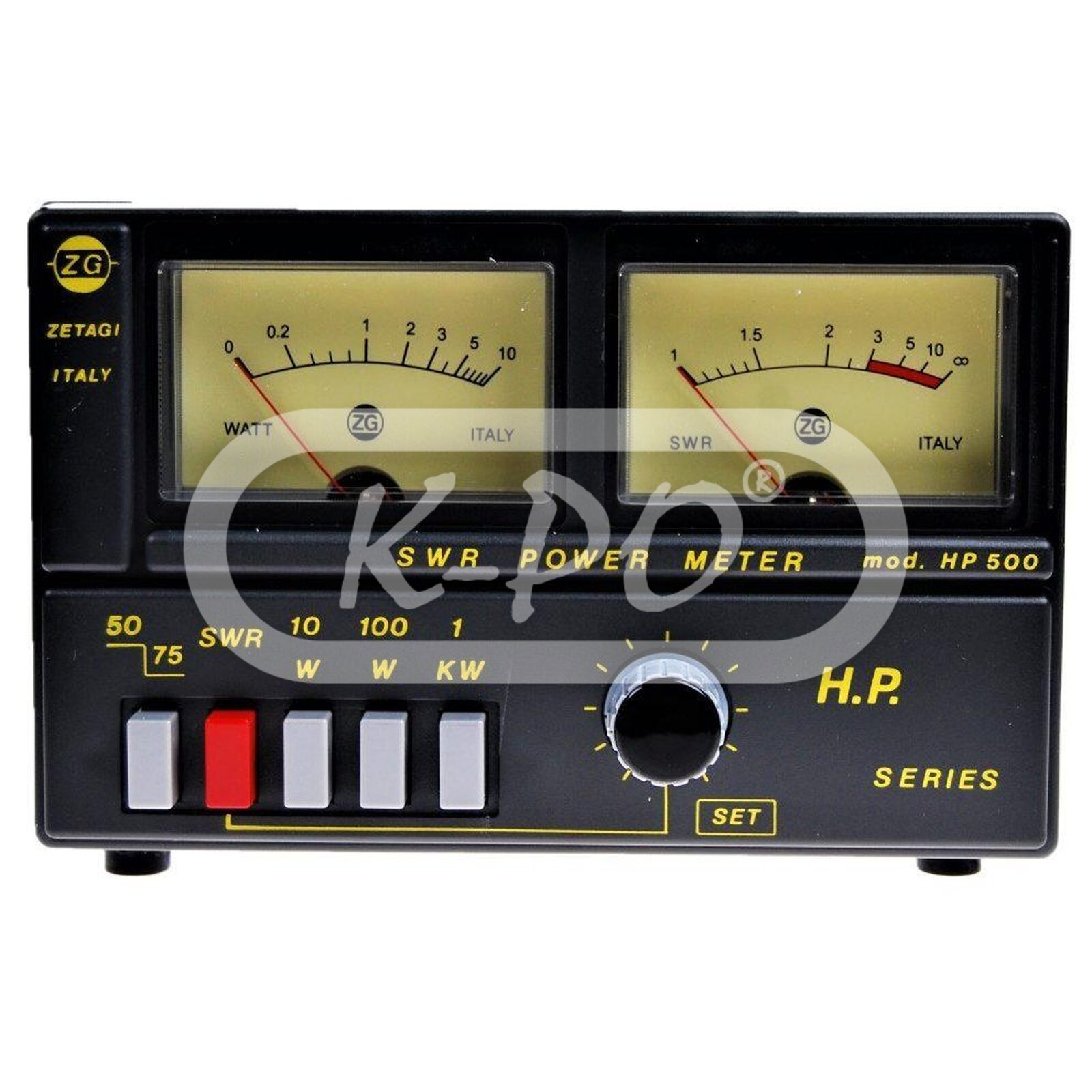

Zetagi - HP 500

Product code: 900013

The Zetagi HP 500 can measure Forward Power, Reflected Power and SWR. High power handling of 2 kW SSB, short time. Two separate meters and a frequency range of 3 - 200 MHz. The meter has impedance ranges of 50 / 75 Ohm.

Frequency range: 3 - 200 MHz

Note - Discontinued

€ -- (Discontinued)

Electrical data

• Impedance: 50 / 75 Ohm
• Power range: 2000 Watts (SSB), short time
• Accuracy: ± 10%
• Insertion loss: 0.2 dB at 200 MHz
• Testing function: SWR and Power (FWD and REF)

Mechanical data

• Input connector: UHF (PL) female
• Output connector: UHF (PL) female
• Length: 160 mm
• Height: 110 mm
• Width: 115 mm
• Weight: 1250 gram

Inside the box

• Meter: Yes
• Installation manual: English
