SSB - Aircell 7

Product code: 7

Aircell 7 is a highly flexible coaxial cable for the frequency range up to 6 GHz. The very low damping in relation to the diameter and the small bending radius make the application interesting and recommendable for many applications in high-frequency technology.

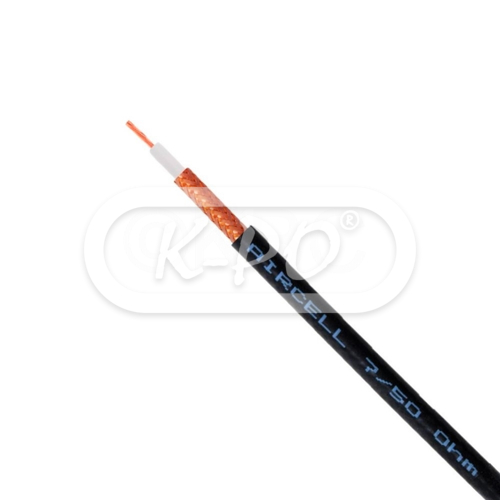

The low attenuation of Aircell 7 is achieved by a low-loss PE-LLC dielectric with a gas content of over 70%. The material is also resistant to moisture. The inner conductor, a 19-conductor strand of low-oxygen copper, allows the extraordinary flexibility of the cable. To achieve good attenuation, the Aircell 7 outer conductor is double-layered: on a thin, overlapping copper foil, a copper shielding braid with a degree of coverage of 85% is applied. The film is PE-coated on the inside and thus protected against cracking if the bending radius is too small. The black PVC outer jacket of Aircell 7 is UV-stabilized. Aircell 7 is a modern and widely used coaxial cable for numerous applications: it is extremely flexible, low-attenuation and anti-radiation.

With CPR/ECA classification.

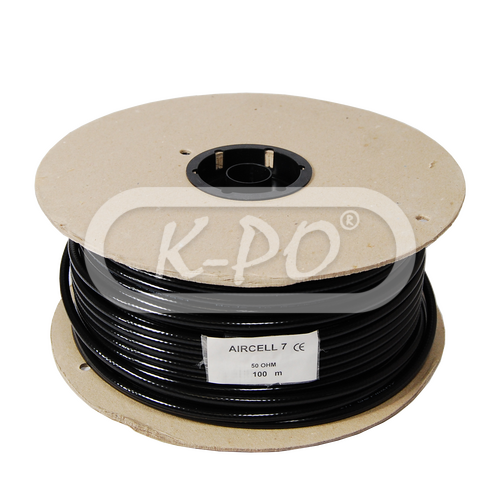

102 meter on roll.

Shipped next business day
€327.23 (327.23 excl. 0% VAT)

Features

  • Low density polyethylene dielectric: ø 5.0 mm
  • Sheath color: Black PVC
  • Cable weight: 7.2 kg (100m)
  • Impedance: 50 Ohm
  • Capacitance: 75 pF/m
  • Velocity ratio: 0.83
  • Temperature range: -30°C to +80°C
  • Outer conductor 1: Copperfoil, PE coated
  • Shielding factor 1: 100%
  • Outer conductor 2: Copper braid
  • Shielding factor 2: 70%
  • Outer diameter: ø 7.3 mm

    Attenuations dB/100m

  • 5 MHz: 1.6 dB
  • 10 MHz: 2.2 dB
  • 50 MHz: 4.52 dB
  • 100 MHz: 6.28 dB
  • 144 MHz: 7.6 dB
  • 200 MHz: 9.04 dB
  • 300 MHz: 11.2 dB
  • 432 MHz: 13.6 dB
  • 500 MHz: 14.72 dB
  • 800 MHz: 19.0 dB
  • 1000 MHz: 21.52 dB
  • 1296 MHz: 24.84 dB
  • 1500 MHz: 27.08 dB
  • 1800 MHz: 30.0 dB
  • 2000 MHz: 31.88 dB
  • 2400 MHz: 35.6 dB
  • 3000 MHz: 40.88 dB
  • 4000 MHz: 49.12 dB
  • 5000 MHz: 57.04 dB
  • 6000 MHz: 64.9 dB
