Alinco - DJ-493

Product code: 20493

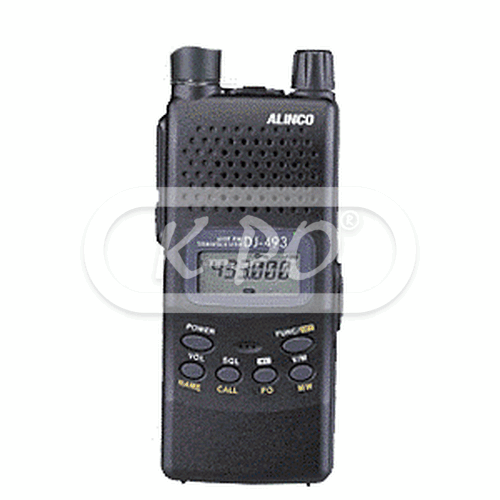

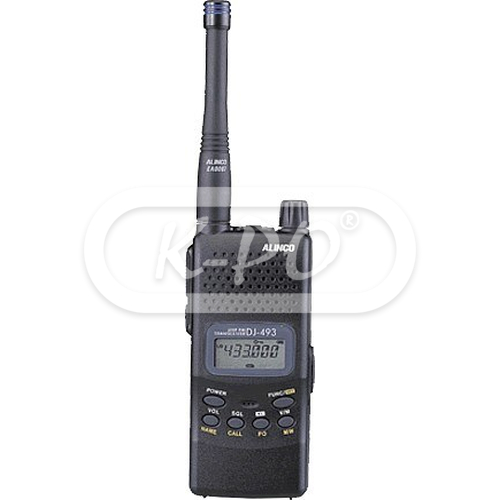

The Alinco DJ-493 is a handheld transceiver suitable for 430-440 MHz. The DJ-493 will be delivered with a Ni-Cd 700 mAh (9.6 Volt) battery pack.

Frequency range: TX/RX: 430-440 MHz
Note - Discontinued
€ -- (Discontinued)

Features

  • DCS codes: 104 groups
  • CTCSS codes: 39 groups

Electrical data

  • Frequency step: 5 kHz / 10 kHz / 12.5 kHz / 15 kHz / 20 kHz / 25 kHz / 30 kHz /
  • Channels: 40 + 1 call channel
  • Operating temperature: -10℃ to +60℃

Transmitter

  • Power output (Watts): 5/4/0.8 Watts
  • Modulation limit: F3E(FM)
  • Spurious Emission: -60 dB or less
  • Antenna impedance: 50 Ohm
  • Mic. impedance: 2K Ohm
  • Frequency stability: ±5 PPM

Receiver

  • System: Double-conversion superheterodyne
  • Sensitivity (12dB SINAD): 0.25 µV
  • Sensitivity: -6 dB: 12 KHz or more / -60 dB 26 KHz or less
  • AF output: 280 mW (max) 200 mW (8 Ohm 10% distortion)
  • Frecuency: 1st. IF 45.1 MHz / 2nd. IF 455 KHz

Mechanical data

  • Length: 56 mm
  • Height: 124 mm
  • Width: 40 mm
  • Weight: 375 gram
  • Antenna connector: BNC female

Inside the box

  • Transceiver: Yes
  • Battery: Ni-Cd 700 mAh (9.6 Volt)
  • Charger: Wall charger
  • Antenna: Yes
  • Installation manual: English
  • Beltclip: Yes
  • Hand strap: Yes
