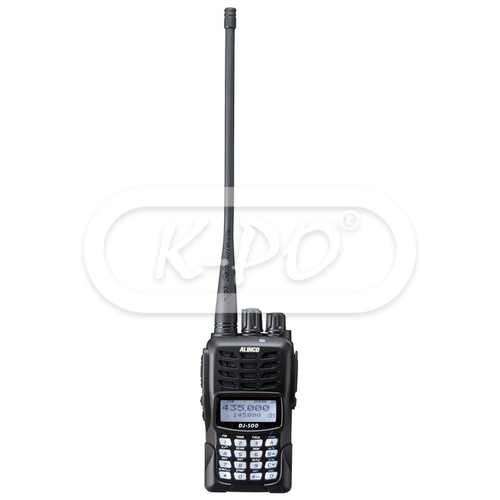

Alinco - DJ-500E Alinco - DJ-500E

Alinco - DJ-500E

Product code: 1203
Barcode: 4969182331677

Full of advanced features, the Alinco DJ-500E offers landmobile-grade operation and powerful 5W output. CTCSS, DTMF, DCS and 5-tones are standard, along with a variety of tone bursts for repeater access or selective calling. Convenience features include direct frequency input, alphanumeric channel labels and 200 memory channels that can each store operating parameters. A Li-Ion battery pack and a stand charger are standard, adding power and convenience. The Alinco DJ-500E looks simple, but remember, looks can be deceiving! The DJ-500E places one of the world's most advanced transceivers at your command.

Frequency range: TX/RX: 144-146 MHz / 430-440 MHz
Out of stock - Longer delivery time
€128.95 (106.57 excl. 21% VAT)

Features

  • Display: Yes, Orange / White / Red
  • VOX function: Yes
  • DTMF: Yes
  • High/low power selection: Yes
  • Voice guide: English
  • Cloning: Yes, with optional ERW-4 / ERW-7

Electrical data

  • Frequency step: 2.5 kHz / 5 kHz / 6.25 kHz / 8.33 kHz / 10 kHz / 12.5 kHz / 20 kHz / 25 kHz / 30 kHz / 50 kHz /
  • Channels: 200
  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: -20℃ to +55℃

Transmitter

  • Power output (Watts): 1/2/5 Watts
  • Modulation limit: F3E (16K0F3E / 11K0F3E / RX only WFM)
  • Spurious Emission: ≥ 60 dB
  • Audio distortion: ≤ 5%
  • Frequency stability: ±5 kHz / ±2.5 kHz

Receiver

  • Sensitivity: Wide: ≤0.25 μV / Narrow: ≤0.35 μV
  • Audio power output: 1000 mW / 10%
  • Adjacent channel selectivity -6 dB: Wide: 12 kHz / Narrow: ≥ 10 kHz
  • Adjacent channel selectivity -60 dB: Wide: 30 kHz / Narrow: ≤ 24 kHz

Mechanical data

  • Length: 35 mm
  • Height: 98 mm
  • Width: 59 mm
  • Weight: 227 gram
  • Antenna connector: SMA
  • Accessory connector: 2 pin Standard Icom (S)

Inside the box

  • Transceiver: Yes
  • Battery: 1500 mAh Li-ion battery pack (EBP-87)
  • Charger: Desk charger with AC adapter (EDC-189 - EDC-191)
  • Antenna: Yes
  • Installation manual: English
  • Belt clip: Yes, EBC-34
