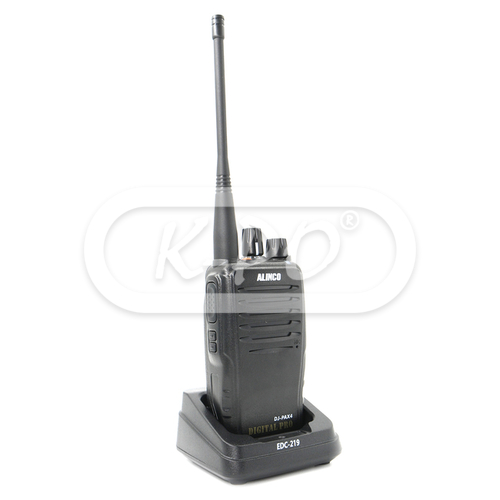

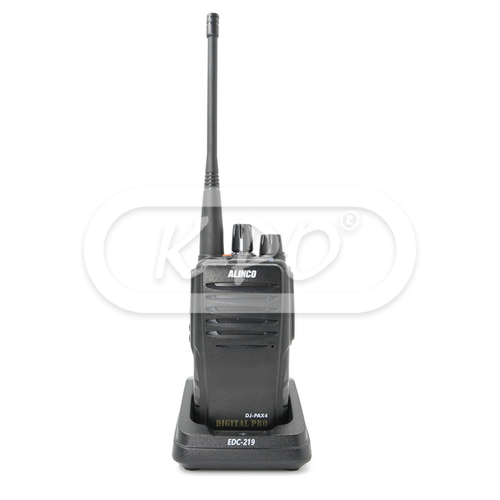

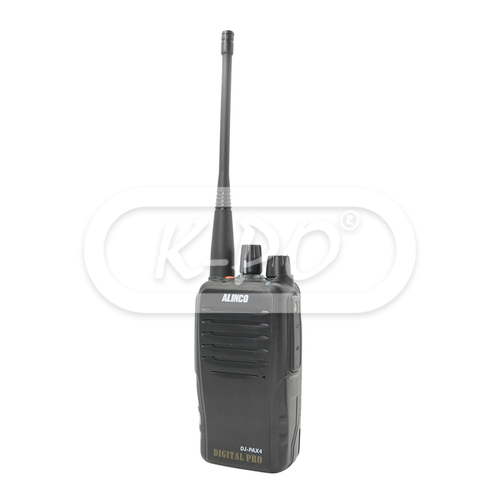

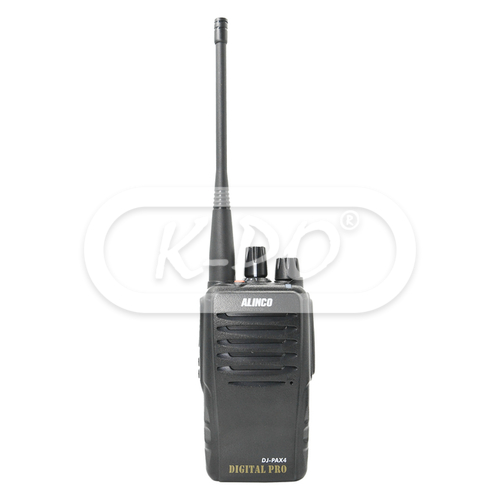

Alinco - DJ-PAX4

Product code: 3422
Barcode: 4250158711754

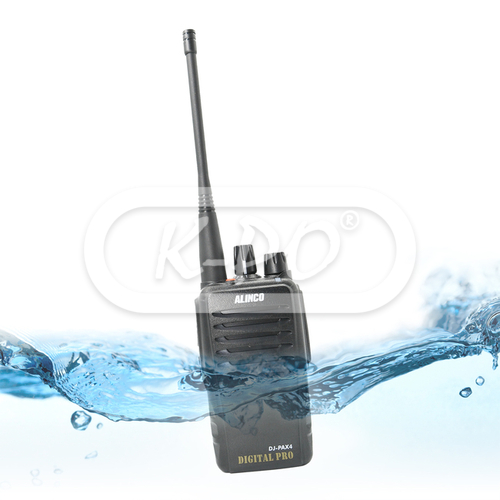

The Alinco DJ-PAX4 is fully compatible, analogue and digital, with the Kenwood TK-3401D, TK-3601D and TK-3701D series. A simple and reliable dPMR446 transceiver with user-friendly operation, long lasting 1800 mAh battery pack, clear and loud audio, IP67 and MIL-810G, up to 80 programmable channels in 5 groups.

Frequency range: 446.0 / 446.2 MHz
Shipped next business day
€156.98 (156.98 excl. 0% VAT)

Features

  • Number of channels: 16
  • Number of zones: 5
  • Output power: 0.5 Watt
  • Channel spacing analogue: 12.5 kHz
  • Channel spacing digital: 6.25 kHz
  • Battery saver mode: Yes
  • Call alert: Yes
  • Key lock: Yes
  • Programmable function keys: Yes
  • Scan: Yes
  • VOX: Yes
  • PC programming: Yes
  • High/low power: Yes
  • Battery capacity: Li-ion 1800 mAh
  • Accessory connector: 2-pin Kenwood connector (K)

Electrical data


  • Modulation analogue: 12.5 kHz: 8K50F3E
  • Modulation digital: 6.25 kHz: 4K00F1E
  • Frequency stability: ±2.5 ppm
  • Audio power output: 1000 mW / 10%
  • Operating temperature: -20℃ to +55℃

Mechanical data

  • Length: 38 mm
  • Height: 102 mm
  • Width: 59 mm
  • Weight: 238 gram
  • Battery life: Battery save off: 14 hours, battery save on: 19 hours (5% transmit, 5% receive, 90% standby)

Inside the box

  • Radio: 1 pcs
  • Desktop charger: 1 pcs
  • Wall adapter: 1 pcs
  • Batteries (pack): 1 pcs
  • Belt clip: 1 pcs
  • User manual: English
