Alinco - DM-30G

Product code: 2927
Barcode: 4969182310177

This affordable switching power supply packs a lot of features into an ultra-compact, lightweight design that features 9-15V variable output and delivers up to 20A continuous, 30A peak.

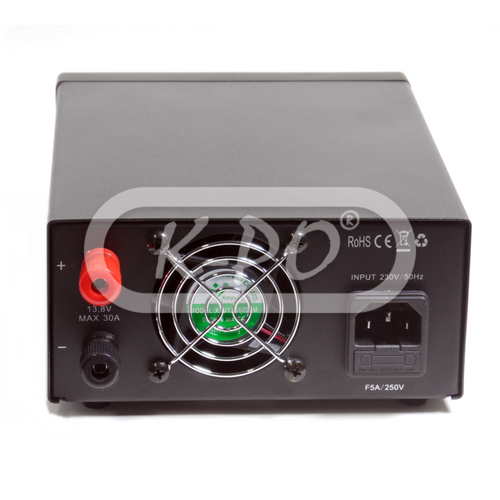

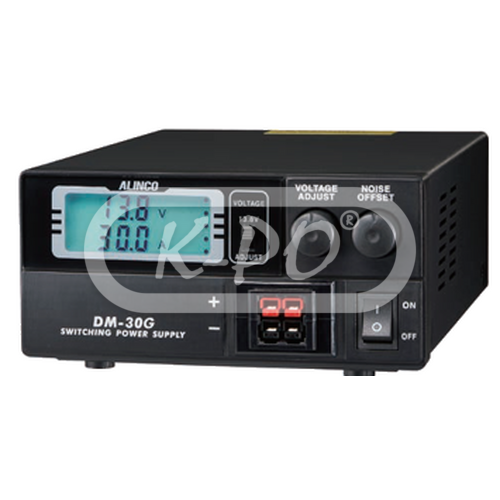

Convenient for radio users, the Noise Offset Circuit moves unwanted switching noise to another frequency. Other features include a large illuminated digital Volt/Amp meter, rear panel binding posts (30A peak/a pair), front panel quick terminals (5A peak/a pair), Anderson poles, voltage adjust (9-15V) or fixed at 13.8V, ripple less than 80mVp-p and triple circuit protection for short-circuit, over temperature, and current limiting.

Shipped today - Stock: 3
€119.95 (99.13 excl. 21% VAT)

Electrical data

  • Input voltage: 230 Volt
  • Output voltage: 13.8 Volt
  • Adjustable output voltage: 9-15 Volt
  • Continuous load: 20A
  • Peak load: 30A
  • Ripple voltage: ≤80mVp-p
  • Fuse: 5A
  • Display indicator: Voltage / ampère
  • Background light: Yes
  • Fan: Yes
  • Short circuit protection: Yes
  • Overload protection: Yes
  • Cooling method: Forced air cooling

Mechanical data

  • Length: 155 mm
  • Height: 75 mm
  • Width: 205 mm
  • Weight: 1600 gram

Inside the box

  • Power supply: Yes
  • AC cord: Yes
  • User manual: English
