Alinco - DR-MD520E

Product code: 1189
Barcode: 4969182341324

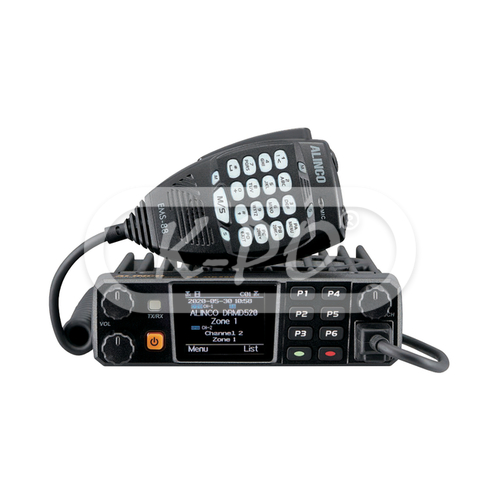

The Alinco DR-MD520E is a modern digital and analogue dual-band radio with features like a built-in GPS with APRS support, automatic repeater roaming, DMR Tier I and Tier II, max output power 55W (VHF) / 40W (UHF), large 1.77 inch full color LCD display and many more.

Frequency range: TX/RX: 144-146 MHz / 430-440 MHz
Shipped next business day - Stock: 2
€420.00 (347.11 excl. 21% VAT)

Features

  • Display: LCD display
  • DTMF: Yes, encode and decode
  • 2-tone/5-tone: Yes, encode and decode
  • Crossband repeater function: Yes
  • High/low power selection: Yes
  • External speaker socket: Yes
  • GPS: Yes
  • Program: Yes, by computer
  • CTCSS: Yes, encode and decode
  • DCS: Yes, encode and decode

Electrical data

  • Channels: 4000
  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: -20℃ to +60℃
  • Zones per padio: 250 zone
  • Channel spacing: Analog: 12.5/25 kHz / Digital: 12.5 kHz

Transmitter

  • Power output (Watts): VHF: 1/10/25/50/55 Watts / UHF: 1/10/25/40 Watts
  • Modulation limit: 16K0F3E / 11K0F3E / 7K60FXD / 7K60FXE
  • Frequency stability: ±2.5 kHz
  • Hum & noise: Wide: ≥ 45 dB / Narrow: ≥ 40 dB
  • Channel spacing: ≤1 GHz: -36 dBm / ≥1 GHz: -30 dBm

Receiver

  • Sensitivity: Wide: ≤0.25 μV / Narrow: ≤0.35 μV
  • Digital sensitivity: 5%: ≤0.3 μV / 1%: ≤0.7 μV
  • Hum & noise: Wide: ≥ 45 dB / Narrow: ≥ 40 dB
  • Audio distortion: ≤5%
  • Audio power output: 2 Watt / 8 Ohm

Mechanical data

  • Length: 188 mm
  • Height: 33 mm
  • Width: 140 mm
  • Weight: 1004 gram

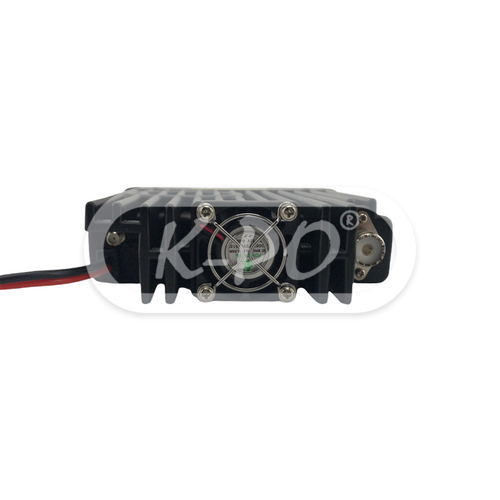

  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: RJ45 connector

Inside the box

  • Transceiver: Yes
  • Microphone: Yes
  • Mounting bracket: Yes
  • Mounting parts: Yes
  • DC power cable: Yes
  • Installation manual: English
  • USB program cable: Yes (ERW-21)
