Alinco - EMS-74 DTMF Alinco - EMS-74 DTMF

Alinco - EMS-74 DTMF

Product code: 3468
Barcode: 4969182396195

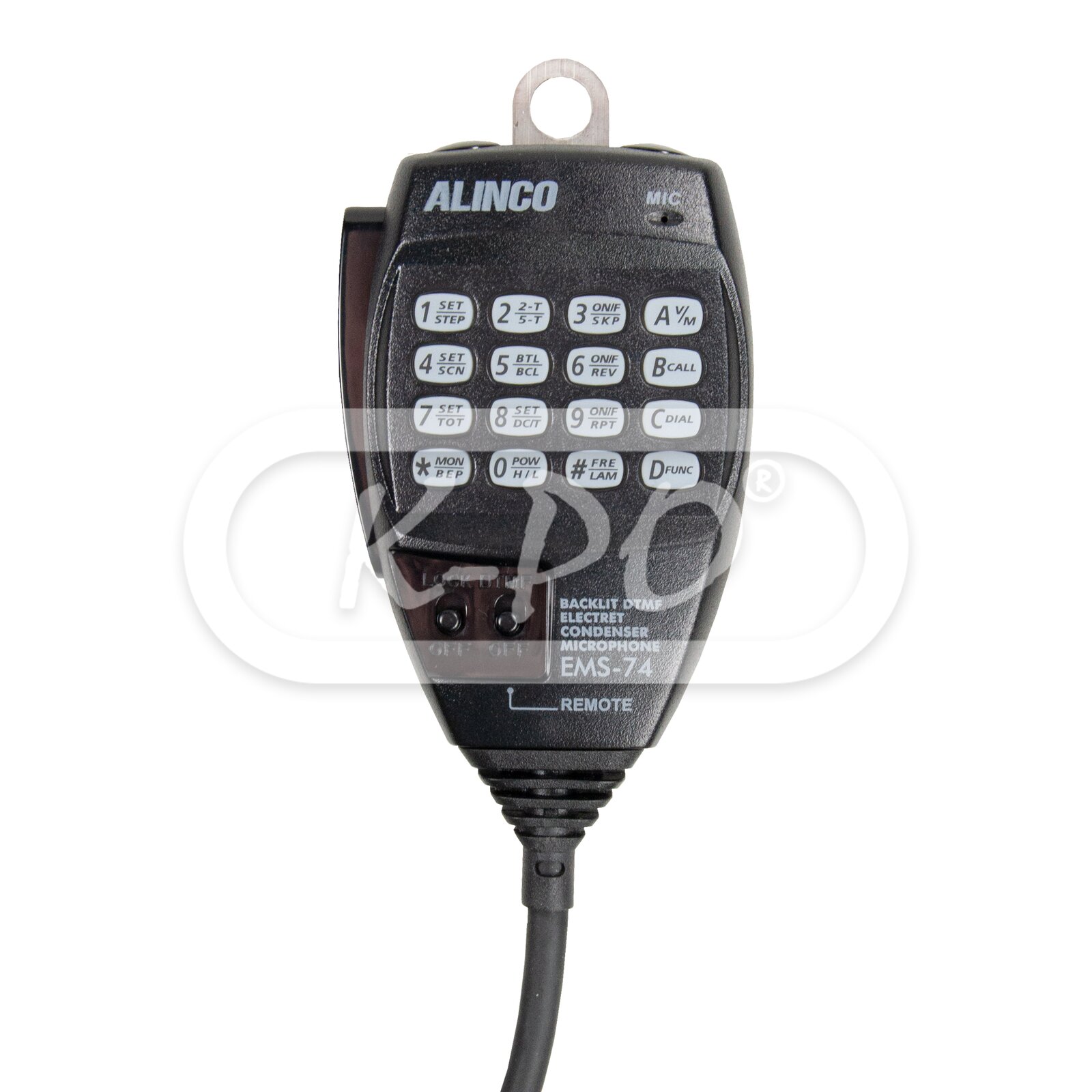

The Alinco EMS-74 DTMF microphone is an original Alinco microphone and is suitable for the Alinco DR-138 and Alinco DR-438.

Shipped today
€36.32 (36.32 excl. 0% VAT)

Features

  • Suitable for: Alinco DR-135 / Alinco DR-138 / Alinco DR-235 / Alinco DR-435 / Alinco DR-438 / Alinco DR-635 /
  • Up down: Yes
  • Lock button: Yes
  • DTMF: Yes
  • Backlit: Yes

Mechanical data

  • Cable Length: 2.2 meter

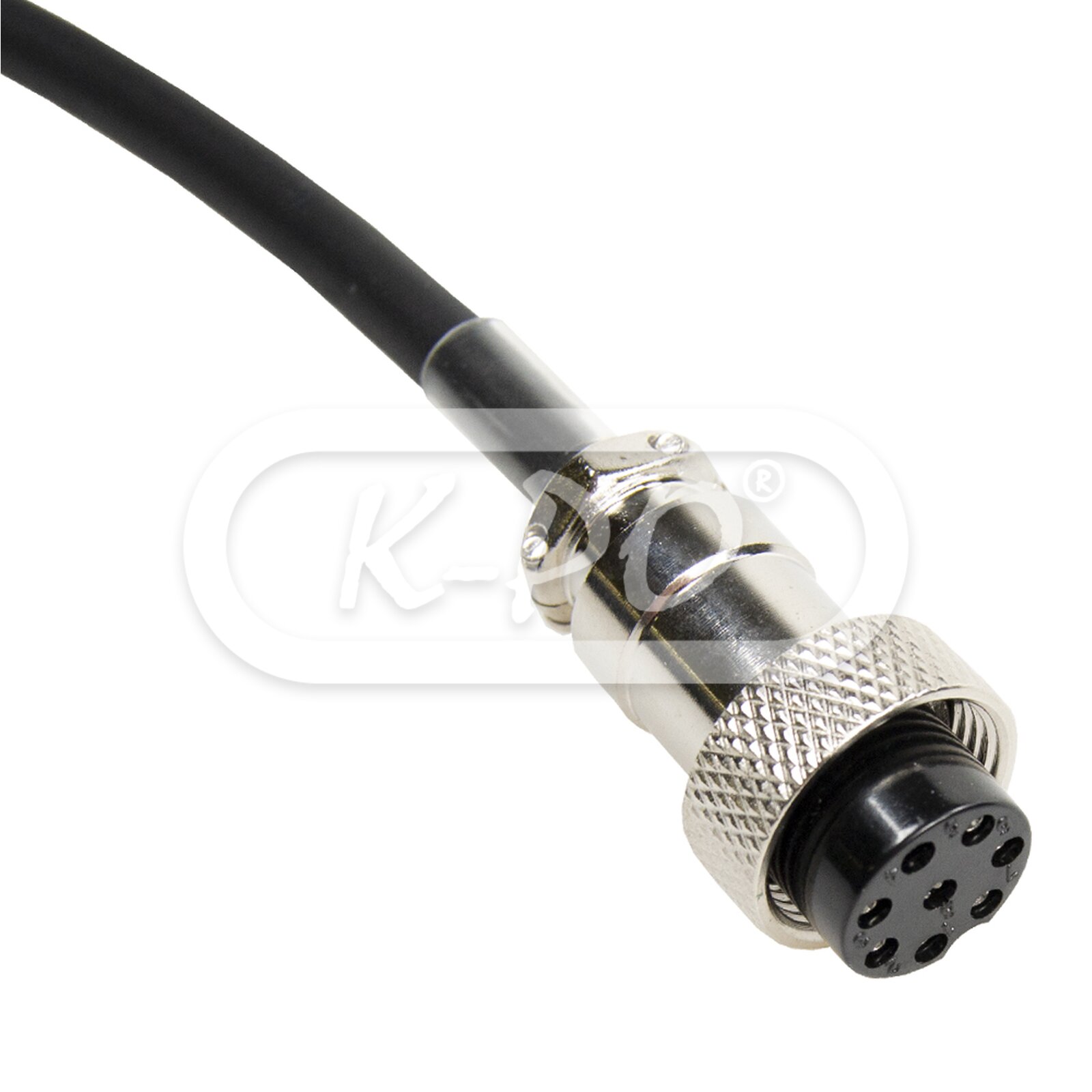

  • Microphone connector: 8-pin microphone

Microphone wiring

  • Up: Pin 4
  • Down: Pin 3
  • Mic Audio: Pin 1
  • Ground: Pin 8
  • PTT: Pin 2
  • DC 5 Volt: Pin 5
  • Remote: Pin 6
  • Mic grounding: Pin 7
