AnyTone - AT-D878UVII Plus

Product code: 30860
Factory code: 30860
Barcode: 6947475212320

Updated version of the popular AnyTone AT-D878UV Plus. Now with Analog APRS RX and 500.000 digital contacts.

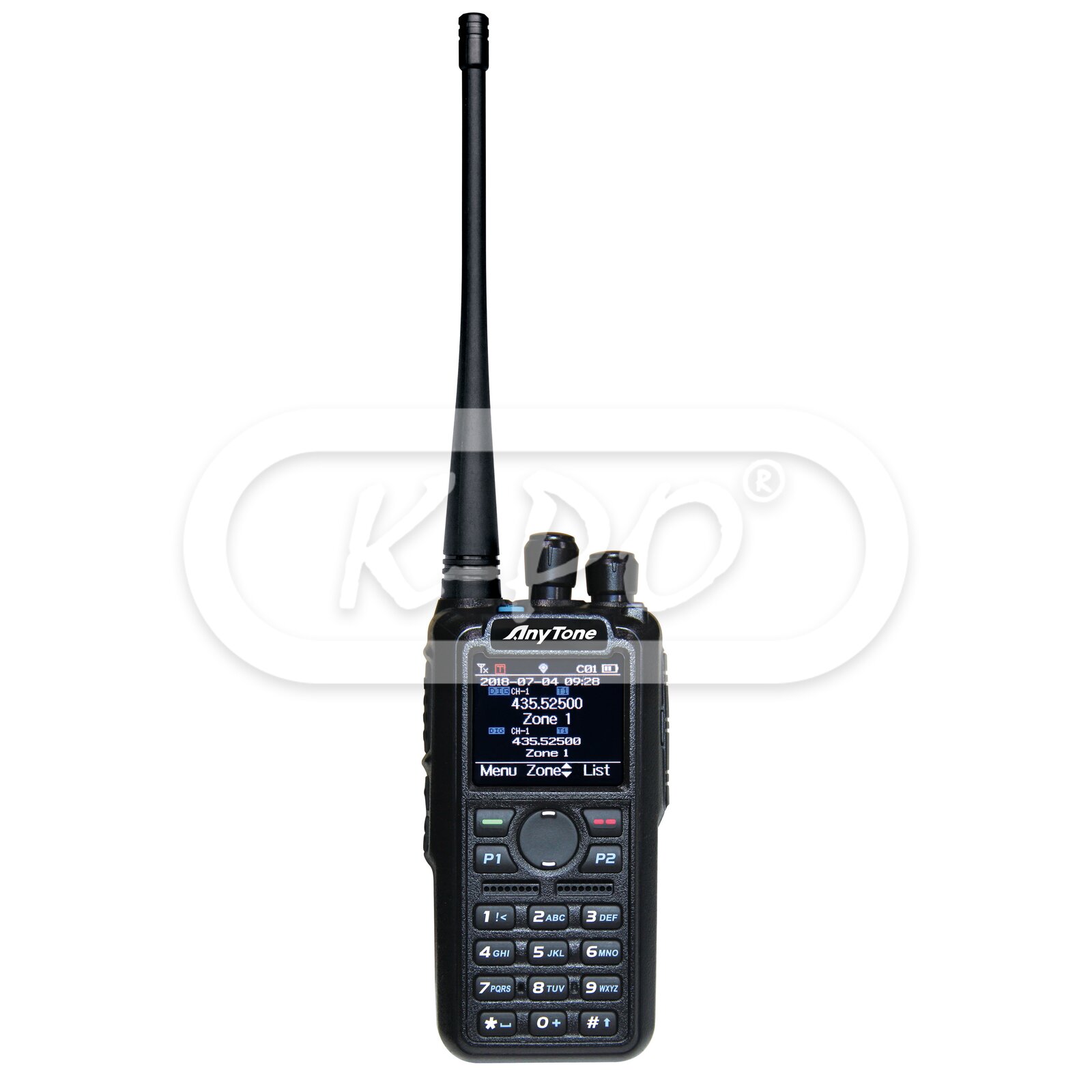

AnyTone D878UVII Plus digital DMR dual-band handheld commercial radio with roaming and GPS VHF/UHF dual-band digital/analog part 90 DMR commercial transceiver with 1.77 inch color TFT display and GPS. New D878 model includes DMR roaming, faster processor and larger memory for future enhancements. Ideal for fire, search & rescue, EMS, police, sheriff,forestry and security operations. Frequency coverage 144-146 / 430-440 MHz. Including USB programming cable.

Please note that the firmware/CPS of the AT-D878UV can not be used for the AT-D878UV PLUS and AT-D878UVII Plus. Using wrong firmware/CPS can damage your radio!

Frequency range: TX/RX: 144-146 MHz / 430-440 MHz
Shipped today
€198.30 (198.3 excl. 0% VAT)

Features

  • True-2-slot: Yes
  • Display: Yes, LCD color display
  • Bandwidth: 2.5 - 25 kHz
  • VOX function: Yes
  • DTMF: Yes
  • 2-tone/5-tone: Yes
  • Ranging function: Yes
  • Emergency (SOS) function: Yes
  • High/low power selection: Yes

Electrical data

  • Frequency step: 12.5 kHz / 25 kHz /
  • Channels: 4000 + VFO; 10,000 Talk groups with 500,000 digital contacts
  • Wide and narrow bandwidth selection: Yes
  • Phase-locked Step: 5 and 6.25 kHz
  • Operating temperature: -20℃ to +55℃
  • Operating voltage: 7.4 Volt, DC ± 20% / (2100 mAh/ 3100 mAh)

Transmitter

  • Power output (Watts): VHF: 1/2.5/5/7 Watts / UHF: 1/2.5/5/6 Watts
  • Modulation limit: ± 5.0 kHz @ 25 kHz / ± 2.5 kHz @ 12.5 kHz
  • Adjacent channel power: Wide: ≥ 70 dB / Narrow: ≥ 60 dB
  • Spurious Emission: Wide: ≤ -36 dB / Narrow: ≤ -36 dB
  • Audio distortion: ≤ 5%
  • Frequency stability: ± 2.5 PPM
  • Hum & noise: Wide: ≥ 40 dB / Narrow: ≥ 36 dB
  • Error rate: ≤ 3%
  • 4FSK Digital modulation: 7K60FXD: 12.5 kHz (data) / 7K60FXE: 12.5 kHz (data+voice)

Receiver

  • Sensitivity: Wide: ≤0.25 μV / Narrow: ≤0.35 μV
  • Digital sensitivity: Wide: 0.3 uV/-117.4 dBm (BER 5%) / Narrow: 0.7 uV/-110 dBm (BER 1%)
  • Spurious emission: Wide: ≤ -57 dB / Narrow: ≤ -57 dB
  • Spurious rejection: Wide: ≥ 70 dB / Narrow: ≥ 70 dB
  • Blocking: 84 db
  • Hum & noise: Wide: ≥ 45 dB / Narrow: ≥ 40 dB
  • Audio distortion: ≤5%
  • Audio power output: 1000 mW / 16Ω
  • Adjacent channel selectivity: Wide: ≥ 70 dB / Narrow: ≥ 60 dB

Mechanical data

  • Length: 42 mm
  • Height: 129 mm
  • Width: 61 mm
  • Weight: 293 gram
  • Antenna connector: SMA

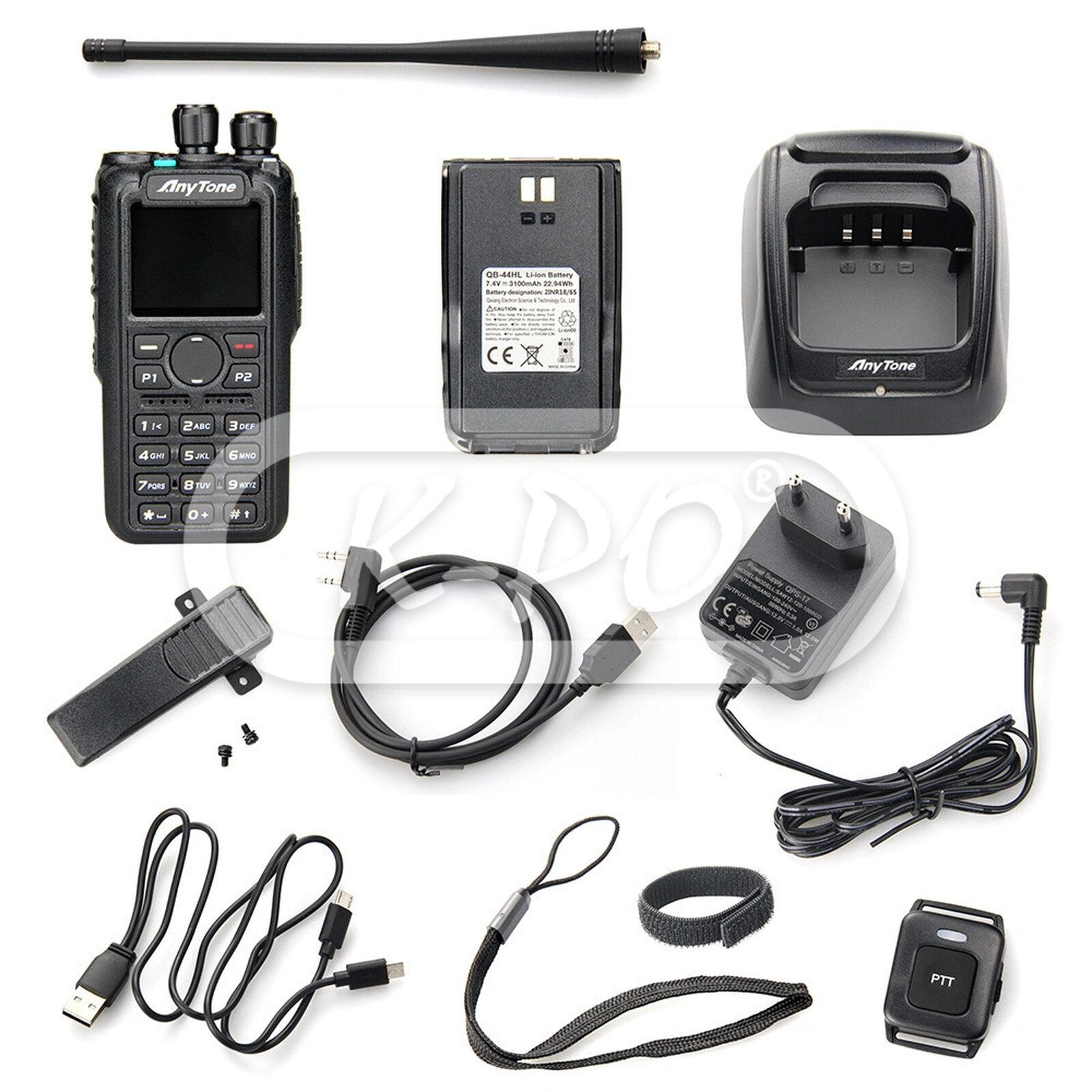

Inside the box

  • Transceiver: Yes
  • Battery: 3100 mAh Li-ion battery pack
  • Charger: Desk charger with AC adapter (QBC-45L - QPS-17)
  • Antenna: Yes
  • USB program cable: Yes
  • Installation manual: English
  • Belt clip: Yes, BC-05
