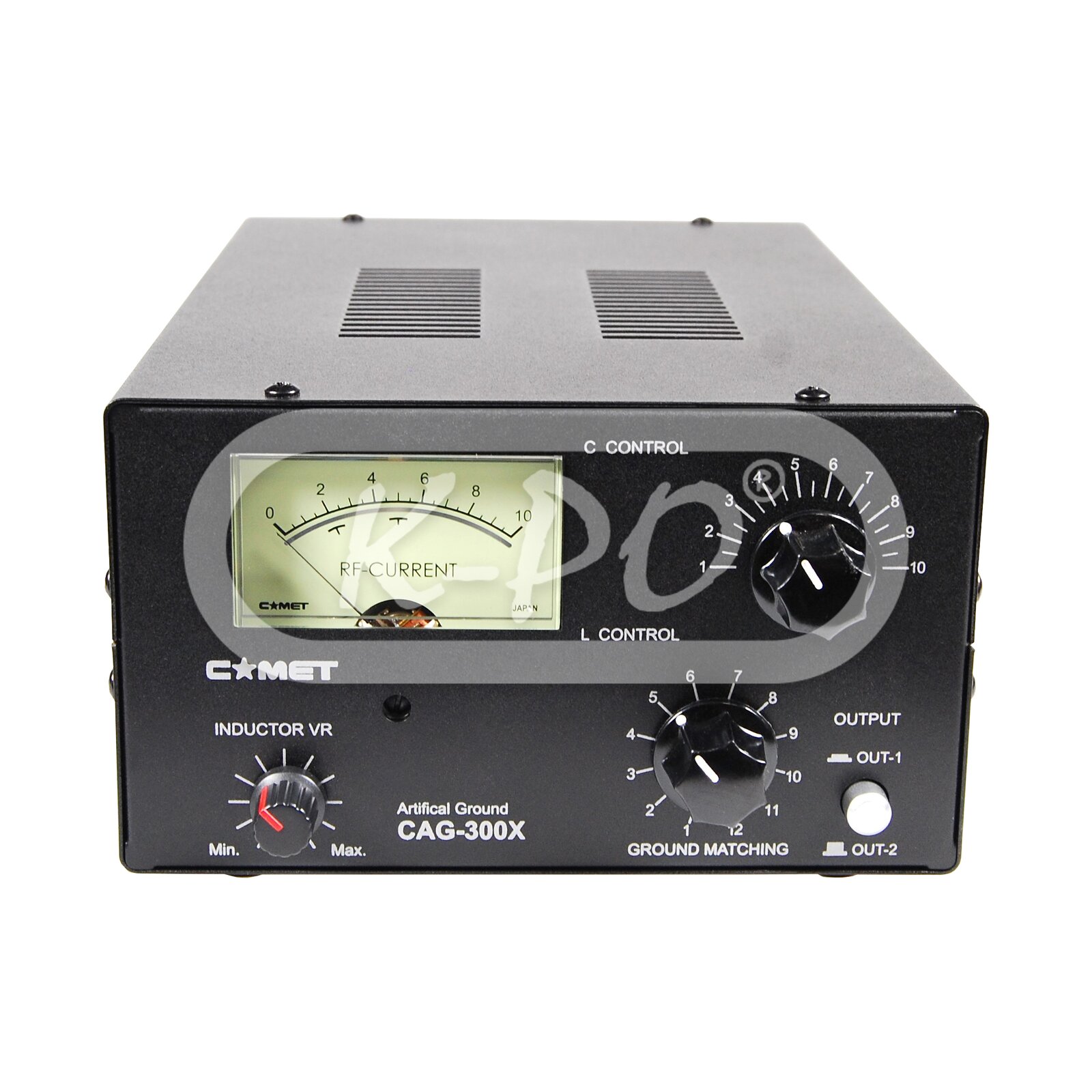

Comet - CAG-300X

Product code: 806300

The Comet CAG-300X is an artificial ground to improve the reception and transmission of shortwave antennas. It creates a tuned counterpoise, an excellent choice for places where it is difficult to obtain a good earth ground, like apartments, upper floors and so on.

The Comet CAG-300X is suitable for use with ground type antennas, such as (long-) wire antennas and antenna whips. Please note that it can not be used with non-ground type antennas, such as dipoles, loop- and Yagi antennas.

Important, the Comet CAG-300X can not be used as a substitute for the protective ground, Lightening Protection System. Connect the Comet CAG-300X to the protective earth, such as an outlet with a protective earth terminal or ground surface as needed.

Frequency range: 1.8 - 54 MHz
Shipped next business day
€239.62 (239.62 excl. 0% VAT)

Electrical data

  • Backlight display / meter: Yes
  • Voltage: 13.8 Volt, for display lightning only

Mechanical data

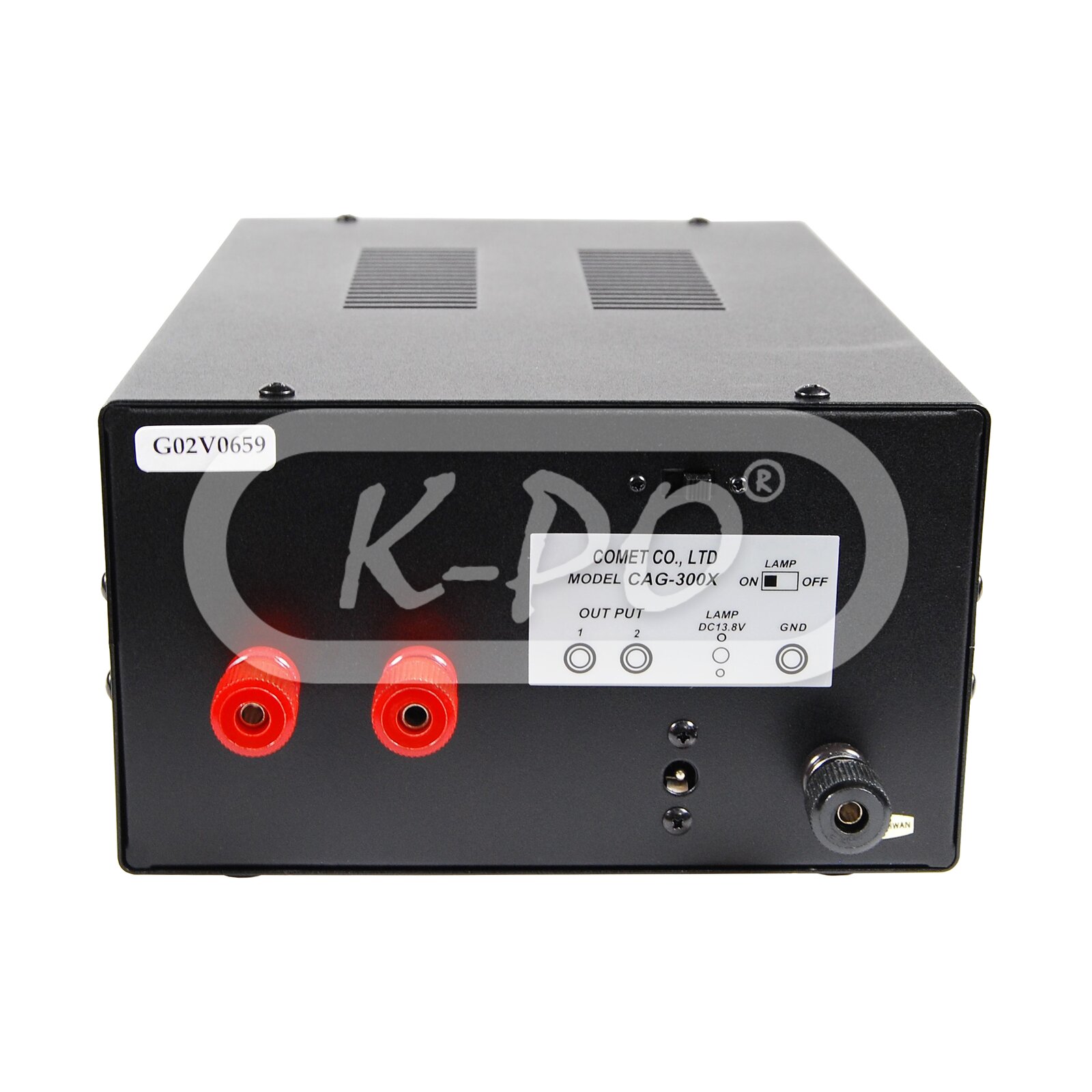

  • Output connector: 2x Binding posts
  • Length: 280 mm
  • Height: 100 mm
  • Width: 165 mm
  • Weight: 1700 gram

Inside the box

  • Tuner: Yes
  • DC power cable: Yes
  • Installation manual: English
