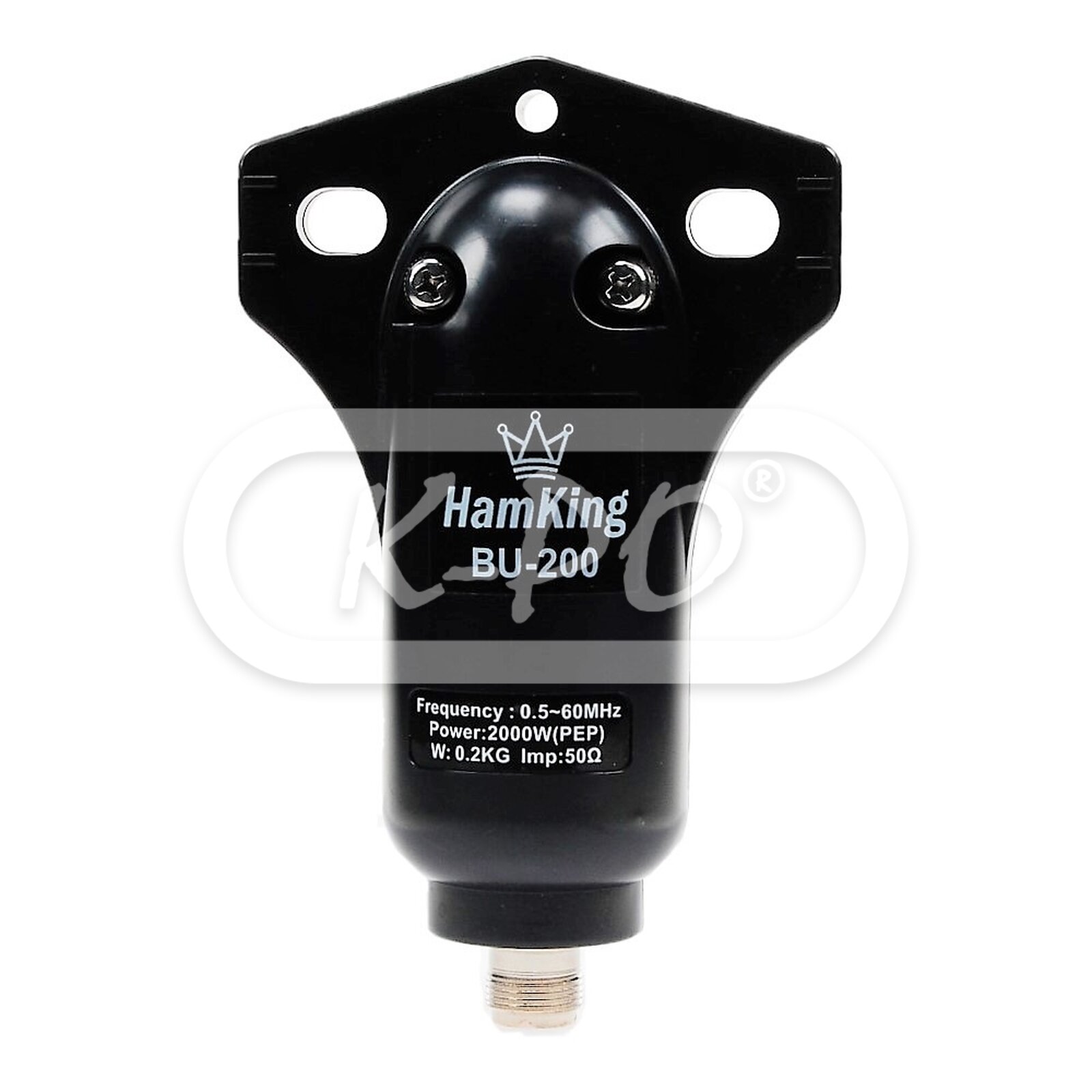

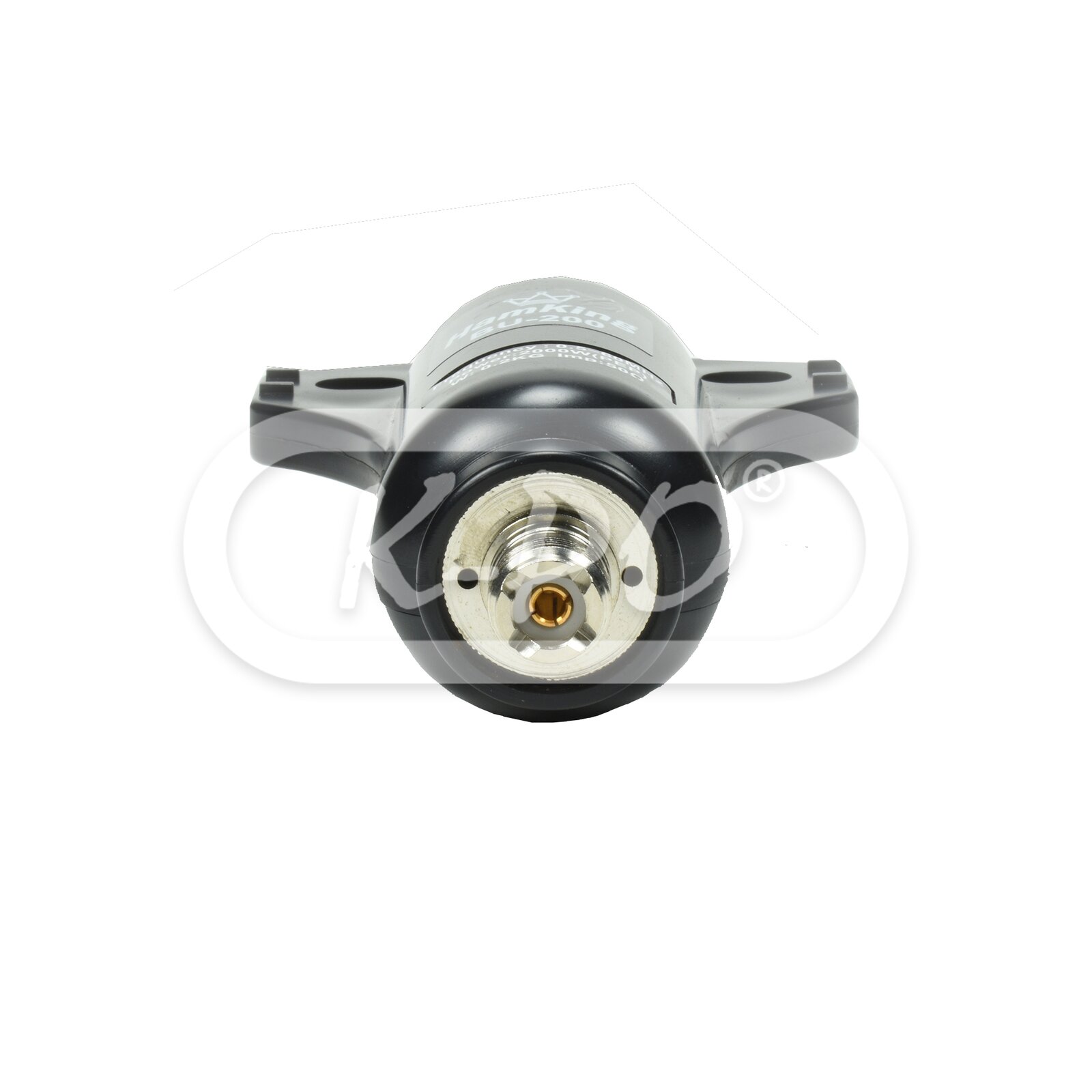

HamKing - BU-200

Product code: 6117
Factory code: 6117
Barcode: 8718375101636

The HamKing BU-200 1:1 balun can be used to create your own wire antenna or as a replacement in an existing antenna. The BU-200 can be used from 0.5 to 60 MHz. maximum power is 2000 watts PEP.

Frequency range: 0.5 - 60 MHz
Shipped today
€39.63 (39.63 excl. 0% VAT)

Electrical data

  • Power peak: 2000 Watts
  • VSWR: 1.1
  • Impedance: 50 Ohm
  • Frequency band: HF

Mechanical data

  • Connector(s) type in: UHF (PL) female
  • Length: 155 mm
  • Height: 95 mm
  • Width: 50 mn
  • Weight: 200 gram
